Product Description

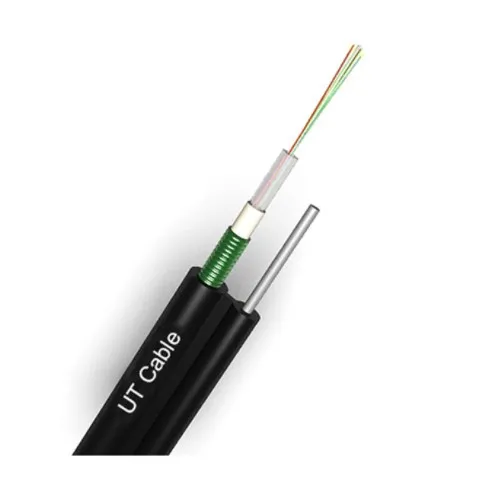

UT-King fiber optic drop cable GYXTC8S Outdoor Cable high quality outdoor fiber optical cable with anatel certificate

Overview

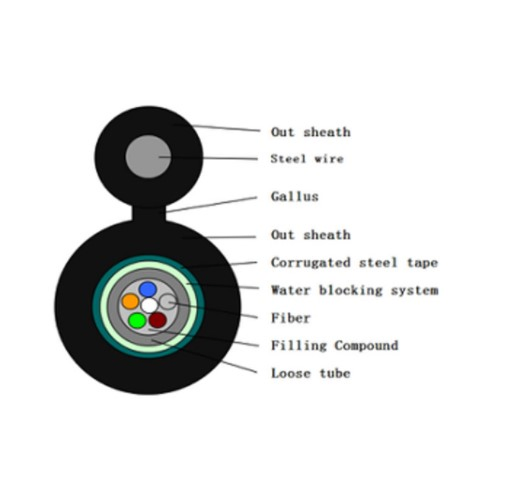

The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coat steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.

Main Features

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Small diameter, light weight and easy to lay.
PSP enhancing moisture-proof
Long delivery length and low price
The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs.

Parameter

No. of cable		12
Fiber Model		G.652D
Loose Tube	Material	PBT
	Diameter (±0.06) mm	2.0
	Thickness (±0.03) mm	0.32
	The Max. Core NO./Tube	12
Strength Member (Material)		Aramid Yarn
Ripcord (Material)		Nylon
Outer Sheath	Material	MDPE
Outer Sheath	Thickness (±0.1) mm	1.2
Web	Material	MDPE
Web	Size (±0.1) mm	2.0*1.5
Messenger Wire	Material	Galvanized steel wire
Messenger Wire	Size (±0.1) mm	2.77
Cable Diameter (±0.2) mm(W×H)		5.3x12.5
Cable Weight (±10) kg/km		82
Attenuation	1310 nm	£0.35
Attenuation	1550 nm	£0.21
Min. bending radius Without Tension	Min. bending radius	Min. bending radius
Min. bending radius Without Tension	Without Tension	Without Tension
