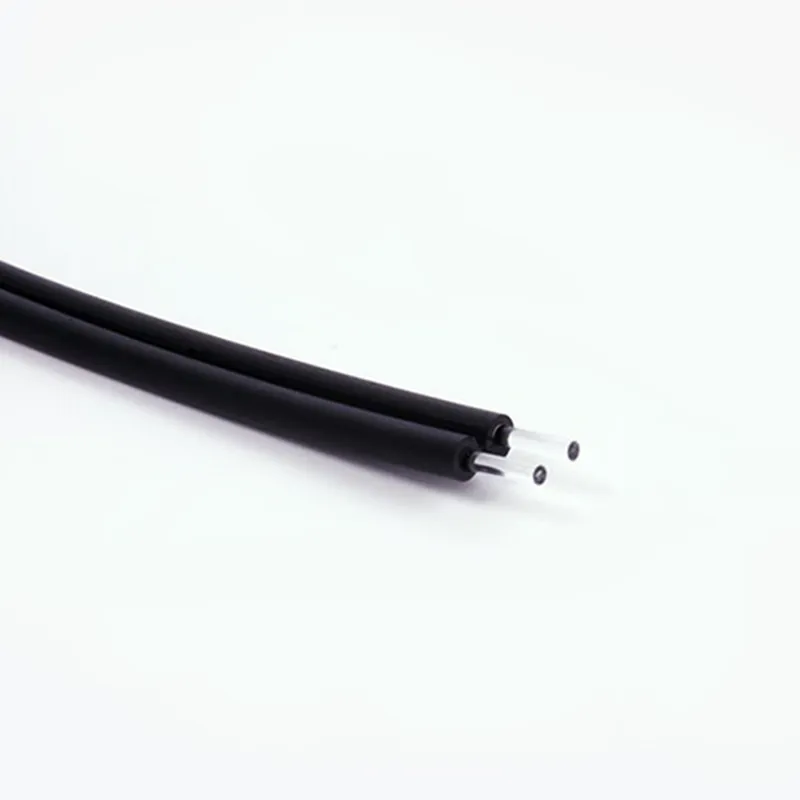

Plastic Optical Fiber for Data Transmission POF Cable PMMA
Quick Details:Model Number:CD-1000-2 Place of Origin:Jiangxi, ChinaBrand Name:Dspof Number of Conductors:2Test report:SGS,REACH Fiber grade:C grade with a cladingFiber diam......
Send Inquiry
Product Description
Model Number:CD-1000-2 Place of Origin:Jiangxi, China
Brand Name:Dspof Number of Conductors:2
Test report:SGS,REACH Fiber grade:C grade with a clading
Fiber diameter:1mm Outer diameter:2.2±0.07
Attenuation(dB/KM):≤200 N.A:0.3/0.5
Jacket materials:Black PE Operation temp(°C):-50~+70
Spool length:1250 meters Core Material:PMMA
1000000 Meter/Meters per Day Plastic fiber optic cable
Plastic fiber optic cable packing : 41.5cm*41.5cm*41.5cm carton box
Port: Shenzhen
Lead Time:
| Quantity(Meters) | 1 - 10000 | >10000 |
| Est. Time(days) | 15 | To be negotiated |

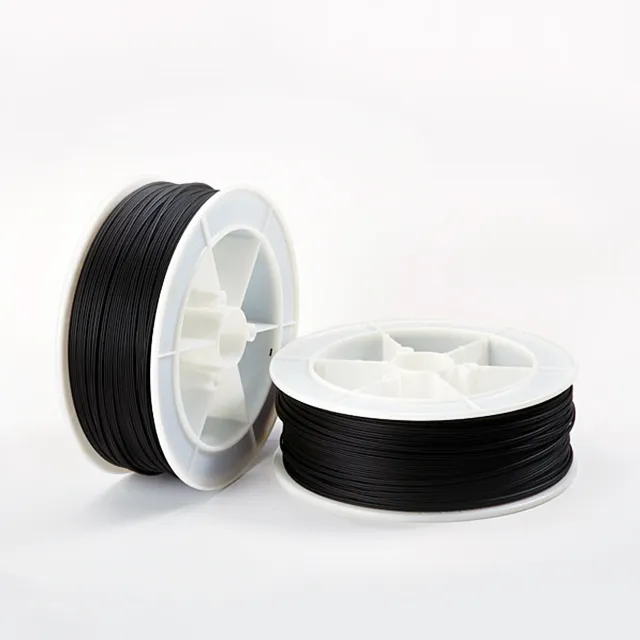

Plastic fiber optic cable for data transmission pof cable PMMA
fiber optic cable,PMMA fiber optic cable
1.High bandwith fiber optic cable
2.ISO9001
3.Low attenuation
4.toslink cable
plastic fiber optic cable for data transmission
fiber optic cable,PMMA fiber optic cable
The feature of fiber optic cable
1. Immunity to electromagnetic interference.
2. Using eye-safe visible red light, troubleshooting is quick and easy.
3. Quick and low cost for installation.
4. Light weight, excellent toughness and durability, bending free and easy disposal.
5. Water proof, moisture proof, free of magnetic and thunders.
6. More flexible and cost-effective than copper networking wiring,
The application of fiber optic cable
1. Automobiles (Transmission medium of most data bus).
2. Consumer electronics (CD, DVD, IPTV, CCTV, Intelligent Home, etcs)optical cable
3. Industry control toslink,patch cord
4. LANS, FTTH/FTTD
5. Medical equipment
6. Illumination and decoration
7. Others
| Product Code | fiber dia (mm) | Outer dia.(mm) | Attenuati on (dB/KM) | N.A | Jacket materials | Operation temp. (°C) | Spool length (m) |
| CB-500-1 | 0.5 | 1.0 ±0.07 | ≤210 | 0.3/0.5 | Black PE | -50~+70 | 6000 |
| CC-750-1 | 0.75 | 2.2 ±0.07 | ≤200 | 0.3/0.5 | Black PE | -50~+70 | 2500 |
| CD-1000-1 | 1.0 | 2.2±0.07 | ≤200 | 0.3/0.5 | Black PE | -50~+70 | 2500 |
| CE-1500-1 | 1.5 | 3.0±0.07 | ≤200 | 0.3/0.5 | Black PE | -50~+70 | 700 |
| CF-2000-1 | 2.0 | 3.8±0.2 | ≤200 | 0.3/0.5 | Black PE | -50~+70 | 350 |
| CB-500-2 | 0.5 | 1.0X2±0.2 | ≤210 | 0.3/0.5 | Black PE | -50~+70 | 3000 |
| CC-750-2 | 0.75 | 2.2X4.4 ±0.2 | ≤200 | 0.3/0.5 | Black PE | -50~+70 | 1250 |
| CD-1000-2 | 1.0 | 2.2X4.4 ±0.2 | ≤200 | 0.3/0.5 | Black PE | -50~+70 | 1250 |
1, Are you trading company or manufacturer?

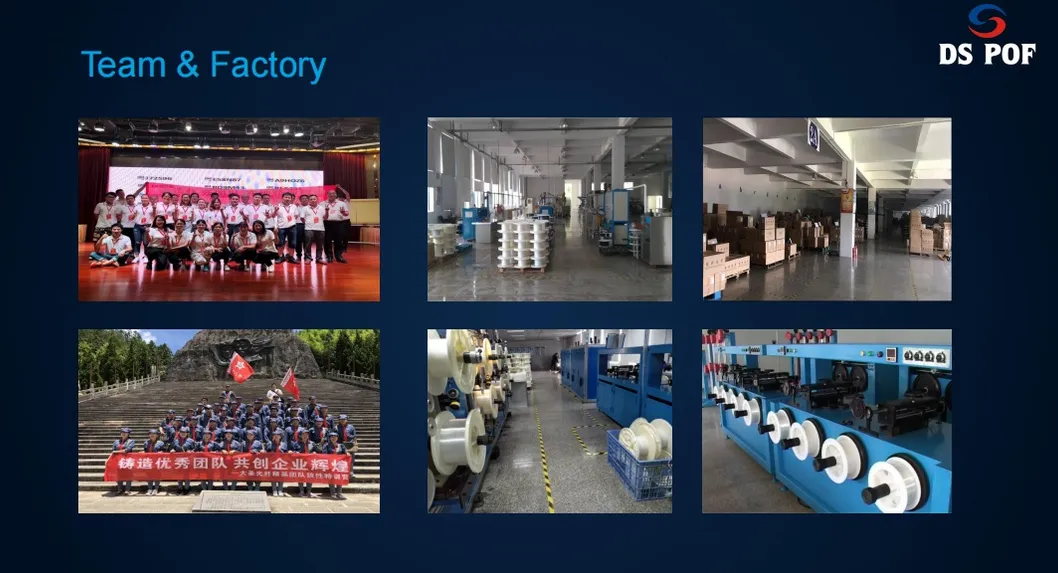

The biggest manufacturer of POF(Plastic optical fiber) and optical cable in China.
20 years experience in POF manufacturing with13 proprietary intellectual property including 5 invention patents.
Participant Makers of national standards in POF.
2, How do you shipping the goods?
About one week by courier company.
By Sea/Air as request
3, What Terms of Payment do you support?
T/T, L/C
4, Where is your location ? How can I visit there ?

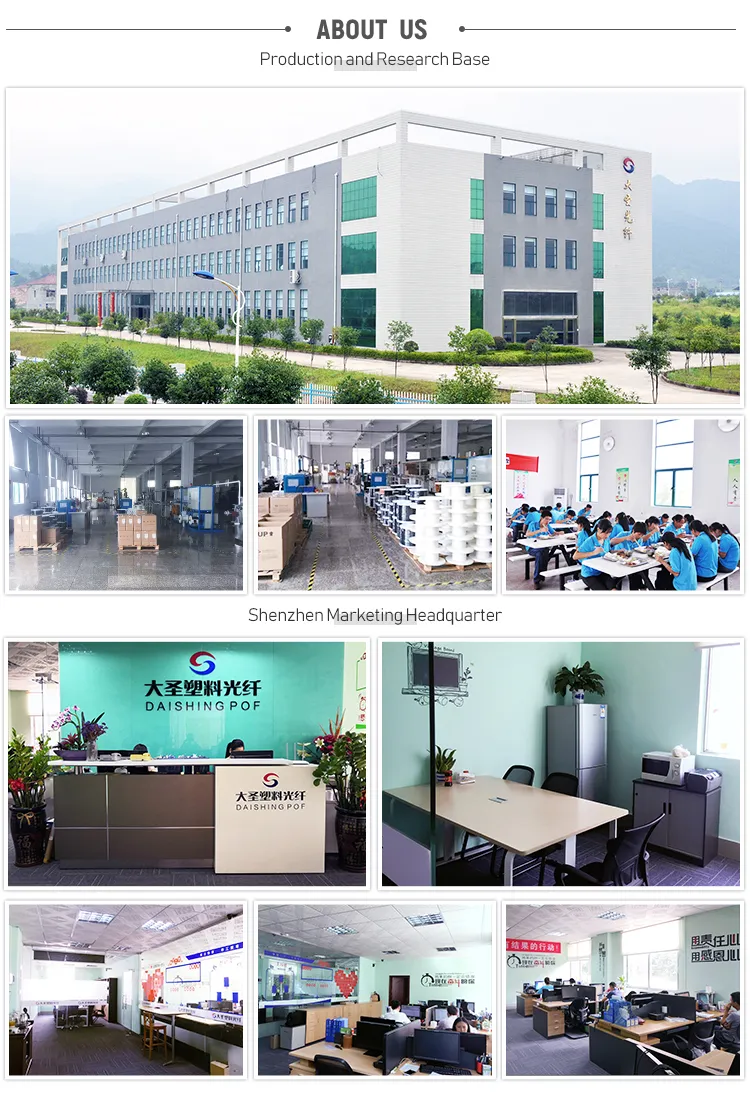

Our factory is located in No. 6 Bijiashan Road, Xincheng Industrial Park, Jinggangshan City, Jiangxi Province, 343600, Pr China
Warmly welcome you to have a visit to us at your convenience.
