Product Description

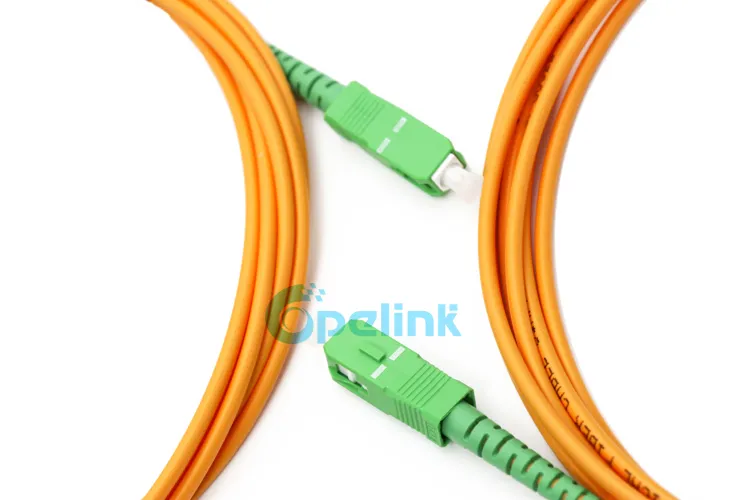

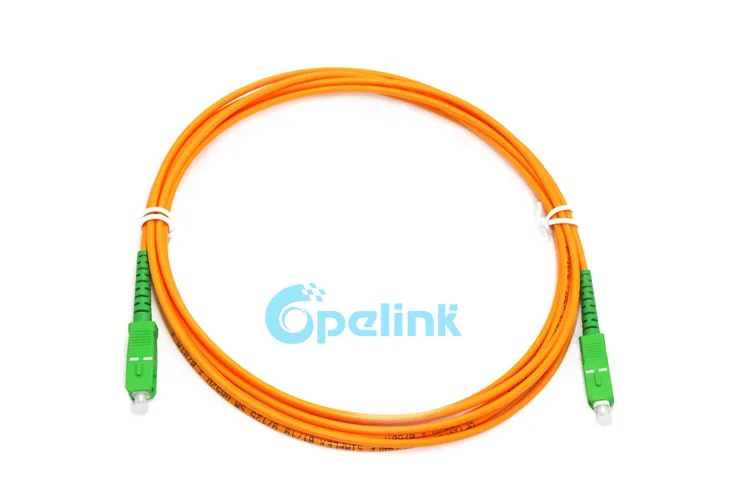

SC/APC - SC/APC Fiber Optic Patch Cord, Economy SC/APC Simplex Fiber Optic Patch cables, hight Quality Singlemode OS2 Fiber Optic Jumper

The fiber optic patch cord is a length of fiber optic cable terminated at both ends with connectors that allow it to be rapidly and conveniently connected to telecommunication equipment. Whether they are called a patch cord, patch cable or fiber optic jumper.

Features:
Low insertion loss and High Return Loss
Good durability
Good exchangeability
High temperature stability
compliant with standards of Telcordia GR-326-CORE
Application:
Optical Fiber Communication Systems
Optical Access Network
Fiber optic data transmission
Optical Fiber CATV
Local Area Network (LAN)
Test Equipment
Description:
Connector:SC,FC,ST,LC,MU,MTRJ,E2000, etc
Polishing type:PC,UPC,APC
Fiber Type:Singlemode(G652D,G657A),Multimode(OM1,OM2,OM3,OM4)
Fiber cable:Simplex,Duplex,Multi-core,Ribbon,Distribution, Armoured, etc
Cable OD:0.9mm,2.0mm,3.0mm,etc
Cable Material:PVC-OFNR,PVC-OFNP,LSZH, etc
Patchcord Length:1m,2m,etc

Optical Specifications:

Parameter	Singlemode Patchcord			Multimode Patchcord
Polishing Type	PC	UPC	APC	PC
Insertion loss(dB)	<=0.3dB,MTRJ<=0.5dB	<=0.3dB	<=0.3dB	<=0.3dB,MTRJ<=0.5dB
Return loss(dB)	>=45dB,MTRJ>=35dB	>=55dB	>=65dB
Operating temperature	-20ºC~75ºC
Storage Temperature	-40ºC~75ºC
100 mating cycles loss	I.L changed≤0.1dB
Durability	>1000 cycles

Geometric Specification:

Parameter	PC Polishing		APC Polishing
Parameter	SC Type	LC Type
R.O.C	10~25mm	7~25mm	5~12mm
Apex Offset	<50um	<50um	<50um
Fiber Height	-125nm-50nm		-100nm-100nm
Polishing Angle			8°± 0.3°

Ordering information:

Type	Fiber Core	Cable Type	Cable OD	Cable Material	Cable Color	Connector (A End -B End)	Patchcord Length
PT=Patchcord PY=Pigtail	S1=G652D S2= G657A1 M1=50/125 M2=62.5/125 M3=OM3 M4=OM4 XX=other	01=simplex 02=Duplex 03=Armoured 04=Distribution 05=Ribbon 06=breakout XX=other	01=OD 0.9mm 02=OD 2.0mm 03=OD 3.0mm XX=other	1=PVC(R) 2=PVC(P) 2=LSZH	01=Blue 02=Orange 03=Green 04=Brown 05=Slate 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12Color XX=other	01=SC 02=FC 03=ST 04=LC 05= E2000 06=SC/APC (Cone Type) 07= SC/APC (Step Type) 08= FC/APC (Cone Type ) 09= FC/APC (Step Type) 10=LC/APC 11=E2000/APC 12=MTRJ 13=MPO/PC 14=MPO/APC 15=D4 16=DIN 17=LX5 18=FDDI 00=None XX=other	005=0.5m 010=1.0m 020=2m 025=2.5m XXX=other

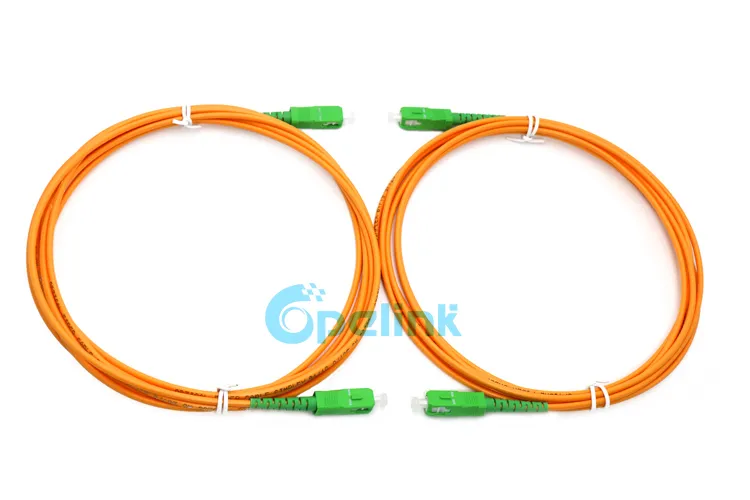

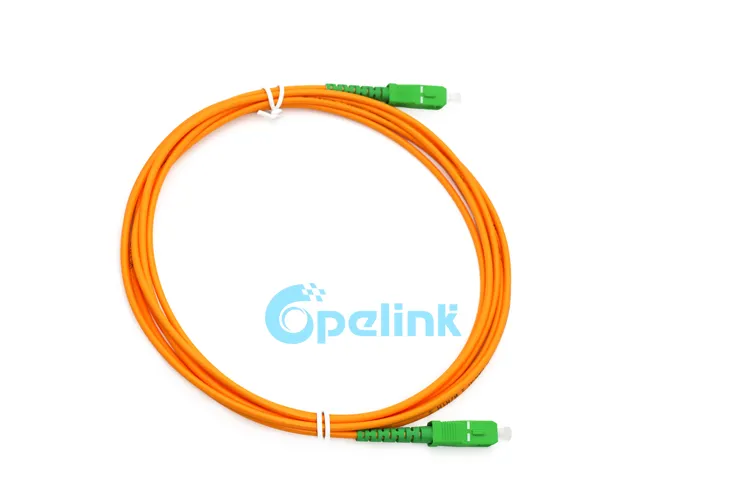

Sc/APC - Sc/APC Fiber Optic Patch Cord, Economy Sc/APC Simplex Fiber Optic Patch Cables, Hight Quality Singlemode OS2 Fiber Optic Jumper

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
