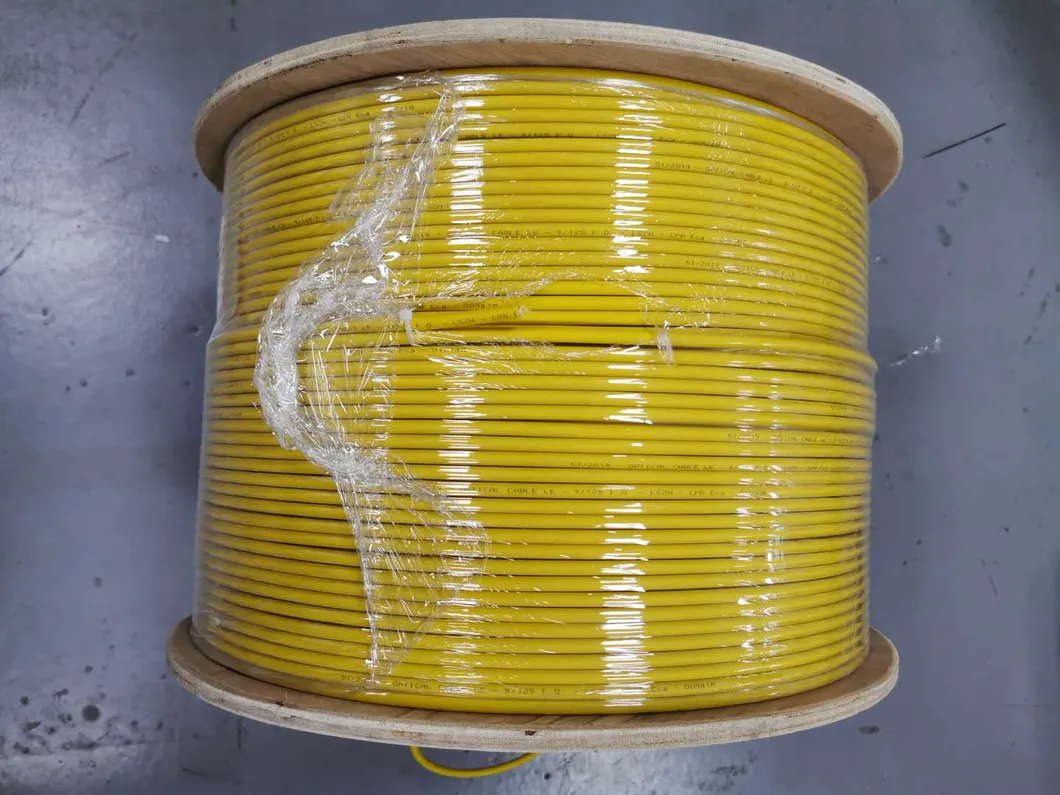

Fiber Optic 4 F. O. Breakout Cable G652D LSZH Yellow Color
Fiber Optic 4 F.O. Breakout cable G652D LSZH Yellow Color Product Description 1.High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission.2.Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft.3.Direct ......
Send Inquiry
Product Description
Fiber Optic 4 F.O. Breakout cable G652D LSZH Yellow Color
Speciafication
Product Description
1.High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission.
2.Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft.
3.Direct splicing between tight buffered cables and need to tie-in box or pigtail.
4.Suitable for installation, operation and convenient for maintenance.
5.2-44 cores for selection.
6.Low insertion loss, high return loss.
7.Good compatibility.
8.High precision of mechanical dimensions
9.High reliability&stability
10.PC/APC/UPC optional,cable length optional
2.Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft.
3.Direct splicing between tight buffered cables and need to tie-in box or pigtail.
4.Suitable for installation, operation and convenient for maintenance.
5.2-44 cores for selection.
6.Low insertion loss, high return loss.
7.Good compatibility.
8.High precision of mechanical dimensions
9.High reliability&stability
10.PC/APC/UPC optional,cable length optional
Application
1.Local Area Network (LAN)
2.Data communication network
3.Telecommunication optical transmission network
4.Optical access network(OAN)
5.Active device termination
6.Fiber optics data transmission(FODT)
7.Test Equipment
8.CATV
2.Data communication network
3.Telecommunication optical transmission network
4.Optical access network(OAN)
5.Active device termination
6.Fiber optics data transmission(FODT)
7.Test Equipment
8.CATV
Speciafication
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | APC | UPC | UPC | |
| Typical Insertion Loss (dB) | <0.2 | <0.2 | <0.1 | <0.1 | |
| Return Loss (dB) | >45 | >60 | / | ||
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (ºC) | -40~+80 | ||||
