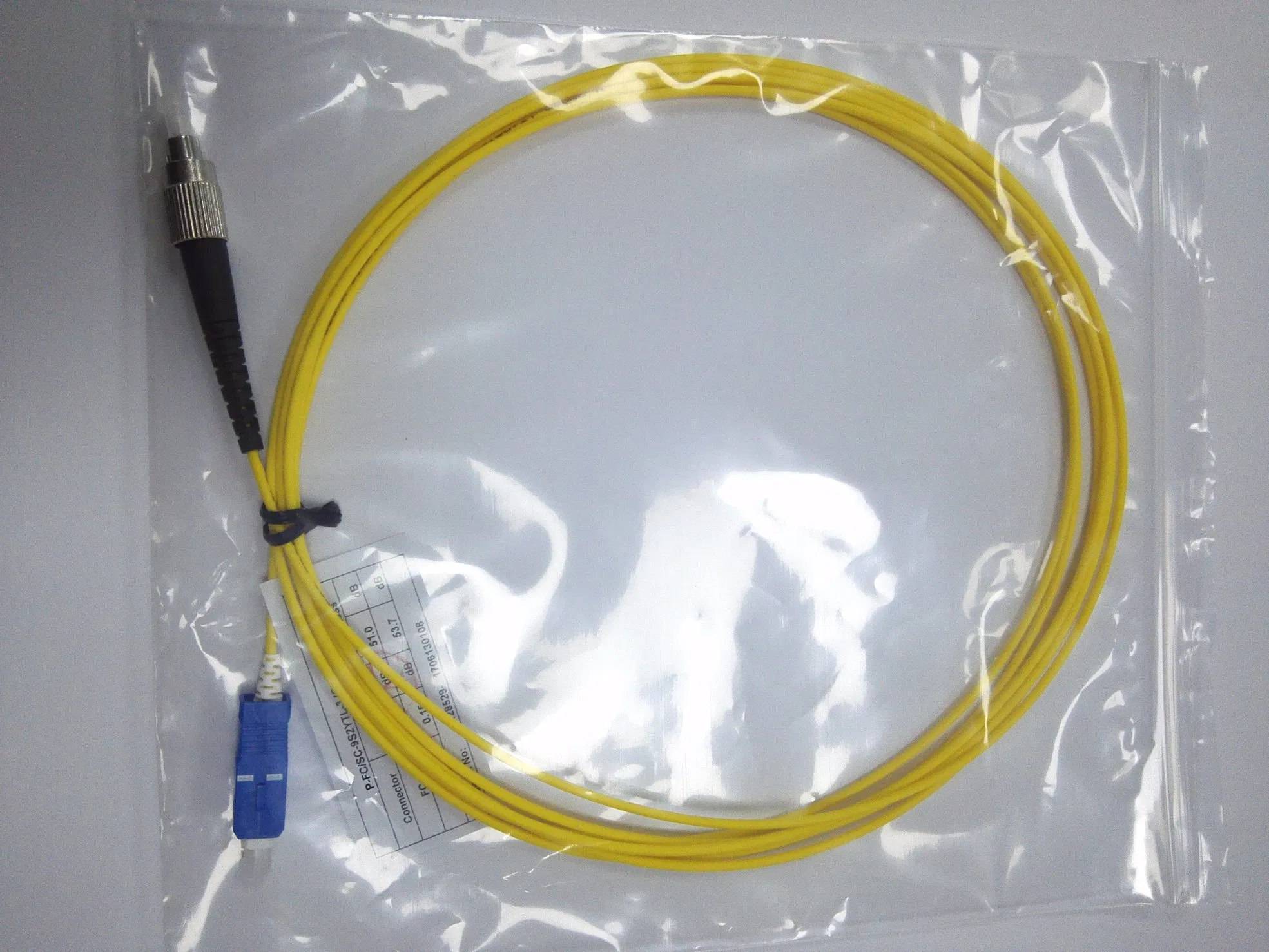

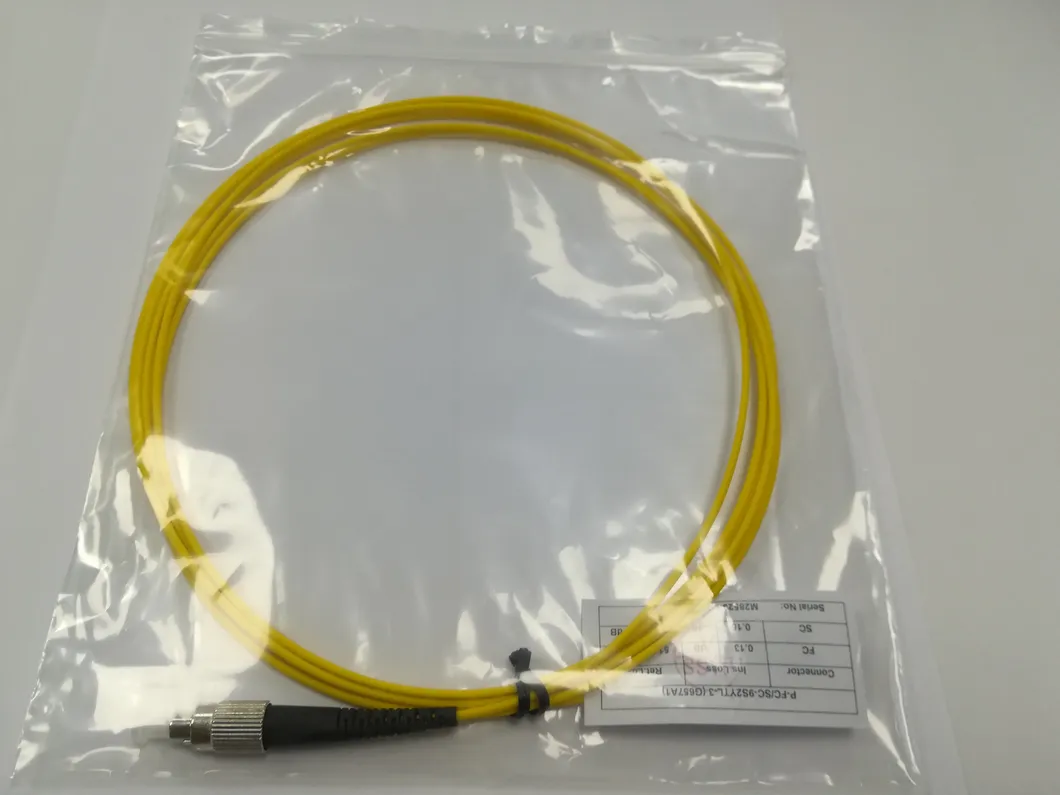

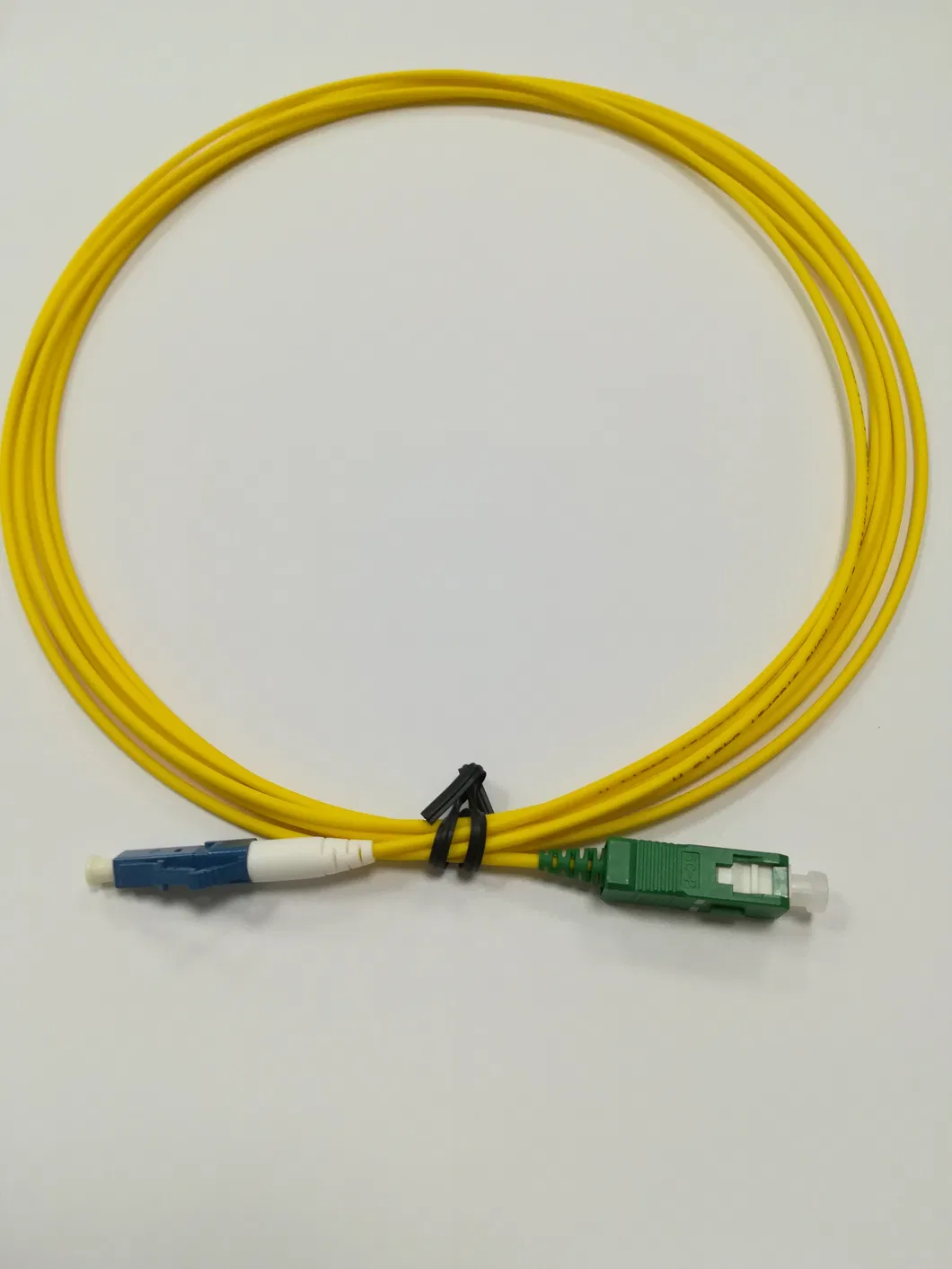

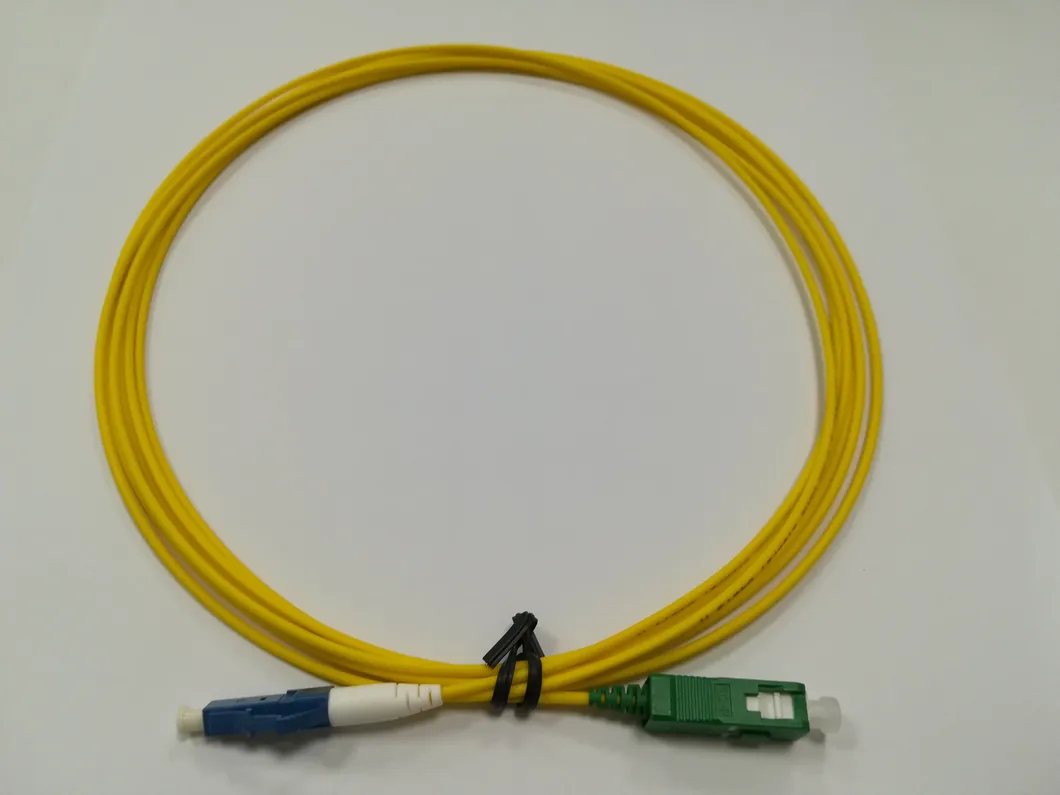

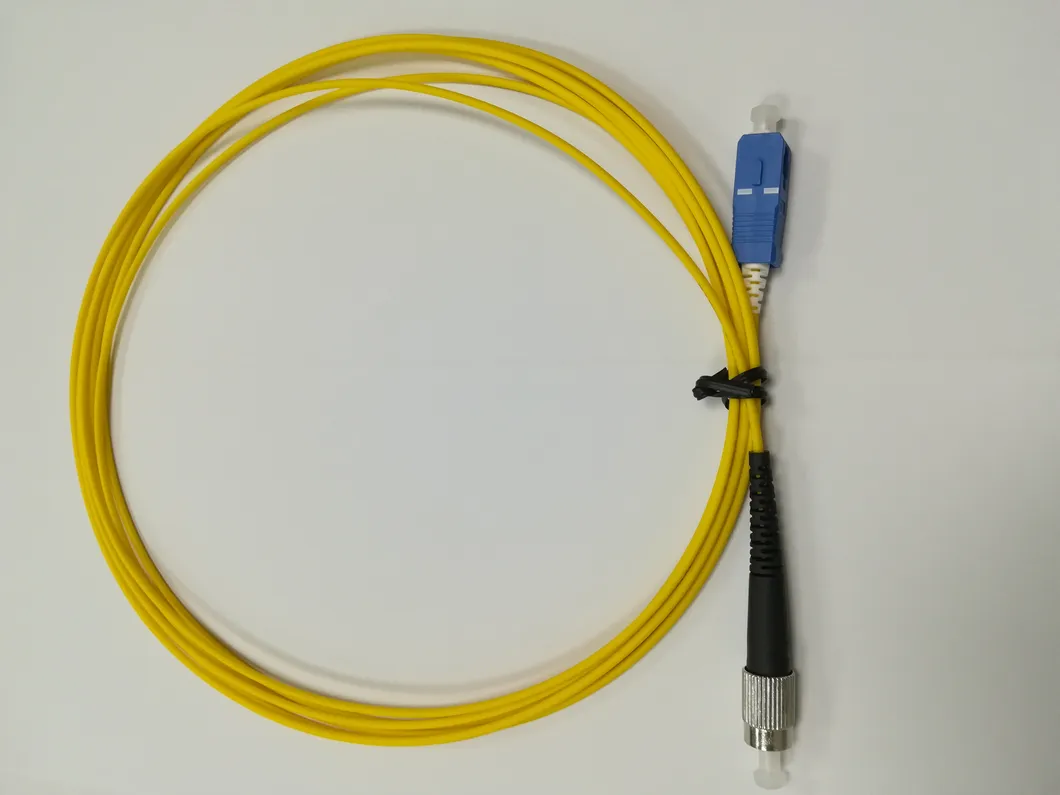

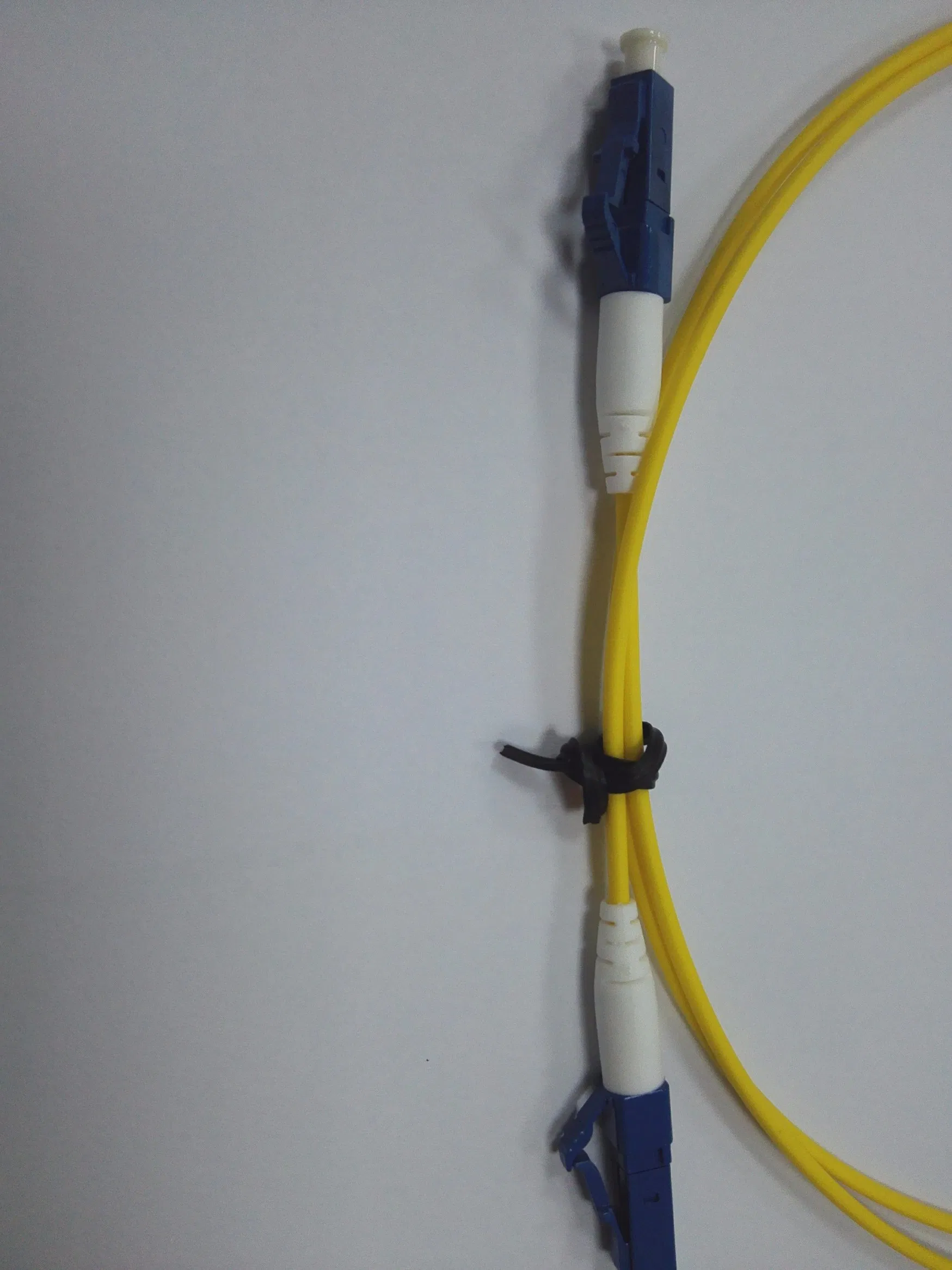

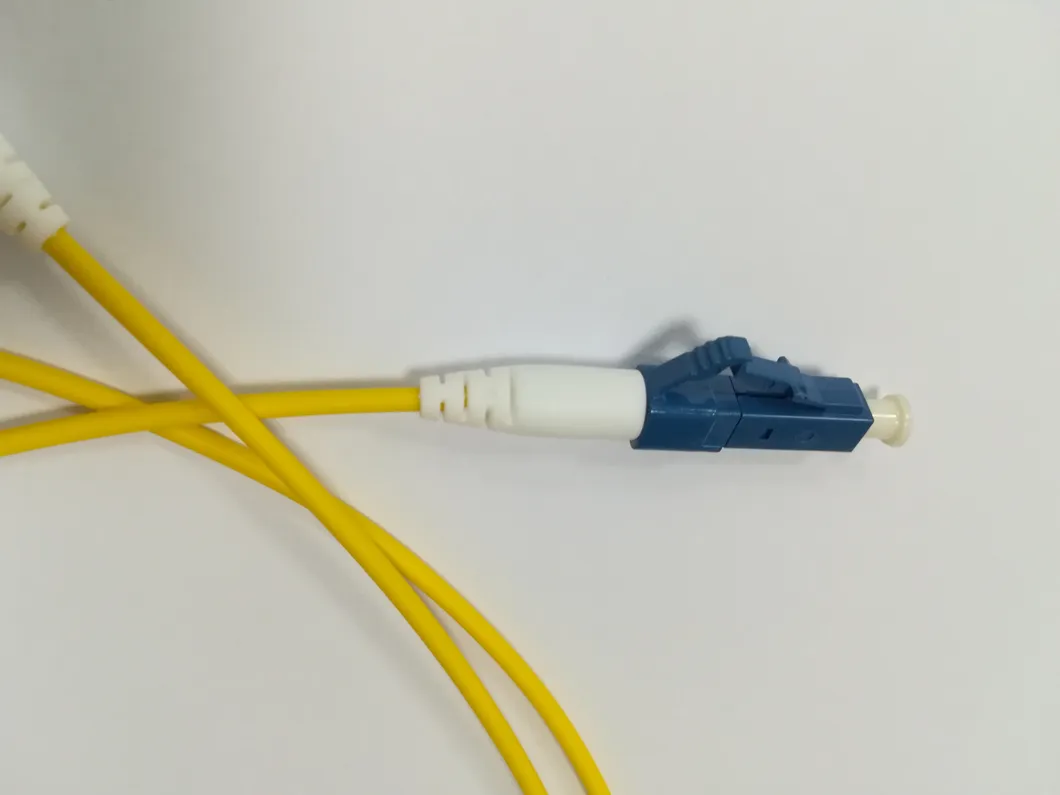

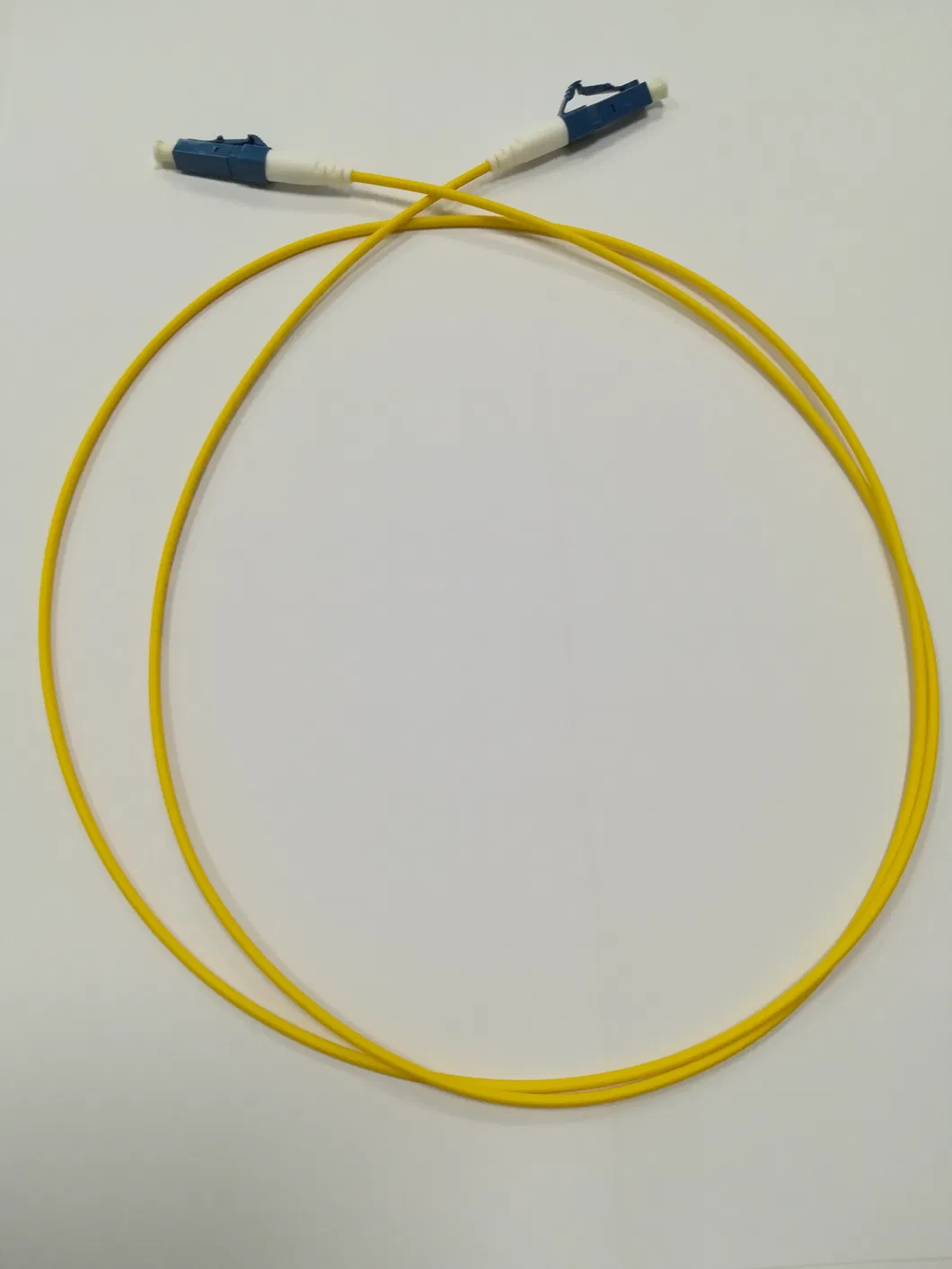

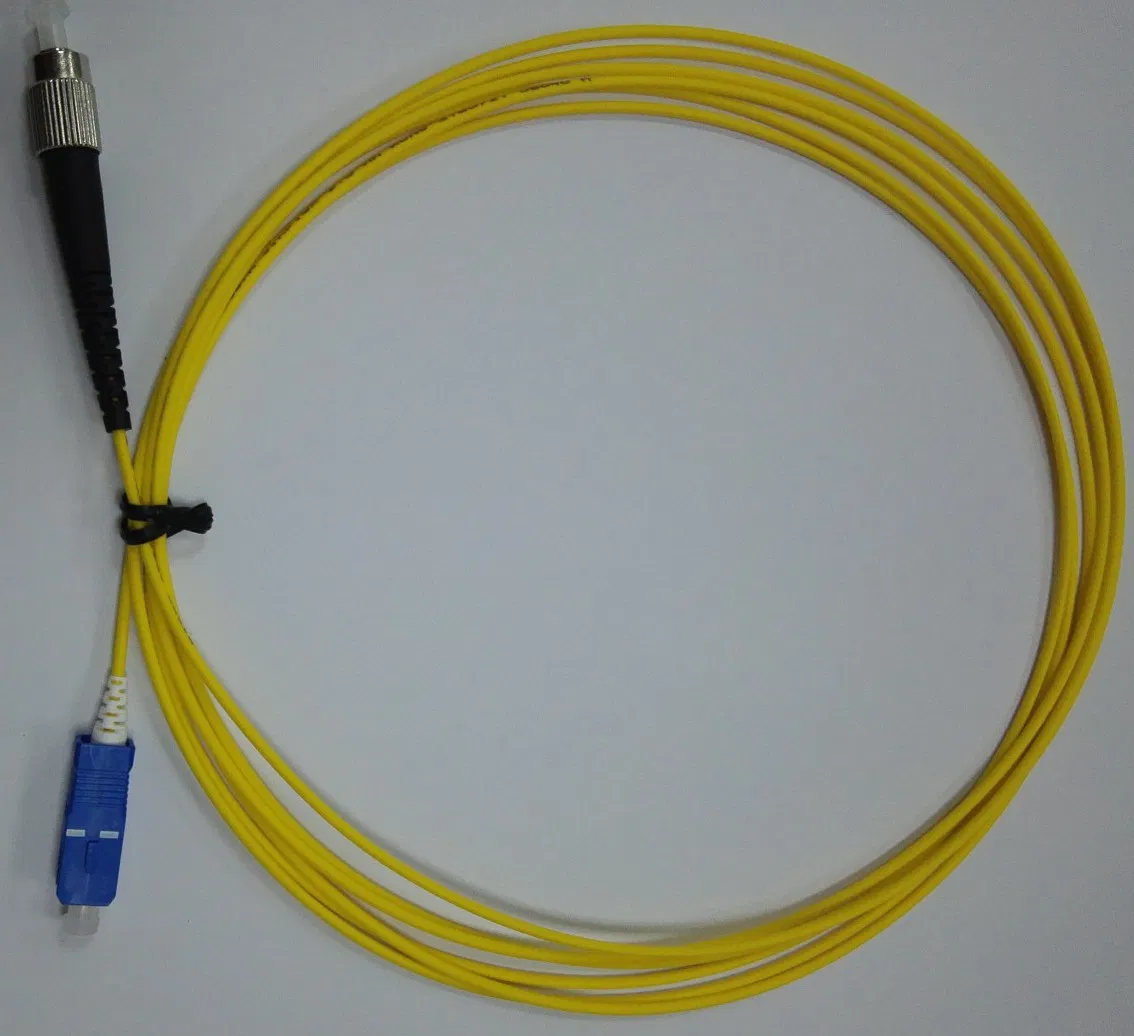

Optical Fiber Patch-Cord with Short Boot
APPLICATIONSCATVTelecommunication networksActive device terminationMetroLocal Area Networks (LANs)Data processing networksTest equipmentPremise installationsWide Area Networks (WANs)FEATURESLow insertion loss and back reflection loss Good exchangeabilityGood Durability ......
Send Inquiry
Product Description
APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
SPECIFICATIONS
| Single mode | Multimode | |
| Insertion Loss | Typical≤0.2dB, Maximum≤0.3dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC) ≥60 dB (APC) | ≥30 dB |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
ORDERING OPTIONS
| Connector Color | Boot (cable) Size | Boot Color | Fiber Type | Cable number | Application | Length |
| Beige | 0.9mm | Beige | 9/125μm (SM) | Simplex | PC | Customized |
| Blue | 2.0mm | Black | 50/125μm(MM) | Duplex | APC | |
| Green | 3.0mm | Blue | 62.5/125μm(MM) | Fan-out (4f) | ||
| Green | Fan-out (6f) | |||||
| Gray | Fan-out (8f) | |||||
| Red | Fan-out (12f) | |||||
| White | Fan-out (24f) |
