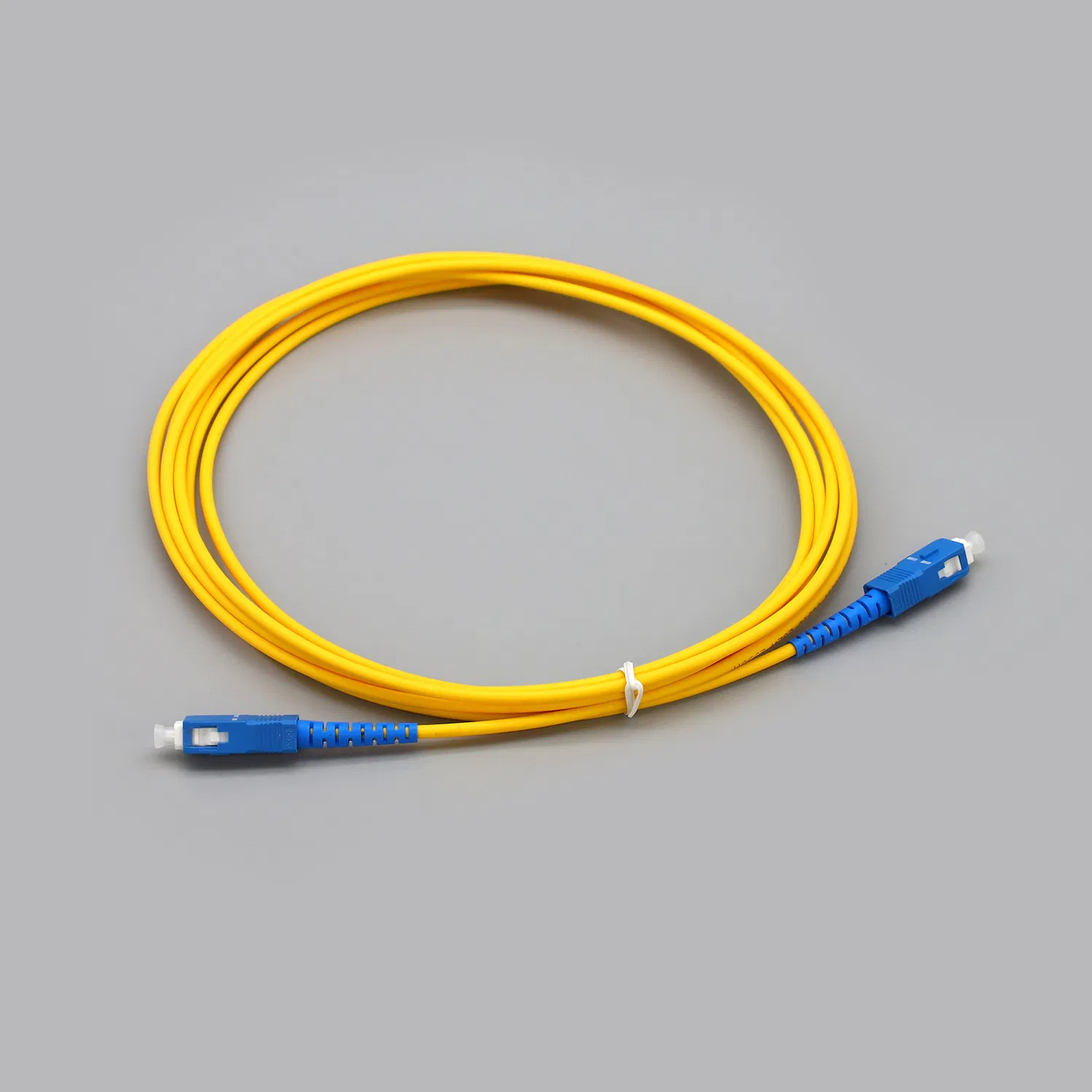

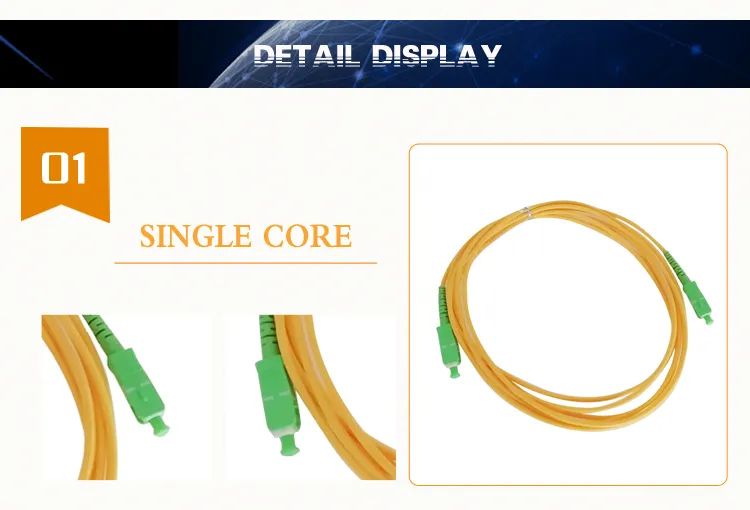

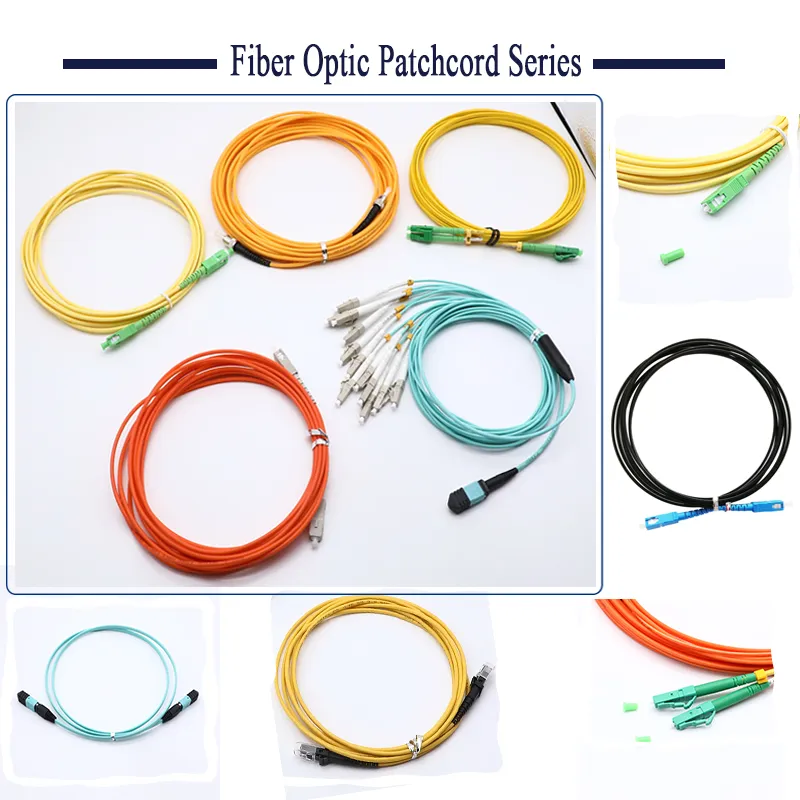

on Sale Sc Upc Sc Upc Fiber Optic Om3 Patch Cord
Description:Fiber Optic Patch Cable is also known as Fiber Optic Jumper or Fiber Optic Patch Cord. It is composed of a fiber optic cable terminatedwith different connectors on the ends. For the Fiber Patch Cables, there are two major application areas which are computer work stationto outlet and fib......
Send Inquiry
Product Description
Description:
Fiber Optic Patch Cable is also known as Fiber Optic Jumper or Fiber Optic Patch Cord. It is composed of a fiber optic cable terminated
with different connectors on the ends. For the Fiber Patch Cables, there are two major application areas which are computer work station
to outlet and fiber optic patch panels or optical cross connect distribution center. We provide various types of fiber patch cords including
single mode, multimode, multi core, and armored versions. You can aslo find fiber optic pigtails and other special patch cables here, even
we supply MPO/MTP fiber cables.Our Fiber Patch Cables are standard terminated with LC/SC/ST/FC/MTRJ/MU/SMA connectors on
both ends.
Features
Compliant with international standards such as ANSI, Bellcore, TIA/EIA, IEC, also accord with the industrial standards
of Telecom in China
Realize the active link of optic fiber transmission
Low insertion loss and high return loss
Excellent repeatability and interchangeability
Application:
CATV
LAN and Access Network
Telecom, Gigabit Data Network
Testing and Medical equipments
Industry and Military applications
Specifications
Parameters | Standard Fiber Cable Assemblies | |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3/OM4/OM5) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB) | ≤ 0.2dB | ≤ 0.3dB |
Return Loss(dB) | ≥50dB(PC/UPC) | ≥40dB(PC/UPC) |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | -40 ~ +85 | |

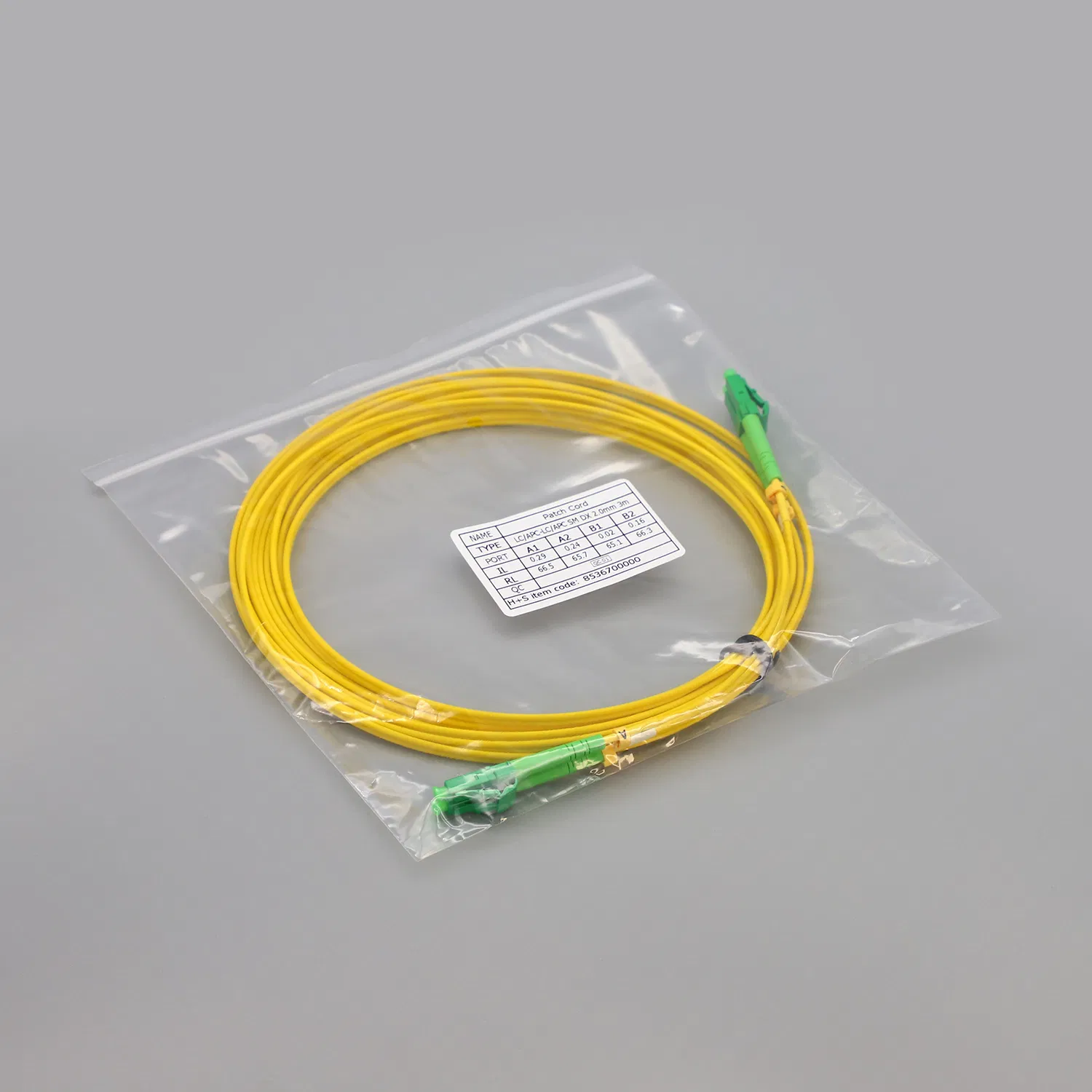

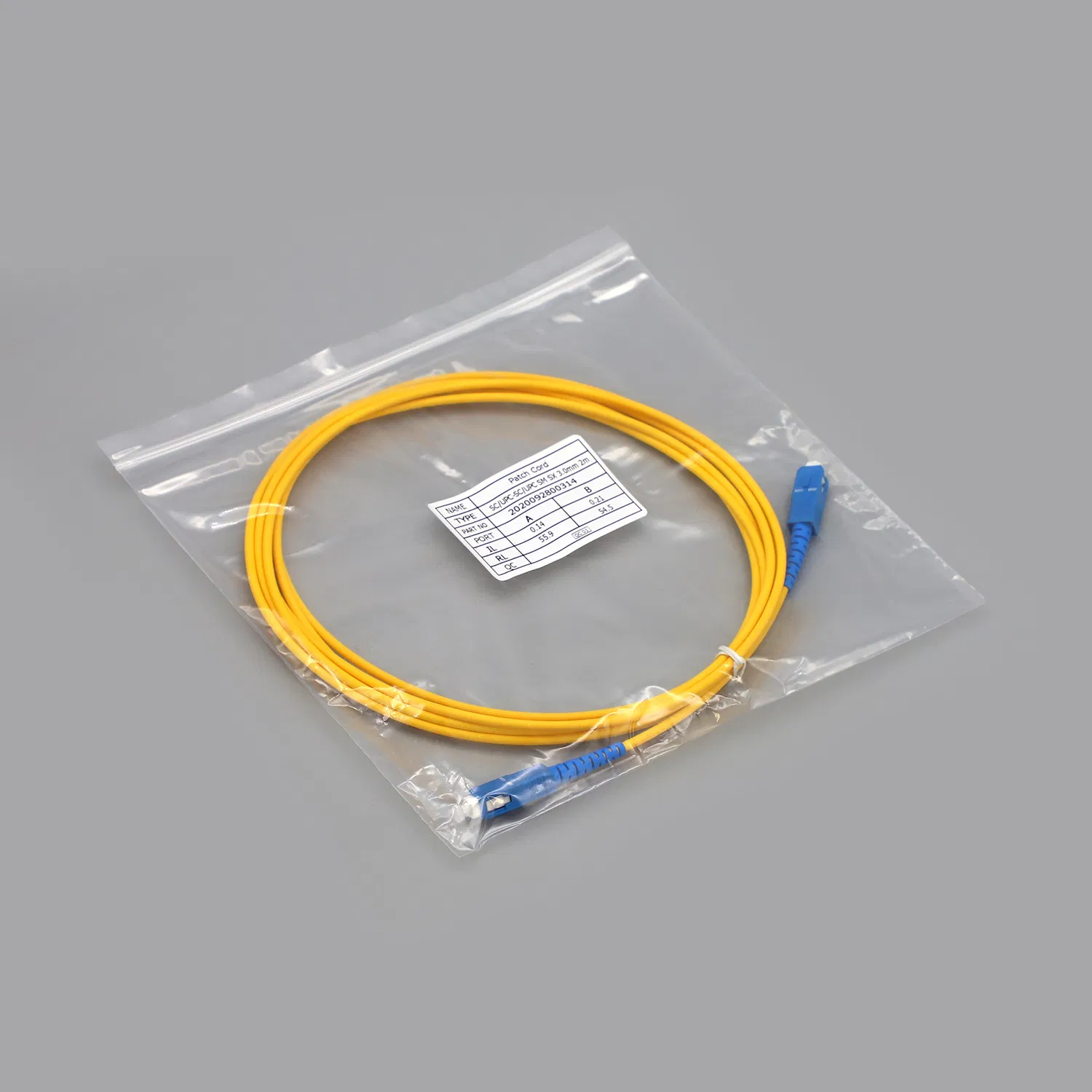

Package | 1unit/bag | |
All values specified are with connectors. | ||
Q1: How can i get your catalogue and price list?A1: Please let us know your email or contactus from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts formultiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Qingdao, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference,
our QC department will check the problem and give best solutions to you, Further-more we will also take
action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered
patent
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages
before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
