Product Description

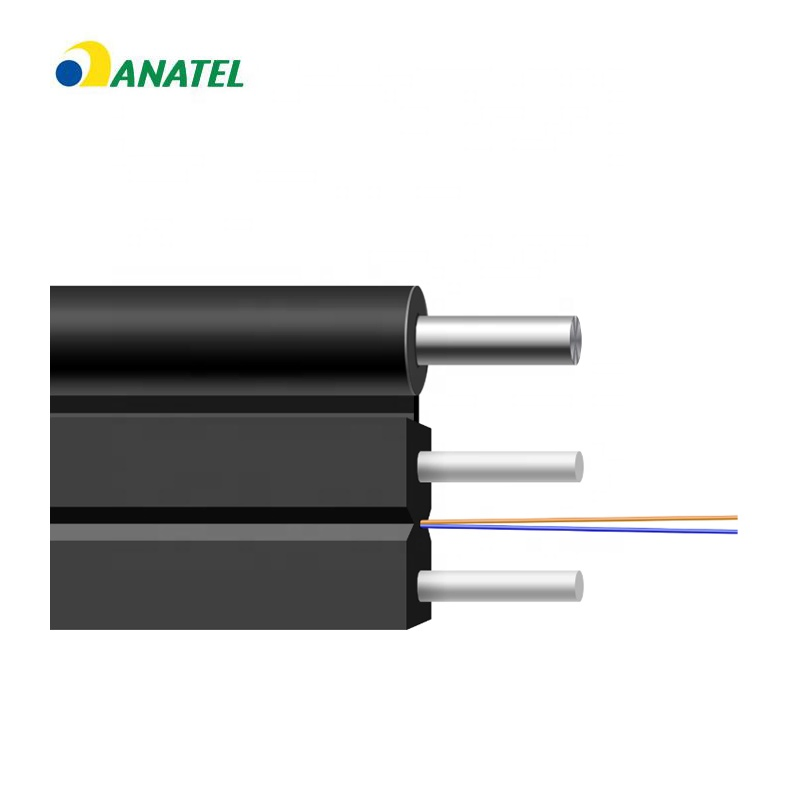

NECERO PE LSZH Outer sheath Aerial Install 2 FRP or Steel Wire Strength Member Outdoor FTTH FTTP FTTX Cable
Necero 20 years OEM manufacturers outdoor Single Mode Communication Fiber Optic Cable
FTTH
1-12 Cores
Special tube filling compound ensure a cntical protection of fiber
Special designed compact structure is good at preventing loose tubes from shrinking
Steel wire used as the central strength member
APL enhancing moisture-proof
| Fiber Count | Cable Diametter MM | Cable Weight Kg/KM | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)×(3.4±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| 3 | (2.0±0.2)×(3.8±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)×(4.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation (+20) | @850nm |
|
| ≤3.5 dB/km | ≤3.5 dB/km |
@1300nm |
|
| ≤1.5 dB/km | ≤1.5 dB/km | |
@1310nm | ≤0.45 dB/km | ≤0.50 dB/km |
|
| |
@1550nm | ≤0.30 dB/km | ≤0.50 dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm |
|
| |
| ·Characteristics |

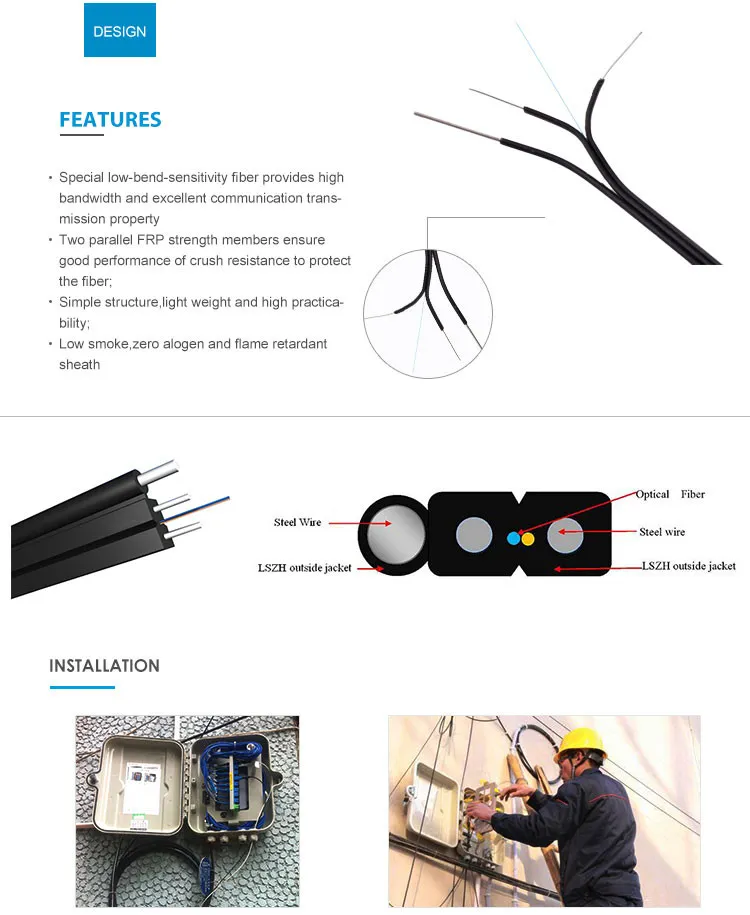

| · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property; · Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber; · Simple structure, light weight and high practicability; · Novel flute design, easily strip and splice, simplify the installation and maintenance; · Low smoke, zero halogen and flame retardant sheath. |
FAQ
1. Are you the real factory?
Yes,we are the real factory with 20 years' history.
2. What is your fiber brand?
Fiber brands including : NECERO,HANXIN,MECABLE
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years' Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
