              Necero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial Laying
              • Necero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial LayingNecero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial Laying
              • Necero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial LayingNecero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial Laying
              • Necero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial LayingNecero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial Laying
              • Necero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial LayingNecero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial Laying

              Necero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water- Blocking Tape GYXTW Aerial Laying

              NECERO 6 Core Armored Optical Fiber Cable With PE Outer Sheath and Water-Blocking Tape GYXTW Aerial Laying·Optical Characteristics G.652G.65550/125μm62.5/125μmAttenuation(+20)@850nm ≤3.0 dB/km≤3.0 dB/km@1300nm ≤1.0 dB/km≤1.0 dB/km@1310nm≤......

              Send Inquiry

              Product Description

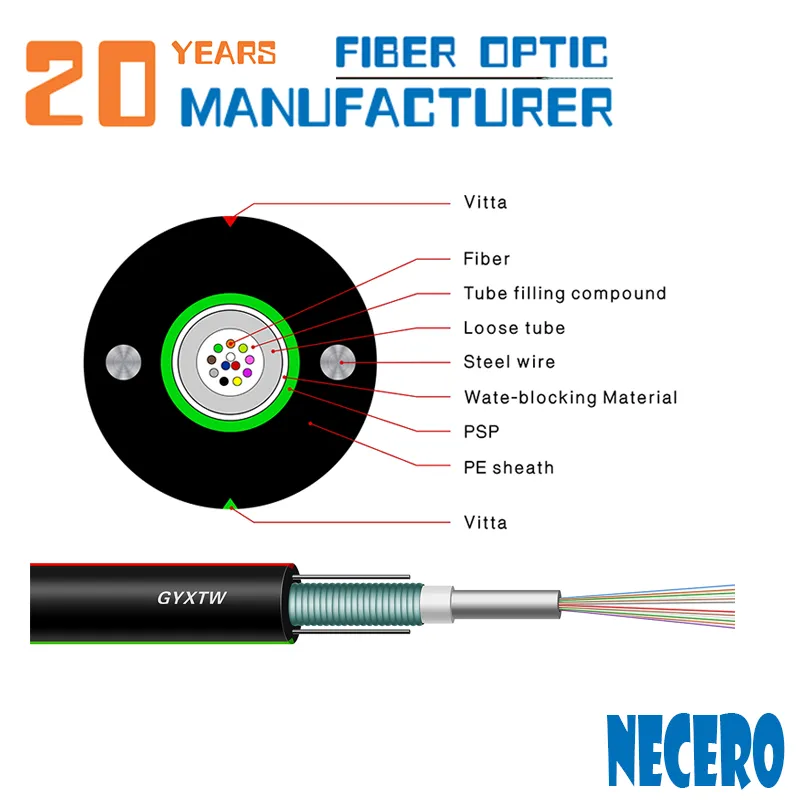

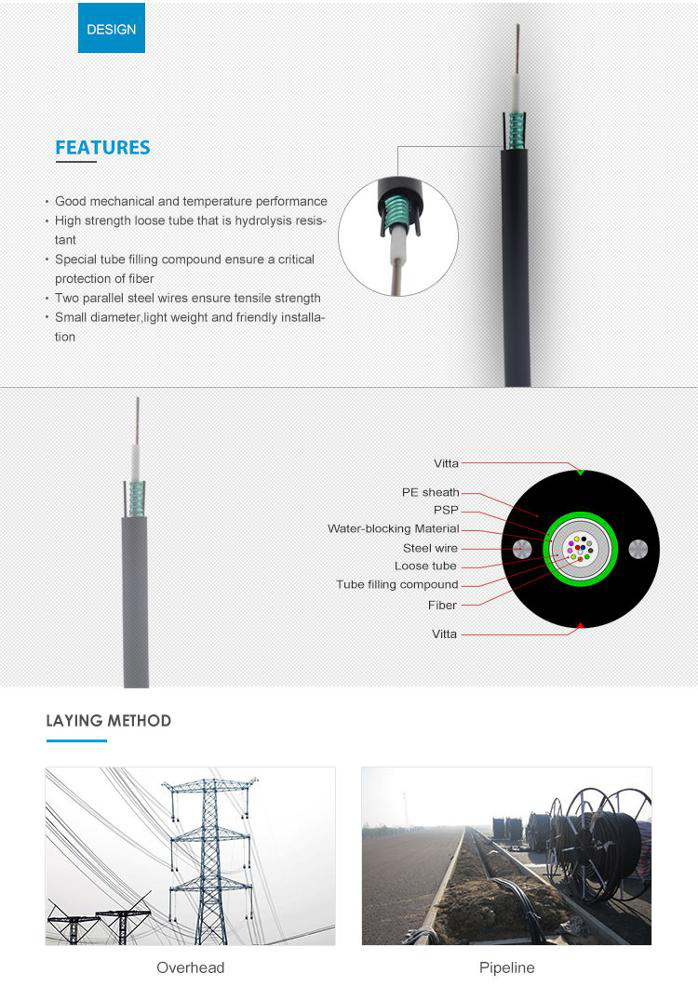

              NECERO 6 Core Armored Optical Fiber Cable With PE Outer Sheath and Water-Blocking Tape GYXTW Aerial Laying

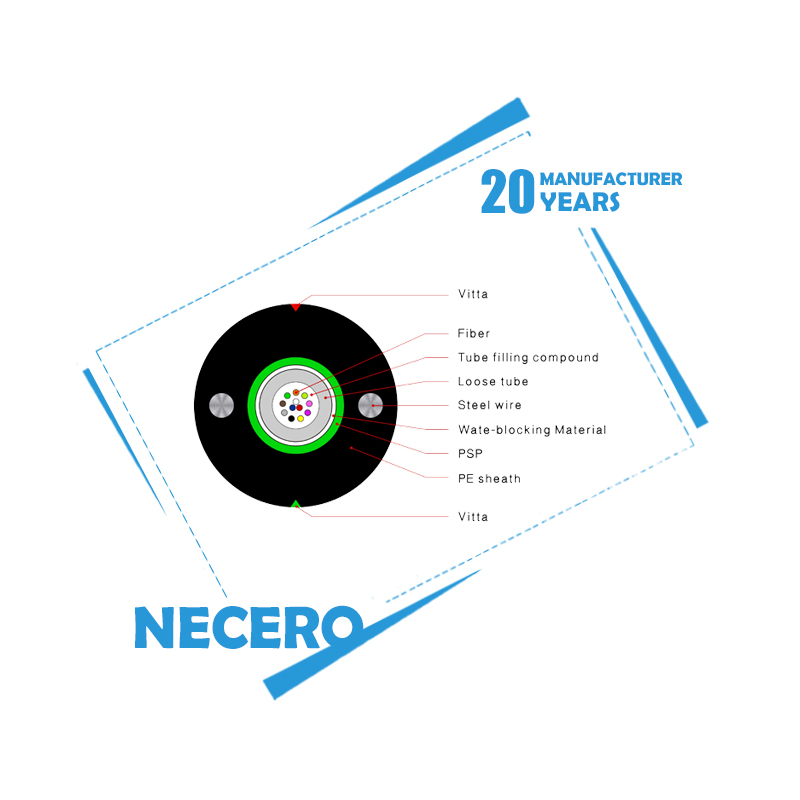

              GYXTW_01

              GYXTW_outdoorcable

              ·Optical Characteristics



              G.652

              G.655

              50/125μm

              62.5/125μm

              Attenuation

              (+20)

              @850nm





              ≤3.0 dB/km

              ≤3.0 dB/km

              @1300nm





              ≤1.0 dB/km

              ≤1.0 dB/km

              @1310nm

              ≤0.36 dB/km

              ≤0.40 dB/km





              @1550nm

              ≤0.22 dB/km

              ≤0.23dB/km





              Bandwidth (Class A)

              @850nm





              ≥500 MHz·km

              ≥200 MHz·km

              @1300nm





              ≥1000 MHz·km

              ≥600 MHz·km

              Numerical Aperture





              0.200±0.015NA

              0.275±0.015NA

              Cable Cut-off Wavelength λcc

              ≤1260nm

              ≤1480nm






              ·Technical Parameters

              Cable Type

              Fiber Count

              Cable Diameter

              mm

              Cable Weight kg/km

              Tensile Strength



              Long/Short Term N

              Crush Resistance



              Long/Short Term

              N/100mm

              Bending Radius



              Static
              /Dynamic

              mm

              GYXS/GYXTW-2~12

              2~12

              10.0

              105

              600/1500

              300/1000

              10D/20D

              GYXS/GY XTW-2~12

              2~12

              10.6

              124

              1000/3000

              1000/3000

              10D/20D

              GYXS/GY XTW-14~24

              14~24

              12.5

              149

              1000/3000

              1000/3000

              10D/20D

              GYXS/GY XTW-26~36

              26~36

              14.0

              190

              1000/3000

              1000/3000

              10D/20D

              GYXS/GY XTW-38~48

              38~48

              15.0

              216

              1000/3000

              1000/3000

              10D/20D

              Storage/Operating Temperature : -40 to + 70
              Product Description

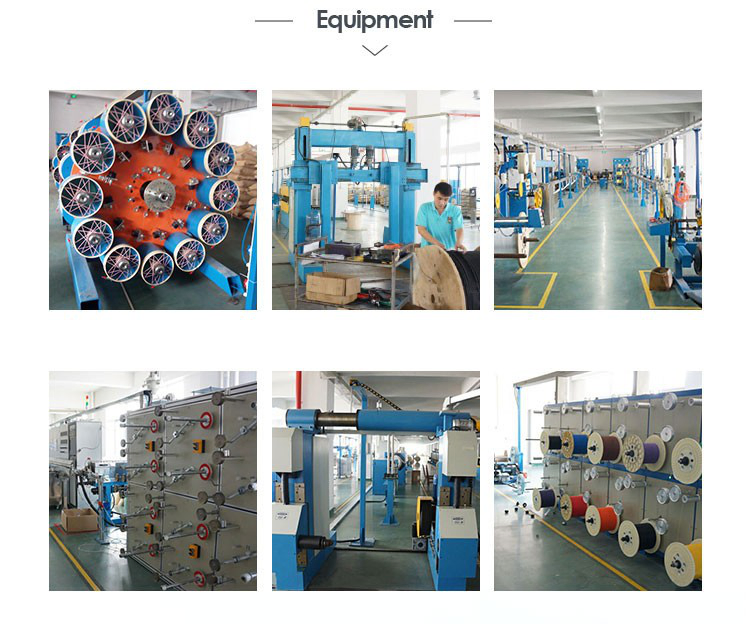

              NECERO Workshop

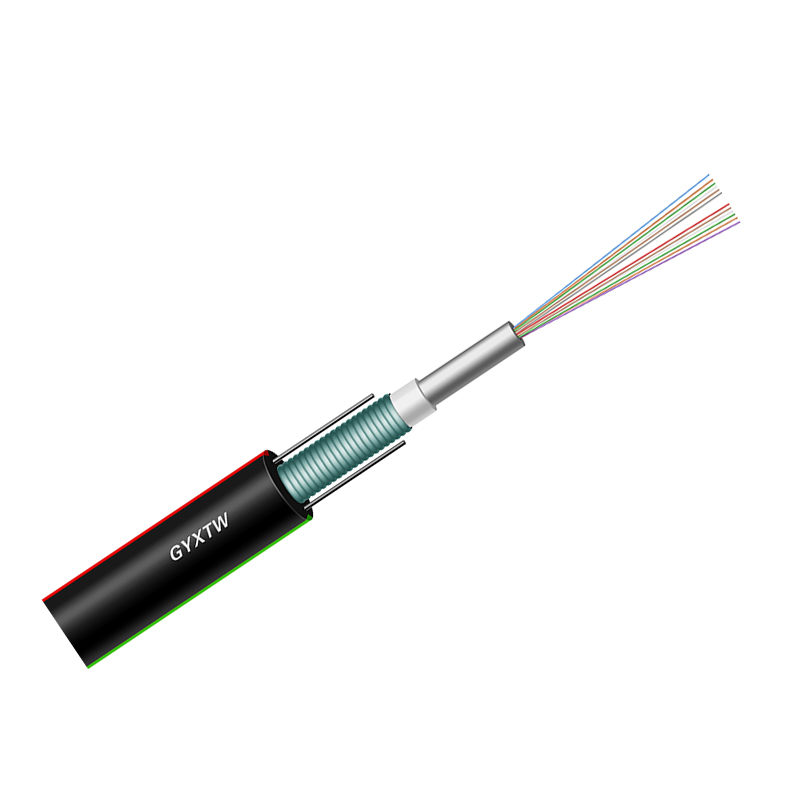

              Necero 6 Core Armored Optical Fiber Cable with PE Outer Sheath and Water-Blocking Tape GYXTW Aerial Laying




              FAQ

              1. Are you the real factory?

              Yes,we are the real factory with 20 years' history.



              2. What is your fiber brand?

              Fiber brands including :NECERO



              3. What is your main products?

              Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;

               Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



              4. Product quality guarantee period?

              25 years' Guarantee for fiber optic cable



              5. Do you have certificate for raw material?

              We build long-term relationship cooperation with qualified ISO9001, ROHS  raw material suppliers.



              6. What is your delivery time?

              Within 24 hours for 30KM normal kinds of fiber optic cable;

               1 ~2 days for fiber optic patch cords with 10000 connectors.



              7. MOQ: what is your minimum quantity?

              MOQ for fiber optic cables: 1KM

              There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds.



              8. Do you have distributor in other country or domestic?

              Until now, we sell our products to customers directly. And factory price could be offered.



              9. Payment

              For large orders: T/T, L/C

              For small orders: T/T,Western Union and Paypal are acceptable.



              10. Shipping & Delivery

              For large orders: by sea (LCL or FCL)

              For small orders: by sea (LCL), by air or by courier services,any of which is optional.
