Home > Products > Optical Fiber > Low Insertion Loss G652D/G657A1 Singlemode Duplex LC/Upc-FC/Upc Fiber Optic Jumper Optical Fiber Patch Cord, 3.0mm/2.0mm, 3 Meters
Low Insertion Loss G652D/G657A1 Singlemode Duplex LC/Upc-FC/Upc Fiber Optic Jumper Optical Fiber Patch Cord, 3.0mm/2.0mm, 3 Meters
Low Insertion Loss G652D/G657A1 Singlemode Duplex LC/Upc-FC/Upc Fiber Optic Jumper Optical Fiber Patch Cord, 3.0mm/2.0mm, 3 MetersOptical fiber patchcord( fiber jumper)with ISO9001 and 14001 certification ,ROHS. sometimes called a fiber optic jumper, is a length of fiber cable fitted with LC, SC, FC......
Send Inquiry
Product Description
Low Insertion Loss G652D/G657A1 Singlemode Duplex LC/Upc-FC/Upc Fiber Optic Jumper Optical Fiber Patch Cord, 3.0mm/2.0mm, 3 Meters

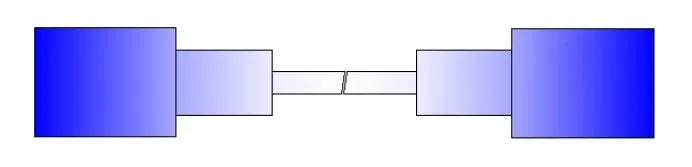

Optical fiber patchcord( fiber jumper)with ISO9001 and 14001 certification ,ROHS. sometimes called a fiber optic jumper, is a length of fiber cable fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other like this one. Jumpers are used to connect end devices or network hardware to the structured cabling system.
Performance & Specifications
APC---Angled Physical Contact, endface is curved, with 8 degree
UPC---Ultra Physical Contact with an extended polishing for a better surface finish
Applications:
Telecommunication networks
Optical access network
Data processing networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Our Product Features

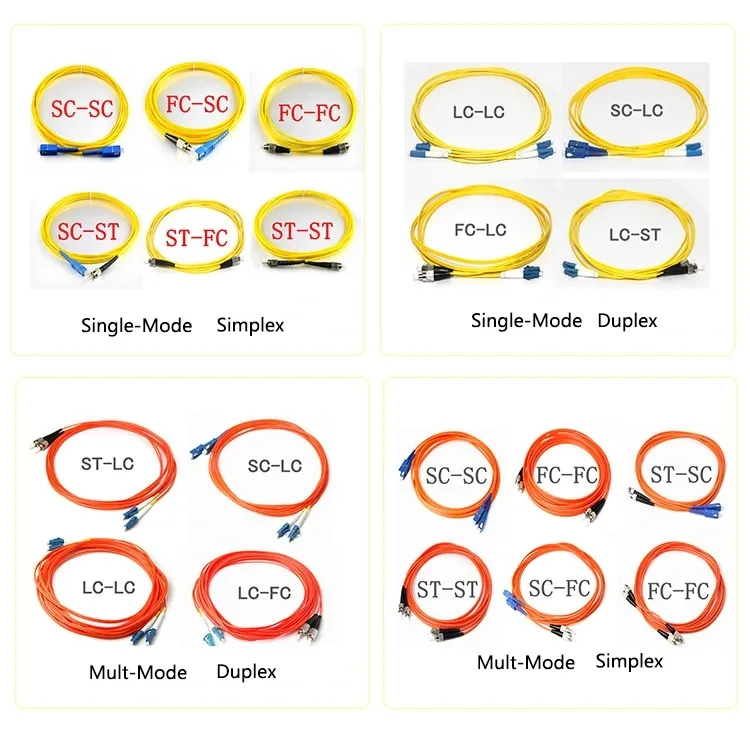

1. All kinds of optical fiber patch cord, optical cable, fiber patch cord, SM & MM available.
2. Standard & custom configurations.
3. Meets Telecordia-GR-326-CORE specifications.
4. Low insertion loss.
5. Ultra low back reflection.
6. For 3.0mm, 2.4mm, 2.0mm jacket or 900μ M buffer.

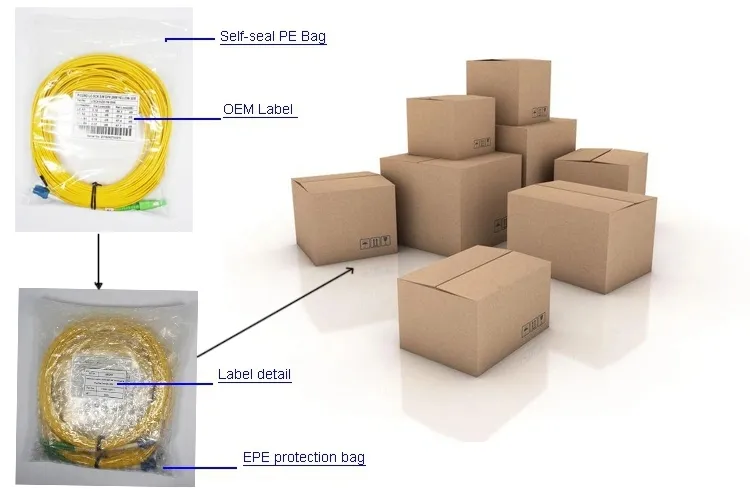

Packing
Optical fiber patchcord( fiber jumper)with ISO9001 and 14001 certification ,ROHS. sometimes called a fiber optic jumper, is a length of fiber cable fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other like this one. Jumpers are used to connect end devices or network hardware to the structured cabling system.
Performance & Specifications
| Fiber Type | SM | MM | |||
| Normal Fiber OD | 125±0.2um | 125±0.2um | |||
| Connector Type | SC,FC,ST, E-2000, LC, MU | MTRJ | SC,FC,ST, E-2000, LC, MU | MTRJ | |
| Insertion loss(Typical) | 0.2dB | 0.4dB | 0.2dB | 0.4dB | |
| Insertion loss(Max) | 0.3dB | 0.5dB | 0.3dB | 0.5dB | |
| Return Loss(Typical) | PC | 50dB | 35 | - | |
| UPC | 55dB | - | - | ||
| APC | 65dB | - | - | ||
| Mating Durability(500 C) | 0.2dB | ||||
| Temperature Stability | 0.3dB | ||||
| Operation Temperature | -40°C~+85°C | ||||
| Storage Temperature | -40°C~+85°C | ||||
APC---Angled Physical Contact, endface is curved, with 8 degree
UPC---Ultra Physical Contact with an extended polishing for a better surface finish
Applications:
Telecommunication networks
Optical access network
Data processing networks
Fiber optic communication networks
CATV, LAN, WAN, Test &Measurement
Our Product Features
1. All kinds of optical fiber patch cord, optical cable, fiber patch cord, SM & MM available.
2. Standard & custom configurations.
3. Meets Telecordia-GR-326-CORE specifications.
4. Low insertion loss.
5. Ultra low back reflection.
6. For 3.0mm, 2.4mm, 2.0mm jacket or 900μ M buffer.
Packing

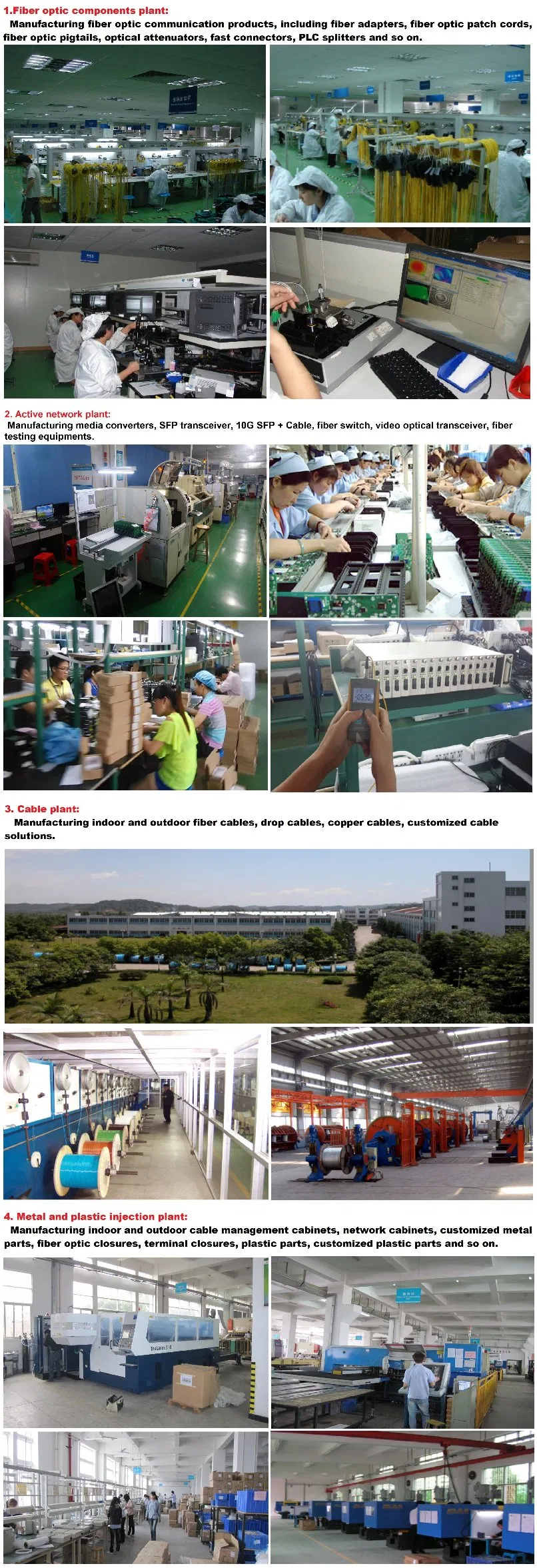

- Company Profile
