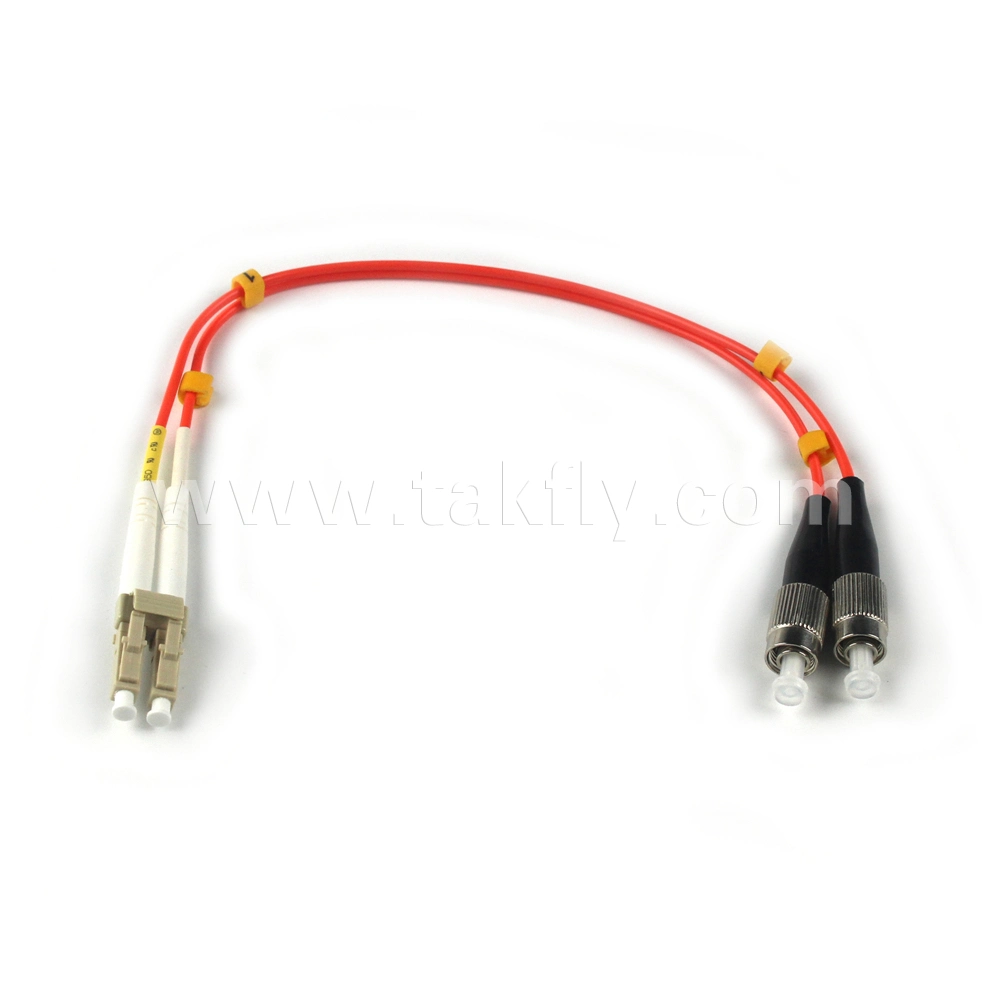

LC Upc-FC/ Upc mm Om1 Dx Fiber Optic Patch Cord
LC/ UPC-FC/ UPC MM OM1 DX Fiber Optic Patch Cord Product DescriptionFiber Optic Patch cords are mainly applied in optics communications field, such as FTTH, FTTX, LAN, WAN, network, broadband, etc. As the basic equipment of optic communication, fiber optic patch cord are in great demand in the mar......
Send Inquiry
Product Description
LC/ UPC-FC/ UPC MM OM1 DX Fiber Optic Patch Cord
Product Description
Fiber Optic Patch cords are mainly applied in optics communications field, such as FTTH, FTTX, LAN, WAN, network, broadband, etc. As the basic equipment of optic communication, fiber optic patch cord are in great demand in the market, especially in developed countries. With the expansion of FTTH, the use of patch cords will be in an increasing trend. Patch cord, just like a connector, link one equipment to the other one. According to the type of connector, patch cord can be divided into FC, ST, SC, LC, or hybrid connector patch cord.
Takfly's ST/UPC- SC/UPC DX MM Fiber Optic Patch cordS have passed ISO9001: 2008, RoHS, CE, etc. verifications. The quality is compatible with high standard. No complaints is one of our aims. Takfly is worth your trust. And we hope that our products can help you win good reputation and market share.
All connectors have precision pre-radiused zirconia ferrules
ST and FC connectors have metal bodies
Corning, YOFC, OFS fiber is standard
Standard and custom configurations available
Duplex clips included with duplex configurations
Features
Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.Connector type standard: IEC61574 seriesLow Insertion Loss : IEC 61300-3-4, IL≤0.20DbHigh Return Loss :IEC61300-3-6; RL≥60dB Flammability:IEC60332-1Repeat Plug feature is good, good interchangeability Ceramic Ferrule, high-density docking, concentricity ≤0.5Can provide general PVC or LSZH cable cable
Application
TelecommunicationsCATV, LAN, MAN, WAN, Test &MeasurementMilitary industryMedical
Parameter
Order Information
Fiber cable performance specifications
Company Information:
Takfly, established in 2000, has been manufacturing and exporting in fiber optic communications for more than 15 years. Mainly supplying fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. Our goods have passed RoHS, CE, ISO9001, FCC, etc. verifications.
With the development of optical communications, Takfly's turnover has been increasing steadily. To strengthen the brand recognition and communication with more clients, Takfly participates in several industrial exhibitions every year in the whole word.
The products we sell is manufactured by our own factories. Our main aim is to supply high quality goods to our customers. Therefore, Takfly has imported foreign advanced production equipment 5 years ago, mainly made in German, Japan. The skilled technicians and professional sales team are available. Standard production management system has been built. Any requirements and inquiries will be processed with 24 hours. Strict test is a must before delivery. Apart from these, we have steady transport service. So, we can provide you the optimal transportation.
No complaints is one of our aims. We believe that our products can help you win good reputation and market share.
Hereby, we sincerely hope to establish a long-term business relationship with you in the future.
Welcome to visit Takfly Communications Co., Ltd. We are waiting for your coming!
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Shipping
1.Once confirmed the order, and payment sent after finishing goods.
2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
Product Description
Fiber Optic Patch cords are mainly applied in optics communications field, such as FTTH, FTTX, LAN, WAN, network, broadband, etc. As the basic equipment of optic communication, fiber optic patch cord are in great demand in the market, especially in developed countries. With the expansion of FTTH, the use of patch cords will be in an increasing trend. Patch cord, just like a connector, link one equipment to the other one. According to the type of connector, patch cord can be divided into FC, ST, SC, LC, or hybrid connector patch cord.
Takfly's ST/UPC- SC/UPC DX MM Fiber Optic Patch cordS have passed ISO9001: 2008, RoHS, CE, etc. verifications. The quality is compatible with high standard. No complaints is one of our aims. Takfly is worth your trust. And we hope that our products can help you win good reputation and market share.
All connectors have precision pre-radiused zirconia ferrules
ST and FC connectors have metal bodies
Corning, YOFC, OFS fiber is standard
Standard and custom configurations available
Duplex clips included with duplex configurations
Features
Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.Connector type standard: IEC61574 seriesLow Insertion Loss : IEC 61300-3-4, IL≤0.20DbHigh Return Loss :IEC61300-3-6; RL≥60dB Flammability:IEC60332-1Repeat Plug feature is good, good interchangeability Ceramic Ferrule, high-density docking, concentricity ≤0.5Can provide general PVC or LSZH cable cable
Application
TelecommunicationsCATV, LAN, MAN, WAN, Test &MeasurementMilitary industryMedical
Parameter
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB | ||||
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB | ||||
| Operating Temperature | -40ºC~+75ºC | ||||
| Storage Temperature | -40ºC~+75ºC | ||||
Order Information
| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H02 | 1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex | 1. 0.9 2. 2.0 3. 3.0 | 1.9/125 2.OM3 3.50/125 4.62.5/125 | 1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH | 1.Blue 2.Beige 3. Green 4.Black 5.Blue and Yellow 6.Red and Black |
Fiber cable performance specifications
| Fiber type | Min. Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm 200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm 3.0/1.0dB/km |
| 50/125 | 850/1300nm 500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm 3.0/1.0dB/km |
| 50/125 10Gig Optimized | 850/1300nm 2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm 3.0/1.0dB/km |
| Fiber type | Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,,G657A2 |
| Multimode: (4)50/125-OM2 (5)62.5/125-OM1 (6)50/125-OM3 (7)OM4 | |
| Fiber | YOFC, CORNING, OFS |
| Connector1 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Connector2 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm, 3.0mm |
| Cable jacket | PVC,LSZH, OFNR, OFNP |
| length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m (custom) |
Company Information:

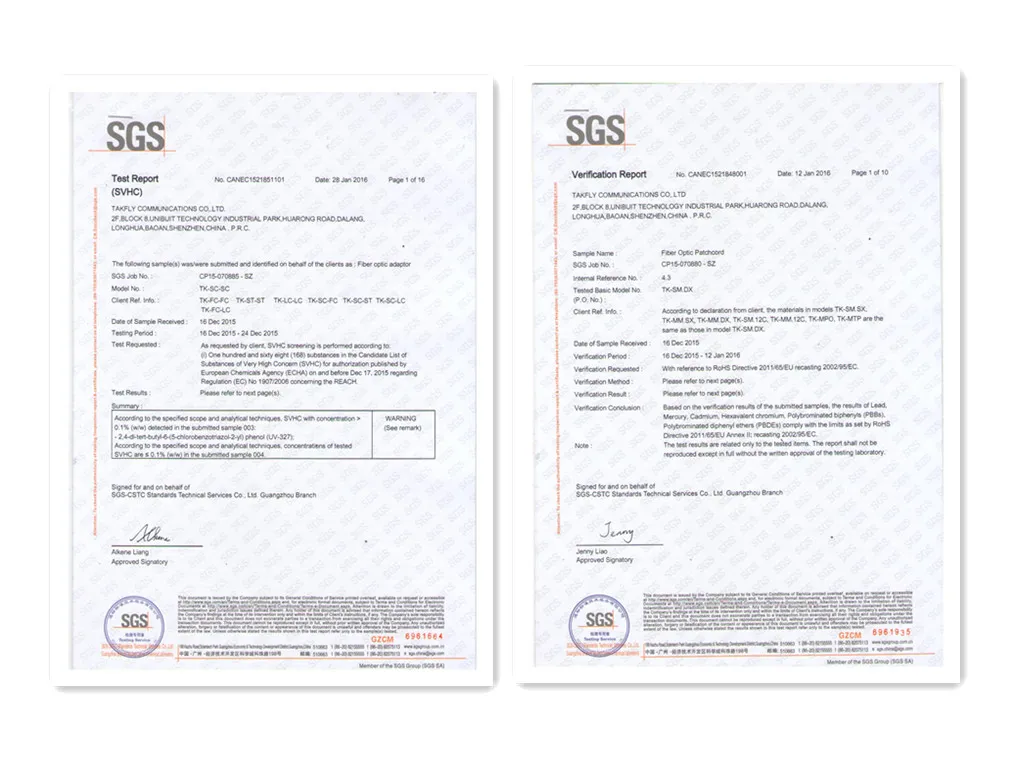

Takfly, established in 2000, has been manufacturing and exporting in fiber optic communications for more than 15 years. Mainly supplying fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. Our goods have passed RoHS, CE, ISO9001, FCC, etc. verifications.
With the development of optical communications, Takfly's turnover has been increasing steadily. To strengthen the brand recognition and communication with more clients, Takfly participates in several industrial exhibitions every year in the whole word.
The products we sell is manufactured by our own factories. Our main aim is to supply high quality goods to our customers. Therefore, Takfly has imported foreign advanced production equipment 5 years ago, mainly made in German, Japan. The skilled technicians and professional sales team are available. Standard production management system has been built. Any requirements and inquiries will be processed with 24 hours. Strict test is a must before delivery. Apart from these, we have steady transport service. So, we can provide you the optimal transportation.
No complaints is one of our aims. We believe that our products can help you win good reputation and market share.
Hereby, we sincerely hope to establish a long-term business relationship with you in the future.
Welcome to visit Takfly Communications Co., Ltd. We are waiting for your coming!
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Shipping
1.Once confirmed the order, and payment sent after finishing goods.
2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
