Fiber Optic G. 652D Cable Gytc8s
Figure 8 Self-support Single Mode Fiber Optic Cable Details:Structure &Properties:1. Up to 288 fibers with good excess length and minimizes the influence of lateral crush.2. Water blocking tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.3. Cr......
Send Inquiry
Product Description

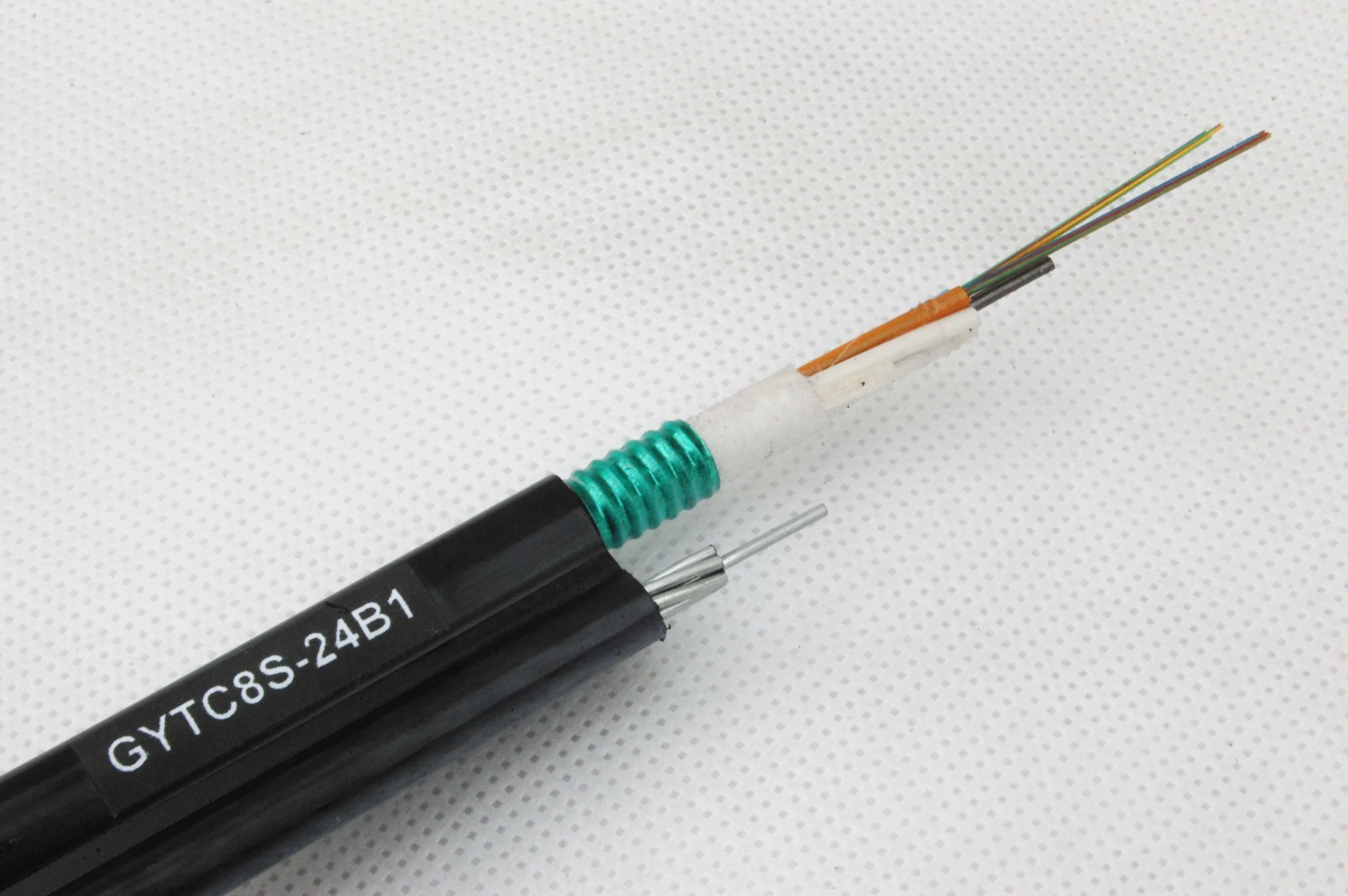

Figure 8 Self-support Single Mode Fiber Optic Cable Details:
Structure &Properties:
1. Up to 288 fibers with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.

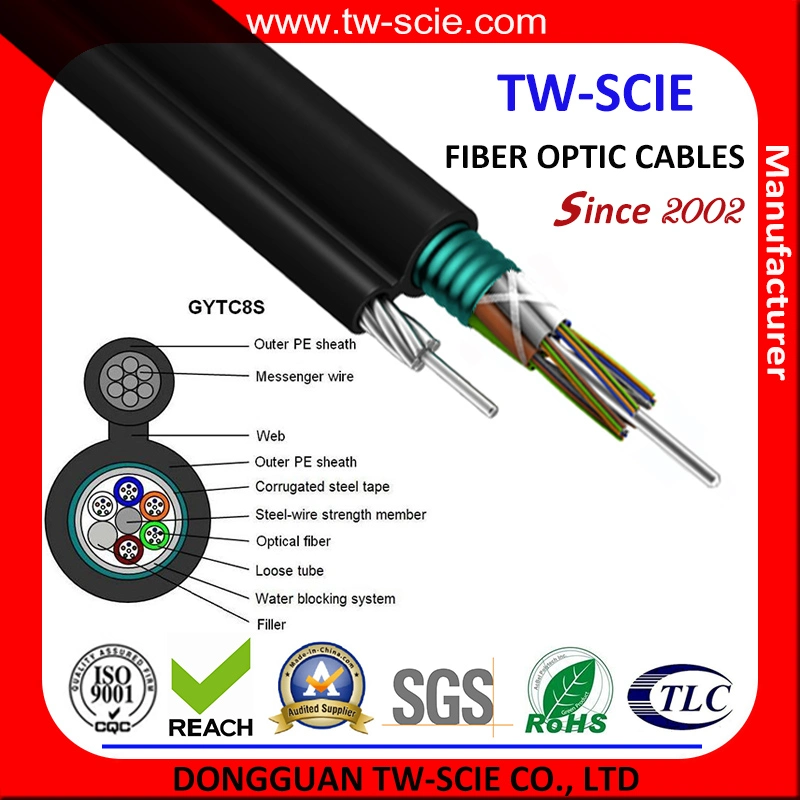

3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.
Applicable Fields:
This cable has been designed for aerial application with messenger wire as support member made excellent anti-pull performance and easy installation.
Technical Date:
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fiber cables, we can not only offer you cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

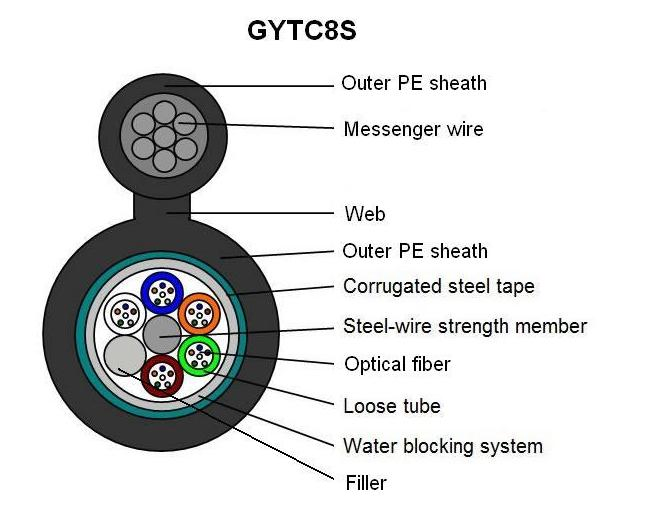

Structure &Properties:
1. Up to 288 fibers with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.
Applicable Fields:
This cable has been designed for aerial application with messenger wire as support member made excellent anti-pull performance and easy installation.
Technical Date:
Technical data: | ||||||||||||
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min. bend radius | Max. Running tension (N) | Safe running tension (N) | Min. Breaking tension (N) | Max. crush loading (N/100mm) | ||
| Static | Dynamic | Short term | Long term | |||||||||
| 2-30 | 1× 7-4.2 | 9.8 | 6.4 | 18.8 | 210 | 10times cable diameter | 20times cable diameter | 7000 | 3500 | 15550 | 2000 | 1000 |
| 32-36 | 10.3 | 19.3 | 230 | |||||||||
| 38-60 | 10.7 | 19.7 | 230 | |||||||||
| 62-72 | 11.3 | 20.3 | 255 | |||||||||
| 74-96 | 12.9 | 21.9 | 290 | |||||||||
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fiber cables, we can not only offer you cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
