Factory 2c-144c Air Blown Outdoor Micro Cable PE Sheath, Stranded Loose Tube, G. 652D Fiber Cable
INTRODUCTIONStranded Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower in......
Send Inquiry
Product Description
INTRODUCTION

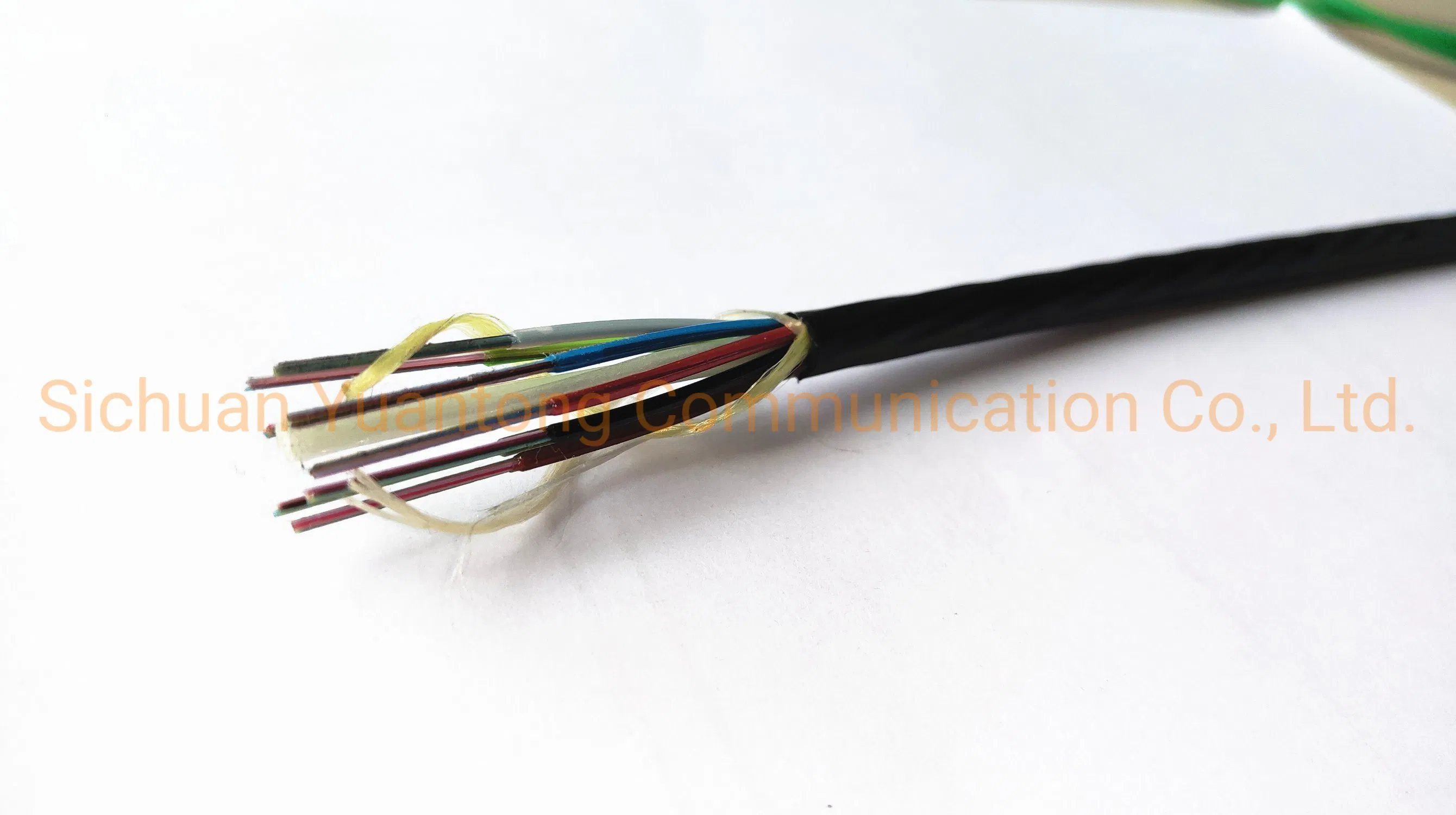

Stranded Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.
KEY FEATURES

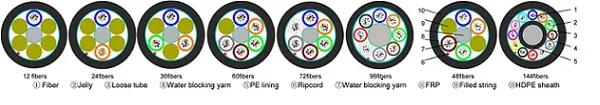

Perfect cable structure with high fiber density
Accurate fiber length balance to ensure stable performance
No gel in cable core for water blocking
Sheath structure innovation to enhance blowing performance
Greater blowing distance
Fiber: G.G652D, G.657A1, G.657A2
SPECIFICATION
| P/N | Fiber count (F) | Nominal diameter (mm) | Nominal weight (kg/km) | Max tensile strength (N) | Temperature (ºC) |
| MICROL-12G652D-PE | 12 | 5.2±0.1 | 25 | 500 | -40 to +70 |
| MICROL-24G652D-PE | 24 | 5.2±0.1 | 25 | 500 | |
| MICROL-36G652D-PE | 36 | 5.2±0.1 | 25 | 500 | |
| MICROL-48G652D-PE | 48 | 5.2±0.1 | 25 | 500 | |
| MICROL-60G652D-PE | 60 | 5.2±0.1 | 25 | 500 | |
| MICROL-72G652D-PE | 72 | 5.2±0.1 | 25 | 500 | |
| MICROL-96G652D-PE | 96 | 6.1±0.1 | 35 | 1000 | |
| MICROL-144G652D-PE | 144 | 7.9±0.1 | 57 | 1200 | |
| MICROL-192G652D-PE | 192 | 7.9±0.1 | 55 | 500 | -20 to +70 |
| MICROL-216G652D-PE | 216 | 7.9±0.1 | 55 | 500 | |
| MICROL-288G652D-PE | 288 | 9.4±0.1 | 78 | 1000 |
BLOWING PERFORMANCE
| Fiber count (F) | Blowing machine | Suitable microduct (mm) | Blowing distance in 10/8 duct (m) | Blowing distance in 12/10 duct (m) | Blowing distance in 14/12 duct (m) |
| 12 to 72 | PLUMETTAZ PR-140 MiniJet-400 15bar | 10/8 or 12/10 | 1800 | 2300 | / |
| 96 | 10/8 or 12/10 | 1800 | 2300 | / | |
| 144 | 12/10 | / | 1200 | / | |
| 192 to 216 | 12/10 | / | 1500 | / | |
| 288 | 14/12 | / | / | 1500 |
ABOUT P/N: MICROL-2G652D-PE
MICROL: cable type | 2: fiber count | G652D: G652D, G657A1, G657A2 & multimode fiber available | PE: sheath material
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2.What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001, SGS, 3E, Anatel.
6.What is your delivery time?
Usually within 2-3 working days
7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10.Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11.Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
