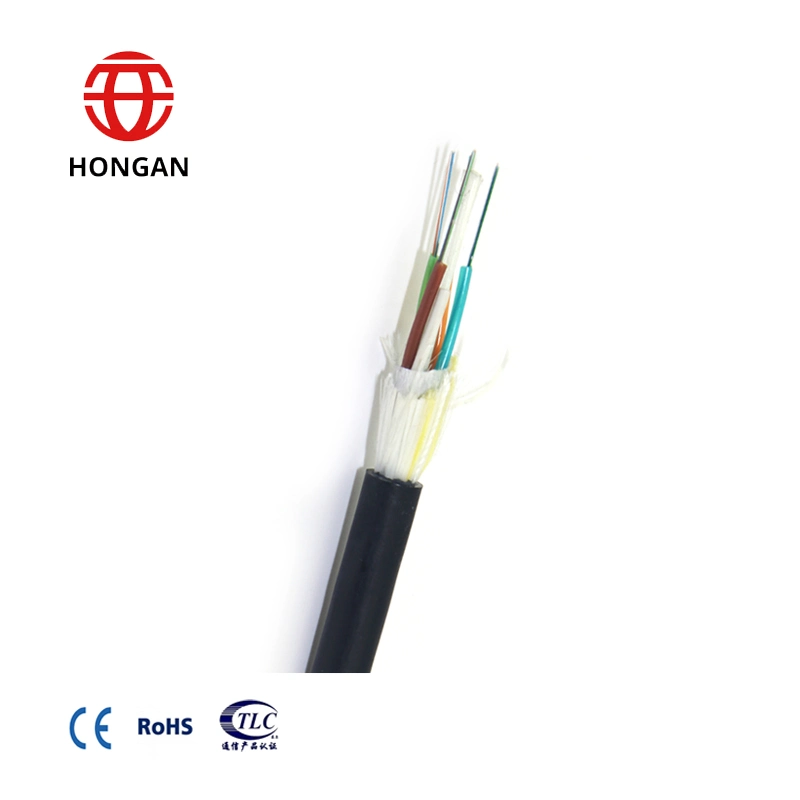

Dry Type Water Blocking 36 Core ADSS Fiber Cable
Product DescriptionAll-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead......
Send Inquiry
Product Description
Product Description
All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.
- Characteristics of product:
Excellent water-blocking performance;
Excellent resistance to lateral pressure, and mechanical and temperature performance.
Excellent performance of resistance to electromagnetic interference.
-Product Applications:
Railways, power and telecommunication pole routes
Can be used in areas suffered from frequent lightning
Ideal for transmission lines with high electrical field strength
Suitable for installation on poles and on the power distribution network
Aerial self-supporting applications at short, medium and long span distances

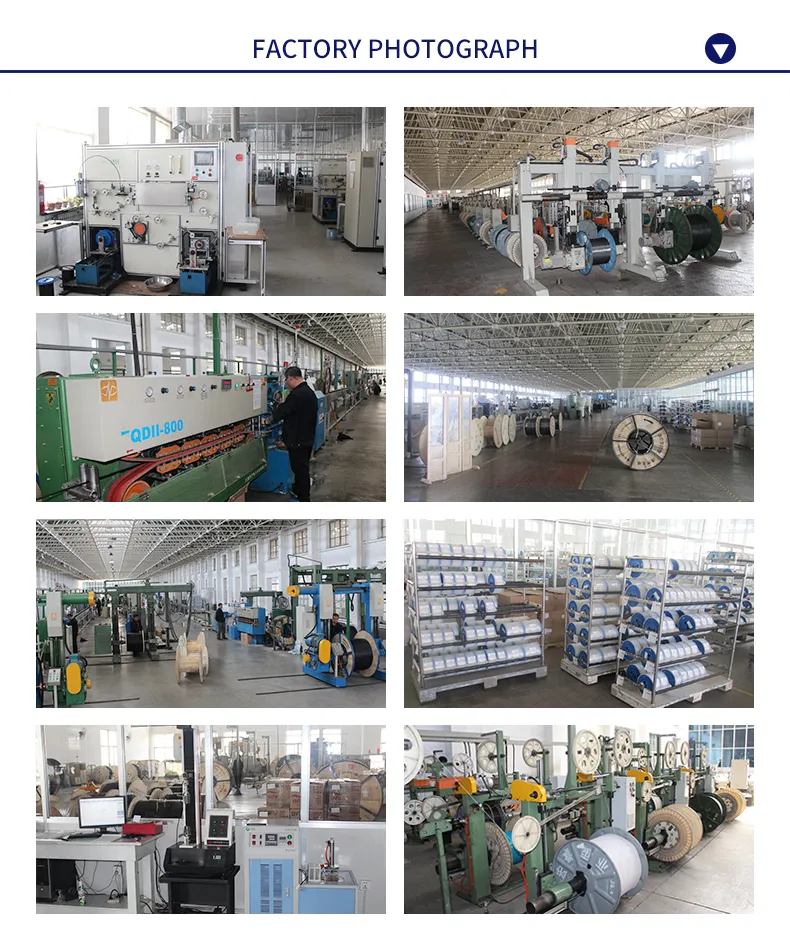

Product&Production Line
Shipping&Packing
Certification
Company Information
Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.
Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.
Exhibition
FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
-Q6:How many years does the fiber cable's life?
A:Fiber cable's life is about 25 years.
Welcome you select our products! Any inquiry, pls feel free to contact with us!
All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.
- Characteristics of product:
Excellent water-blocking performance;
Excellent resistance to lateral pressure, and mechanical and temperature performance.
Excellent performance of resistance to electromagnetic interference.
-Product Applications:
Railways, power and telecommunication pole routes
Can be used in areas suffered from frequent lightning
Ideal for transmission lines with high electrical field strength
Suitable for installation on poles and on the power distribution network
Aerial self-supporting applications at short, medium and long span distances

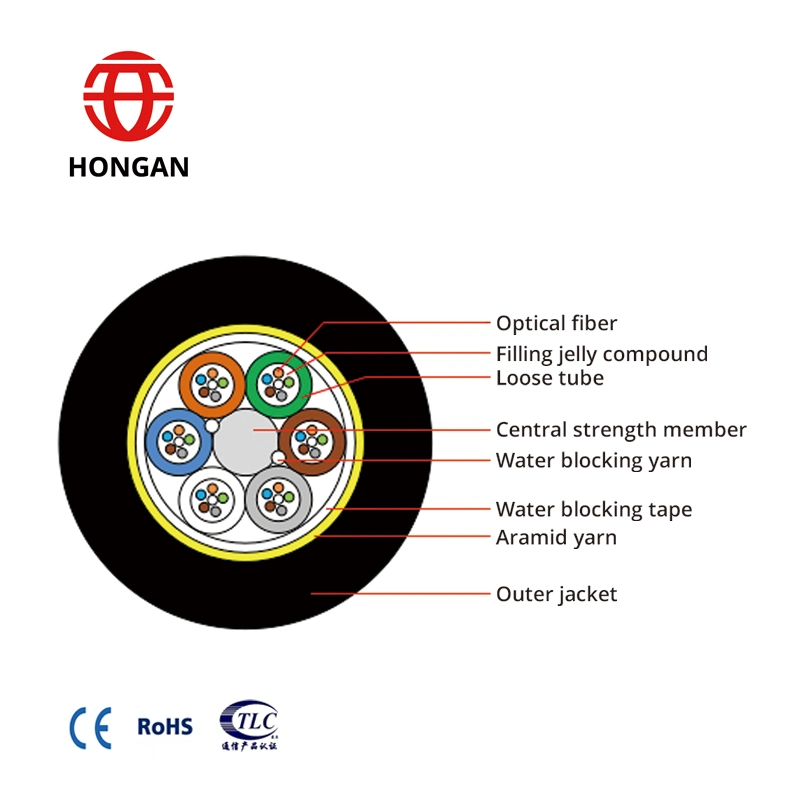

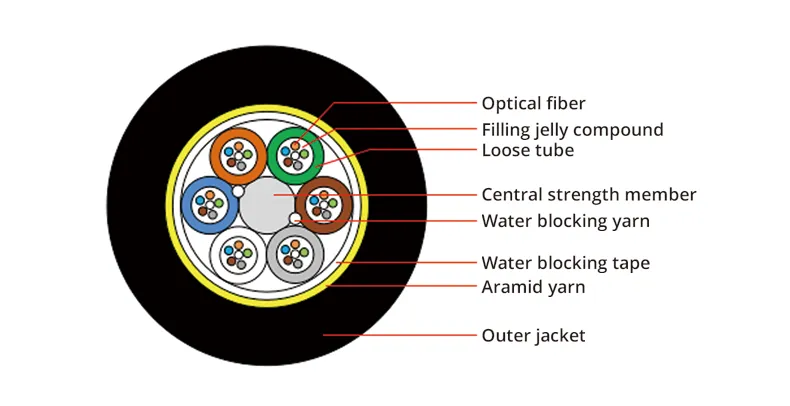

| Structure parameters: | |||||||
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable weight (kg/km) |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 80 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 97 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 98 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7±0.1 | 12.5±0.5 | 122 |
Product&Production Line
Shipping&Packing
Certification
Company Information
Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.
Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.
Exhibition
FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
-Q6:How many years does the fiber cable's life?
A:Fiber cable's life is about 25 years.
Welcome you select our products! Any inquiry, pls feel free to contact with us!
