CATV FTTH Mini Optical Receiver (WR1088M WR1085M)

Product Description

Type
WR1088M: FZ110 output Output Level≥ 88dBuV
WR1085M: FP204 output Output Level≥ 85dBuV

Description

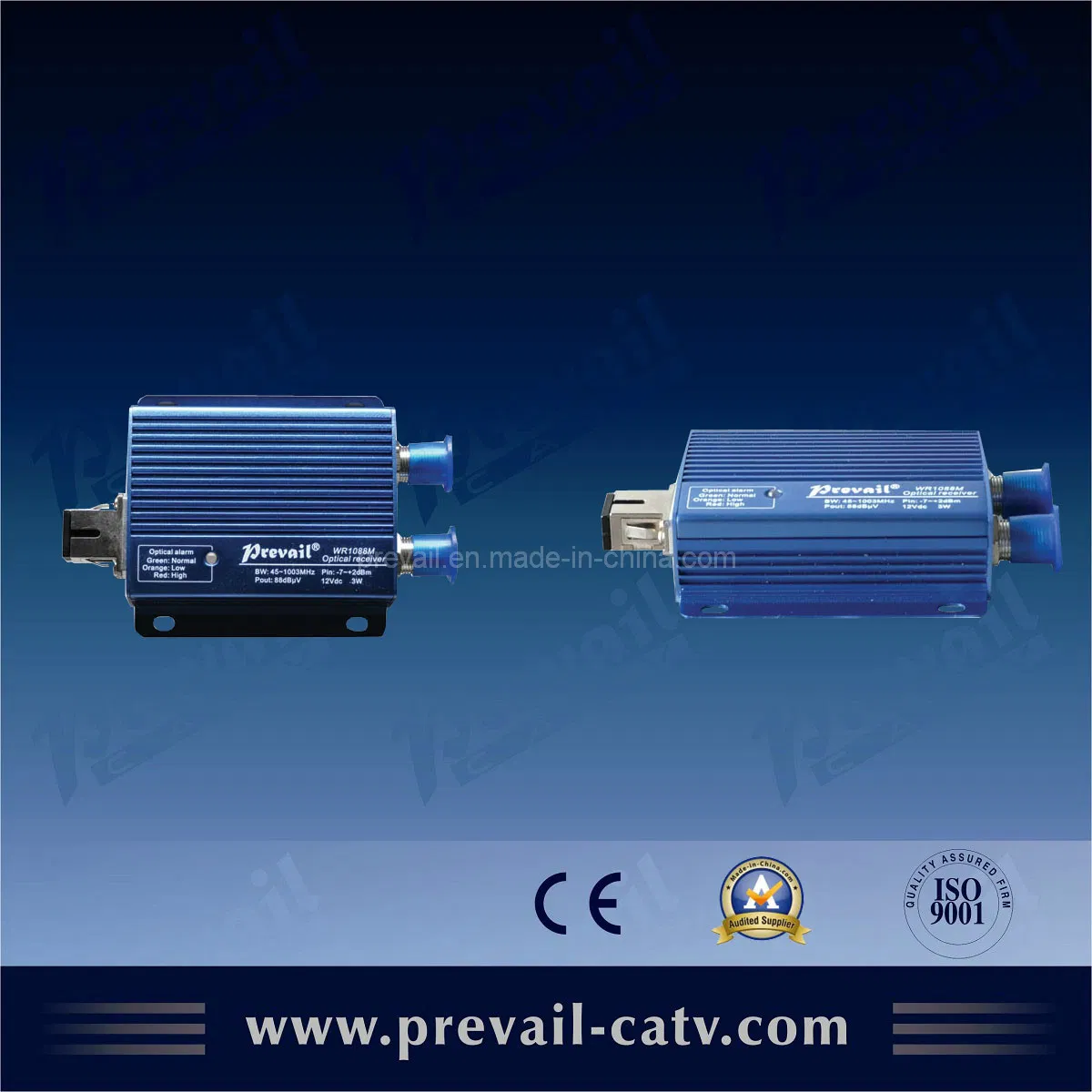

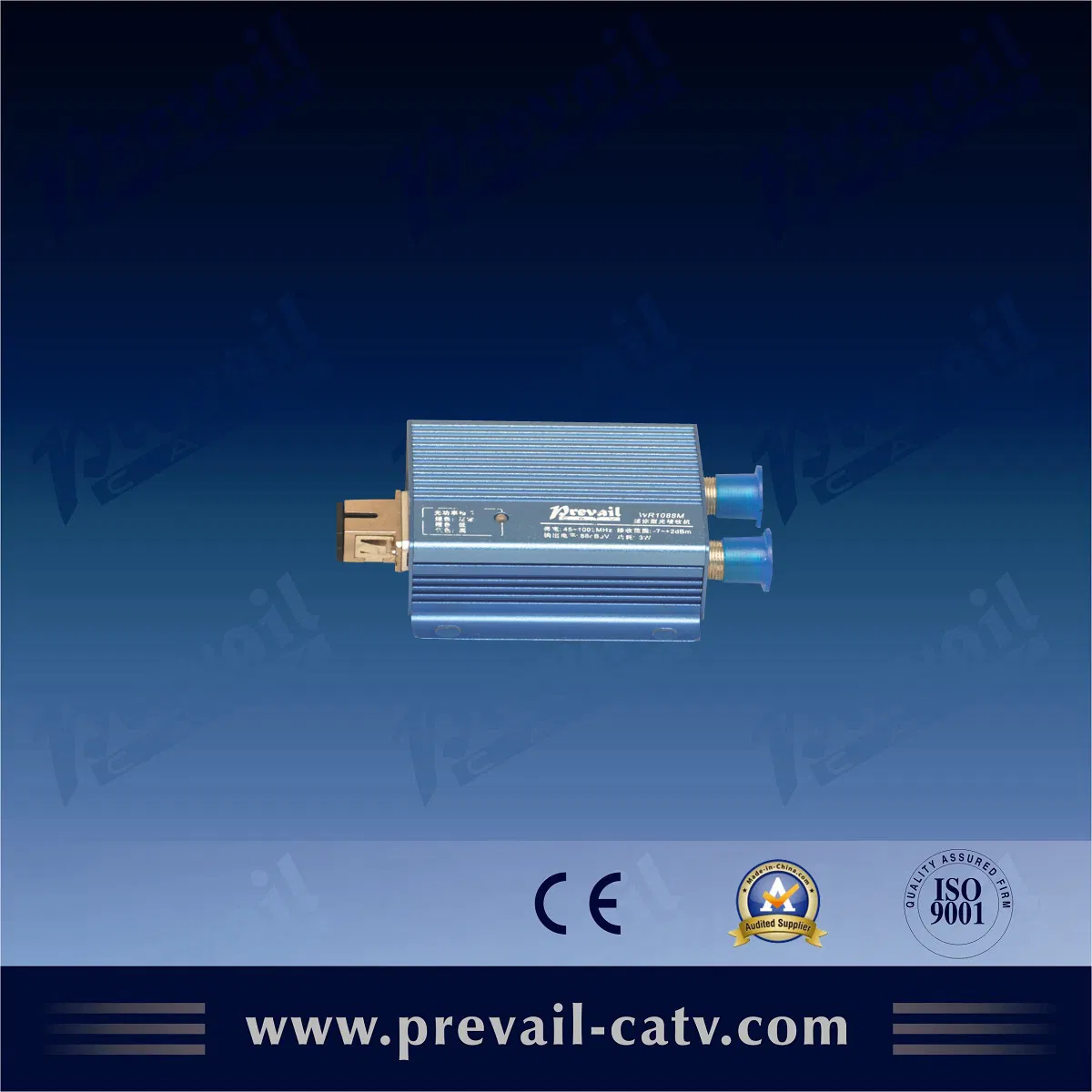

WR1088M and WR1085M Fiber Optic is the featured receiver that we specially designed for FTTH— — Fiber to the Home network structure. With small shell, compact and reasonable internal circuit structure and excellent performance indicators. It is the first choice for residential area and home fiber optic network.

Characteristics
1. Receiver with Forward RF branch output, 75Ω Impedance.
2. Fiber Optic adopt GaAs amplifier device.
3.12V DC voltage power supply.
4. Small size and easy to install.

Flow Chart

Item	Unit	Technical Parameter
Forward optical receiving part
Optical Parameters
Receiving Optical Power	dBm	-7 ~ +2
Optical Return Loss	dB	> 45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Connector Type		SC/APC
Fiber Type		Single Mode
Link performance
C/N	dB	≥ 51	-1dBmoptical powerreceive
C/CTB	dB	≥ 65
C/CSO	dB	≥ 62
RF Parameters
FrequencyRange	MHz	45~ 862/1003
Flatness in Band	dB	± 0.75
Rated Output Level	dBμ V	≥ 88 (WR1088M) ≥ 85(WR1085M)
Output Return Loss	dB	≥ 16
Output Impedance	Ω	75
Consumption	W	< 3
Dimension	mm	1056724
