All-Dielectric ADSS Fiber Optic Cable Self-Supporting Aerial Outdoor 6 Core Fiber Optic Cable ADSS Optic Fiber Cable
All-Dielectric ADSS Fiber Optic Cable Self-Supporting Aerial Outdoor 6 Core Fiber Optic Cable ADSS Optic Fiber CableProduct Description 4 6 8 12 24 48 96 144 192 Cores PE Jacket All Dielectric Self-support Double Sheath Aerial Optical Fiber ADSS Cable --Can be installed without shutting off the powe......
Send Inquiry
Product Description
All-Dielectric ADSS Fiber Optic Cable Self-Supporting Aerial Outdoor 6 Core Fiber Optic Cable ADSS Optic Fiber Cable
---Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years
---Package :4-5 km/ wooden drum
Applications | ---Outdoor aerial applications |
---Low voltage transmission system(≤12 kV) | |
---Railway & Telecommunication pole route | |
---Subscriber & Local Area Network | |
---Voice, data, video & imaging system |
Cable Performance Parameter | |||
Span meter | 200 | 300 | 400 |
Related Strength Tension(RTS) | 17.5 kn | 20.6 kn | 28 kn |
Max Allowable Tension(MAT) | 6.9 kn | 8.2 kn | 11.5 kn |
Allowable Crush Resistance | Long Term: 1100 n/100mm | Long Term: 1100 n/100mm | Long Term: 1100 n/100mm |
Short Term: 2200 n/100mm | Short Term: 2200 n/100mm | Short Term: 2200 n/100mm | |
Minimum Bending Radius | Operating: 220 mm | Operating: 220 mm | Operating: 220 mm |
Installlation: 360 mm | Installlation: 360 mm | Installlation: 360 mm | |
Temperature Range | Operating: -40 /+70ºC | Operating: -40 /+70ºC | Operating: -40 / +70ºC |
Installlation: -15 / +60ºC | Installlation: -15 / +60ºC | Installlation: -15 / +60ºC | |
Out Sheath Material | Electrical Resistance AT (Borealis material 6081) Sheath | ||
Note | ice accretion 5MM,weed speed:30M/S | ||

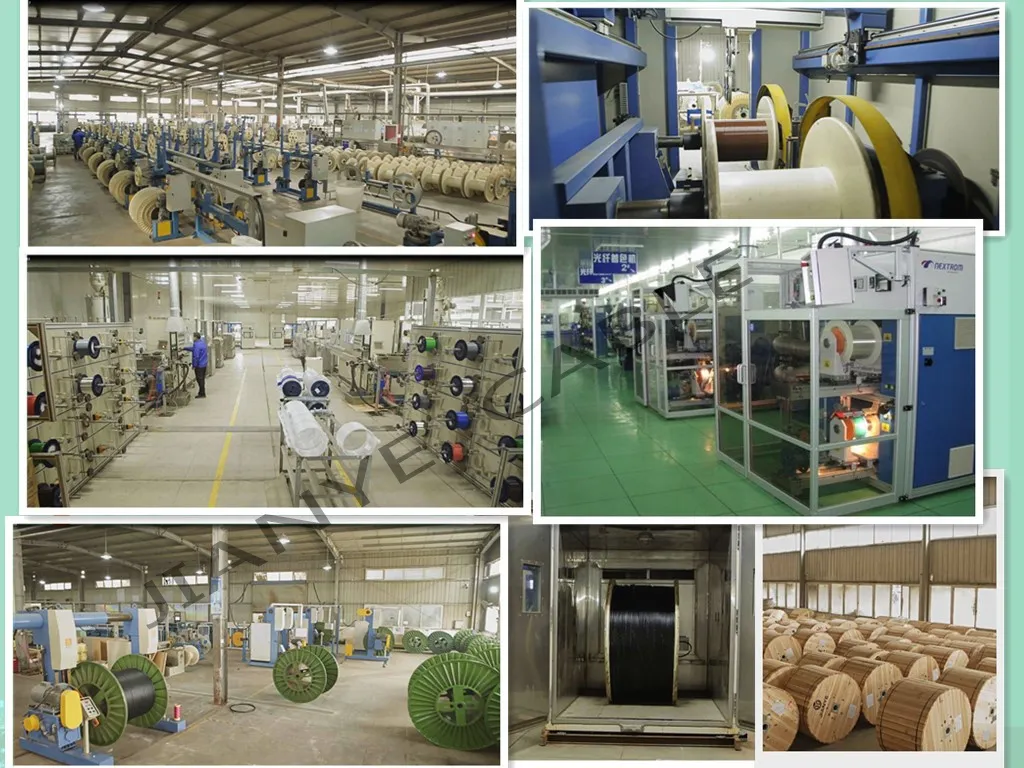

1) Self-owned factory, we can control quality directly.
2) Factory directly, so our cables have competitive prices.
3) Shipping near Shanghai Port and Ningbo Port, very convenience.
4) We can send you free sample to check our quality.
5) We are familiar with different market, can offer multi-language service.
6) We have quality control department, and after sale service.
7) Closed to the Ningbo and Shanghai port, the best logistic service.
Neutral Packing1, 50m/100m/300m/305m/100yard/300yard can be
packed in clarity film, several rolls into one carton.
2, 300m/305m/500m/300yard can be packed in wooden drum, one or two drums into one carton.
3, customized package.
1. Can I have a sample order?
Yes, we welcome sample order to test and check quality.
2. What about the lead time?
Sample needs 7-10days, bulk production time need 20-25 days.
3. Do you have any MOQ limit for order?
Normally, 10kms per one specification and one color.
4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT for samples. It usually takes 3-5days to arrive. Airline and sea shipping also optional.
5. Is it OK to print my logo on cables?
Yes. Please inform us formally before our production.
Our Services:
1.)We are a professional cable manufacturer, can offer you all the best cable solutions.
2.)We can send you free sample to check our quality.
3.)We are familiar with different market, can offer multi-language service.
4.)We have quality control department, and after sale service.
5.)Closed to the Ningbo and Shanghai port, the best logistic service.
Our Advantages:
1) Self-owned factory, we can control quality directly.
2) Factory directly, so our cables have competitive prices.
3) Shipping near Shanghai Port and Ningbo Port, very convenience.
