2 Core G657A1 LSZH Figure 8 FTTH Drop Wire Cable FRP Strength Anatel Certified
1/2/4Core Singlemode G657A1 G657A2,Metal Strength Member,FTTH Self-supporting Figure 8 stranded steel type Drop fiber optic Cable GJYXCH/GJYXFCH Description:Drop Fiber optic cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the section o......
Send Inquiry
Product Description

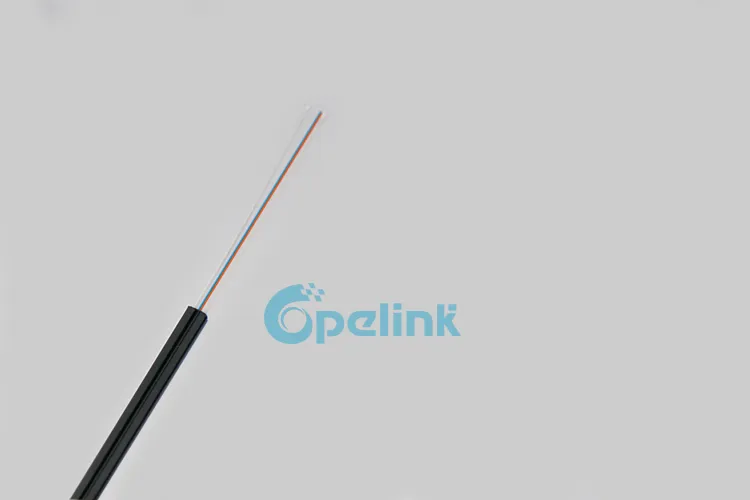

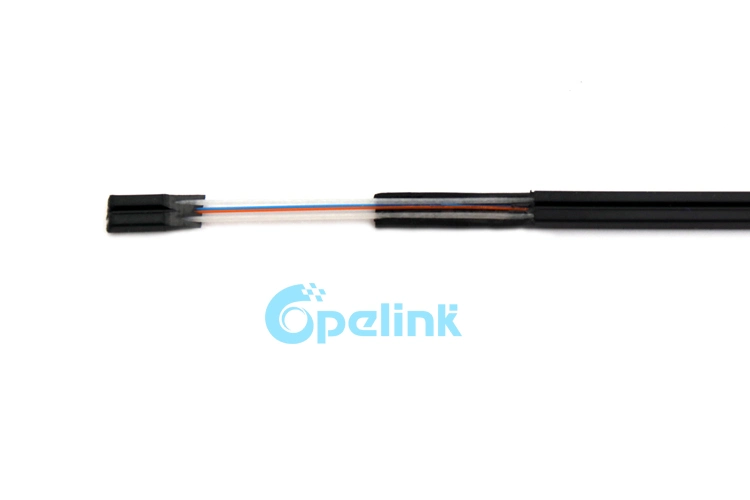

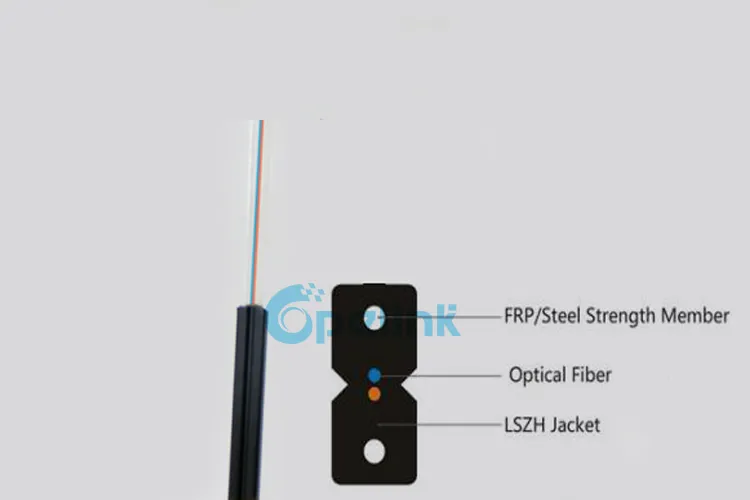

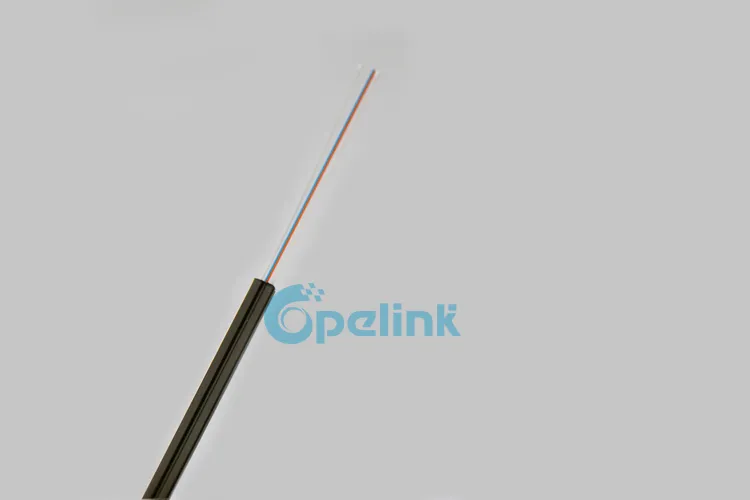

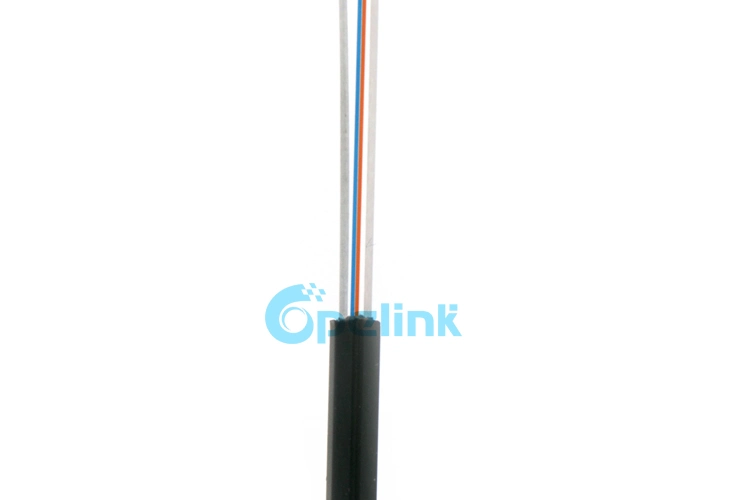

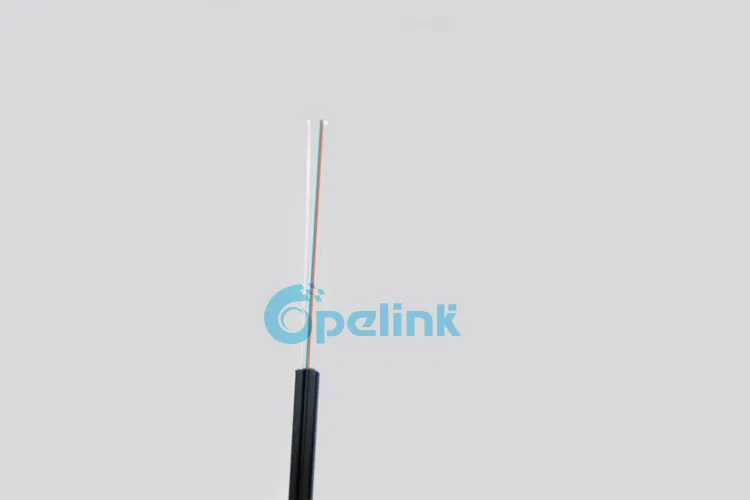

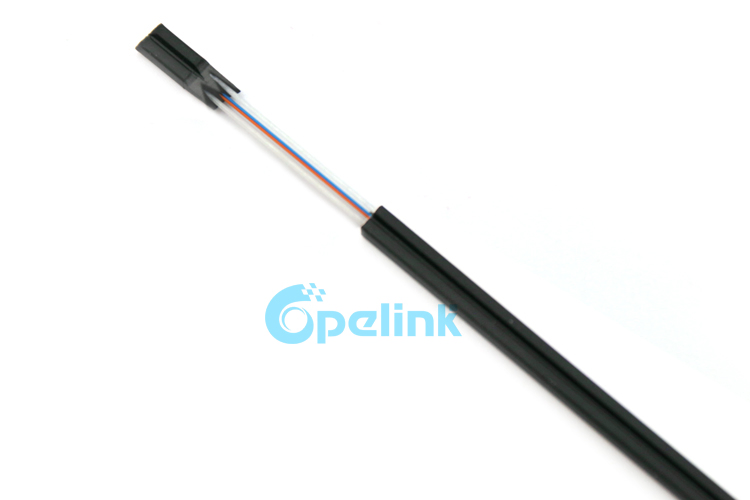

1/2/4Core Singlemode G657A1 G657A2,Metal Strength Member,FTTH Self-supporting Figure 8 stranded steel type Drop fiber optic Cable GJYXCH/GJYXFCH
Description:
Drop Fiber optic cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network users to introduce the section of the optical cable.
FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. This cable adopts the popular design in the industry, its structure and performance is optimized for FTTH applications.
The drop FTTH cables are with flame retardant jacket and with supporting wire, there are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no harmful components, in general, it is a highly recommended FTTH drop cables for use in the fiber to the home projects, saving time and cost.
Drop Fiber optic cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network users to introduce the section of the optical cable.
FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. This cable adopts the popular design in the industry, its structure and performance is optimized for FTTH applications.
The drop FTTH cables are with flame retardant jacket and with supporting wire, there are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no harmful components, in general, it is a highly recommended FTTH drop cables for use in the fiber to the home projects, saving time and cost.
Feartures:
Good mechanical and environmental characteristics;
The mechanical characteristics meets the requirements of relevants standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Application:
Used as access building cable.
Used in horizontal and vertical cabling , especially used for FTTH.
Indoor cabling under carpet and along corner.
The mechanical characteristics meets the requirements of relevants standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Application:
Used as access building cable.
Used in horizontal and vertical cabling , especially used for FTTH.
Indoor cabling under carpet and along corner.
Technical Parameters:
| Fiber Count | External diameter of optical cable (mm) | Weight of optical cable (kg/km) | Minimum bending radius (mm) | Allowable minimum crush resistance (N/100mm) | Allowable minimum drawing force of optical cable (N) | |||
| (kg/km) | Static | Dynamic | Short term | Long term | Short term | Long term | ||
| 1 | (2.0±0.1)x(5.4±0.1) | 20 | 20 | 40 | 2200 | 1000 | 600 | 300 |
| 2 | (2.0±0.1)X(5.4±0.1) | 20 | 20 | 40 | 2200 | 1000 | 600 | 300 |
| 4 | (2.0±0.1)X(6.4±0.1) | 20 | 20 | 40 | 2200 | 1000 | 600 | 300 |
Order Information:
| Fiber Core | Fiber Type | Count | Cable OD | reinforcer | Fiber Jacket | Jacked Color |
| 1=G652D 2=G657A1 3=G657A2 4=50/125 5=62.5/125 6=OM3 7=OM4 X=other | S=simplex Z=zipcord Duplex Y=Round Duplex F=Flat Duplex B=Breakout D=Distribution R=Ribbon A=Armored W=Waterproof X=other | 001=1 core 002=2 cores 003=3 cores 024=24 cores XXX=other | 01= 0.9mm 02=2.0mm 03=3.0mm 04=2.9*6.0mm 05=1.9*3.1mm 06=4.2*7.6mm 07=9.0mm 08=11.2mm 09=4.0*7.0mm XX=other | 1=Kevlar 2=FRP 3=Armoured steel tape 4=Steel wire 5= Armoured steel tape & Steel wire | PR=PVC-OFNR PP=PVC-OFNP LH=LSZH PE=PE PU=TPU LN=Nylon HT=Hytrel xx=other | 01=Blue 02=Orange 03=Green 04=Brown 05=Slate , 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12 Color XX=other |
