12f Asu80 G652 G657 Outdoor Optic Fiber Cable Drop

Product Description

GYFFY outdoor ADSS ASU drop fibra optica cable

We are 19 years fiber optic cable manufactory!

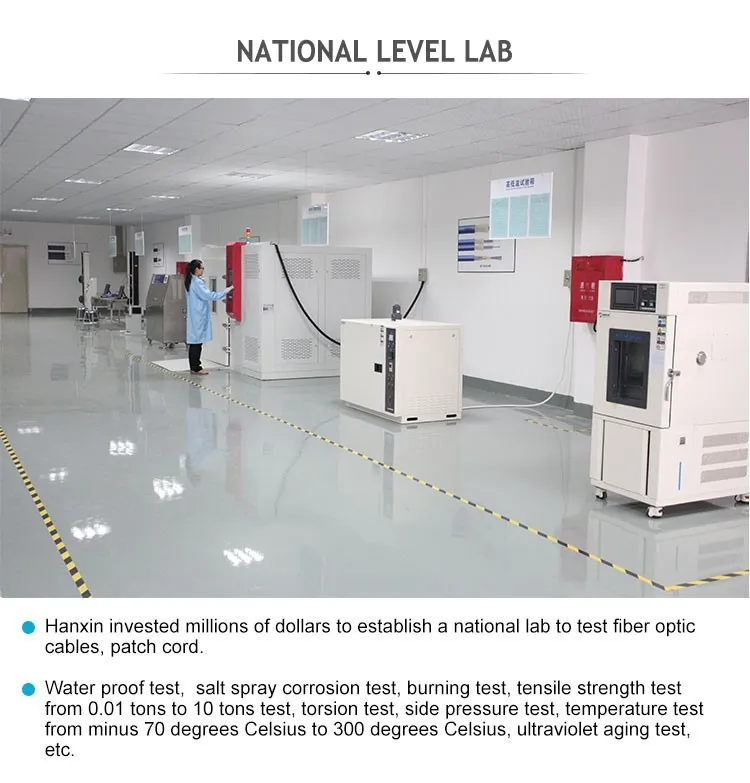

Welcome to go to the factory tour!
We focus on the quality of the fiber optic cable!
Send message to us can get free samples.

12F ASU80 G652 G657 outdoor optic fiber cable drop

Product Description

Optical Characteristics

		G652D	G655	50/125μm	62.5/125μm
Attenuation(+20deg C)	@850nm			≤ 3.0dB/KM	≤ 3.0 dB/KM
	@1300nm			≤ 1.0dB/KM	≤ 1.0 dB/KM
	@1310nm	≤ 0.36 dB/KM	--
	@1550nm	≤ 0.22 dB/KM	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥ 500 MHz-KM	≥200 MHz-KM
Bandwidth(Class A)	@1300nm			≥1000 MHz-KM	≥600 MHz-KM
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

·

Technical Parameters

Cable Core	Unit	2F	4F	6F	8F	10F	12F
No. Of Tubes		1	1	1	1	1	1
No. Of fibers	core	2	4	6	9	10	12
Fiber Counts in tube	core	2	4	6	9	10	12
Cable Diameter	mm	6.6±0.5			6.8±0.5
Cable Weight	Kg/km	40±10			45±10
Allowable tensile Strength	N	Span=80,1.5*P
Allowable crush resistance	N	1000N
Operation temperature		-20 to +65

12F ASU80 G652 G657 outdoor optic fiber cable drop

Product description

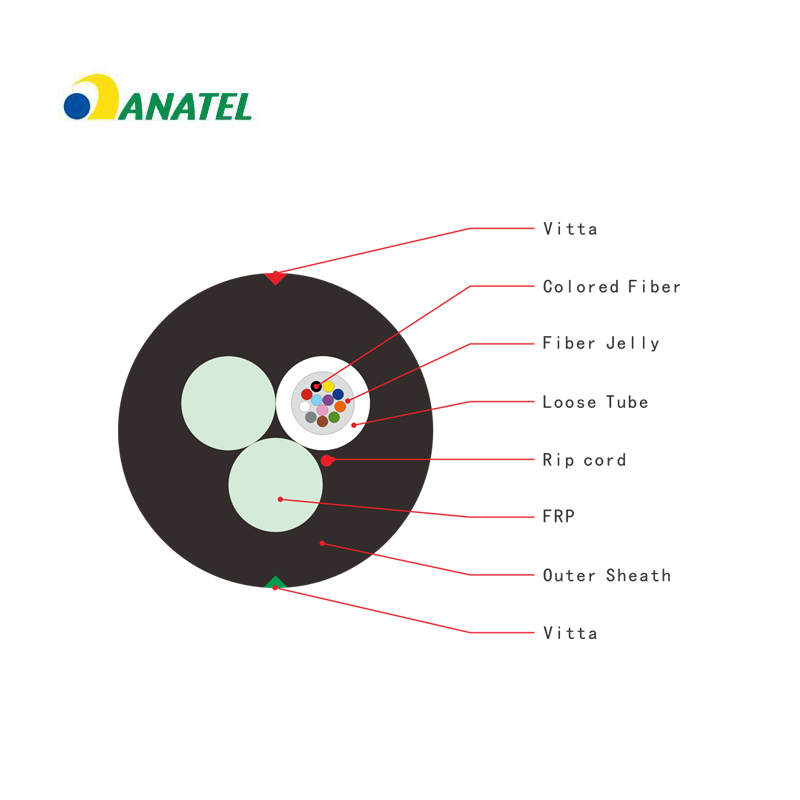

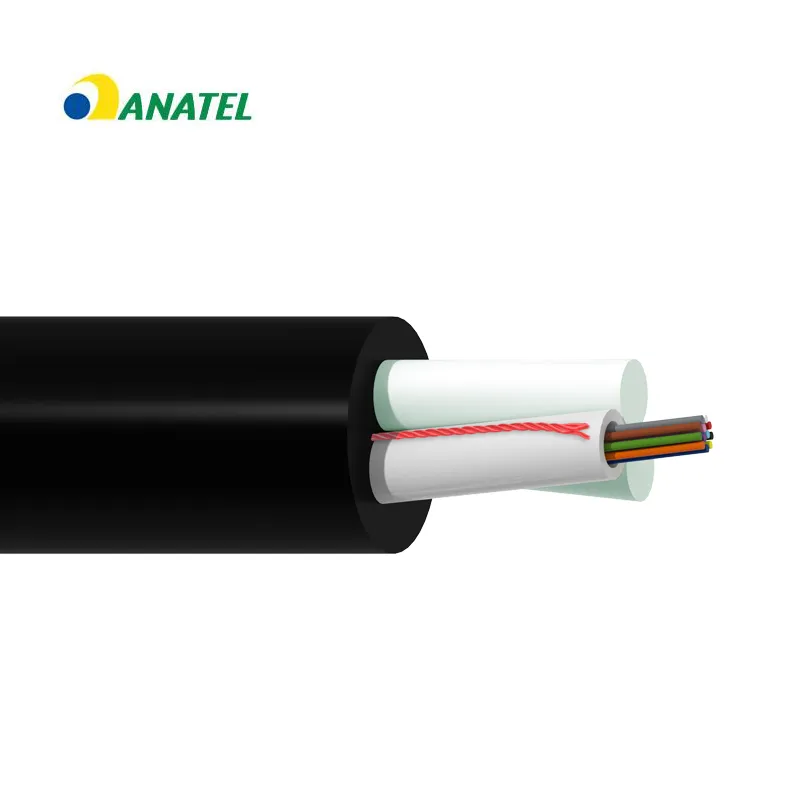

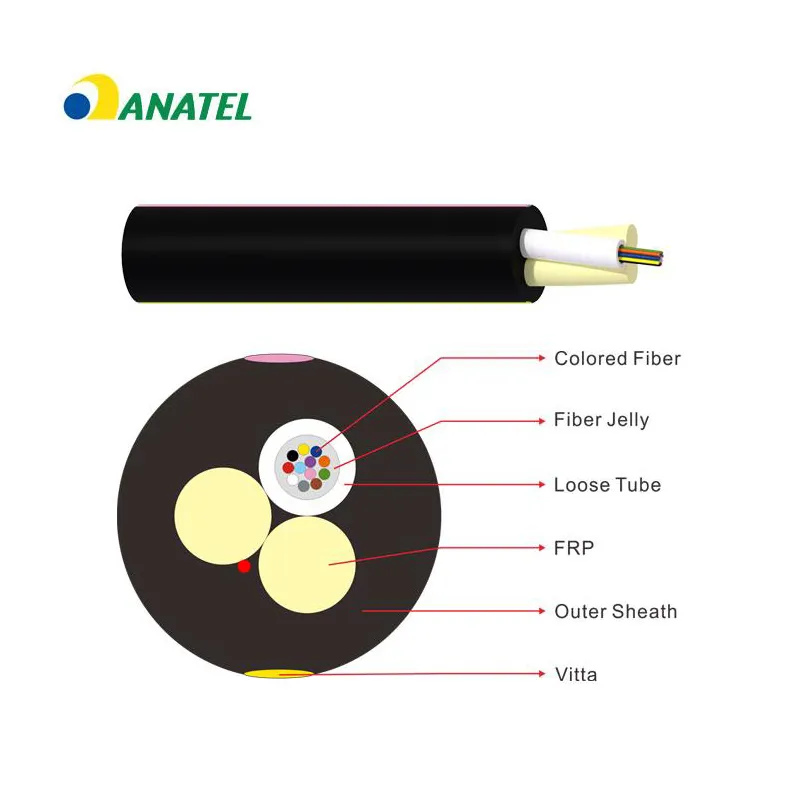

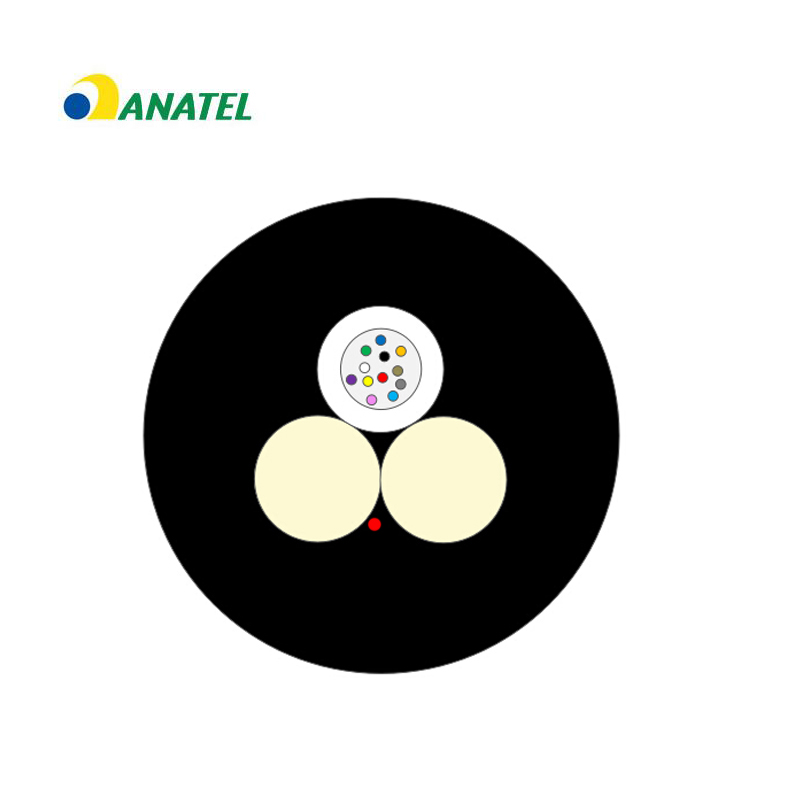

The cable structure is put the 250μm colored fiber in the PBT loose tube, and two FRP as strengthen member, Cable surface is extruded with a PE outer sheath.

·Product Features

·Small Size and Ligth Weight
·Two FRP as strength member to provide good tensile performance
·Gel Filled or gel free , good waterproof performance
·Low price ,high fiber capacity
·applicable for short span aerial and duct installation

·Product Standard

GYFFY fiber Optic cable according to YD/T1258.4-2003,GB/T13993 ,IECA-596,GR-409,IEC794 and so on standard

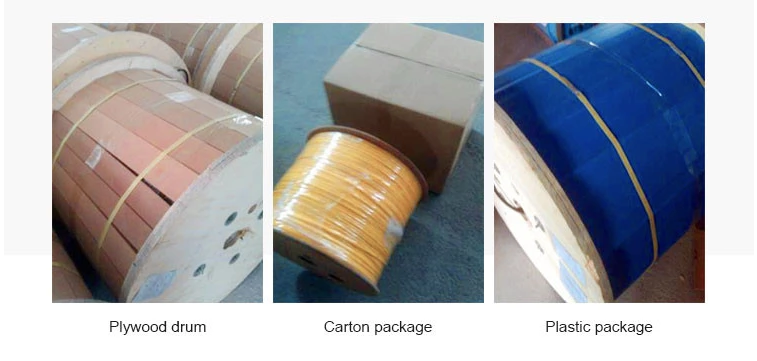

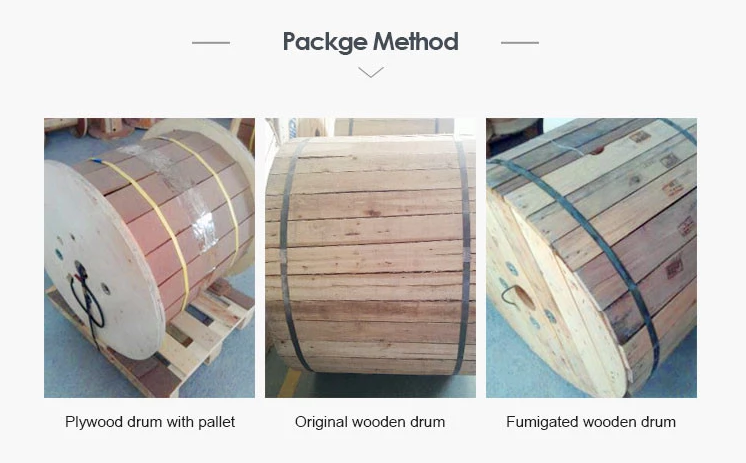

Packaging & Shipping
