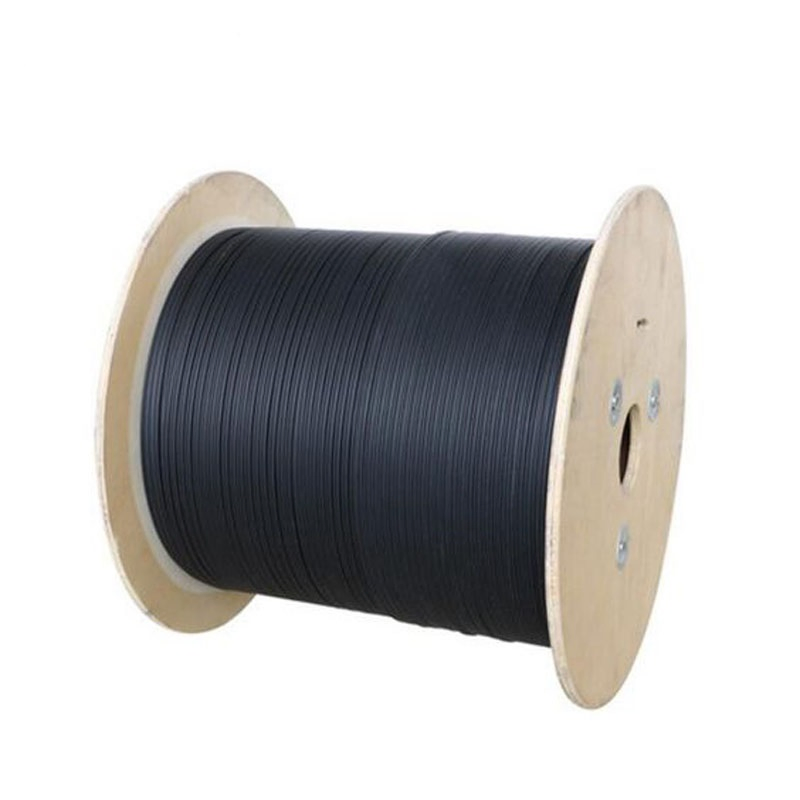

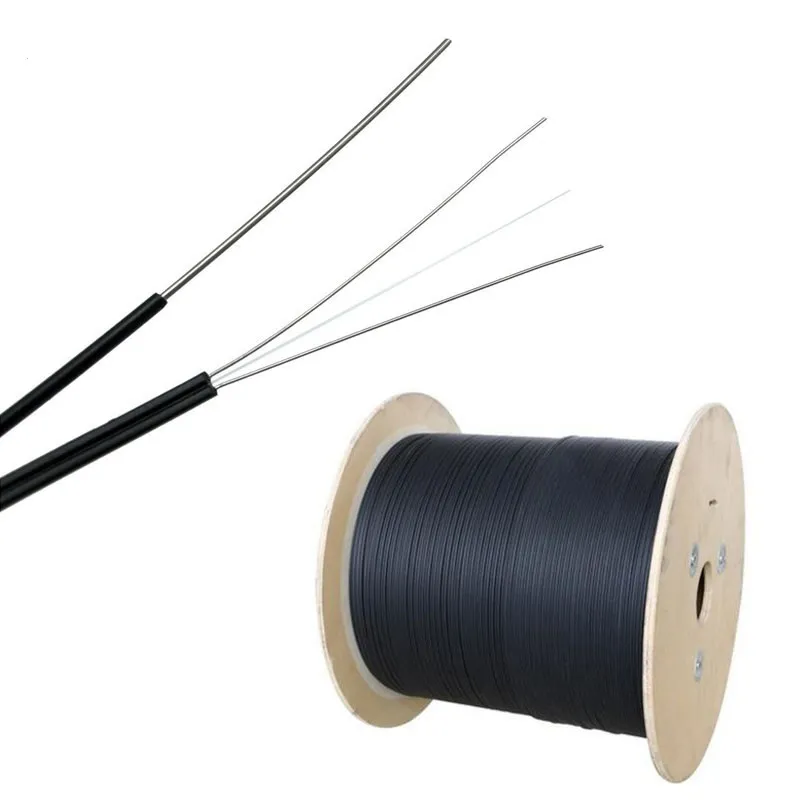

1/2/4 Cores Steel/FRP Strength Member FTTH Fiber Drop Cable with Messenger

Product Description

1/2/4 cores steel/FRP strength member ftth fiber drop cable with messenger

Products' details:

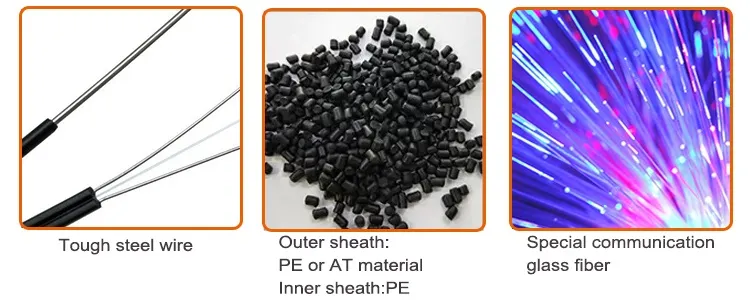

1.Good mechanical and environmental characteristics;
2.Flame retardant characteristics meets the requirements of relevant standards;
3.The mechanical characteristics meets the requirements of relevant standards;
4.Soft, flexible, easy to splice, and with big capacity data transmission;
5.Meet various requirements of market and clients.

Characteristic:

1 Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

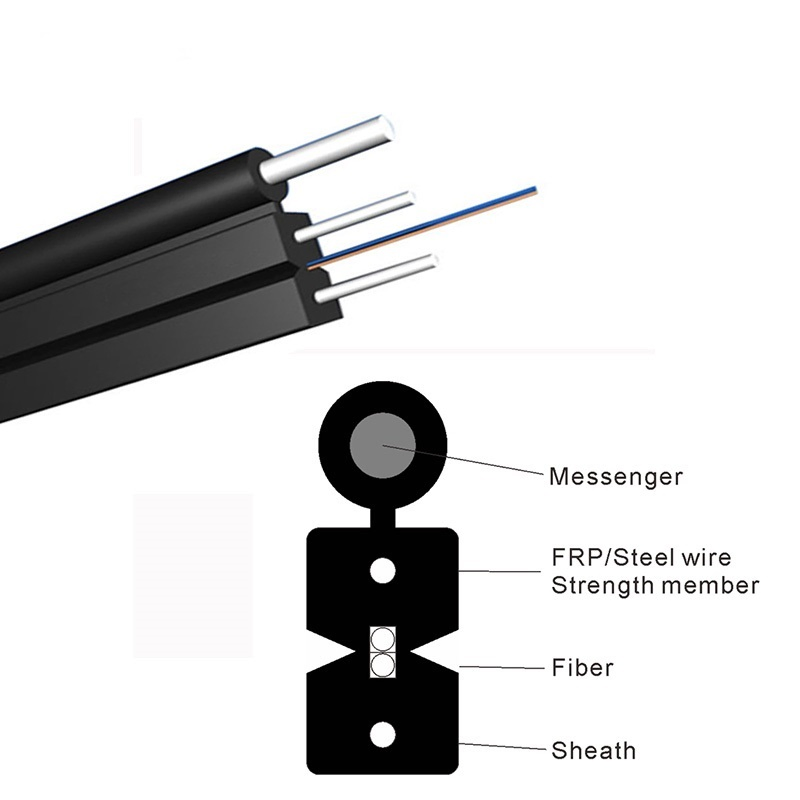

2 Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

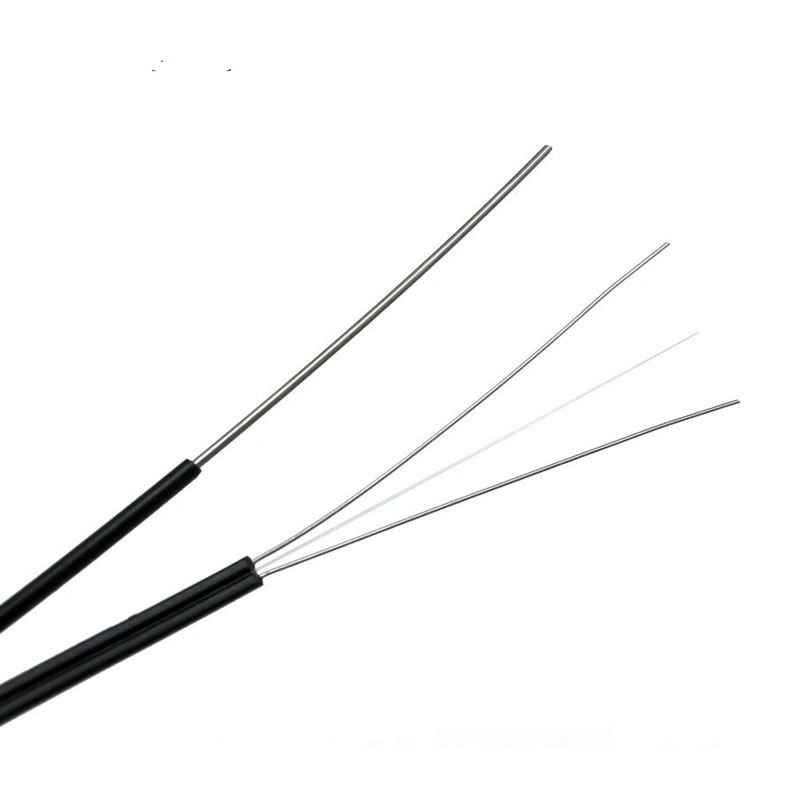

3 Single steel wire as the additional strength member ensure good performance of tensile strength.
4 Simple structure, light weight and high practicability.
5 Novel flute design, easily strip and splice, simplify the installation and maintenance.
6 Low smoke, zero halogen and flame retardant sheath.
7 Storage / Operating Temperature: -20° C~+60° C. Workshop:

Item	Technology parameter

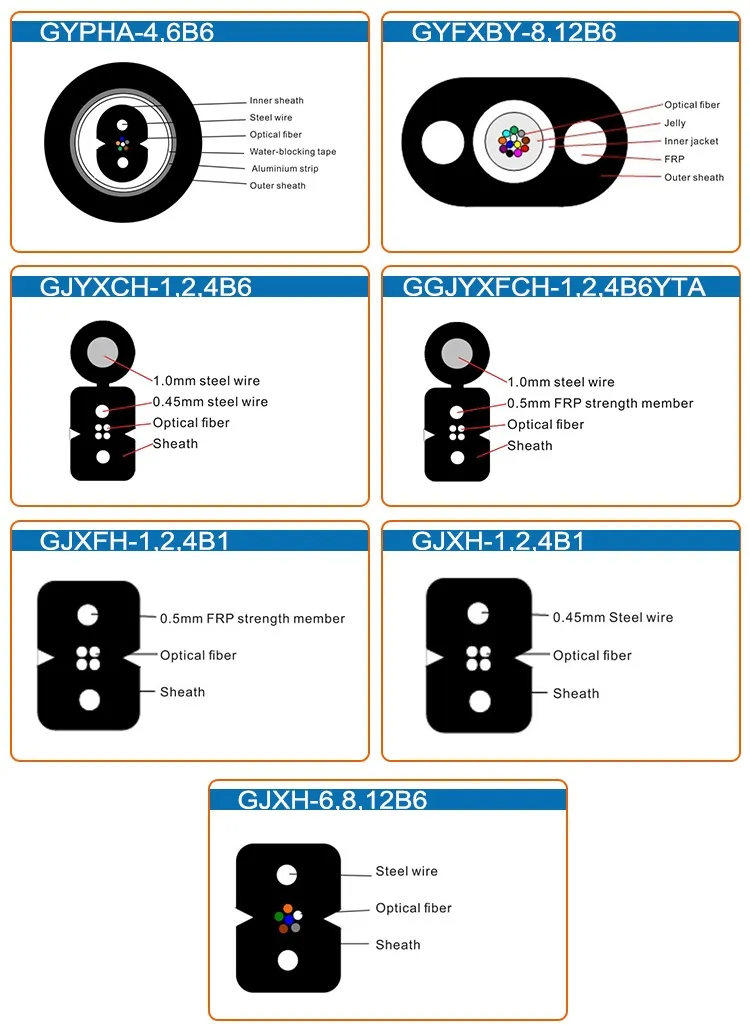

Cable type	GJYXCH-1B6	GJYXCH-2B6	GJYXCH-4B6
Cable specification	5.2×2.0
Fiber type	9/125 (G.657A2)
Fiber counts	1	2	4
Fiber color	Red	Blue, orange	Blue, orange, green, brown
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km	Approx. 19.5
Min. bending radius mm	120
Min. bending radius mm (Excluding messenger wire)	10 (Static) 25 (Dynamic)
Attenuation dB/km	≤ 0.4 at 1310nm, ≤0.3 at 1550nm
Short term tensile N	600
Long term tensile N	300
Short term crush N/100mm	2200
Long term crush N/100mm	1100
Operation temperature ºC	-20~+60
