XLPE Triplex Aluminum Aerial Bundle ABC Cable Dungenese 2*2/0+2/0AWG
XLPE Triplex Aluminum Aerial bundle ABC cable Dungenese 2*2/0+2/0AWG ABC Cable are overhead power lines using several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. They can improves safety and reliance of electrified wire netting. Type and Application T......
Send Inquiry
Product Description
XLPE Triplex Aluminum Aerial bundle ABC cable Dungenese 2*2/0+2/0AWG
ABC Cable are overhead power lines using several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. They can improves safety and reliance of electrified wire netting.
Type and Application

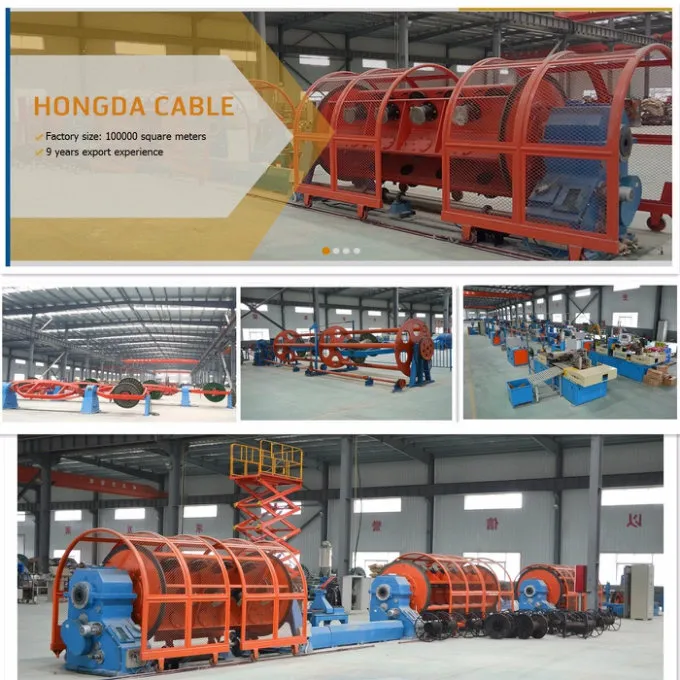

company information:
contact information:
ABC Cable are overhead power lines using several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. They can improves safety and reliance of electrified wire netting.
Type and Application
| Type | Application |
| Duplex Service Drop | To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum. |
| Triplex Service Drop | To supply power from the utility's lines to the consumer's weatherhead.For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximumfor polyethylene insulation 90°C maximum for crosslinked insulation. |
| Quadruplex Service Drop | Used to supply 3 phase power, usually from a polemounted transformer, to the user'sservice head where connection to the service entrance cable is made. To be used at voltages of 600volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethyleneinsulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors. |
| Aerial bundle cable / Triplex Service Drop-Aluminum Conductor, ASTMB-232 | ||||||||||
| Code Name | Phase Conductors(AAC) | Bare Neutral(AAAC) | Weight | Ampacity | ||||||
| Size/no of wires | Insulation thickness | Nominal Diameter | Size/no of wire | rated strength | XLPE | Aluminum | Total | |||
| Bare | OD | |||||||||
| mm | mm | mm | kg | kg/km | kg/km | kg/km | A | |||
| Fulgur | 3/0-19 | 1.52 | 11.9 | 15 | 1/0-7 | 2023 | 168 | 650 | 819 | 242 |
| Balanus | 3/0-19 | 2.03 | 11.9 | 16 | 1/0-7 | 2023 | 216 | 650 | 868 | 242 |
| Stonecrab | 3/0-7 | 1.52 | 11.8 | 14.8 | 3/0-7 | 3080 | 165 | 752 | 917 | 242 |
| Flustra | 3/0-7 | 1.52 | 11.9 | 15 | 3/0-7 | 3080 | 168 | 752 | 920 | 242 |
| Crisia | 3/0-19 | 2.03 | 11.9 | 16 | 3/0-7 | 3080 | 216 | 752 | 969 | 242 |
| Squid | 4/0-7 | 1.52 | 13.3 | 16.3 | 2/0-7 | 2431 | 191 | 820 | 1011 | 279 |
| Arca | 4/0-19 | 1.52 | 13.4 | 16.5 | 2/0-7 | 2431 | 192 | 820 | 1012 | 279 |
| Bugula | 4/0-19 | 2.03 | 13.4 | 17.5 | 2/0-7 | 2431 | 246 | 820 | 1066 | 279 |
| Kingerab | 4/0-7 | 1.52 | 13.3 | 16.3 | 4/0-7 | 3883 | 191 | 948 | 1137 | 279 |
| Lepas | 4/0-19 | 1.52 | 13.4 | 16.5 | 4/0-7 | 3883 | 192 | 948 | 1140 | 279 |
| Cassi | 4/0-19 | 2.03 | 13.4 | 17.5 | 4/0-7 | 3883 | 246 | 948 | 1194 | 279 |
