Product Description

UL2806 or UL44 Epr insulated and cpe sheathed heavy duty power cable

1 SPECIFICATIONS & STANDARDS

UL 44, ICEA S-95-658/NEMA WC70, UL 1685, IEEE-1202, CSA C22.2 No. 38, ASTM B 8, ASTM B 33, AAR, RP-588 RP-586

2 CONSTRUCTION:
Nominal voltage: RHH/RHW-2 600V and 2000V, RW-90 CSA, 1kV, DLO 2kV
Conductors: Flexible strand tin coated copper conductor, B-172, ASTM B-33
Separator: Tape separator between conductor and insulation
Insulation: Ethylene-propylene rubber (EPR), UL, CSA, ICEA, AAR RP-588, 90ºC
Jacket: Black heavy duty, thermoset CPE, ICEA S-95-658 NEMA WC70, AAR RP-586
Bending radius: For fixed - minimum 4xD, for flexible - minimum 6xD, D - diameter of cable
Torsion stresses: ±100/m

3 APPROVALS:
UL: E193594 RHW-2 90C wet and dry, VW-1, Sun Res, for 1/0 and larger ST-1, FT-4, IEEE1202, for CT use
C(UL): E193954: TYPE RW90 EP; 1000V; FT1
CSA: 1101209 LL103932: 205591; RW-90 90C; FT1; FT4; -40C; OIL RES Tray Cable Sun Res 1/0 and larger MSHA: P-7268080-01-MSHA

4 SPECIFICATION:

Conductor Size	Number of Strands	Size of Each Strand	Insulation Thickness	Jacket Thickness	Maximum Overall Diameter	Approximate Total Weight
AWG or kcmil		AWG	mil	mil	in	lb/kft
14	19	27	45	25	0.22	33
12	19	25	45	30	0.25	46
10	27	24	45	30	0.28	65
8	37	24	60	30	0.33	91
6	63	24	60	30	0.39	136
4	105	24	60	30	0.45	201
2	154	24	60	30	0.51	274
1	224	24	80	45	0.65	419
1/0	273	24	80	45	0.69	492
2/0	323	24	80	45	0.74	575
3/0	426	24	80	45	0.83	770
4/0	551	24	80	45	0.89	884
263	646	24	95	65	1.01	1114
313	779	24	95	65	1.08	1309
374	931	24	95	65	1.14	1528
444	1110	24	95	65	1.22	1785
535	1332	24	110	65	1.33	2140
646	1591	24	110	65	1.42	2546
778	1952	24	110	65	1.53	3017
929	2318	24	110	65	1.64	3529
1111	2745	24	125	95	1.85	4291

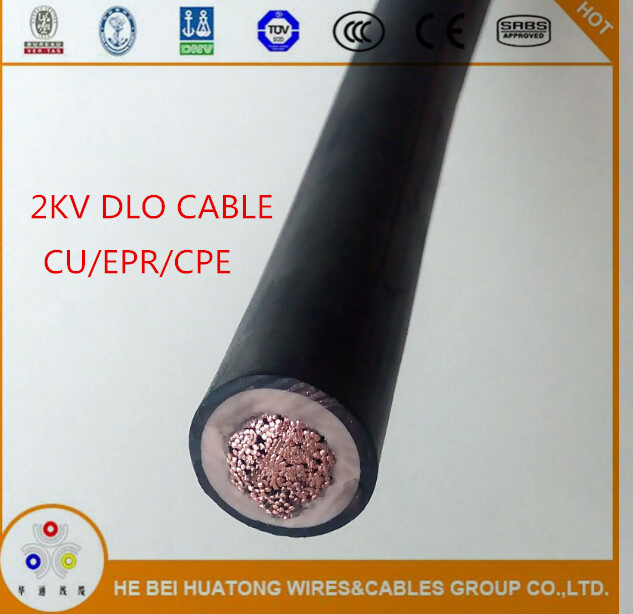

UL2806 or UL44 Epr Insulated and CPE Sheathed Heavy Duty Power Cable

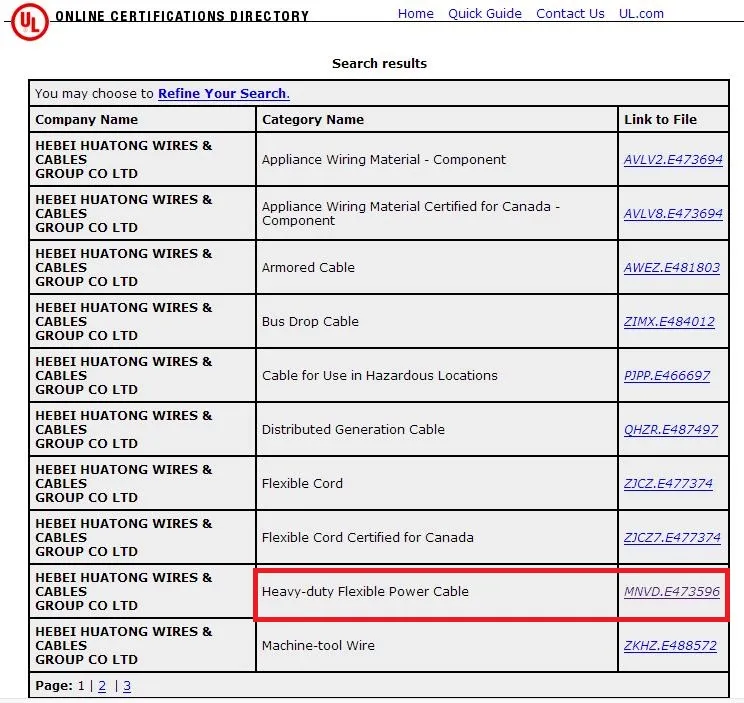

5 Certificate for DLO cable:
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

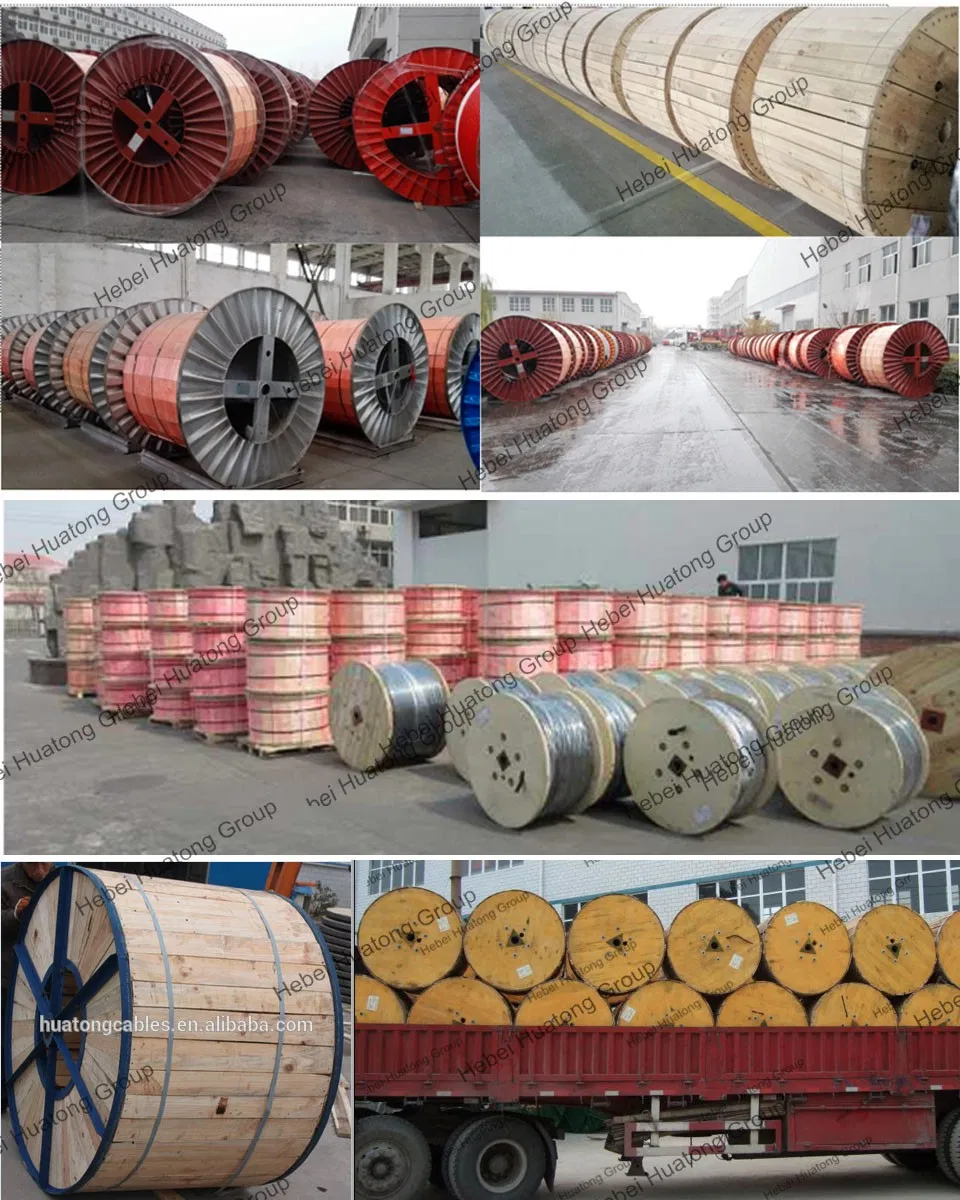

5 Packing and shipping:

6 Brief Introduction:
USA is our main market. There are some big companies we cooperated many years. Also we do UL certifications for these products: RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.

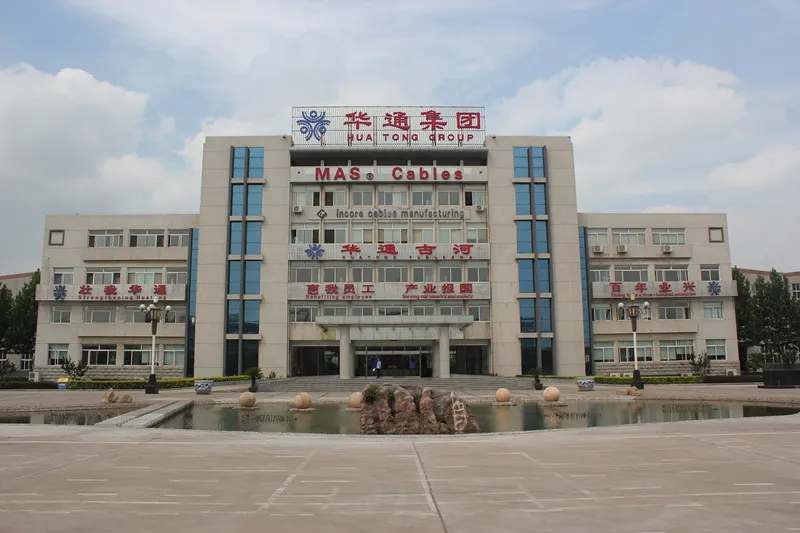

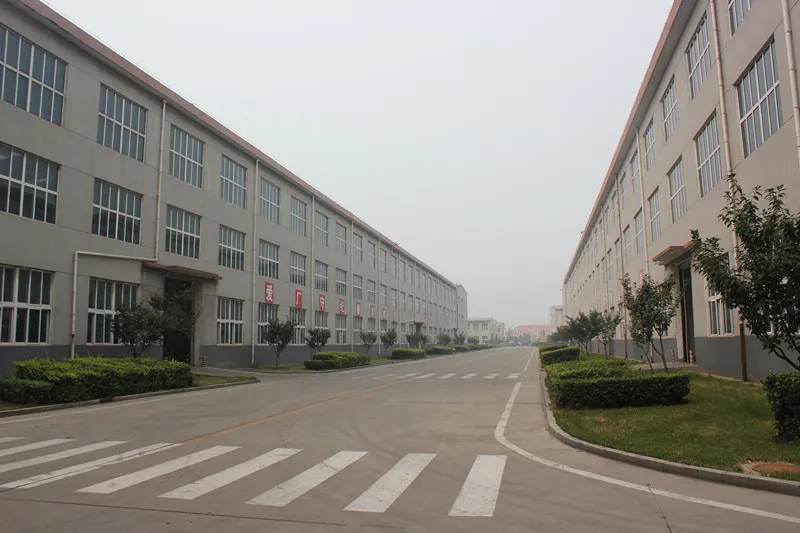

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.

7 Our Serivce:

1.22 years production experience and 13 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.
