UL1072 ICEA S-94-649 Listed Medium Voltage XLPE Insulated MV-90/MV-105 Power CableProduct Description:ApplicationsURD - TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, under......
Send Inquiry
Product Description
Product Description:
Applications
URD - TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.
Specifications
TRXLPEMLP insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.
- ANSIIICEA S94-649
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231
Construction

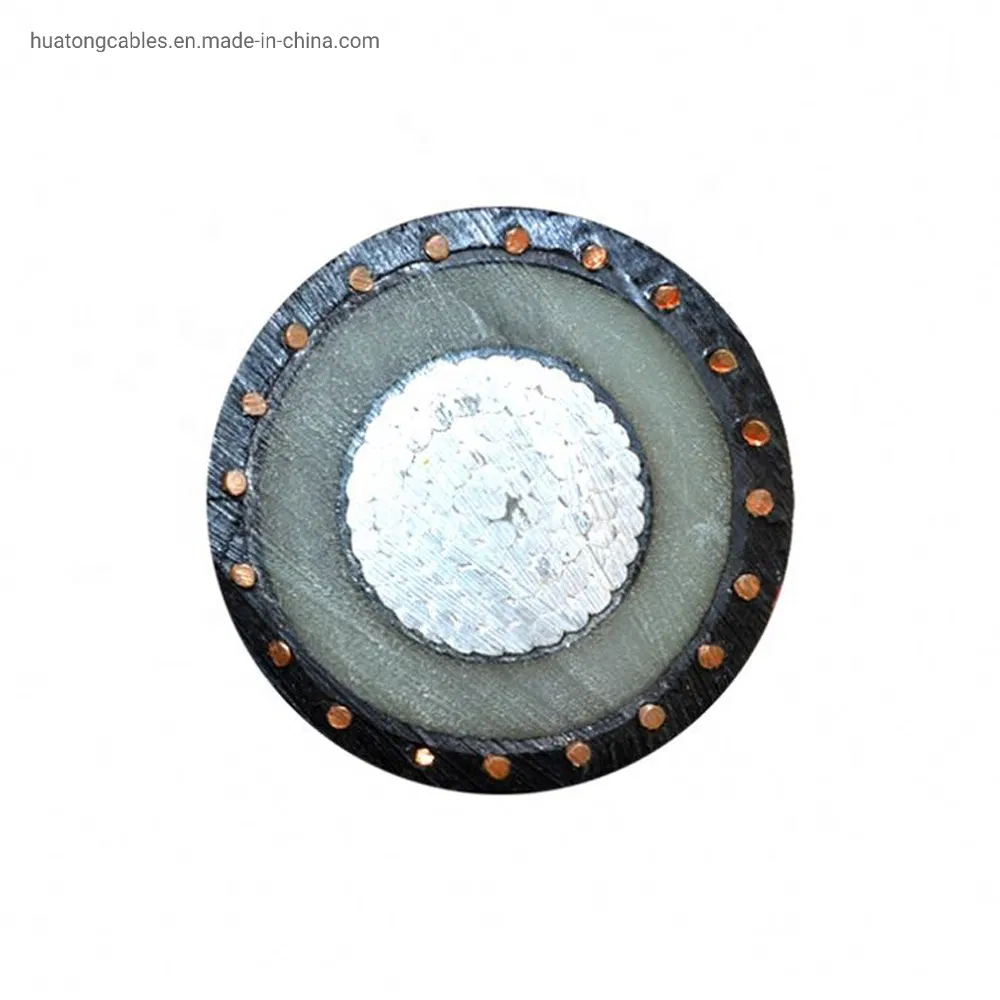

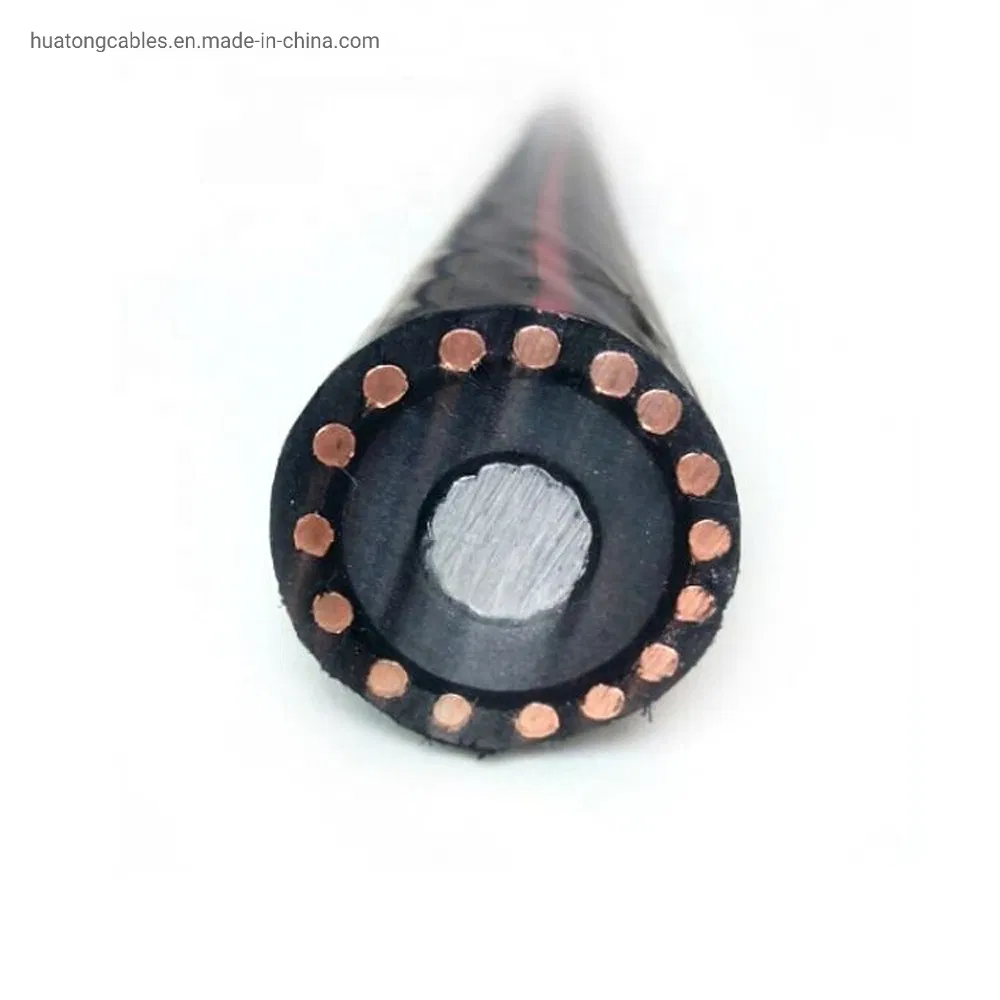

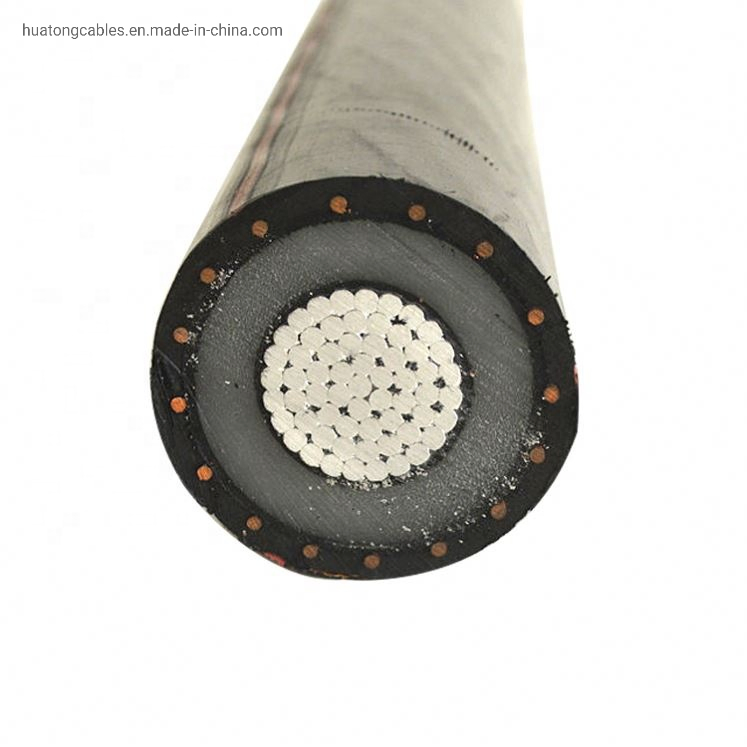

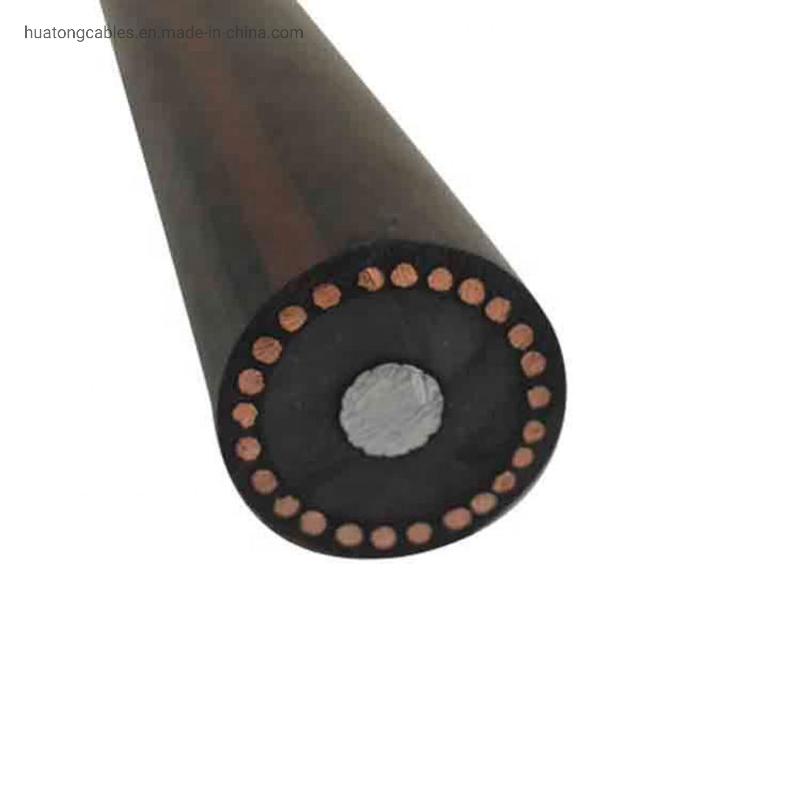

Conductor : Bare aluminium or copper, stranded class B compressed stranding
Conductor Shield :Extruded semi-conducting compound
Insulation : TRXLP (TreeRetardant XLPE) or XLPE
Insulation Shield : Extruded semi-conducting compound
Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)
Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon request
Maximum Conductor Temerature
Normal continuous at 90 ºC, Overload at 130 ºC and Short circuit at 250 ºC
Features & Neneritas, Options
- Triple extruded construction by dry curing process guarantees excellent quality of cables
- TRXLPE insulation offers proven superior life span than conventional XLPE cables
- Triplex type is optional, it brings you saving installation cost
- Strand-filled conductor & Water-blocking jacket is available upon request
Data Sheet
| Conductor | Copper Neutral (1/3) | Diameter(inch) | Weight (Pounds) | |||||||||
| AWG or MCM | Stranding | Number of Wires | Size AWG | Conductor | Over Insulation | Over Insul. Shield | Over Neutral Wires | Over Embedded. Jkt. | Conductor | Concentric Neutral | Total No Jacket | Total With Jacket |
| 1/0 | 19 wire | 9 | 14 | 0.37 | 1.12 | 1.23 | 1.35 | 1.46 | 325.8 | 119.2 | 659 | 4926 |
| 2/0 | 19 wire | 11 | 14 | 0.42 | 1.17 | 1.27 | 1.40 | 1.50 | 410.9 | 146.3 | 775 | 808 |
| 3/0 | 19 wire | 14 | 14 | 0.47 | 1.22 | 1.32 | 1.48 | 1.59 | 518.1 | 185.9 | 900 | 923 |
| 4/0 | 19 wire | 11 | 12 | 0.53 | 1.28 | 1.38 | 1.54 | 1.71 | 653.3 | 228.0 | 1110 | 1055 |
| 250 | 37 wire | 13 | 12 | 0.57 | 1.33 | 1.44 | 1.64 | 1.81 | 771.9 | 282.1 | 1330 | 1292 |
| 350 | 37 wire | 12 | 10 | 0.68 | 1.44 | 1.54 | 1.70 | 1.89 | 1081 | 398.0 | 1633 | 1519 |
| 500 | 37 wire | 17 | 10 | 0.81 | 1.57 | 1.72 | 1.88 | 2.04 | 1544 | 543.5 | 2002 | 1886 |
| 750 | 61 wire | 25 | 10 | 0.99 | 1.76 | 1.93 | 2.11 | 2.28 | 2316 | 801.5 | 2650 | 2289 |
| 1000 | 61 wire | 33 | 10 | 1.14 | 1.92 | 2.06 | 2.27 | 2.43 | 3088 | 1058 | 3847 | 2960 |

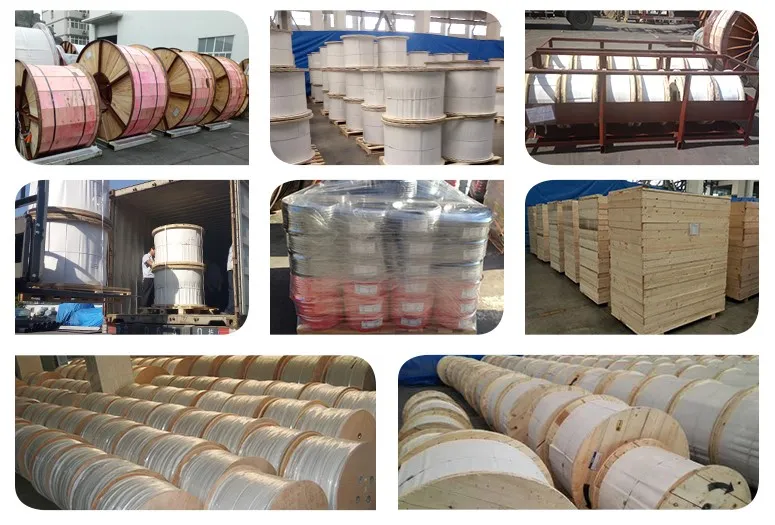

Package
Company
Hebei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa (Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control
cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

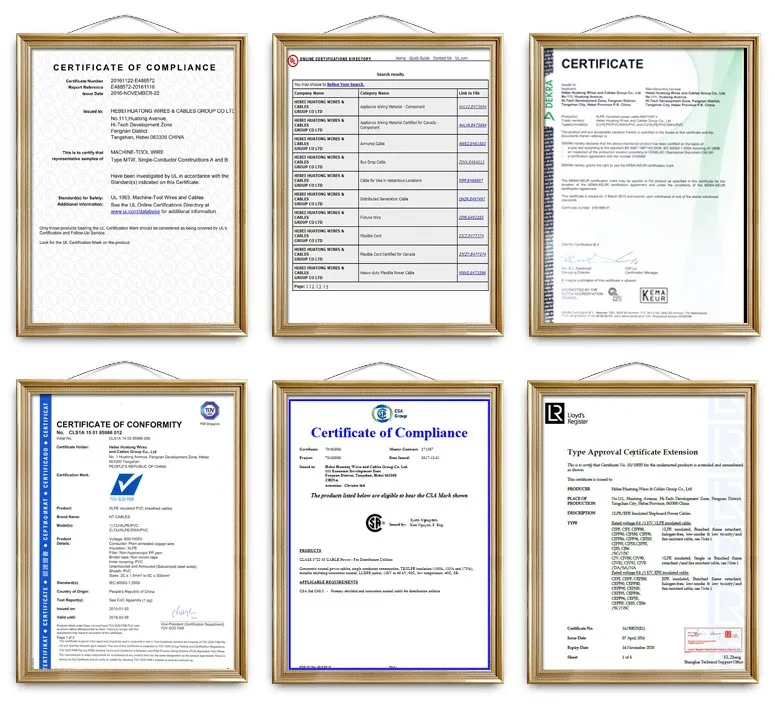

Certification

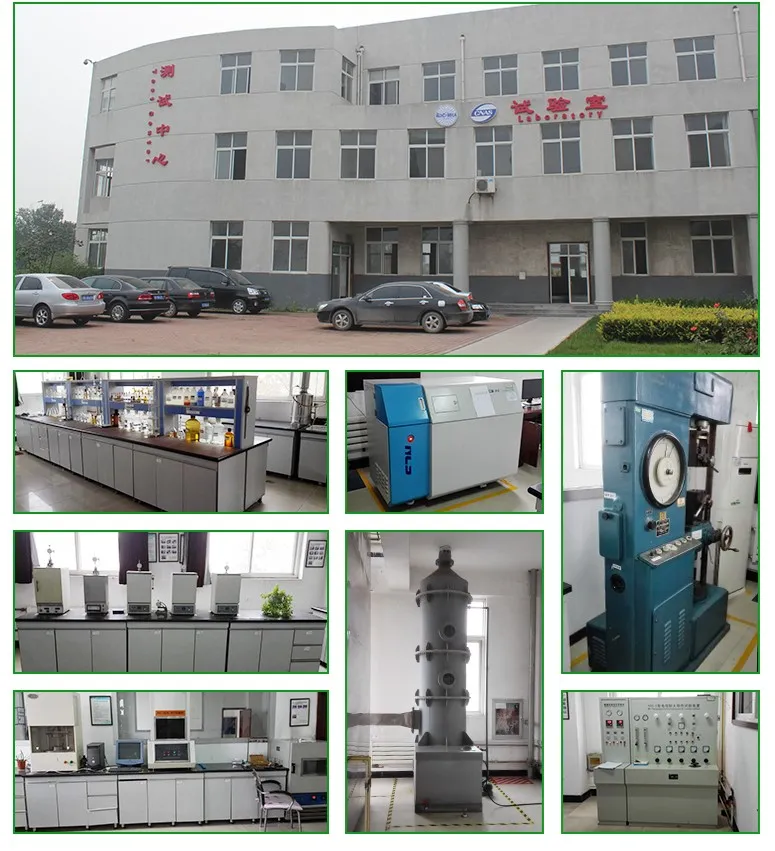

Laboratory
