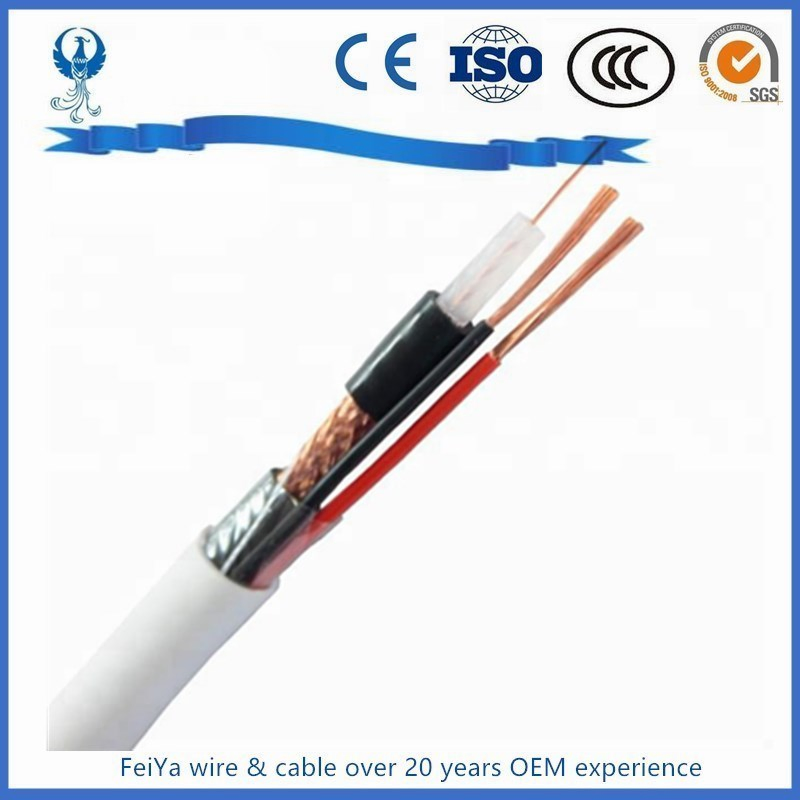

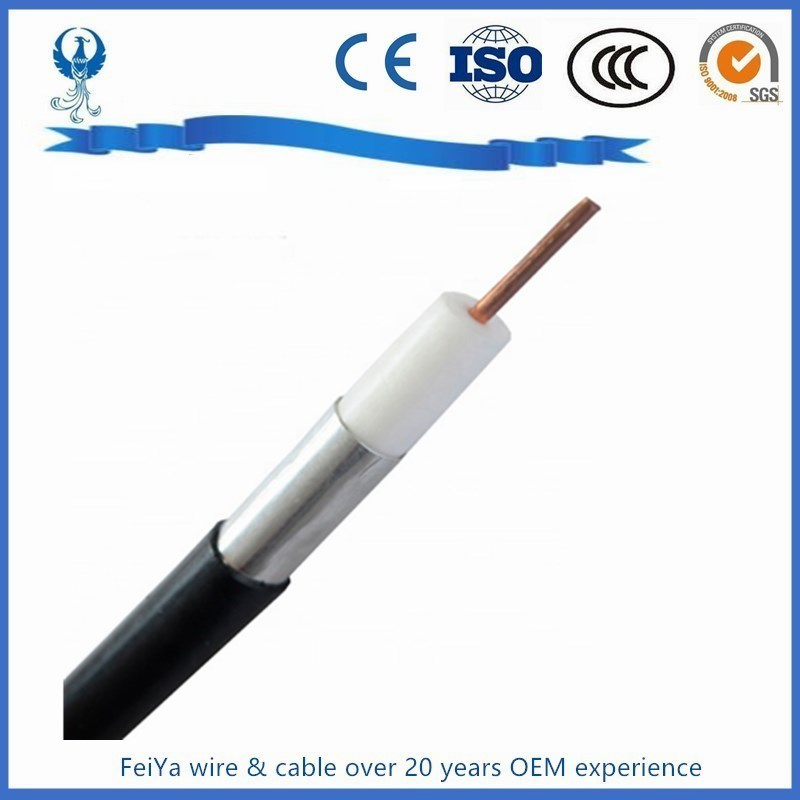

Superlink High Standard Test Passed Coaxial Cable RG6 for Setellite/Monitor/CCTV/CATV Camera
Features:The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquersH-outer sheath = halogen-free material (HM2)RG-Coaxial types are in accordance with US-Military specifications MIL-C-17.RG/U: R=Radio, G=Gu......
Send Inquiry
Product Description
Features:
- The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
- H-outer sheath = halogen-free material (HM2)
- RG-Coaxial types are in accordance with US-Military specifications MIL-C-17.
- RG/U: R=Radio, G=Guide, U=Utility
- FRNC = Flame Retardant Non-Corrosive
Application:
Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.
| Inner conductor diameter mm | 7 x 0,4 Tinned copper | 19 x 0,2 Tinned copper | 1 x 0,6 Steel/copper, bare | 1 x 0,6 Steel/copper, bare | 1 x 0,6 Steel/copper, bare | 7 x 0,8 Copper, bare | 7 x 0,8 Silvered copper |
| Insulation Ø mm | 7,3 PE | 2,95 PE | 3,7 PE | 3,7 PE,hollow | 3,7 PE,hollow | 7,24 E | 7,24 PE |
| Outer conductor | Braid | Braid | Braid | Braid | 2 braids | Braid | 2 braids |
| Copper, bare | Tinned copper | Copper, bare | Copper, bare | Copper, bare,Tinned copper | Copper,bare | 2xsilvered copper | |
| Outer sheath | HM2 | HM2 | HM2 | HM2 | HM2 | HM2 | HM2 |
| Min. bending radius approx. mm | 50 | 25 | 30 | 30 | 30 | 50 | 50 |
| Temperature range °C | 35 to +80 | 35 to +80 | -35 to +80 | 35 to +80 | 50 to +70 | 35 to +80 | -35 to +80 |
| Copper weight kg/km | 58,0 | 29,0 | 28,0 | 28,0 | 48,0 | 85,0 | 120,0 |
| Outer Ø approx. mm | 10,3 | 5,4 | 6,4 | 6,4 | 6,9 | 10,3 | 10,8 |
| Weight approx. kg / km | 144 | 38 | 57 | 54 | 64 | 155 | 203 |
FAQ
Q1: Are you a trading company or manufacturer?
A1: Tianjin Feiya wire & Cable Co., Ltd. is a professional manufacturer.
Q2: What kinds of products does Tianjin Feiya wire & Cable Co., Ltd. Manufacture?

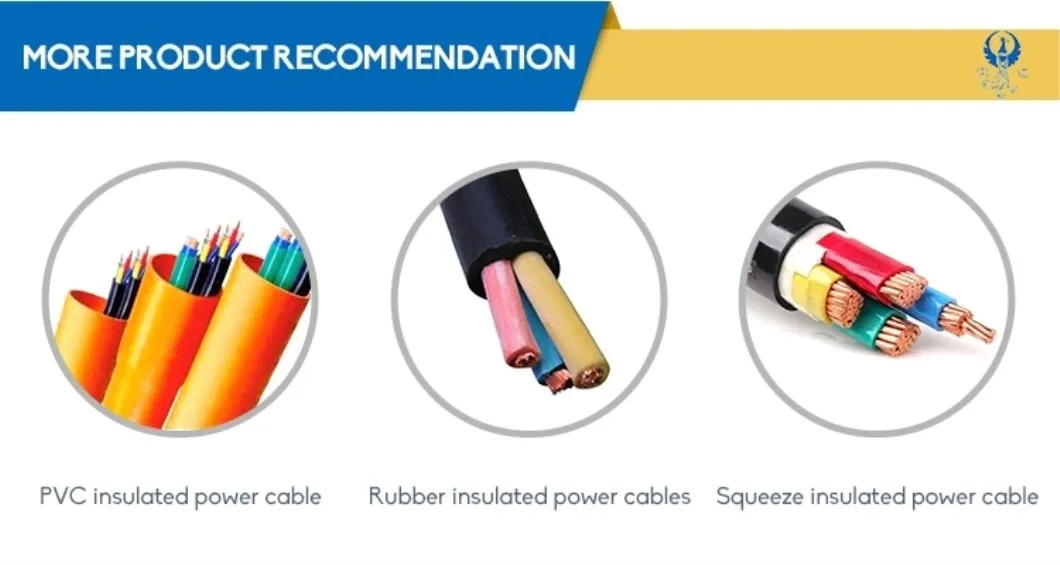

A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable, PVC insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable, coal mine cable, welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.
Q3: Which standards do you comply with when you produce the electrical wires and cables?
A3: We have passed ISO9001: 2000 and ISO140001: 2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM services).
Q4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.
Q5: How much the Courier freight will be for the samples?
A5: Courier freight depends on the quantity, weight and carton size and your area.
