PVC Insulated Copper/Aluminum Electric Power Cable
PVC Insulated Copper/Aluminum Electric Power CableSpecificationsPVC Insulated Power Cable copper conductor 4 coresThe power cable is not limited by drop inlevel when being laid The PVC insulated power cable and fire resistant cable are suitable for fixed laying in power transmission and distribution......
Send Inquiry
Product Description

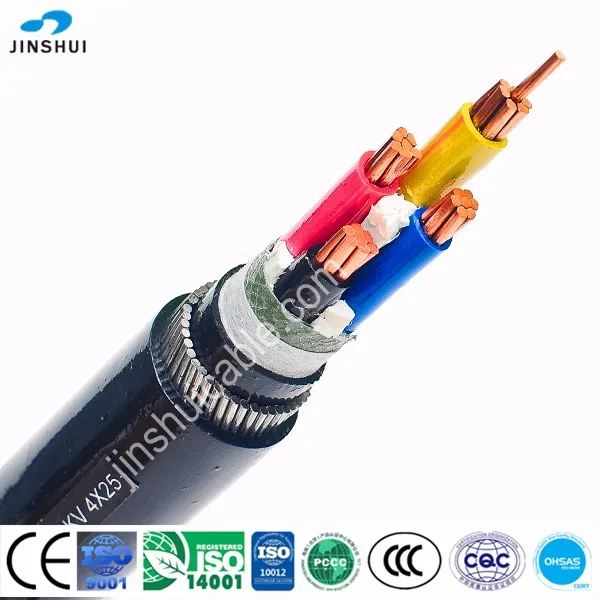

PVC Insulated Power Cable copper conductor 4 cores
The power cable is not limited by drop inlevel when being laid
The PVC insulated power cable and fire resistant cable are suitable for fixed laying in power transmission and distribution lines with A.C.50HZ and voltage rating of up to or including 6KV.
1.Product Performance
(1).The long-time permissible operation temperture of conductor shall not be higher than 70oC.
(2).Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 oC.
(3).The power cable is not limited by drop in level when being laid,and the ambient temperature shall not be lower than 0 oC.
(4).Perfect chemical stability,resistant against acids,alkalis,grease and organic solvents,and flame.
(5).Light weight,perfect bending properties,installed and maintained easily and conveniently.
Voltage rating:0.6/1kV3.6/6kV.
Conductors:copper or aluminum.
Number of cable cores:one core(Single core),two cores(Double cores),three cores,four cores(Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),five cores(Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).We provide armoured trpe and non-armored type for the power cables above.
Our company has been carrying out Chinese national standard GB 12706 and GB 12666.6(equivalent to IEC 60502 and IEC 60331)for PVC insulated power cable and fire resistant cable needed by domestic customer,and for foreign customers we can manufacture in accordance with BS,DIN and other countries,standards.In addition,we can design and manufacture PVC insulated power cable with special characteristics according to needs of customers.
2.Technical Requirements
TYPE | Description of Cable | Main Applications | |
CU core | AL core | Copper/Aluminium core,PVC insulated,PVC sheathed power cable | Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
VV | VLV | Copper/Aluminium core,PVC insulated,PE sheathed power cable | |
VV22 | VLV22 | Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable | Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
VV23 | VLV23 | Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable | |
VV32 | VLV32 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable | Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
VV33 | VLV33 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable | |
VV42 | VLV42 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable | Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
VV43 | VLV43 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable | |
3.Nominal Thickness of Insulation

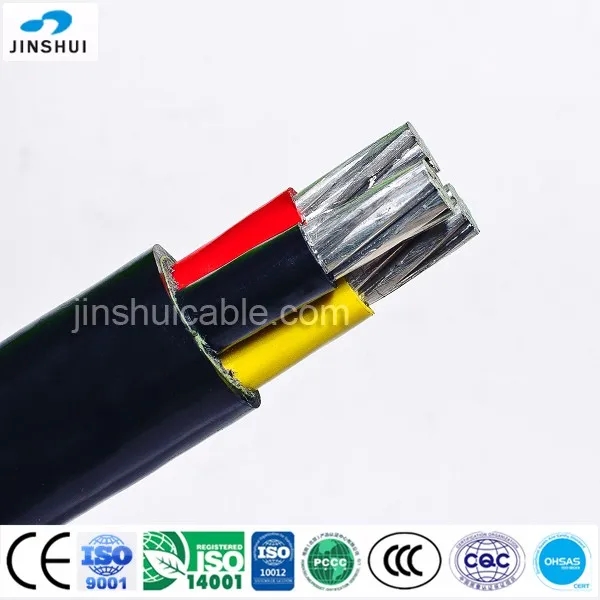

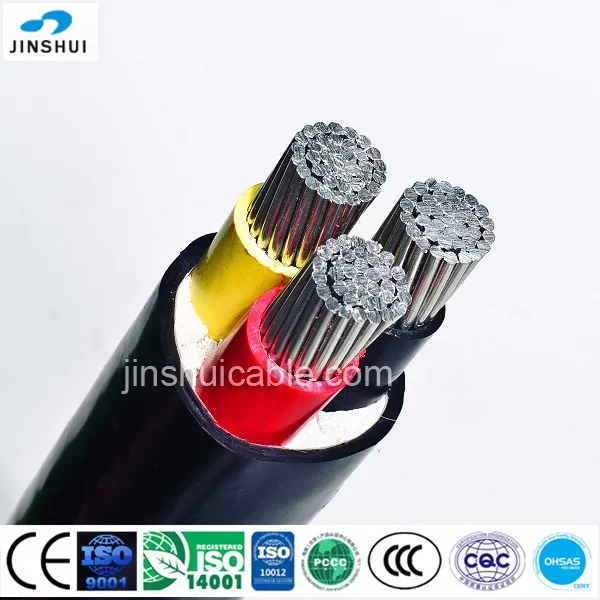

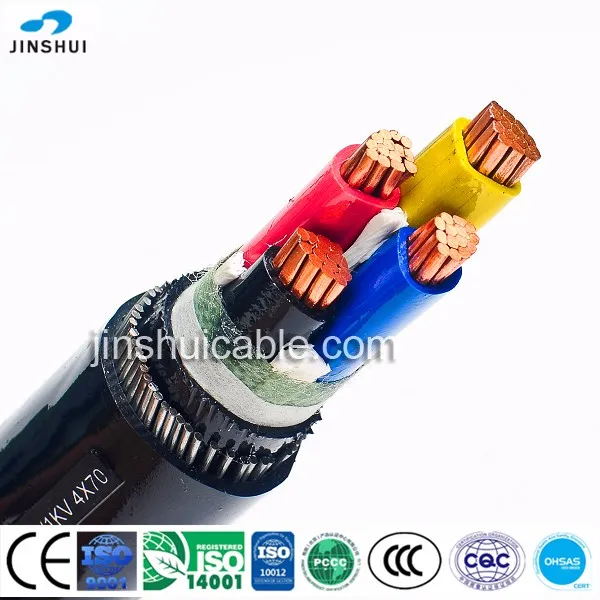

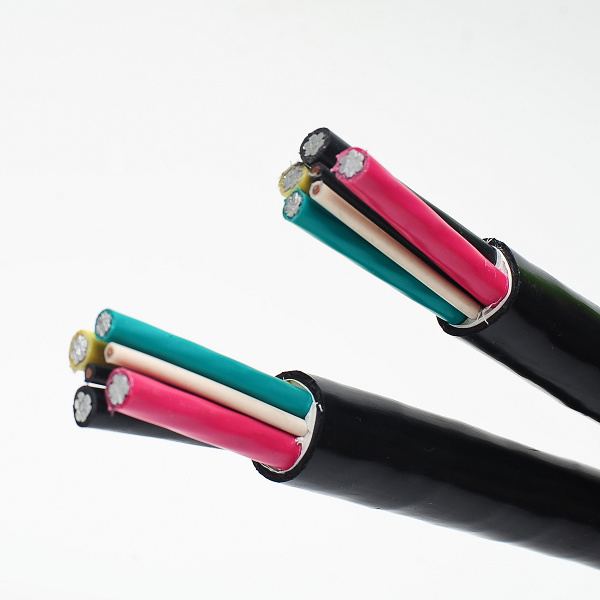

Product Pictures

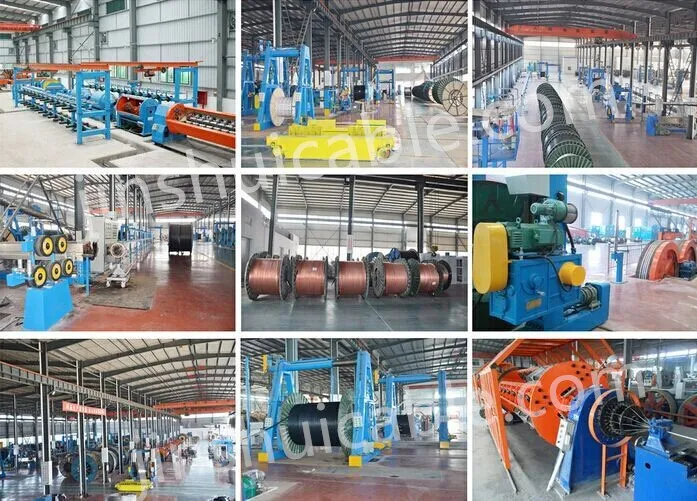

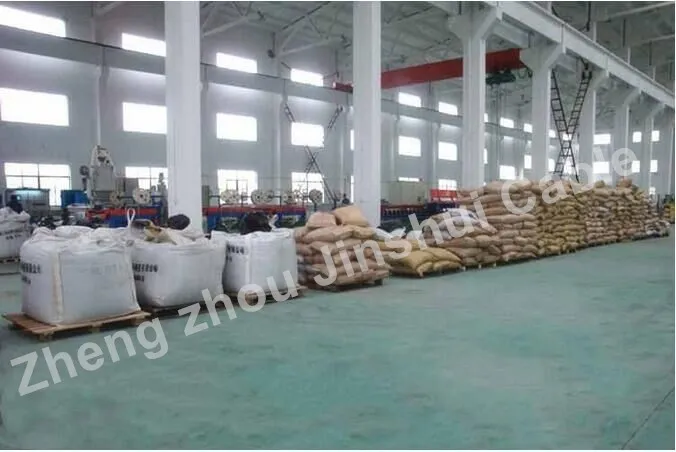

Our Factory
Clean sanitation environment, the working atmosphere of solidarity and cooperation, for our workers high-quality production products to provide a good environment, excellent technical equipment, comprehensive machinery and machinery more reliable guarantee of product quality.

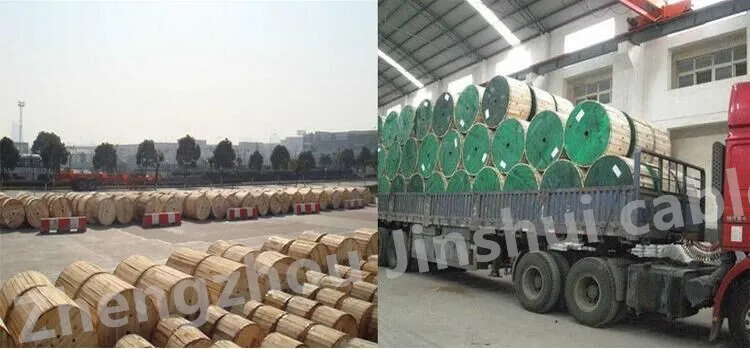

Packaging&Shipping
We have professional handling equipment and packaging technology to ensure product delivery.
Company Information
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou ,Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm ,ISO 14001 EnvironmentalManagement Systerm ,OHSAS18001 occupational Heath Management Systerm ,ISO 10012 Measurement Management Systerm and others from China and abroad.
We have been engaged in producing electric cable and wire for nearly 20 years, and we are also 12 year gold supplier in alibaba. And we are confident that we can offer the best service and quality for you.
Our Services
Abundant experience as first exporter of Henan Province;
15 years experience of manufacturing ;
cover 50 countries of marketing;
well-controlled qualitiy;
thoughtful after-sale service as well as VERY competitive price
We sincerely looking forward to cooperating with you!
