1. Standard of ACSR:
ACSR conductor can comply with IEC61089, ASTM B232, BS215, GB, DIN etc.

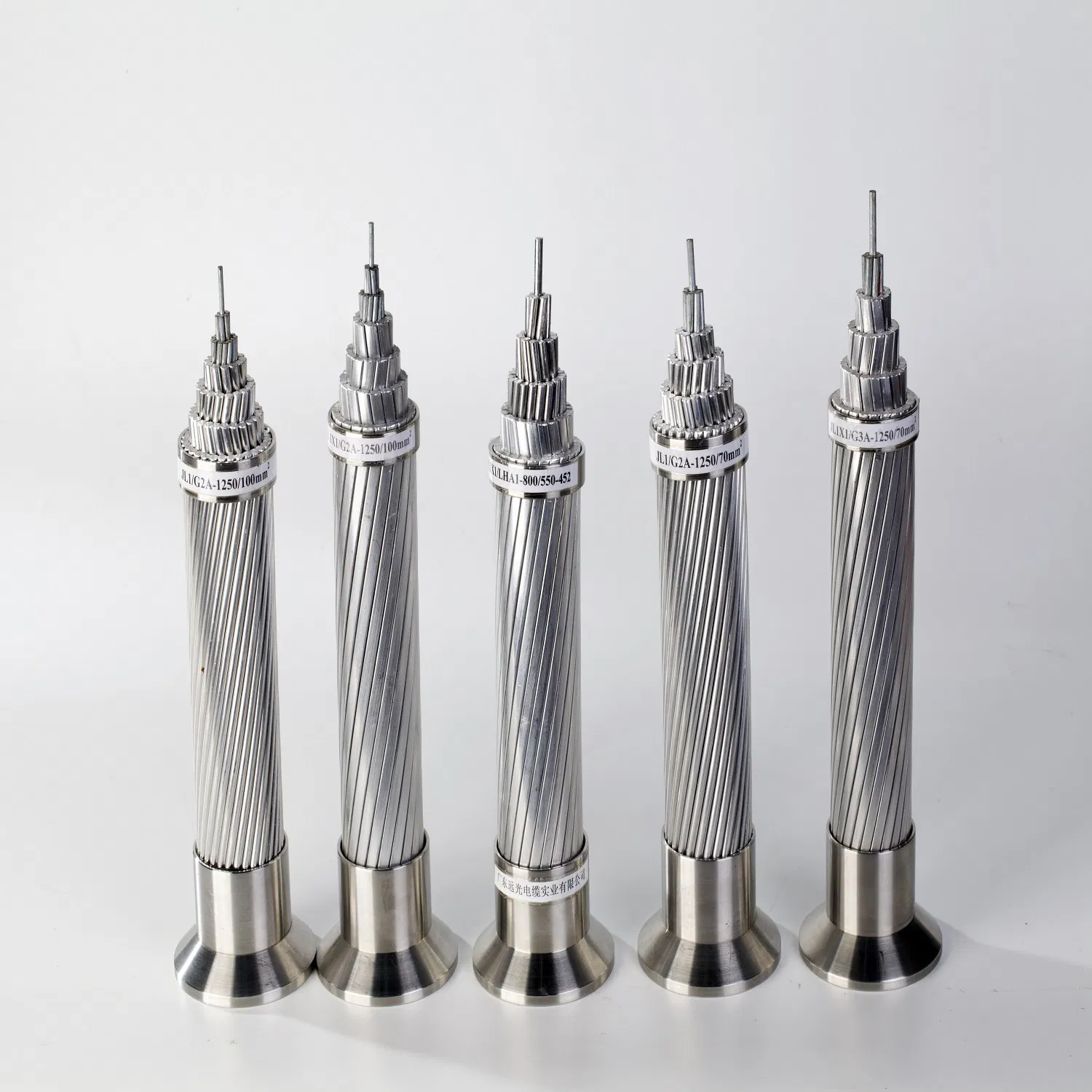

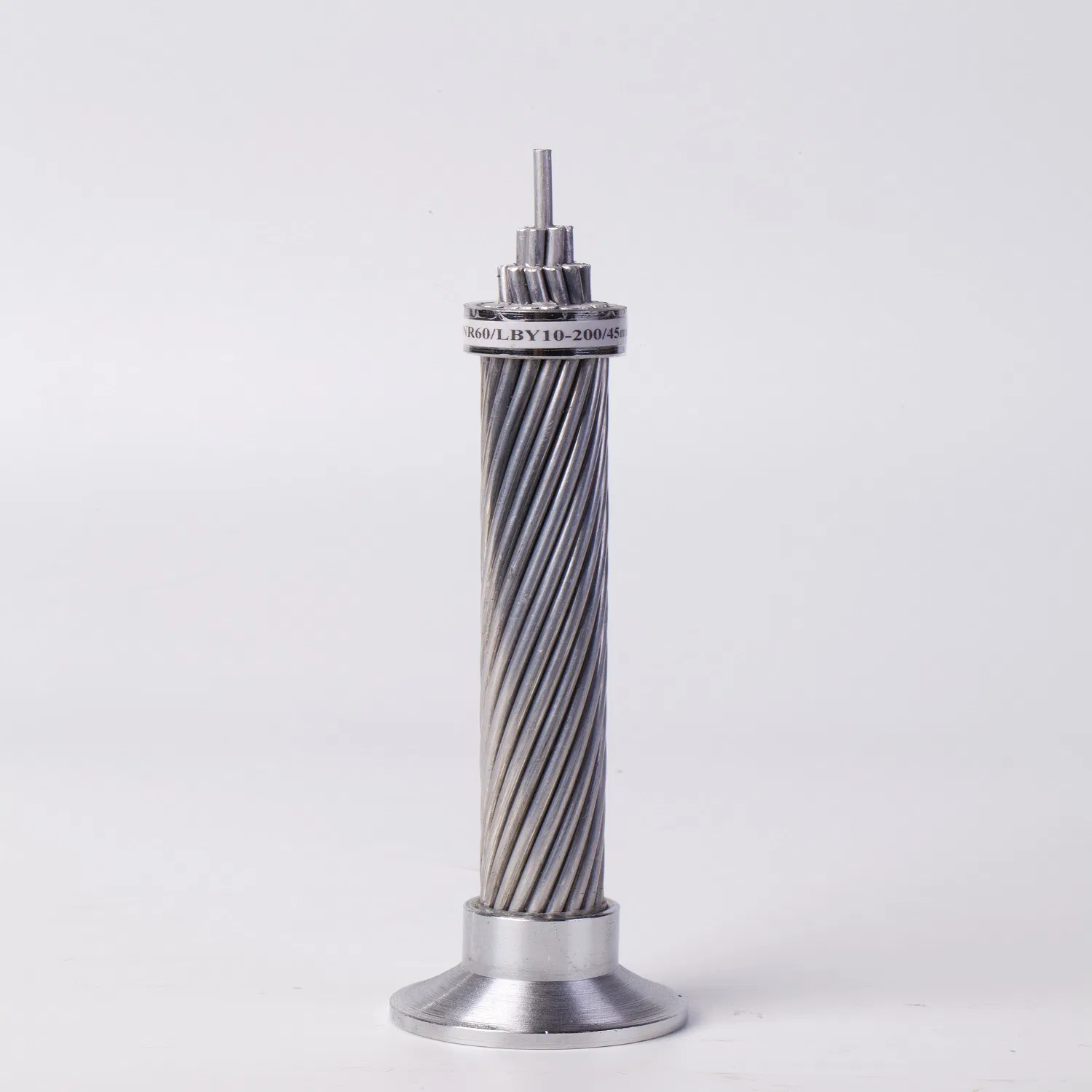

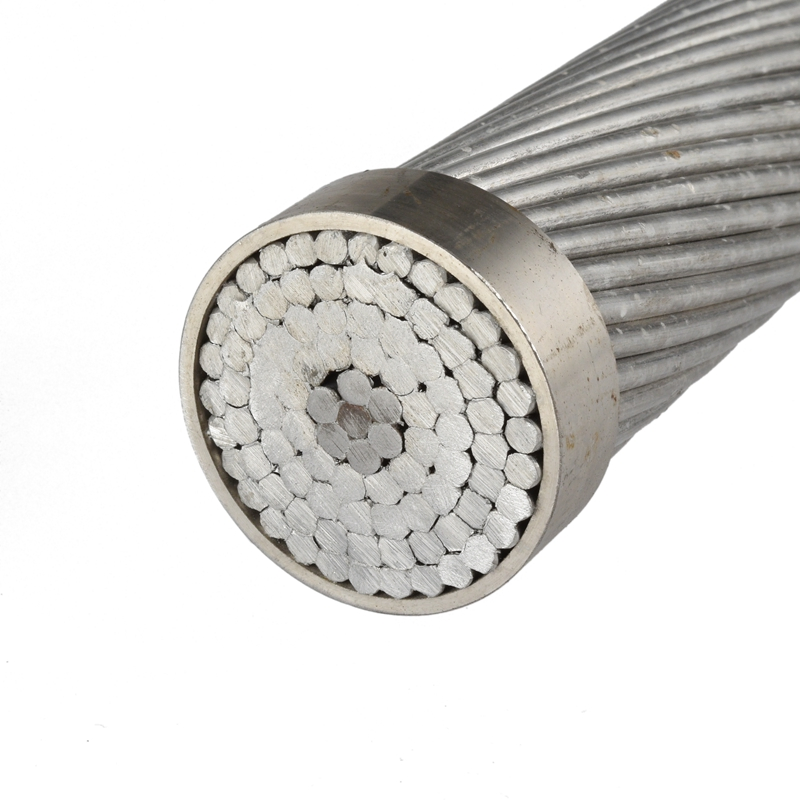

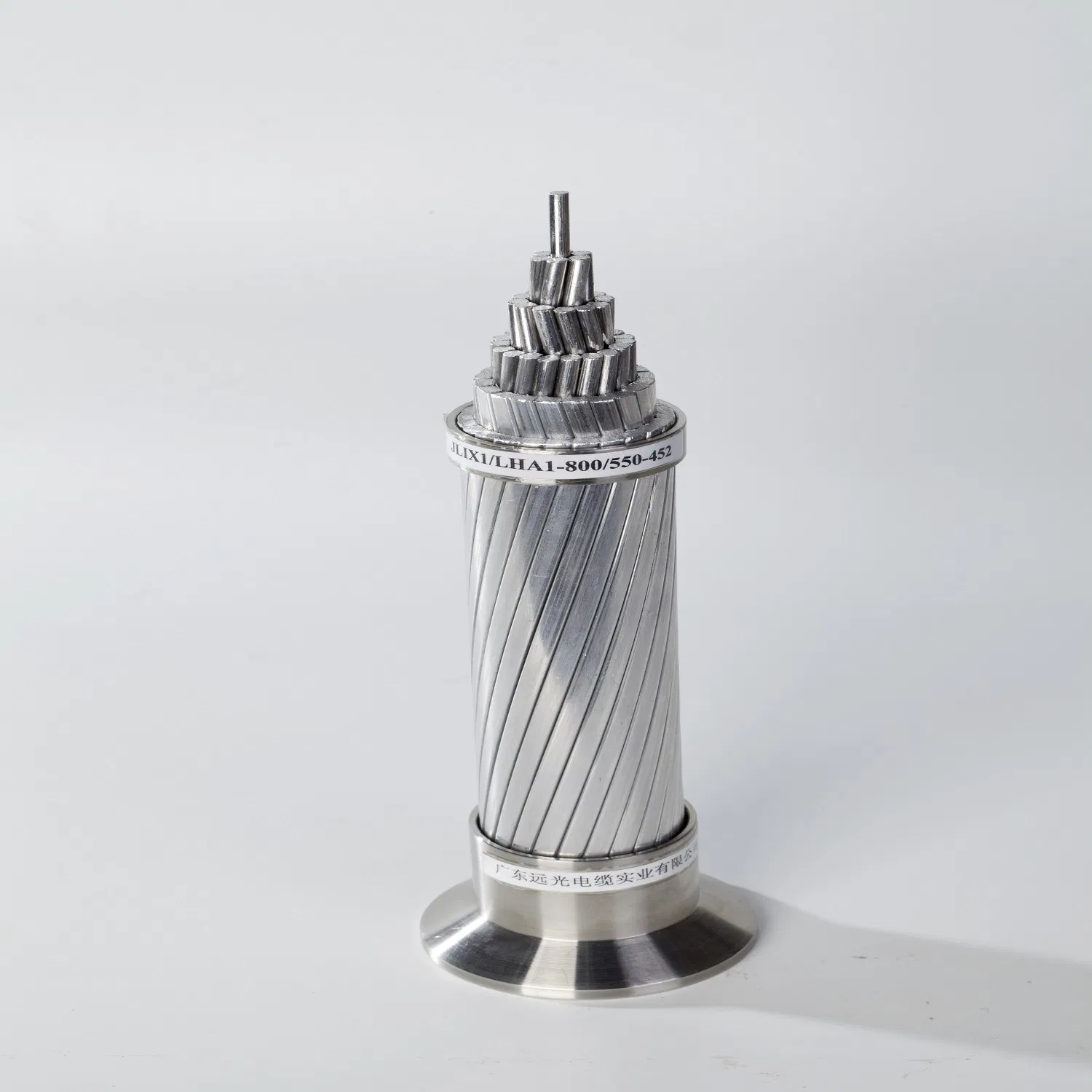

2. Construction of ACSR Conductor:
According to IEC61089, cross section area of ACSR is from 16mm2 to 1250mm2, No of stranded aluminum wire and steel wire can be from Al6/1.84(mm)/Sr1/1.84 to Al84/4.35/Sr19/2.61.
3. Main Feature:
Type: Bare
Conductor Type: Stranded
Application: Overhead Transmission Line
Conductor Material: Aluminum
Sheath Material: Bare
Insulation Material: Bare
Basic Information
Model No: ACSR Conductor
Material Shape: Round Wire
Range of Application: Overhead Installation
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
HS Code: 7614100000
ACSR Code: Turkey, Swan, etc
ACSR Feature: Simple Construction, Easy Installation, Excellent Electric and Mechanical and Conductive etc
Specification: 10mm2 - 1500mm2
ACSR Conductor Advantage: Antiseptic Model.
Supply Record: African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China
4. Application & Characters of ACSR:
Simple construction, convenient installation, easy maintenance, lower cost, larger transmission capacity, it is applicable to special geographic condition such as river, valley , mountain etc.
Antiseptic ACSR has good antiseptic feature, it is applied to coast area, salt sand area for ultra-high voltage, distribution transmission line. Antiseptic ACSR can be customize to put antiseptic materials among layers as customer's expected.
| No. | Size | Class | Stranding Design | Rated Strength (by type of steel core wire) | ||||
| Aluminium/Steel | ACSR/GA | ACSR/GB | ACSR/GC | ACSR/HS | ACSR/AZ | |||
| ACSR/MA | ACSR/MB | ACSR/MC | ACSR/MS | |||||
| mm2 | kN | kN | kN | kN | kN | |||
| 1 | 1250 | AA | 84/19 | 306 | 300 | 293 | 319 | 289 |
| 2 | 1250 | AA | 76/19 | 269 | 265 | 260 | 278 | 260 |
| 3 | 1250 | AA | 72/7 | 250 | 246 | 242 | 257 | 239 |
| 4 | 1120 | AA | 84/19 | 275 | 269 | 263 | 286 | 259 |
| 5 | 1120 | AA | 46/19 | 240 | 236 | 232 | 248 | 232 |
| 6 | 1120 | AA | 72/7 | 226 | 223 | 219 | 232 | 218 |
| 7 | 1000 | AA | 84/19 | 245 | 239 | 234 | 254 | 231 |
| 8 | 1000 | AA | 72/7 | 202 | 199 | 196 | 208 | 195 |
| 9 | 900 | AA | 84/19 | 226 | 221 | 217 | 236 | 217 |
| 10 | 900 | AA | 72/7 | 181 | 179 | 176 | 186 | 175 |
| 11 | 800 | AA | 54/19 | 240 | 233 | 227 | 252 | 223 |
| 12 | 800 | AA | 45/7 | 186 | 182 | 179 | 193 | 175 |
| 13 | 710 | AA | 54/19 | 213 | 207 | 201 | 224 | 198 |
| 14 | 710 | AA | 45/7 | 167 | 164 | 160 | 173 | 158 |
| 15 | 630 | AA | 54/19 | 189 | 184 | 179 | 199 | 176 |
| 16 | 630 | AA | 45/7 | 148 | 145 | 142 | 153 | 140 |
| 17 | 560 | AA | 5419 | 173 | 168 | 164 | 182 | 164 |
| 18 | 560 | AA | 45/7 | 132 | 129 | 126 | 136 | 125 |
| 19 | 500 | AA | 54/7 | 154 | 150 | 145 | 163 | 141 |
| 20 | 500 | AA | 45/7 | 118 | 115 | 113 | 122 | 112 |
| 21 | 450 | AA | 54/7 | 139 | 135 | 131 | 147 | 128 |
| 22 | 450 | AA | 45/7 | 108 | 106 | 104 | 112 | 103 |
| 23 | 400 | AA | 30/19 | 170 | 164 | 158 | 181 | 155 |
| 24 | 400 | AA | 26/7 | 139 | 135 | 131 | 148 | 126 |
| 25 | 400 | AA | 54/7 | 123 | 120 | 116 | 130 | 113 |
| 26 | 355 | AA | 30/19 | 151 | 146 | 140 | 161 | 137 |
| 27 | 355 | AA | 26/7 | 123 | 119 | 115 | 131 | 112 |
| 28 | 355 | AA | 24/7 | 111 | 108 | 105 | 117 | 103 |
| 29 | 315 | AA | 30/19 | 138 | 133 | 128 | 147 | 128 |
| 30 | 315 | AA | 26/7 | 110 | 106 | 103 | 117 | 99.3 |
| 31 | 315 | AA | 24/7 | 98.7 | 96 | 93.2 | 104 | 91.7 |
| 32 | 315 | AA | 18/1 | 68 | 66.8 | 66.3 | 70.8 | 64 |
| 33 | 280 | AA | 30/7 | 122 | 118 | 113 | 131 | 109 |
| 34 | 280 | AA | 26/7 | 100 | 97.2 | 94.1 | 106 | 92.4 |
| 35 | 280 | AA | 24/7 | 87.5 | 85.1 | 82.6 | 92 | 81.2 |
| 36 | 280 | AA | 18/1 | 60.4 | 59.4 | 58.9 | 63 | 56.8 |
| 37 | 250 | AA | 30/7 | 109 | 105 | 101 | 117 | 97.4 |
| 38 | 250 | AA | 26/7 | 89.5 | 86.8 | 84.1 | 94.6 | 82.5 |
| 39 | 250 | AA | 24/7 | 79.4 | 77.2 | 75 | 83.4 | 73.8 |
| 40 | 250 | AA | 18/1 | 54.1 | 53.1 | 52.7 | 56.4 | 50.9 |
| 41 | 224 | AA | 30/7 | 97.4 | 93.9 | 90.4 | 104 | 86.9 |
| 42 | 224 | AA | 26/7 | 80 | 77.6 | 75.1 | 84.5 | 73.7 |
| 43 | 224 | AA | 24/7 | 72 | 70.1 | 68.1 | 74.8 | 68.1 |
| 44 | 224 | AA | 18/1 | 48.3 | 47.5 | 47.1 | 50.4 | 45.5 |
| 45 | 200 | AA | 30/7 | 89.7 | 86.6 | 83.4 | 95.5 | 81.6 |
| 46 | 200 | AA | 26/7 | 71.5 | 69.3 | 67.2 | 75.6 | 65.9 |
| 47 | 200 | AA | 24/7 | 64.2 | 62.5 | 60.7 | 67.7 | 60.7 |
| 48 | 200 | AA | 18/1 | 43.1 | 42.4 | 42.1 | 45 | 41.3 |
| 49 | 180 | AA | 30/7 | 80.7 | 77.9 | 75 | 85.9 | 73.4 |
| 50 | 180 | AA | 26/7 | 65.4 | 63.4 | 61.4 | 69 | 60.3 |
| 51 | 180 | AA | 24/7 | 57.8 | 56.2 | 54.7 | 60.9 | 54.7 |
| 52 | 180 | AA | 18/1 | 40.4 | 39.7 | 39.1 | 41.4 | 38.1 |
| 53 | 160 | AA | 30/7 | 72.9 | 70.4 | 67.9 | 77.6 | 66.4 |
| 54 | 160 | AA | 26/7 | 58.9 | 57.2 | 55.4 | 62.4 | 55.4 |
| 55 | 160 | AA | 24/7 | 52 | 50.6 | 49.2 | 54.8 | 49.2 |
| 56 | 160 | AA | 18/1 | 35.8 | 35.2 | 34.6 | 37 | 34 |
| 57 | 140 | AA | 26/7 | 52.2 | 50.7 | 49.2 | 55.3 | 49.2 |
| 58 | 140 | AA | 24/7 | 46.4 | 45.2 | 44 | 48.9 | 44 |
| 59 | 140 | AA | 18/1 | 31.5 | 30.9 | 30.4 | 32.5 | 29.9 |
| 60 | 125 | AA | 26/7 | 46.9 | 45.6 | 44.2 | 49.6 | 44.2 |
| 61 | 125 | AA | 24/7 | 41.5 | 40.4 | 39.3 | 43.6 | 39.3 |
| 62 | 125 | AA | 18/1 | 28.8 | 28.3 | 27.9 | 29.7 | 27.6 |
| 63 | 100 | AA(HS) | 16/19 | 123 | 117 | 111 | 133 | 106 |
| 64 | 100 | AA(HS) | 12/7 | 85.9 | 82 | 78 | 93.8 | 74.1 |
| 65 | 100 | AA,A | 6/1 | 34.6 | 33.5 | 33 | 37.3 | 30.8 |
| 66 | 90 | AA(HS) | 12/7 | 77.2 | 73.6 | 70.1 | 84.2 | 66.6 |
| 67 | 80 | AA(HS) | 12/7 | 70.6 | 67.5 | 64.4 | 76.4 | 62.6 |
| 68 | 80 | AA,A | 6/1 | 27.6 | 26.7 | 26.4 | 29.8 | 24.6 |
| 69 | 71 | AA(HS) | 12/7 | 62.9 | 60.2 | 57.4 | 68.1 | 55.8 |
| 70 | 63 | AA(HS) | 12/7 | 56.2 | 53.8 | 51.3 | 60.8 | 49.9 |
| 71 | 63 | AA,A | 6/1 | 22.1 | 21.4 | 21.1 | 23.8 | 20.4 |
| 72 | 56 | AA(HS) | 12/7 | 50.2 | 48 | 45.8 | 54.3 | 44.5 |
| 73 | 50 | AA(HS) | 12/7 | 45.4 | 43.5 | 41.5 | 48.2 | 41.5 |
| 74 | 50 | AA,A | 6/1 | 18.1 | 17.5 | 17 | 19.2 | 16.4 |
| 75 | 40 | AA(HS) | 8/1 | 22.5 | 21.5 | 21.1 | 24.7 | 19.3 |
| 76 | 40 | AA,A | 6/1 | 14.9 | 14.4 | 14 | 15.7 | 13.7 |
| 77 | 31.5 | AA,A | 7/1 | 15.1 | 14.6 | 14 | 16.2 | 13.5 |
| 78 | 31.5 | AA,A | 6/1 | 11.9 | 11.6 | 11.2 | 12.6 | 11 |
| 79 | 25 | AA,A | 7/1 | 12.3 | 11.9 | 11.5 | 131 | 11.2 |
| 80 | 25 | AA,A | 6/1 | 9.65 | 9.37 | 9.09 | 10.1 | 9.09 |
| 81 | 20 | AA,A | 7/1 | 10 | 9.69 | 9.34 | 10.7 | 9.15 |
| 82 | 20 | AA,A | 6/1 | 7.84 | 7.62 | 7.39 | 8.29 | 7.39 |
| 83 | 16 | AA,A | 6/1 | 6.33 | 6.15 | 5.97 | 6.69 | 5.97 |
| 84 | 12.5 | AA,A | 6/1 | 4.97 | 4.83 | 4.69 | 5.25 | 4.69 |
5. Our Company:

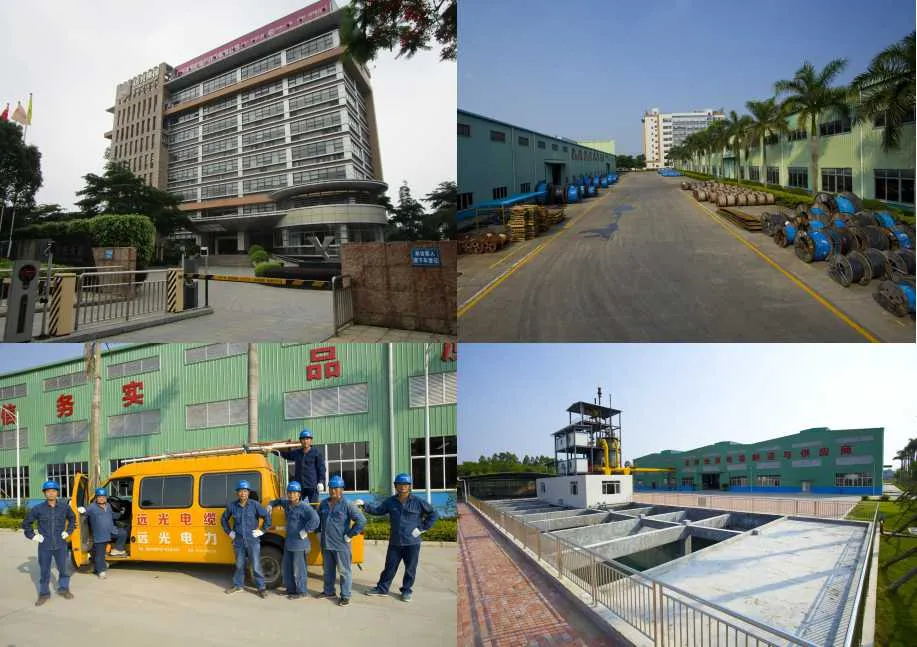

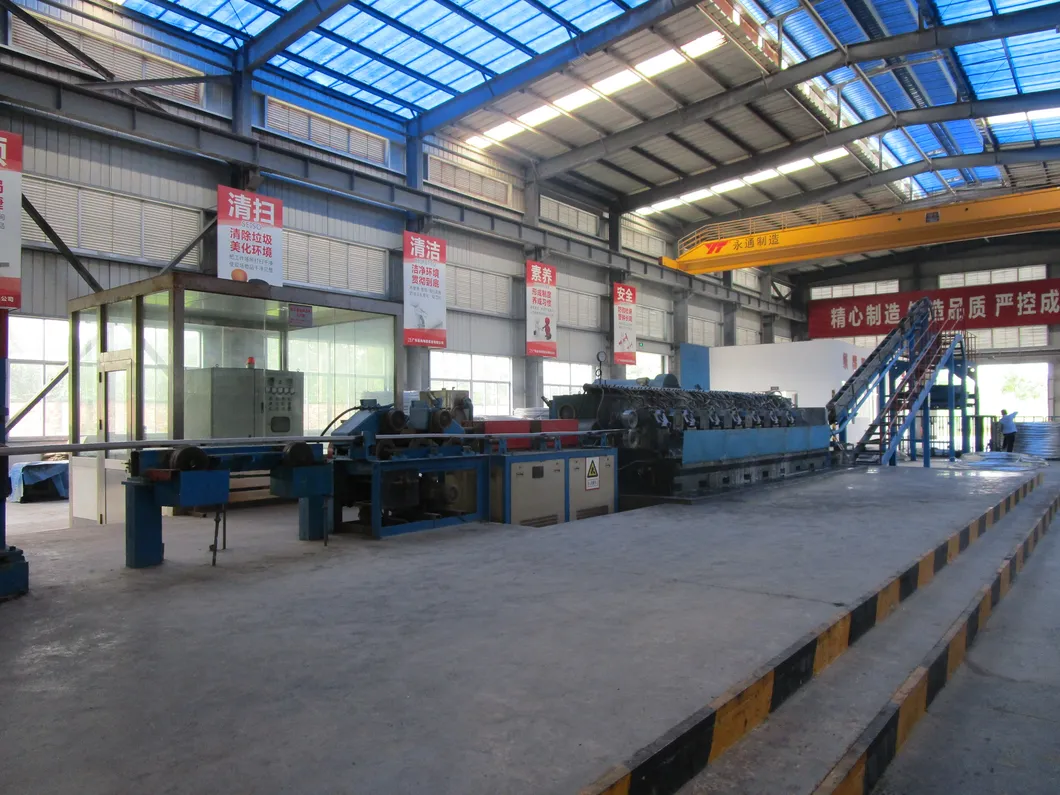

6. Workshop:

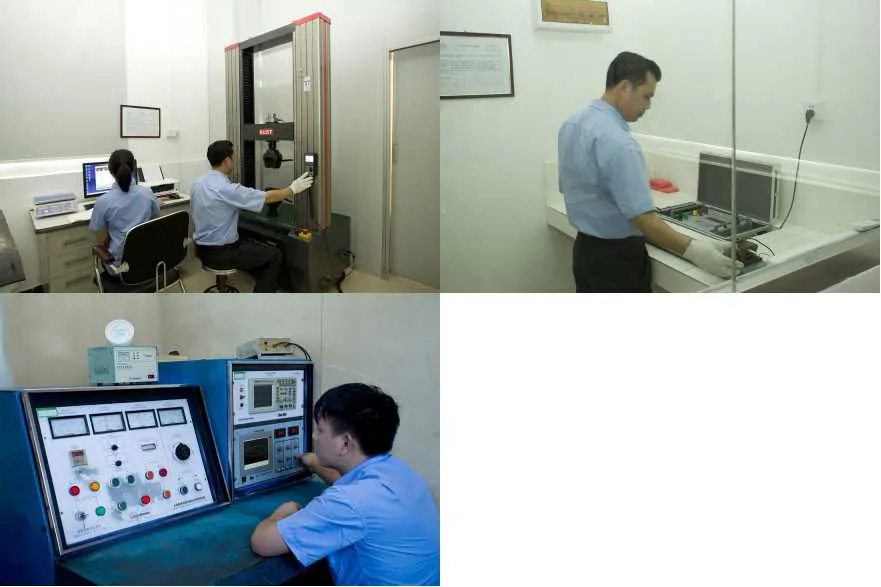

7.
Testing:

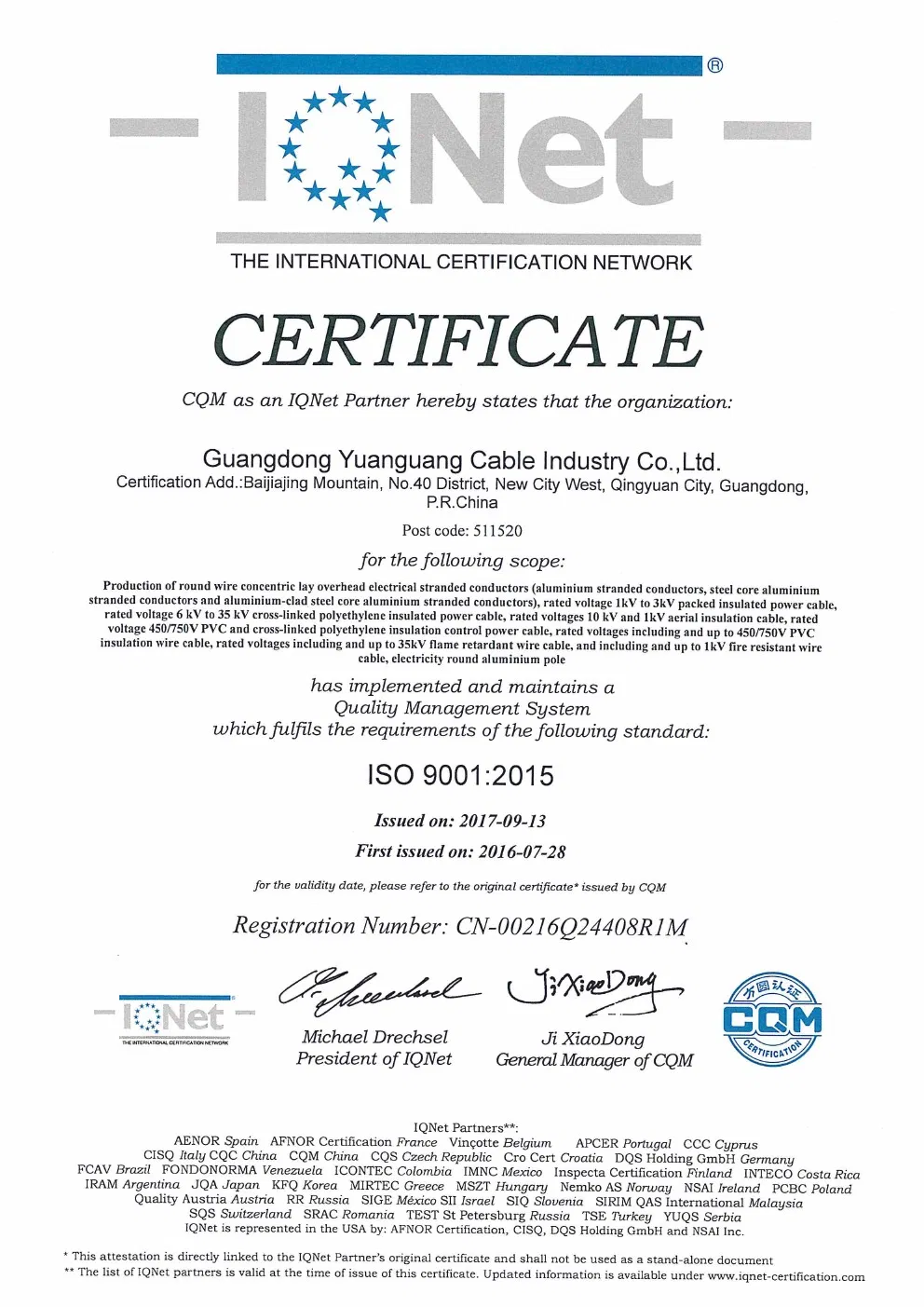

8. Certificates:
