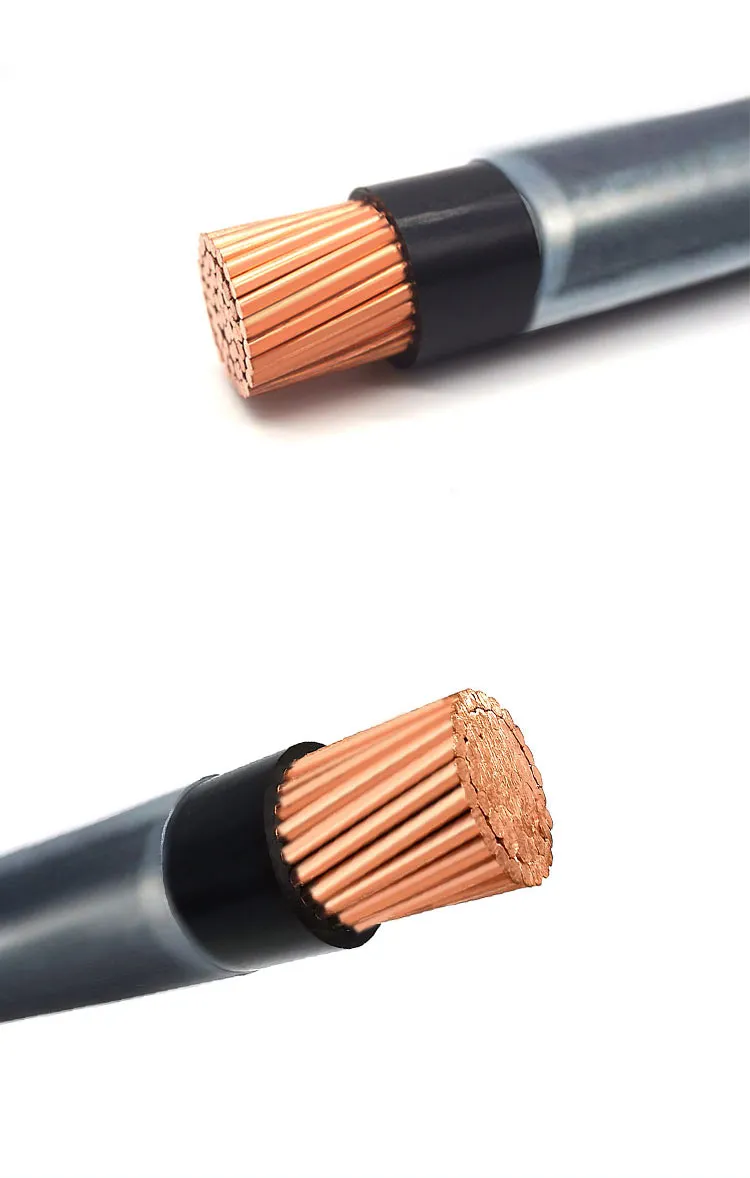

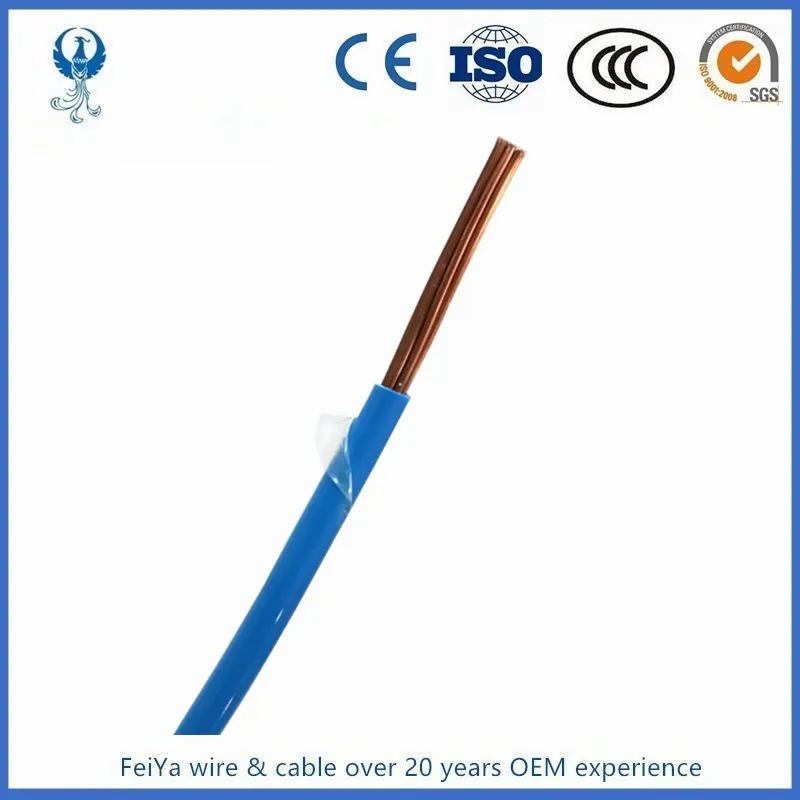

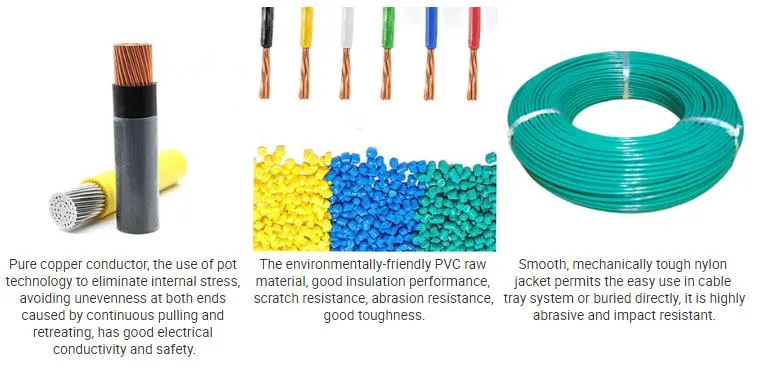

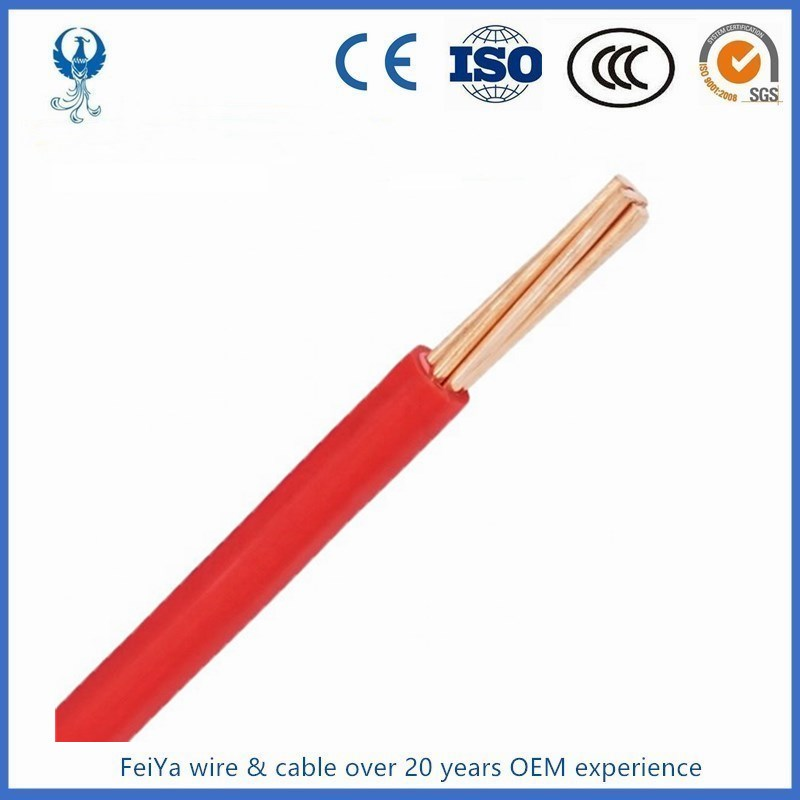

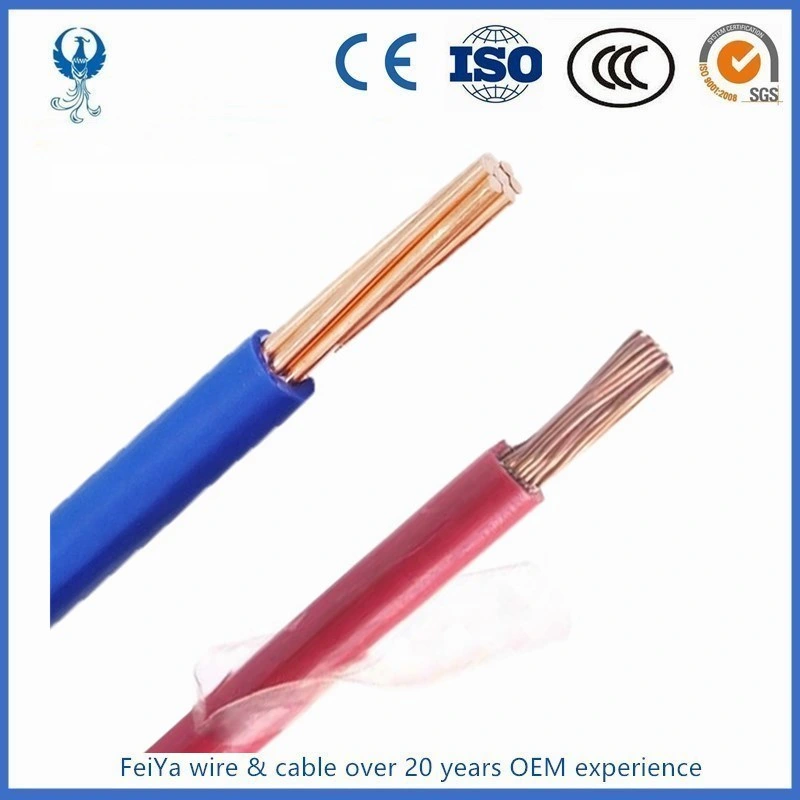

Nylon Building Wire Thhn Wire Tffn Wire

Product Description

* Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012

* Main of cables features

1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105ºC, the allowable temperature of other models should not exceed 70ºC.

* Application:

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power plant, household electrical applance,insurment and telecommunication equipment.cable electrric for Control signal transmission

SIZE OF CONDUCTOR		No.&Nominal Diameter of Wire	Wall Thickness		Approximate Overall Diameter	Minimum Insulation Resistance	*Ampacity		Cable Nominal Weight
MM	Approximate AWG	MM	MM		MM	M-Ohm-Km	90ºC wet	90 ºC dry	KG/KM
Solid			PVC	Nylon
1.6mm	14	1x1.60mm	0.4	0.10	2.60	130	35	35	22.62
2.0 mm	12	1x2.00mm	0.4	0.10	3.00	110	40	40	33.57
2.6 mm	10	1x2.60mm	0.5	0.10	3.80	120	55	55	55.78
3.2 mm	8	1x3.20mm	0.8	0.13	5.06	120	75	75	88.33
Stranded
2.0mm2	14/7	7X0.60mm	0.4	0.10	2.80	130	30	35	23.51
3.5mm2	12/7	7x0.80mm	0.4	0.10	3.40	110	35	40	39.12
5.5mm2	10/7	7x1.00mm	0.5	0.10	4.20	120	50	55	60.56
8.0mm2	8/7	7x1.20mm	0.8	0.13	5.46	120	65	75	91.95
14mm2	6/7	7x1.60mm	0.8	0.13	6.66	100	95	105	151.77
22mm2	4/7	7x2.00mm	1.0	0.15	8.30	100	130	140	236.65
30mm2	2/7	7x2.30mm	1.0	0.15	9.20	100	160	170	306.50
38mm2	1-19	19x1.60mm	1.3	0.18	10.96	100	185	195	409.82
50mm2	1/0-19	19x1.80mm	1.3	0.18	11.96	100	220	235	509.05
60mm2	2/0-19	19x2.00mm	1.3	0.18	12.96	80	250	260	618.96
80mm2	3/0-19	19x2.30mm	1.3	0.18	14.96	80	300	320	804.44
100mm2	4/0-19	19x2.60mm	1.3	0.18	15.96	80	355	370	1013.94
125mm2	250MCM	37x2.10mm	1.6	0.18	18.26	80	400	420	1296.37
150mm2	300MCM	37x2.30mm	1.6	0.20	19.7	80	440	475	1542.02
	350MCM	37x2.47mm	1.6	0.20	20.90	60	505	523	1783.07
200mm2	400MCM	37x2.60mm	1.6	0.20	21.80	60	540	570	1946.72
	500MCM	37x2.95mm	1.6	0.20	24.25	60	620	655	2486.02
250mm2	500MCM	61x2.30mm	1.6	0.20	24.30	60	620	655	2437.34
	600MCM	61x2.52mm	1.8	0.23	26.76	60	690	710	2995.93
325mm2	650MCM	61x2.60mm	1.8	0.23	27.46	60	720	770	3191.58
	750MCM	61x2.82mm	1.8	0.23	29.36	60	785	820	3719.63
400mm2	800MCM	61x2.90mm	1.8	0.23	30.16	60	810	875	3927.55
500mm2	1000MCM	61x3.20mm	1.8	0.23	32.86	60	930	995	4750.91
