Mv Cable 35kv Single Core Aluminum 1250mcm 1/12 Concentric Neutral Wire Mv-90 Water Resistance Power Cable
35kv Single Core aluminum 250mcm 1/3 Concentric Neutral Wire Mv-90 power Cable URD - TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunligh......
Send Inquiry
Product Description
35kv Single Core aluminum 250mcm 1/3 Concentric Neutral Wire Mv-90 power Cable
URD - TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.
SPECIFICATIONS
TRXLPEMLP insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.
- ANSIIICEA S94-649
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

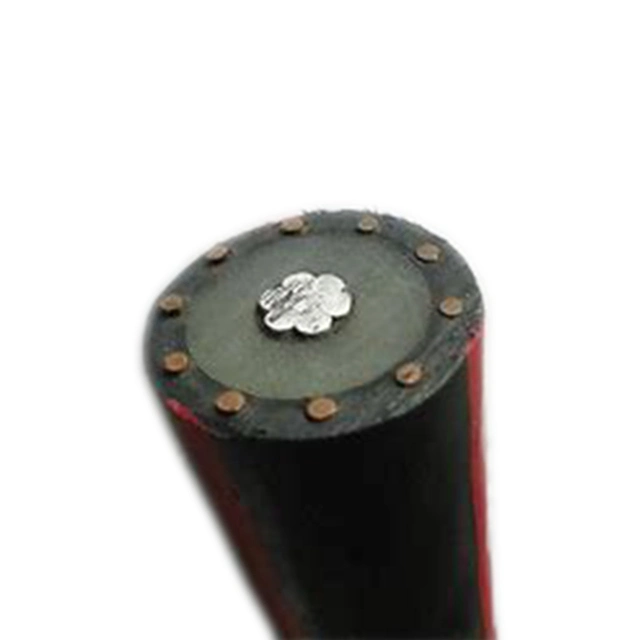

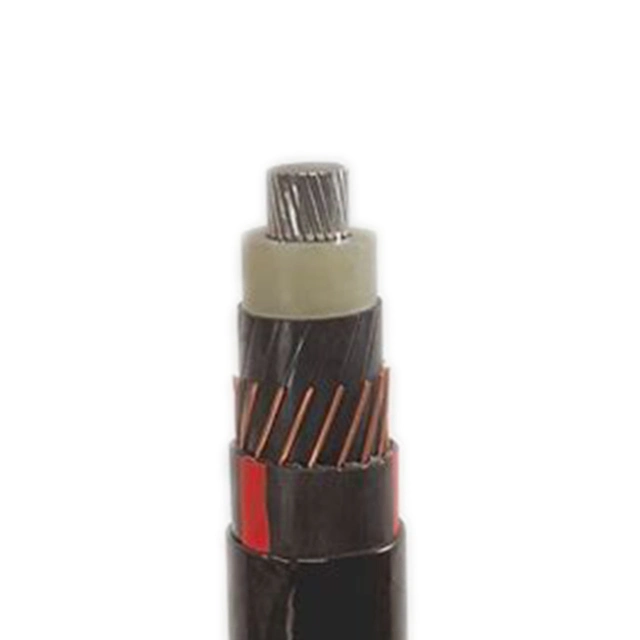

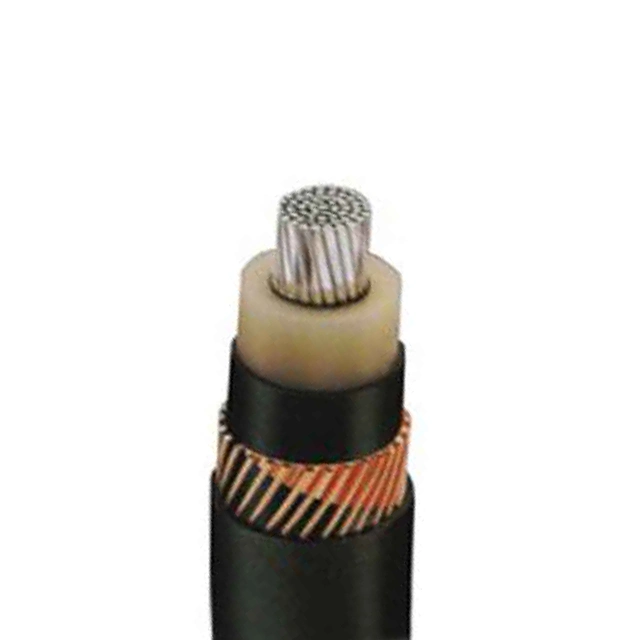

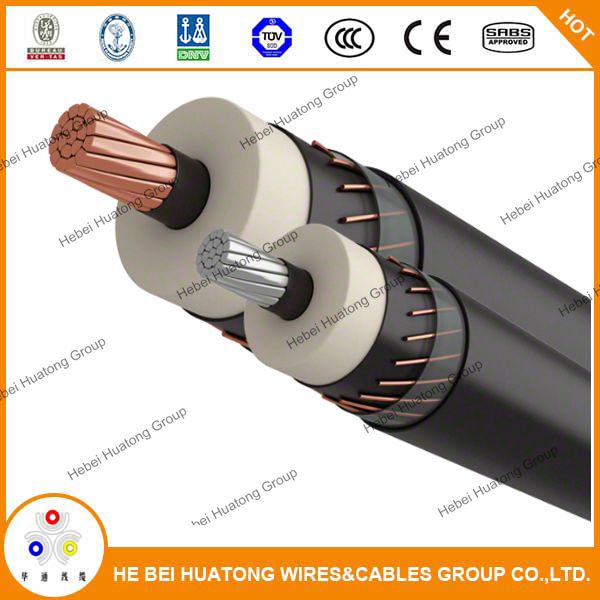

CONSTRUCTION
Conductor : Bare aluminium or copper, stranded class B compressed stranding
Conductor Shield :Extruded semi-conducting compound
Insulation : TRXLP (TreeRetardant XLPE) or XLPE
Insulation Shield : Extruded semi-conducting compound
Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)
Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon requestofessional OEM manufacturer
Top ten cable manufactuer in China
Leading ESP cable manufacture , largest Rubber cable manufacturer in China.
With UL,TUV,KEMA,CE,BV,PSB,SABA certifications
WithData sheet:
| Condctor | Copper Neutral (1/3) | diameter(inch) | Weight (Pounds) | |||||||||
| AWG orMCM | Stranding | Number of Wires | Size AWG (Solid) | Conductor | Over | Over Insul. | Over Neutral | Over | Conductor | Concentric | TotalNo | Total WithJacket |
| Insulation | Shield | Wires | Encaps. Jkt. | Neutral | Jacket | |||||||
| 1/0 | 19 wire | 9 | 14 | 0.37 | 1.12 | 1.23 | 1.35 | 1.46 | 325.8 | 119.2 | 659 | 4926 |
| 2/0 | 19 wire | 11 | 14 | 0.42 | 1.17 | 1.27 | 1.40 | 1.50 | 410.9 | 146.3 | 775 | 808 |
| 3/0 | 19 wire | 14 | 14 | 0.47 | 1.22 | 1.32 | 1.48 | 1.59 | 518.1 | 185.9 | 900 | 923 |
| 4/0 | 19 wire | 11 | 12 | 0.53 | 1.28 | 1.38 | 1.54 | 1.71 | 653.3 | 228.0 | 1110 | 1055 |
| 250 | 37 wire | 13 | 12 | 0.57 | 1.33 | 1.44 | 1.64 | 1.81 | 771.9 | 282.1 | 1330 | 1292 |
| 350 | 37 wire | 12 | 10 | 0.68 | 1.44 | 1.54 | 1.70 | 1.89 | 1081 | 398.0 | 1633 | 1519 |
| 500 | 37 wire | 17 | 10 | 0.81 | 1.57 | 1.72 | 1.88 | 2.04 | 1544 | 543.5 | 2002 | 1886 |
| 750 | 61 wire | 25 | 10 | 0.99 | 1.76 | 1.93 | 2.11 | 2.28 | 2316 | 801.5 | 2650 | 2289 |
| 1000 | 61 wire | 33 | 10 | 1.14 | 1.92 | 2.06 | 2.27 | 2.43 | 3088 | 1058 | 3847 | 2960 |
Certificate

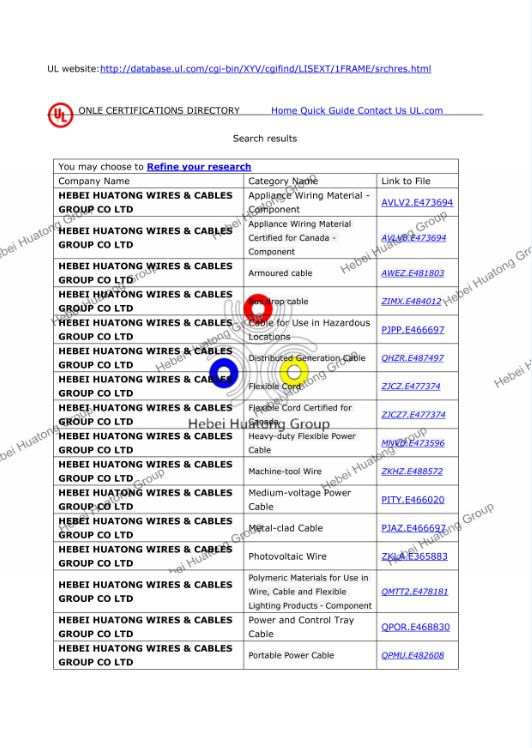

USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cabl,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on
Company information:
1 Location:
Hebei Huatong wires and cables group co., ltd. is Located inTangshan, 100 Km to TianjinXingang sea port, 150Km to the Capital city Beijing China.
2 About Huatong:
Founded in 1993 Registered capital: CNY294 Million Equal to: US$45 Million
Floor space: 220,000 square meter Employees: 950 Production capacity:US$500Million
3 Production and inspection facility:
Drawing machine : 50 sets
Conductor stranding machine: 30sets
CCV and CV extruding line: 30sets
Insulation and sheath extruding machine: 40sets
Cabling machine: 30sets
Braiding machine:40sets
Other auxiliary machine: 150stes
MV cable partial discharge
equipment: 4sets
Other test machine:100sets
4 Enterprise Principle:
Strengthening Huatong /Benefiting employees /Serving our country and society/Aiming to be a world-renowned enterprise
Our Service:
1.22 years production experience and 13 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
