Product Description
High Quality TUV Certificaiton Solar Cable
Our Export

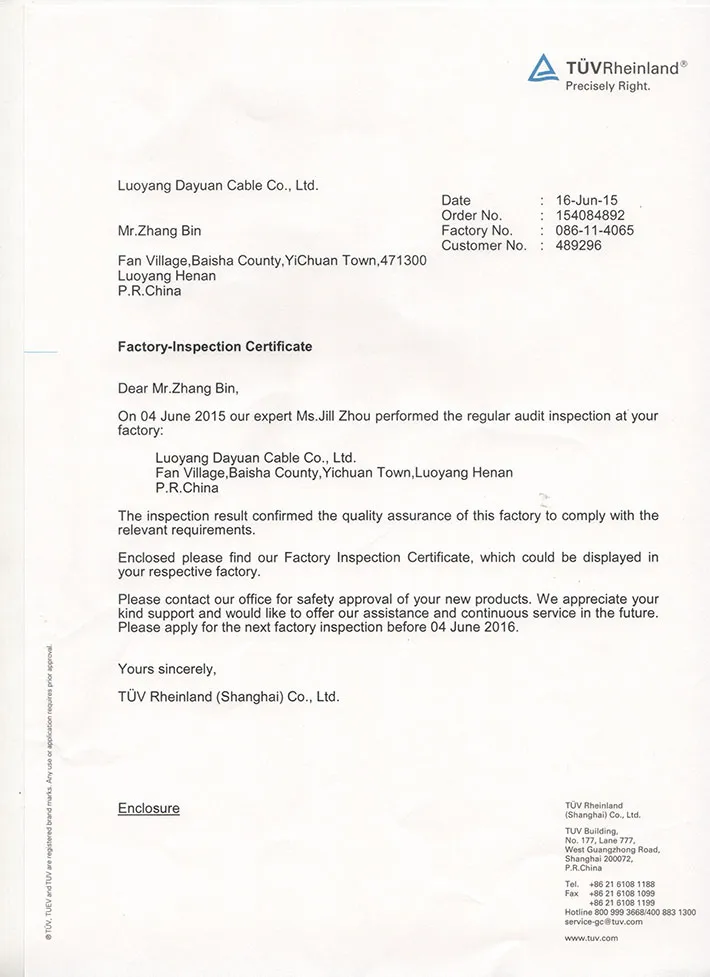

kindly note that our solar cable have exported to Germany, America,Canada ,Franch with TUV certification

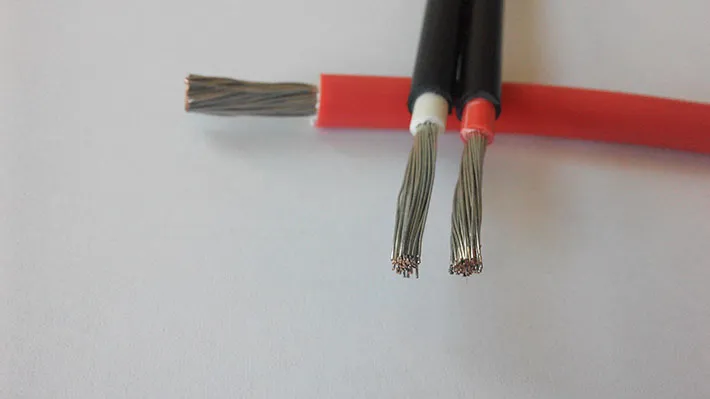

Solar Cable Information
| Item | Performance | Parameter |
| 1 | conductor | tinned copper wire |
| 2 | insulation | XLPO |
| 3 | jacket | XLPO |
| 4 | color | black, red, blue... |
| 5 | rated voltage | AC: 0.6/1kv; DC:1.8kv |
| 6 | working temperature | -40ºC~+90ºC |
| 7 | projected lifetime | 25years |

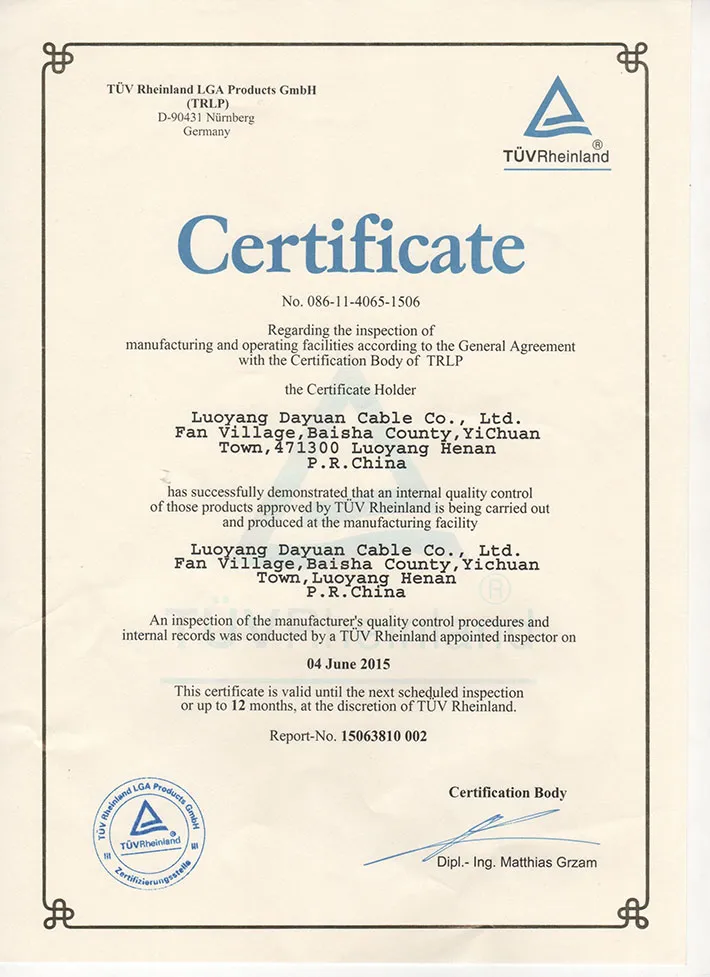

| 8 | certification | TUV |
| 9 | features | Low smoke zero halogen, excellent properties of cold-resistant, UV-resistance, ozone-proof and weather-proof. Flame retardant, resistance to cut marks and penetration. |
Please note that we can make as your requirements
| Type | Sectional area (mm2) | Conductor | Insulation | Jacket | Weight(kg/km) | |||
| No./dia | dia | mm | Dia | mm | Dia | |||
| PV1-F | 1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 0.80 | 4.70 | 37.4 |
| PV1-F | 2.5 | 49/0.25 | 2.10 | 0.75 | 4.10 | 0.80 | 5.20 | 64.6 |
| PV1-F | 4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 0.80 | 5.70 | 64.6 |
| PV1-F | 6 | 78/0.3 | 3.20 | 0.75 | 4.70 | 0.80 | 6.30 | 85.6 |
| PV1-F | 10 | 84/0.4 | 4.70 | 0.75 | 6.20 | 0.80 | 7.80 | 142.1 |
| PV1-F | 16 | 126/0.4 | 5.80 | 0.75 | 7.30 | 0.80 | 8.90 | 197.7 |
| PV1-F | 25 | 196/0.4 | 7.60 | 0.75 | 9.10 | 0.80 | 8.90 | 197.7 |
| Type | Sectional area (mm2) | Conductor | Insulation | Jacket | Weight(kg/km) | |||
| No./Dia | Outer dia | Thickness | Dia | Thickness | Dia | |||
| PV1-F/Round | 2x1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 1.00 | 8.20 | 98.6 |
| PV1-F/Round | 2x2.5 | 49/0.25 | 2.10 | 0.75 | 3.60 | 1.00 | 9.20 | 131.2 |
| PV1-F/Round | 2x4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 1.00 | 10.20 | 171.0 |
| PV1-F/Round | 2x6 | 78/03 | 3.20 | 0.75 | 4.70 | 1.00 | 11.40 | 225.8 |
| PV1-F/Flat | 2x1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 0.80 | 4.7x9.5 | 76.2 |
| PV1-F/Flat | 2x2.5 | 49/0.25 | 2.10 | 0.75 | 3.60 | 0.80 | 5.2x10.5 | 100.4 |
| PV1-F/Flat | 2x4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 0.80 | 5.7x11.5 | 130.7 |
| PV1-F/Flar | 2x6 | 78/0.3 | 3.20 | 0.75 | 4.70 | 0.80 | 6.3x12.7 | 172.7 |

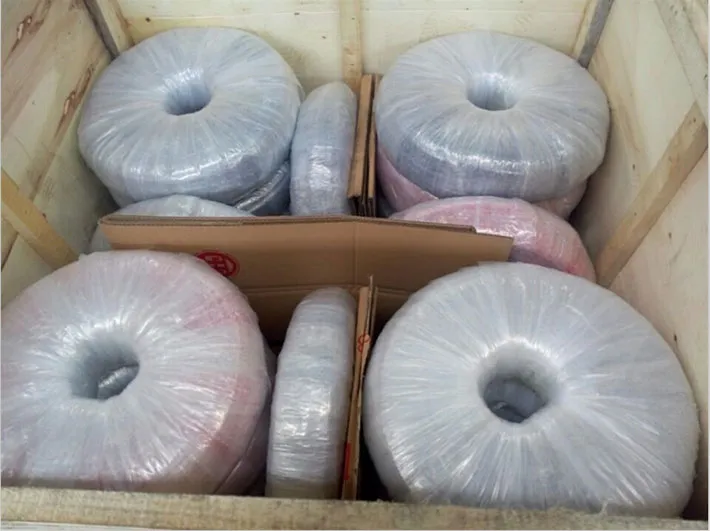

simple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement

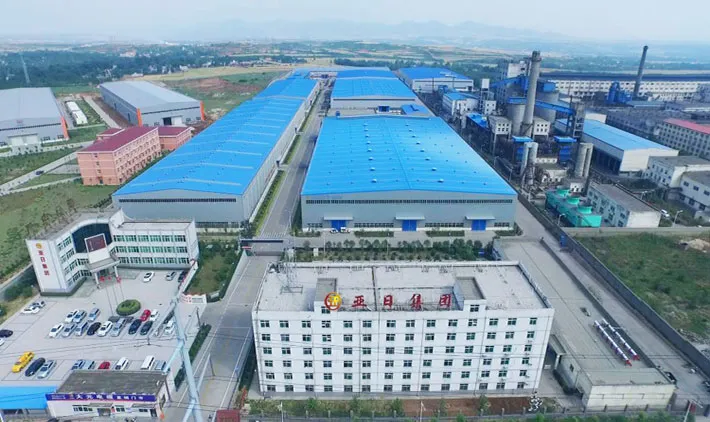

About Asian Sun Group(Dayuan Cable)
1: Group with seven sub-companies
2: Factory about 200,081 square meters;
3: 800 staffs and 40 engineers, 11 production lines;
4: production capacity: 100,000m/day.
Our Products
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications
| No | Products Name |
| 1 | electrical wires, power cables, control cables |
| 2 | solar cables |
| 3 | aerial cables |
| 4 | all aluminum conductor(AAC) |
| 5 | aluminum conductor steel reinforced wire(ACSR) |
| 6 | all aluminum alloy conductor(AAAC) |
Our service
1) Inquiries are answered within 12 hours and OEM is welcome.
2) 11 production lines, experienced QC to control the quality of kinds of cables.
3) CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.
4) Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.\
5) Ship your order immediately after contracted. We ship worldwide.
6) 800 staffs and 40 engineers, we all glad to provide you best service.
Welcome You Visit Our Factory!
