Fire Retardant XLPE Insualted PVC PE Sheathed Copper Aluminum Conductor Low Medium High Voltage Power Cable 600V~1000V Electric Wire
Copper Conductor PVC Sheathed Electric Cable Conductor:High quality Oxygen free CopperVoltage Rating:600V-1000VInsulation:XLPE ( Crosslined polyethylene)Jacket: Environmental PVCTemperature limitation:90ºC for long time normal operationSection size:From 1.5mm2 to 1785 mm2Standards of produc......
Send Inquiry
Product Description

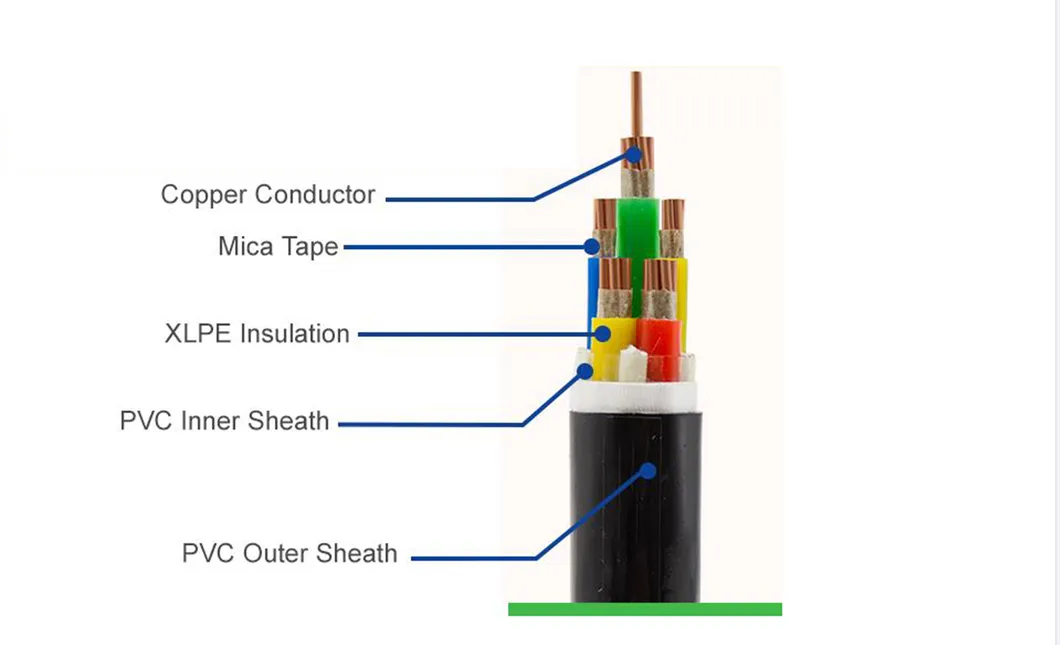

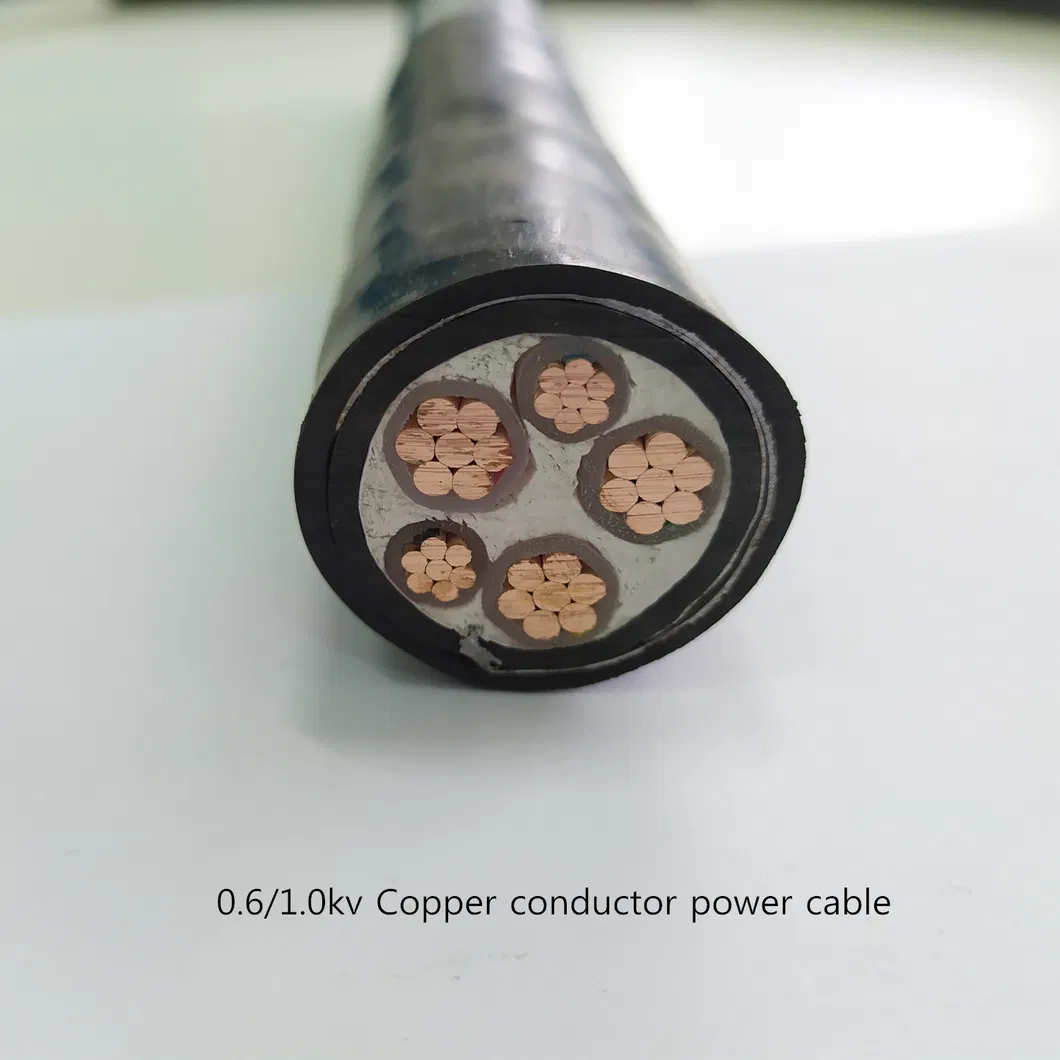

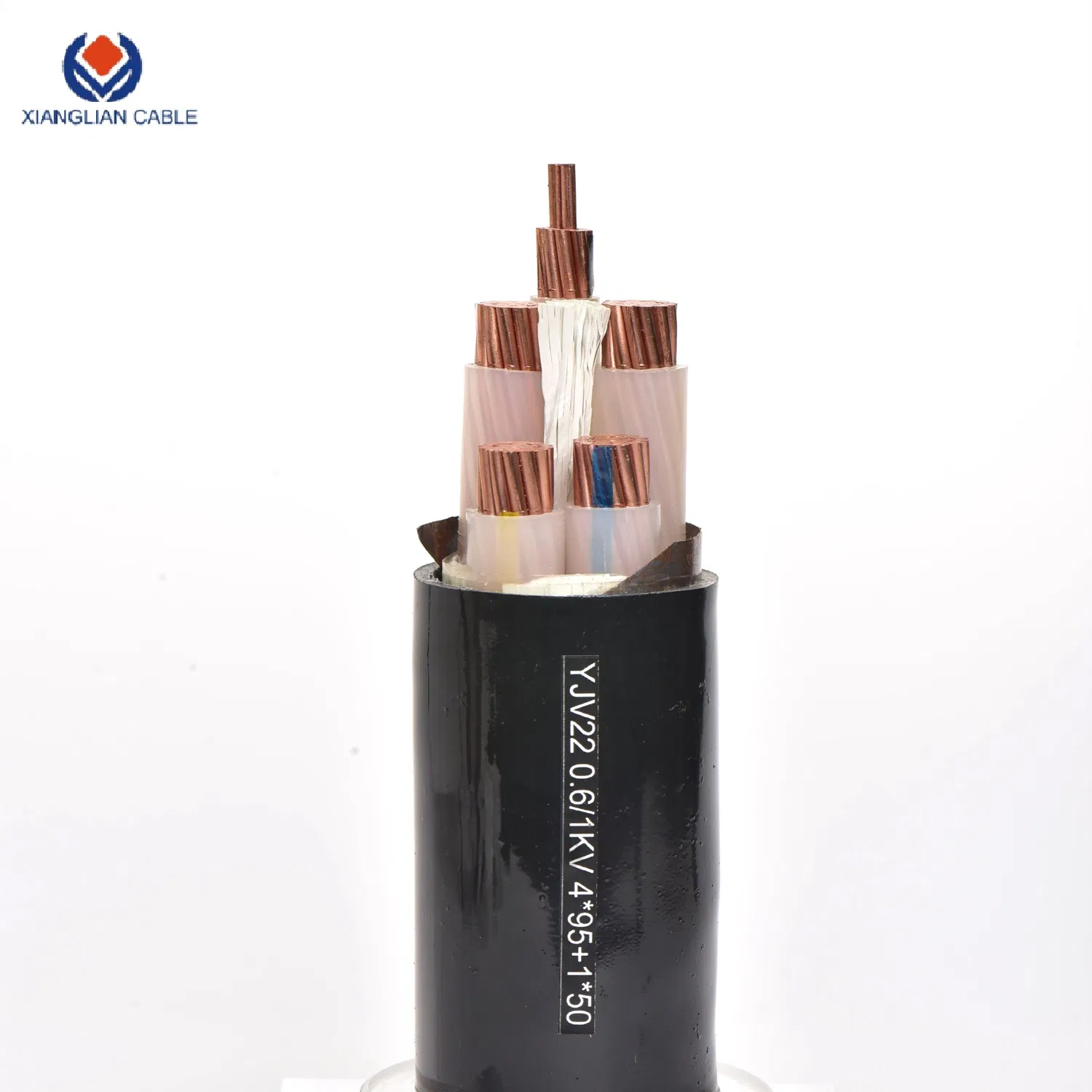

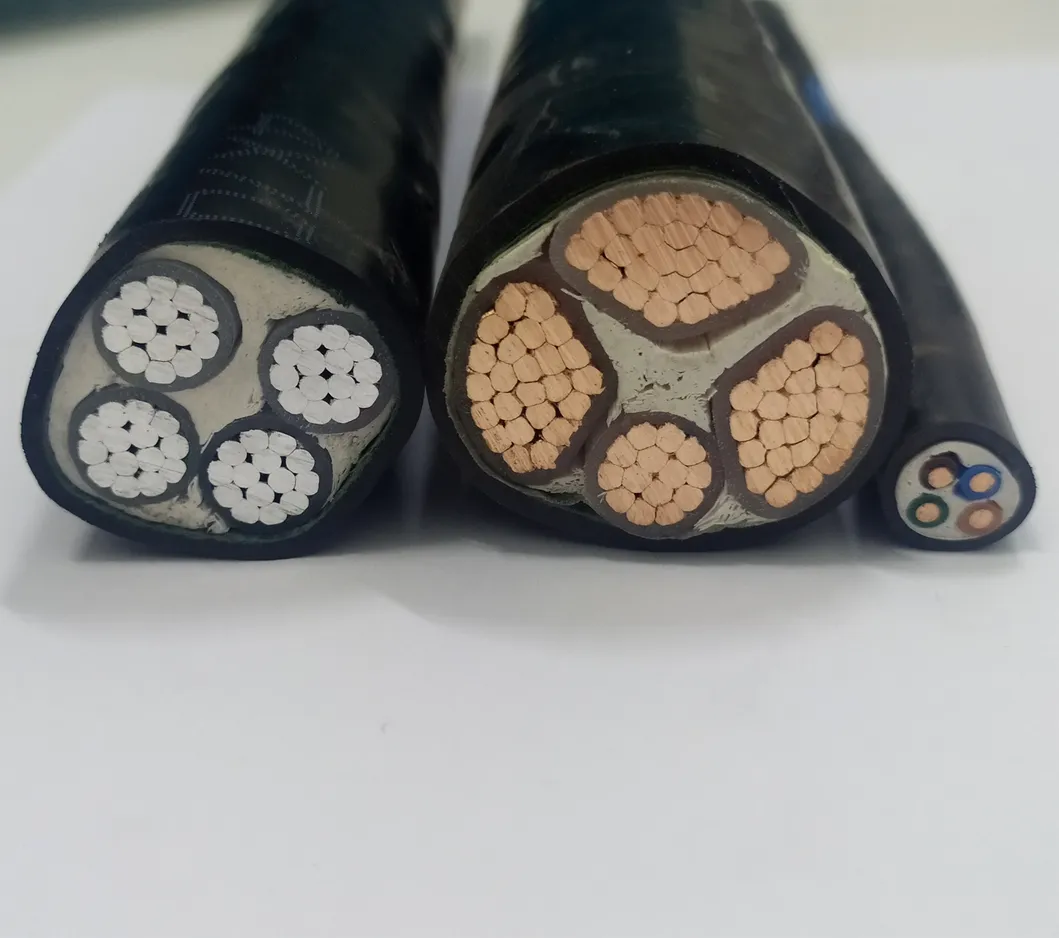

Copper Conductor PVC Sheathed Electric Cable
| Conductor: | High quality Oxygen free Copper | Voltage Rating: | 600V-1000V |
| Insulation: | XLPE ( Crosslined polyethylene) | Jacket: | Environmental PVC |
| Temperature limitation: | 90ºC for long time normal operation | Section size: | From 1.5mm2 to 1785 mm2 |
| Standards of production: IEC60502,IEC60228, GB/T12706 or as customers requested. | |||

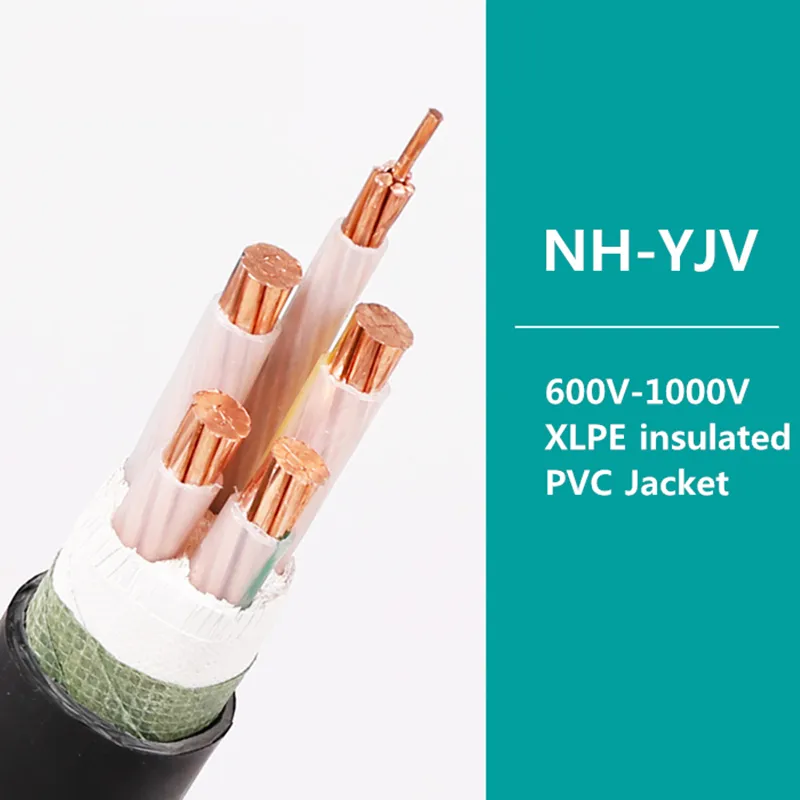

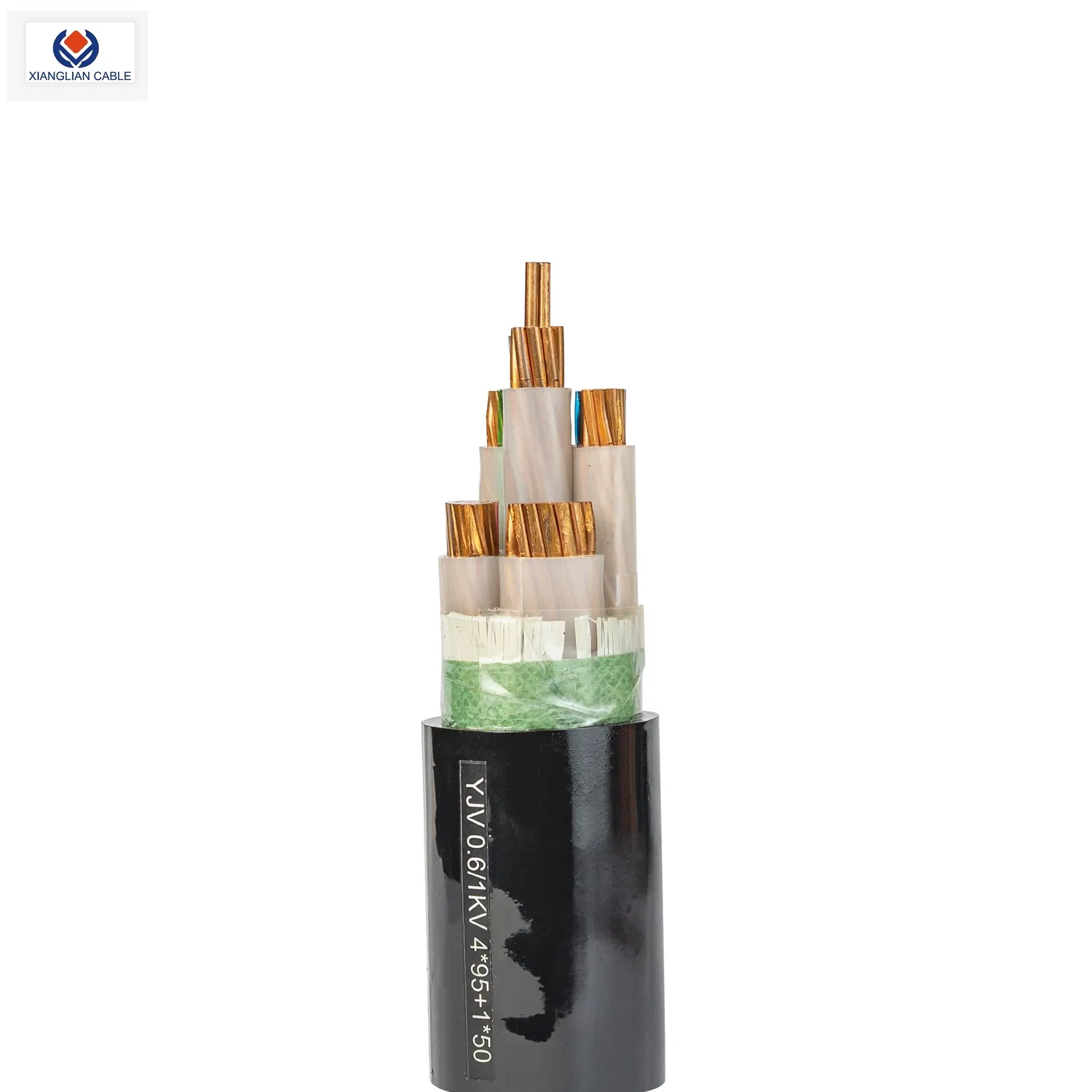

Features of YJV electric cable:
1. Stable power transportation
2. Environment friendly materials.
3. Fire retardant
4. Resistant to oil, moisture and abrasion.
5. High conductivity, Lower resistance, and anti-aging. High qulity UL1007 PVC, fetures flame retardant, high compressive strength adopted, excellent performance in corrosiveness resistance. Easy cut, Welding.
Advantages:

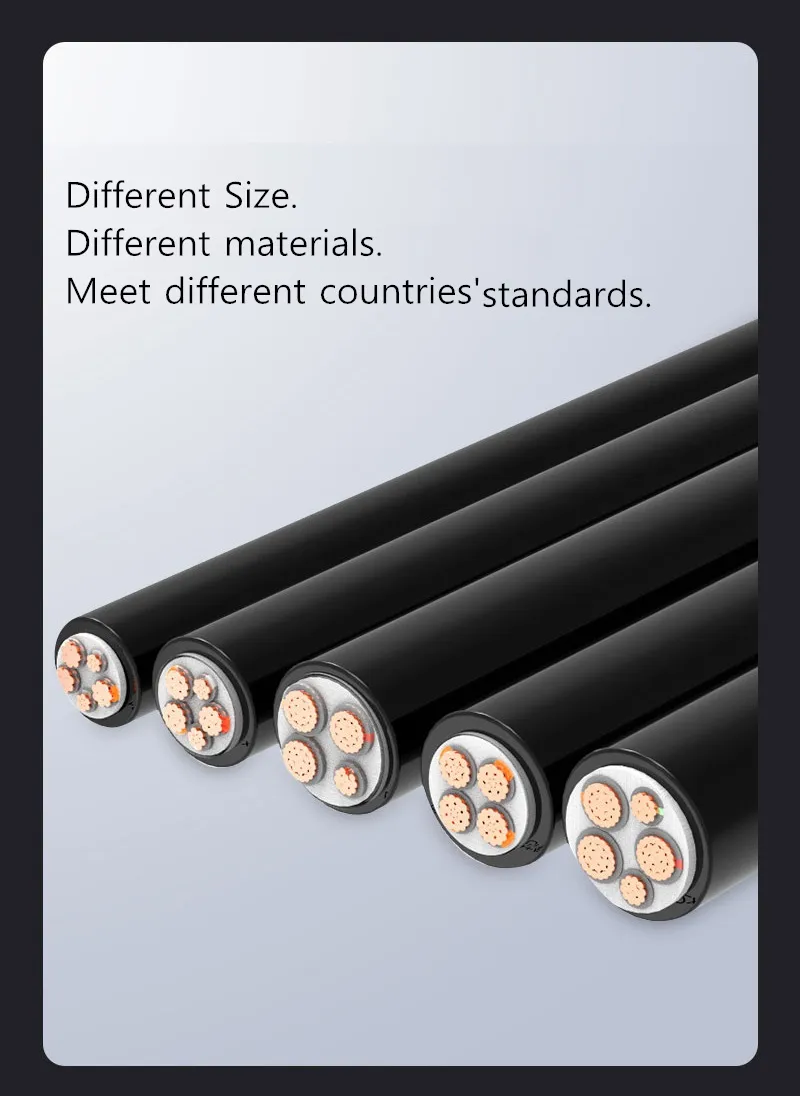

1. OEM/ODM support, we can produce different kinds of wire and able according to different standards.
2. Long warranty: 50 or 70 years.
3. Always have stock for normal models, so we can ship products quickly.
Certifications: ROHS/ISO9001/CE/CCC
Application: Power stations, subway, tunnel, buildings etc.
| Model | Name | Application site | Section area | Cores | Rate voltag |
| VV | Copper Conductor PVC insulated PVC sheathed power cable | Indoors, in tunnel or underground, Armoured cables able to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed . . | 10 16 25 35 50 70 95 120 150 185 240 300 400 | 1 2 3 4 5 3+1 4+1 3+2 | 6/10kv 8.7/15kv 12/20kv 18/30kv 21/35kv |
| VLV | Aluminum Conductor PVC insulated PVC sheathed power cable | ||||

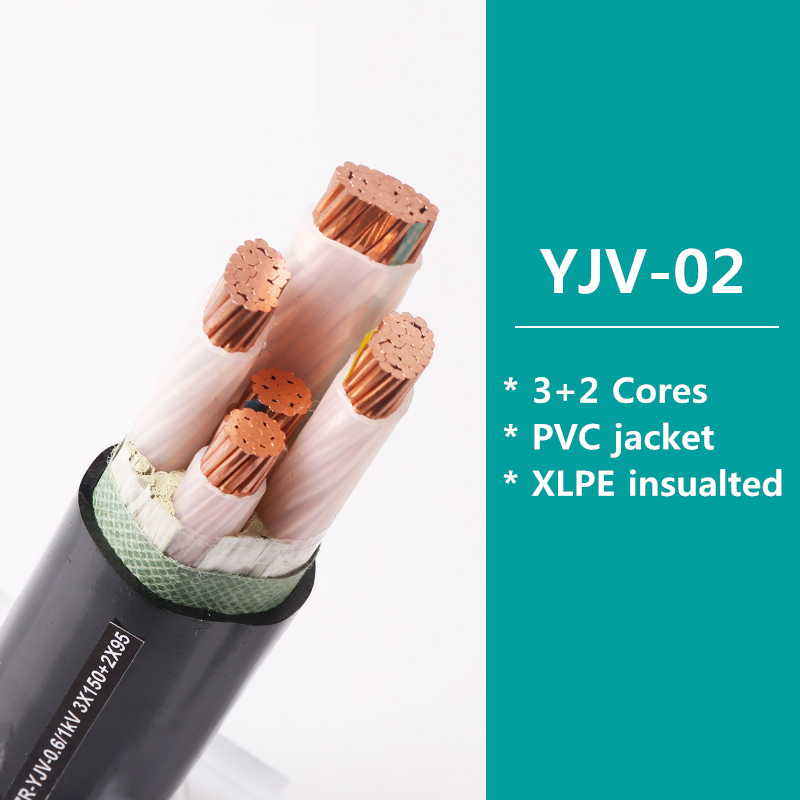

| YJV | Copper Conductor XLPE insulated PVC sheathed power cable | ||||
| YJLV | Aluminum Conductor XLPE insulated PVC sheathed power cable | ||||
| YJY | Copper Conductor XLPE insulated PE sheathed power cable | ||||
| YJLY | Aluminum Conductor XLPE insulated PE sheathed power cable | ||||
| VV22 | Copper Conductor PVC insulated steel tape armored PVC sheathed power cable | ||||
| VLV22 | Aluminum Conductor PVCinsulated steel tape armored PVC sheathed power cable | ||||
| YJV22 | Copper Conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||
| YJLV22 | Aluminum Conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||
| YJV23 | Copper Conductor XLPE insulated steel tape armored PE sheathed power cable | ||||
| YJLV23 | Aluminum Conductor XLPE insulated steel tape armored PE sheathed power cable | ||||
| VV32 | Copper Conductor PVC insulated steel wire armored PVC sheathed power cable | ||||
| VLV32 | Aluminum Conductor PVC insulated steel wire armored PVC sheathed power cable | ||||
| YJV32 | Copper Conductor XLPE insulated steel wire armored PVC sheathed power cable | ||||
| YJLV32 | Aluminum Conductor XLPE insulated steel wire armored PVC sheathed power cable | ||||
| YJV33 | Copper Conductor XLPE insulated steel wire armored PE sheathed power cable | ||||
| YJLV33 | Aluminum Conductor XLPE insulated steel wire armored PE sheathed power cable |

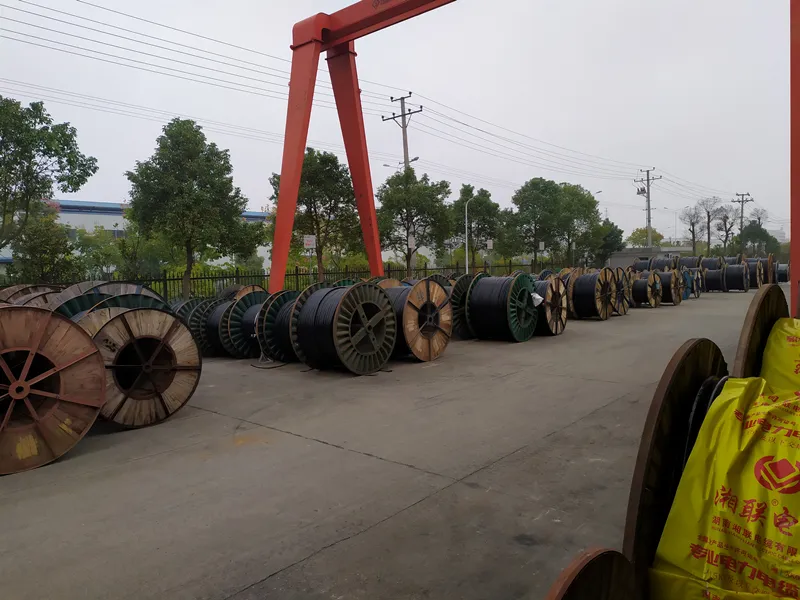

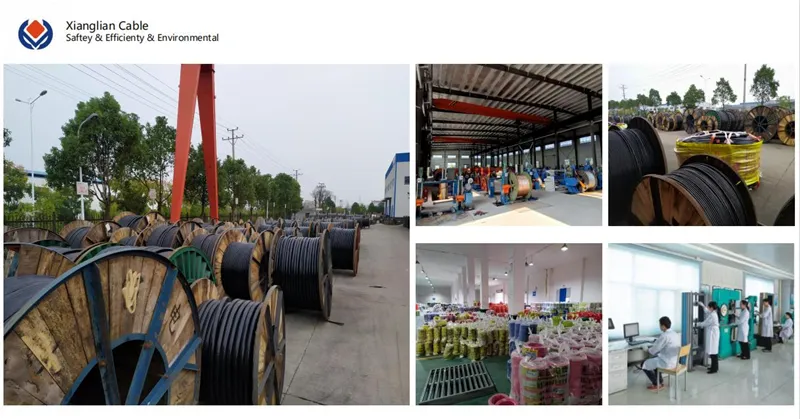

Our Warehouse:

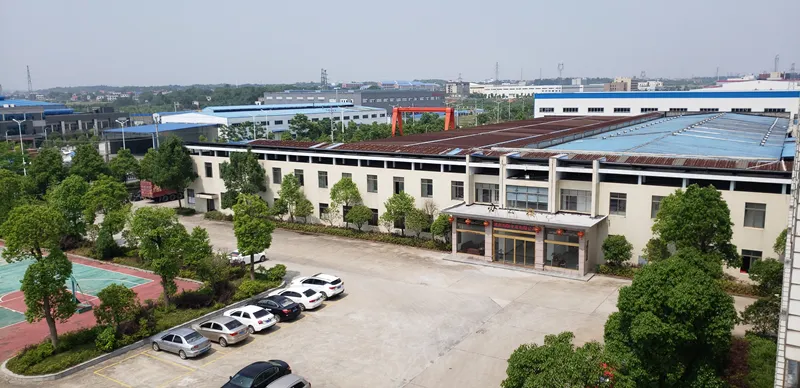

About US.
Hunan Xianglian Cable Co.,Ltd is a professional electrical wire and cable manufacturer in Changsha city, our factory cooupied
more than 67,000 sqaure meters. Annual capacity of producing is 2.0 billion RMB. During the past 15 years, with the contribution
of 150 workshop employees and 15 engineers, our products have be exported many countries and won highly reputation around
the wrold. Quality is always our priority.We have our own laboratory and test center, all products will be 100% tested before delivery.
We sincerely welcome all customers around the world visit our factory and build long term cooperation with us.
Our Advantages:
* ISO9001:2008 approved
* CCC/ROHS/CE approved
* Top Ten wire and cable brand in China
* 150+ skillful workers and 15+ professional engineers.
* 20 production Lines
Our Honors
Q&A:
Q. Are you a factory or trade company?
A: We are a factory with 15 years producing experiences.
Q: What kinds of wire and cables you can produces?
A: Our main products are: LV and MV power cables, Fire-resistant electric wires, control cable and LAN wires.
Q: Do you support OEM and ODM?
A: Yes, we accept OEM and ODM.
Q: What is your quality warranty policy?
A: We provide 50-70 years warranty for cables, 10 years warranty for electrical wires.
Q: What is your payment term?
A: 30% deposit when order confirmed, 70% before delivery.
