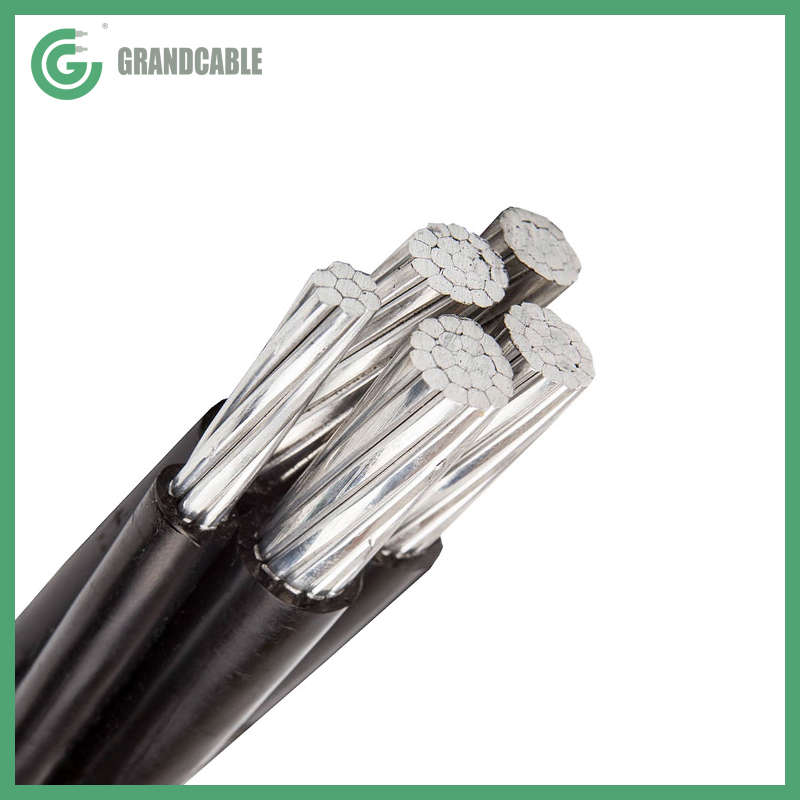

Conductor, ABC, LV, 3X95+ 70 +16 mm2, MDPE Cable UV Resistant, 0.6/1kv
ApplicationAerial Bundled Cable is designed for residential and rural areas for reducing the bushfire Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for wher......
Send Inquiry
Product Description
Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight.
Applicable Standards
It is designed as IEC ,BS ,ASTM and other standard or according to client's requirement.
Dimension Characteristics
Phase Conductor
| Standard | IEC 60228,IEC 60502-1 | |
| Conductor | Material | Aluminum H68 |
| Size | 95mm2 | |
| Number of wire | 19 | |
| Nom. Diameter,mm | 11.6±0.5 | |
| Insulation | Material | MDPE compund with UV |
| Nom. Thickness,mm | 1.60 | |
| Min. Thickness,mm | 1.34 | |
| Max. Thikckness,mm | 1.92 | |
| Nom. Diameter,mm | 14.80 | |
Messenger Conductor
| Conductor | Material | Aluminum Alloy |
| Size | 70mm2 | |
| Number of wire | 19 | |
| Nom. Diameter,mm | 10±0.5 | |
| Insulation | Material | MDPE compund with UV |
| Nom. Thickness,mm | 1.40 | |
| Min. Thickness,mm | 1.16 | |
| Max. Thikckness,mm | 1.70 | |
| Nom. Diameter,mm | 13.20 | |
| Min.Breaking Load, kN | 18.0 | |
Street Lighting Conductor
| Conductor | Material | Aluminum H68 |
| Size | 16mm2 | |
| Number of wire | 7 | |
| Nom. Diameter,mm | 4.9±0.5 | |
| Insulation | Material | MDPE compund with UV |
| Nom. Thickness,mm | 1.00 | |
| Min. Thickness,mm | 0.80 | |
| Max. Thikckness,mm | 1.30 | |
| Nom. Diameter,mm | 6.80 | |
| Max. CR @ 20°C (ohm/km), Phase | 0.320 | |
| Max. CR @ 20°C (ohm/km), Messenger | 0.469 | |
| Max. CR @ 20°C (ohm/km), Street Lighting | 1.910 | |

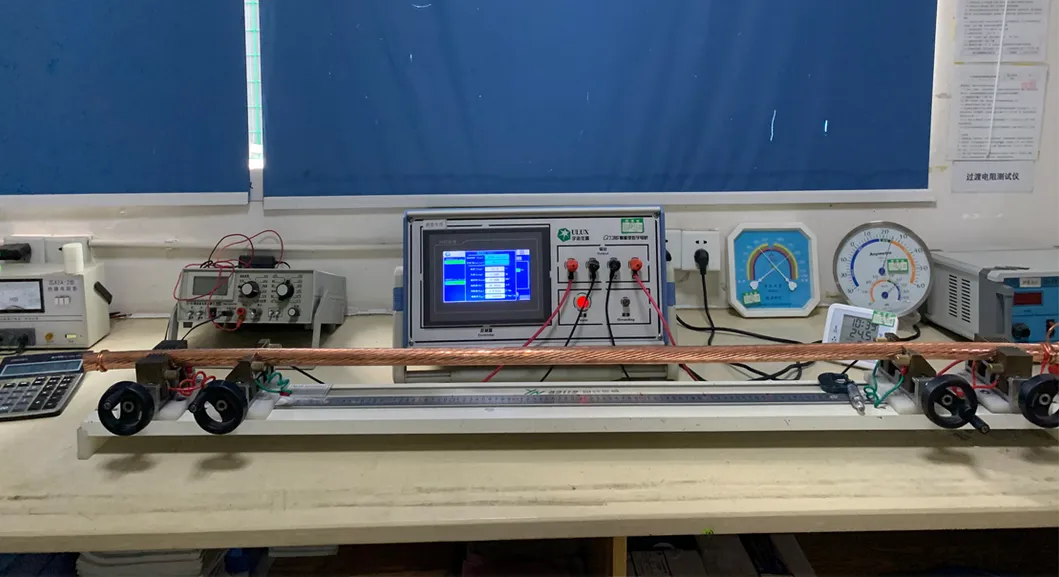

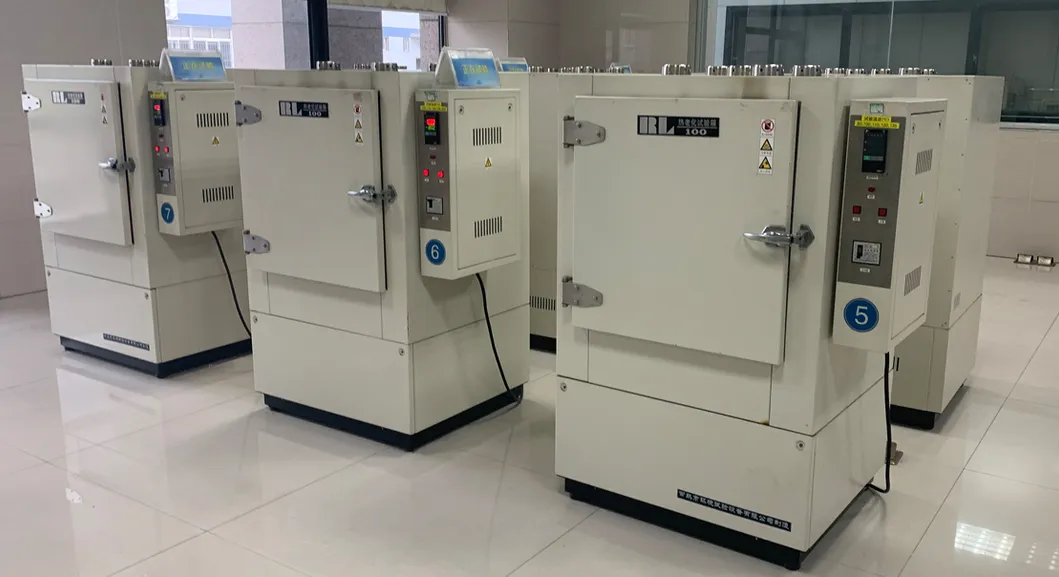

Tesing Facilities:

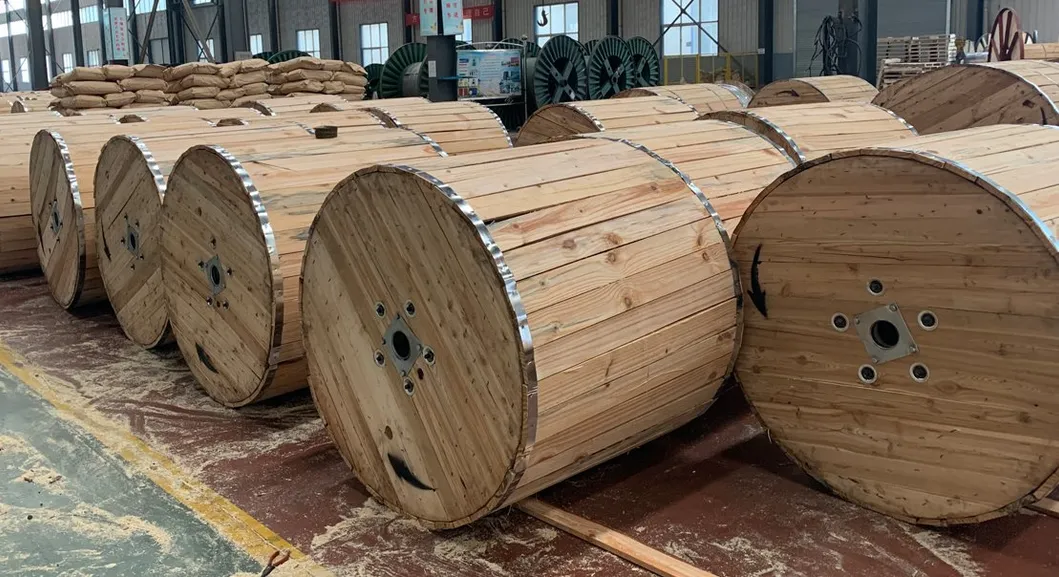

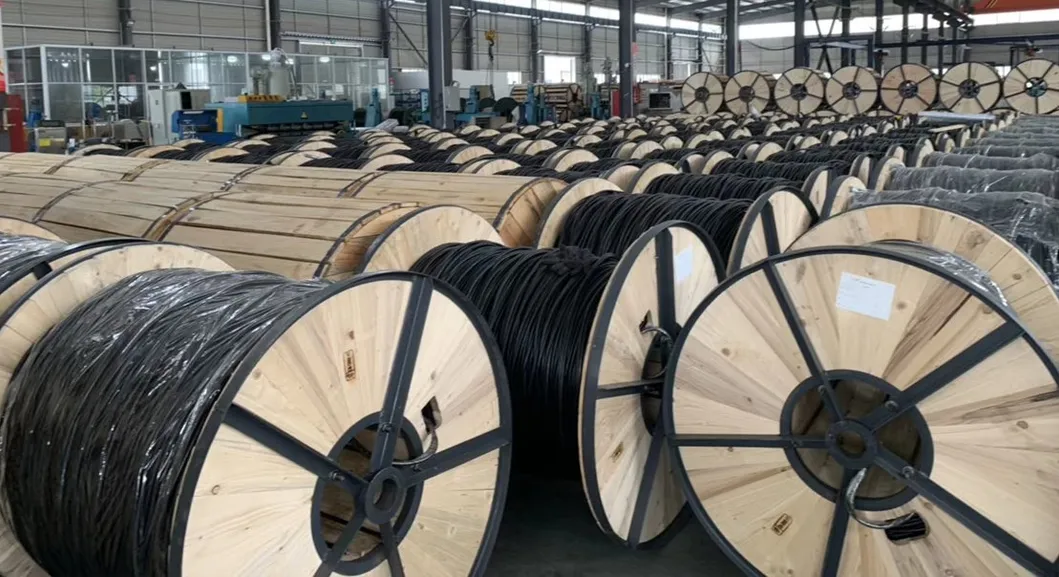

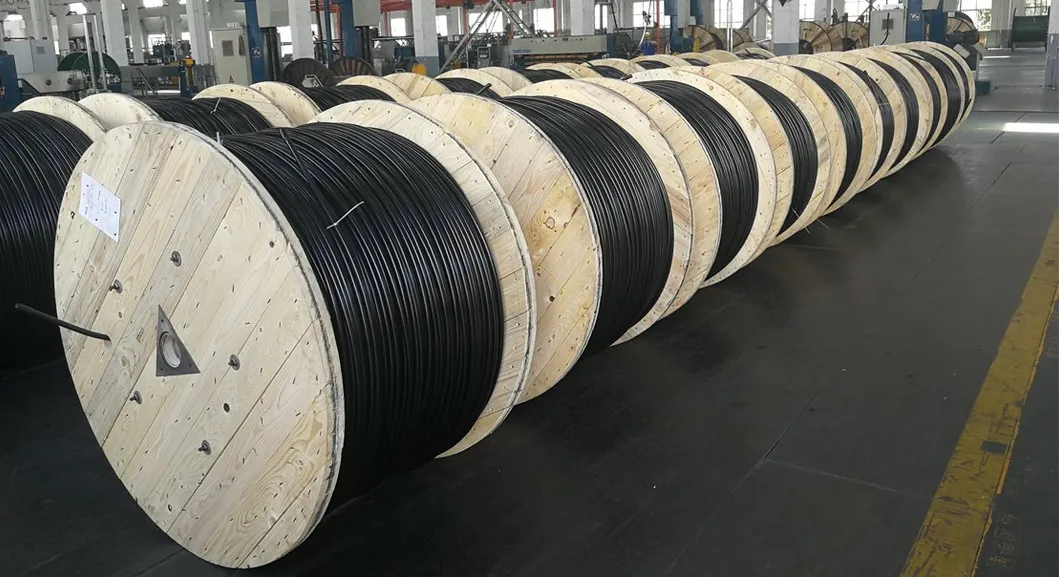

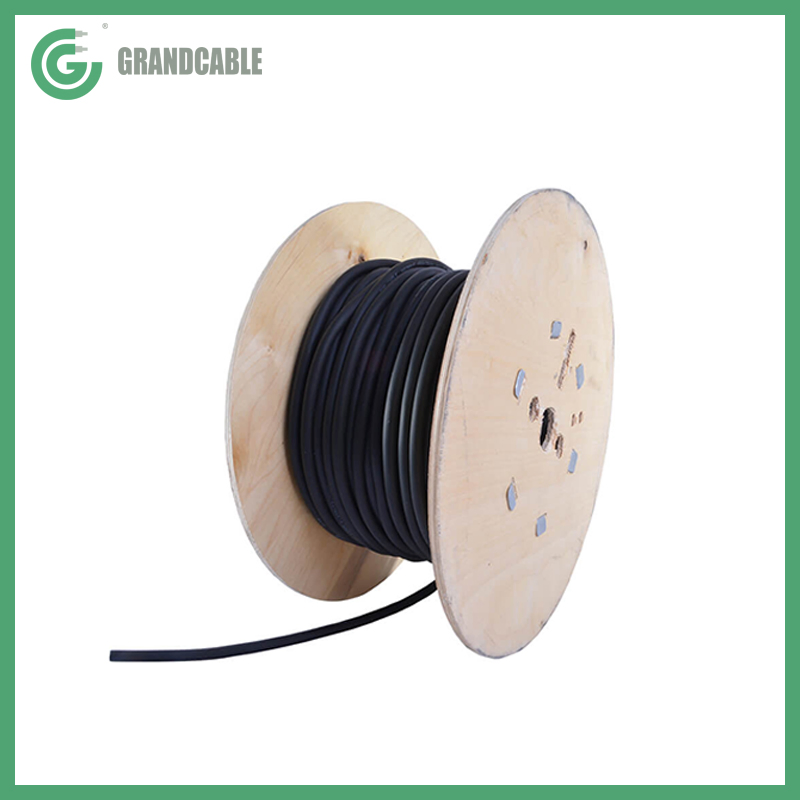

Packaing Photos:

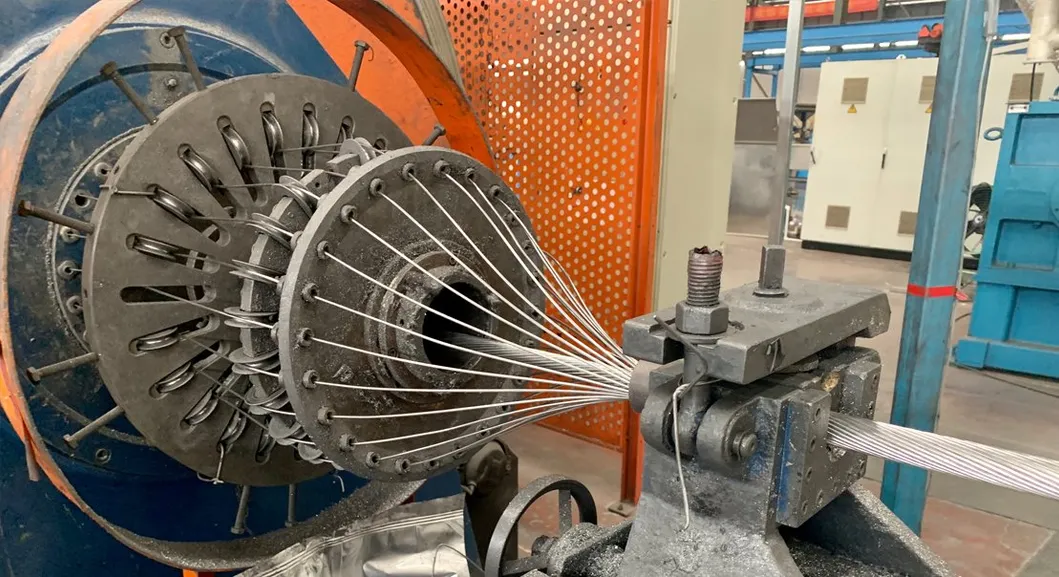

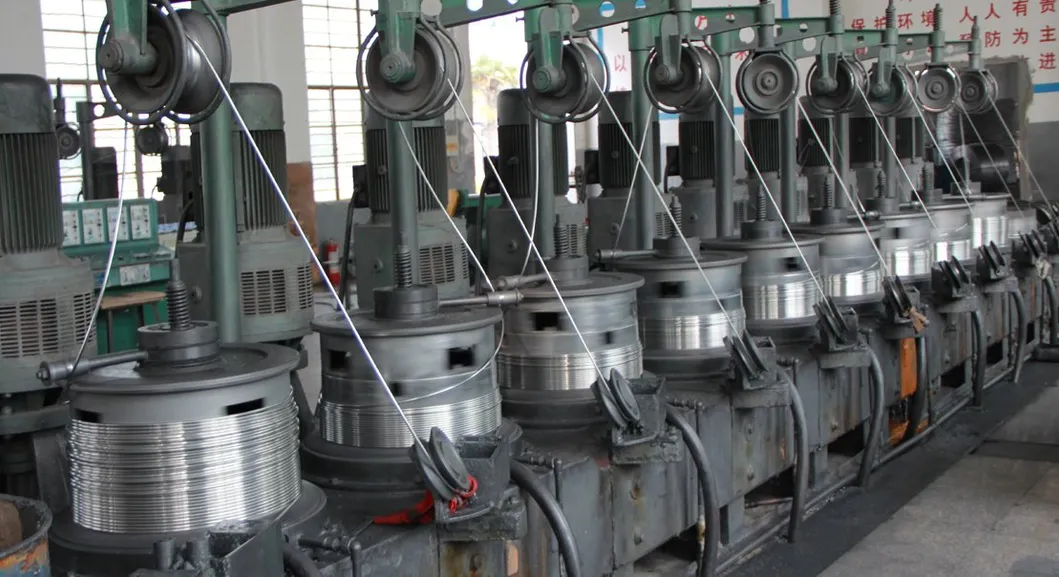

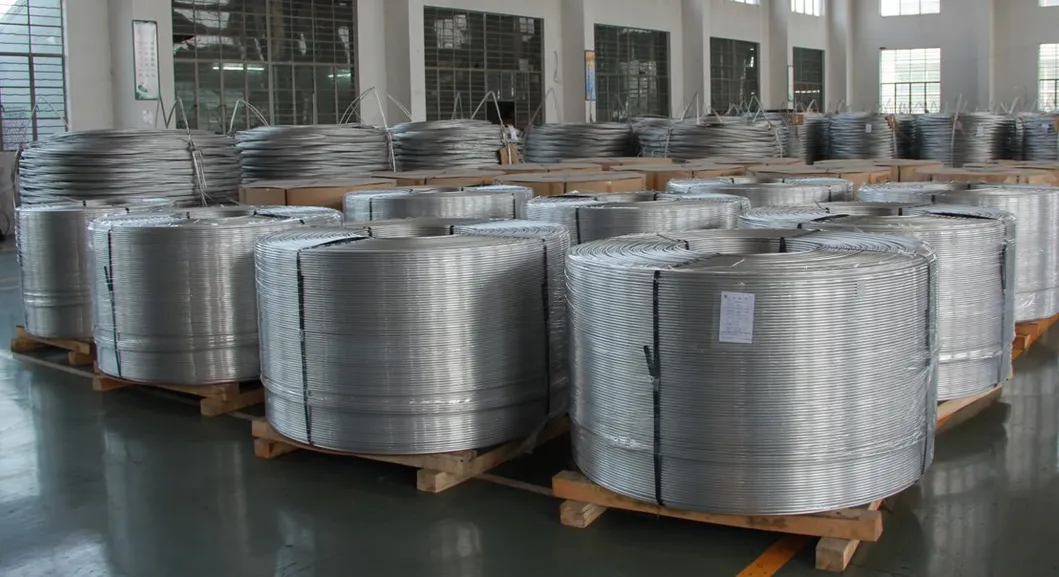

Workshop Views:
About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.
With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.
