5-46kv 100% or 133% Tr-XLPE/LLDPE and Concentric Neutral Primary Ud Cable

Product Description

5-46kv 100% or 133% Tr-XLPE/LLDPE and Concentric Neutral Primary Ud Cable

APPLICATIONS

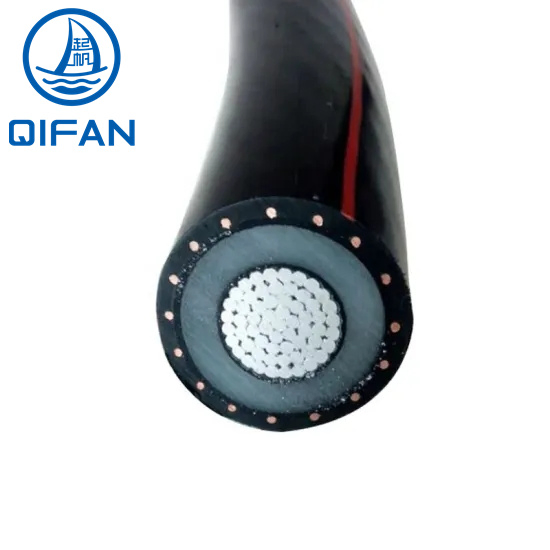

URD - TRXLPEMLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 15kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.
SPECIFICATIONS
TRXLPEMLP insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.
- ANSIIICEA S94-649
- AEIC CS-8
- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

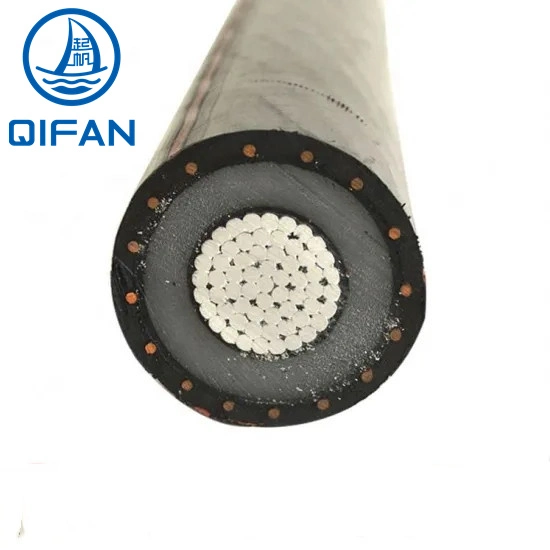

CONSTRUCTION

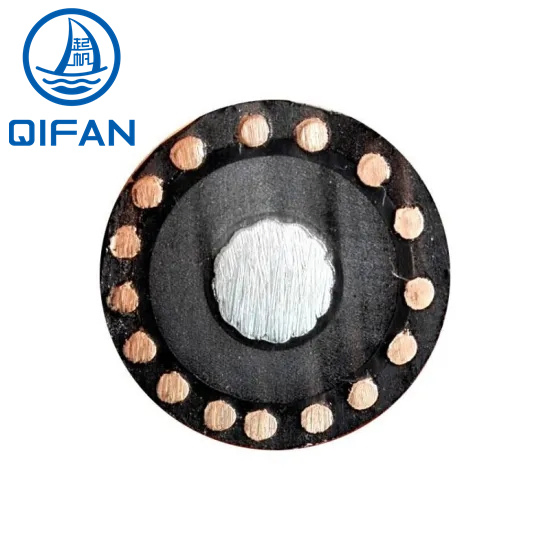

Conductor : Bare aluminium or copper, stranded class B compressed stranding
Conductor Shield :Extruded semi-conducting compound
Insulation : TRXLP (TreeRetardant XLPE) or XLPE
Insulation Shield : Extruded semi-conducting compound
Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)
Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon request
Data sheet:

Condctor		Copper Neutral (1/3)		diameter(inch)						Weight (Pounds)
AWG orMCM	Stranding	Number of Wires	Size AWG (Solid)	Conductor	Over	Over Insul.	Over Neutral	Over	Conductor	Concentric	TotalNo	Total WithJacket
AWG orMCM	Stranding	Number of Wires	Size AWG (Solid)	Conductor	Insulation	Shield	Wires	Encaps. Jkt.	Conductor	Neutral	Jacket	Total WithJacket
1/0	19 wire	9	14	0.37	1.12	1.23	1.35	1.46	325.8	119.2	659	4926
2/0	19 wire	11	14	0.42	1.17	1.27	1.40	1.50	410.9	146.3	775	808
3/0	19 wire	14	14	0.47	1.22	1.32	1.48	1.59	518.1	185.9	900	923
4/0	19 wire	11	12	0.53	1.28	1.38	1.54	1.71	653.3	228.0	1110	1055
250	37 wire	13	12	0.57	1.33	1.44	1.64	1.81	771.9	282.1	1330	1292
350	37 wire	12	10	0.68	1.44	1.54	1.70	1.89	1081	398.0	1633	1519
500	37 wire	17	10	0.81	1.57	1.72	1.88	2.04	1544	543.5	2002	1886
750	61 wire	25	10	0.99	1.76	1.93	2.11	2.28	2316	801.5	2650	2289
1000	61 wire	33	10	1.14	1.92	2.06	2.27	2.43	3088	1058	3847	2960
