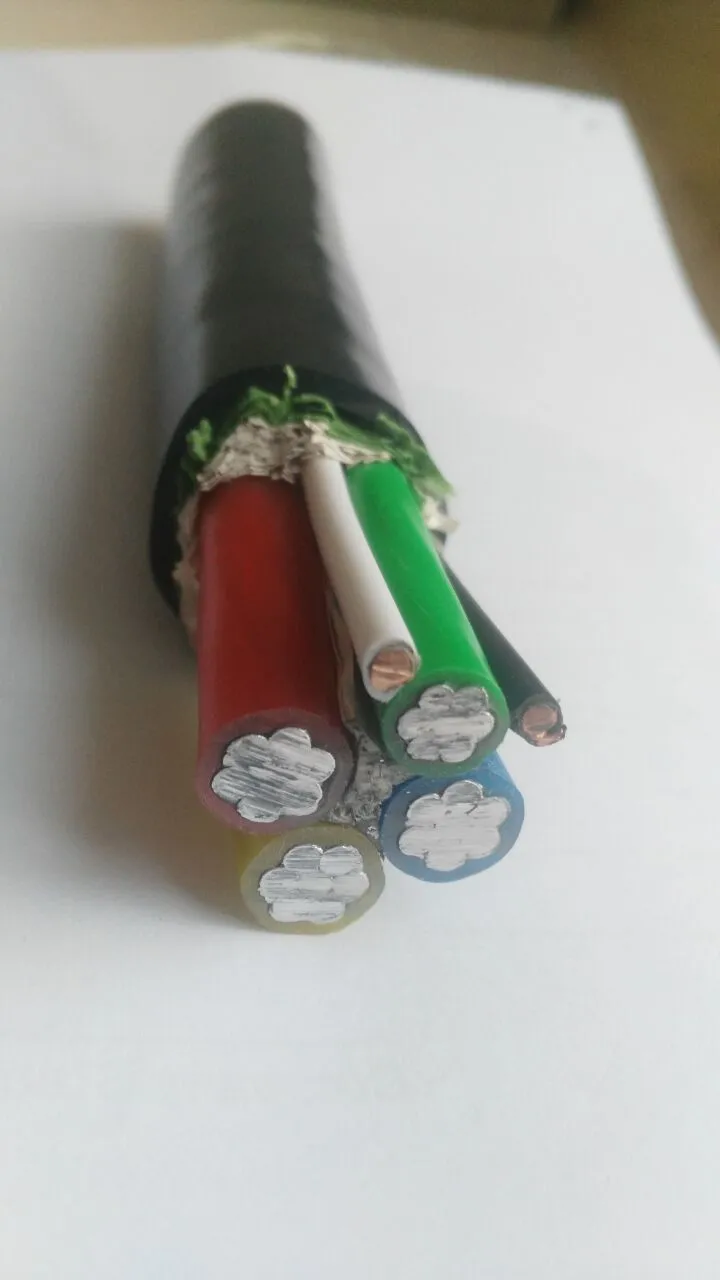

3*4+1*6+2* 12AWG Power Cable Al/XLPE/PVC Power Cable for Mexico
Our company is a professional manufacturer of aluminum cable .We have the best R&D, production, sales and service team and modern enterprise management organization. Application: irrigation Standards: BS5467, IEC 60502, BSEN (IEC) 60332-1-2Conductor: Class 2 stranded plain copper conductor t......
Send Inquiry
Product Description
Our company is a professional manufacturer of aluminum cable .We have the best R&D, production, sales and service team and modern enterprise management organization.

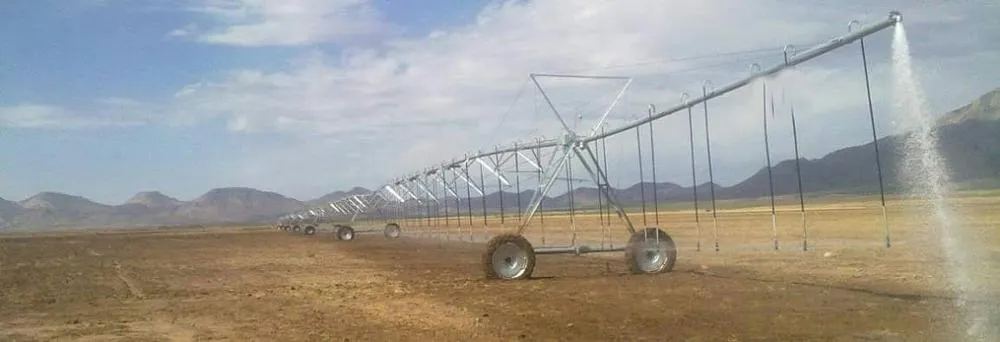

Application: irrigation
Standards: BS5467, IEC 60502, BSEN (IEC) 60332-1-2
Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
Insulation: XLPE (Cross-Linked Polyethylene)
Bedding: -40ºC PVC (Polyvinyl Chloride)
Armouring:
Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour)
Sheath: PVC (Polyvinyl Chloride)
Sheath Colour: Black (Carbon loaded for UV stability)
Voltage Rating: 600/1000V
Temperature Rating: 0ºC to +90ºC
Minimum Bending Radius:
1.5mm² - 16mm²
6 x overall diameter
25mm² and above:
8 x overall diameter
Core Identification:
1 Core: Brown
2 Cores: Brown, Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Alternative core identification: White Cores with Black numbers
XLPE CABLE 'S TYPE AND MAIN APPLICATION | |||
TYPE | Description | Main Application | |
CU CORE | AI CORE | ||
YJV or YJY | YJLV or YJLY | XLPE insulated, PVC or PE sheath power cable | Apply for laying indoors, in tunnels and cable trench. Unable to bear external mechanical forces. Single core cable in magnetic duct is not permissible. |
YJV22 or YJY23 | YJLV22 or YJLY23 | XLPE insulated, steel tape armoured, PVC or PE sheath power cable | Apply for laying indoors, in tunnels, cable trench and direct in ground. Be able to bear external mechanical forces, but unable to bear large pulling forces.
|
YLV32 or YJV33 | YJLV or YJLY 33 | XLPE insulated fine steel wire armoured, PVC or PE sheath power cable | Apply for laying indoors, in tunnels, cable trench and direct in ground. Be able to bear external machanical force and moderate pulling force |
YJV42 or YJV43 | YJLV42 or YJLV43 | XLPE insulated, thick steel wire armoured, PVC or PE sheath power cable | Apply for laying in water and seabed. Be able to bear possitive pressure and pulling force |
