2core 2.5mm Electric Wires Cables pH30 Fire Rated Cable Lpcb Approve Fire Resistance Cable
SpecificationsPart No.Item structureConductorInsulation DiameterSheathDiameterRestance of conductor at 20oC Ω/KMLLT2102c 1.0+E1/1.13Silicon2.2LSZH6.618.1LLT3103c 1.0+E1/1.13Silicon2.2LSZH718.1LLT4104c 1.0+E1/1.13Silicon2.2LSZH7.618.1LLT2152c 1.5+E1/1.38Silicon2.55LSZH7.512.1LLT3153c 1.5+E1......
Send Inquiry
Product Description
Specifications

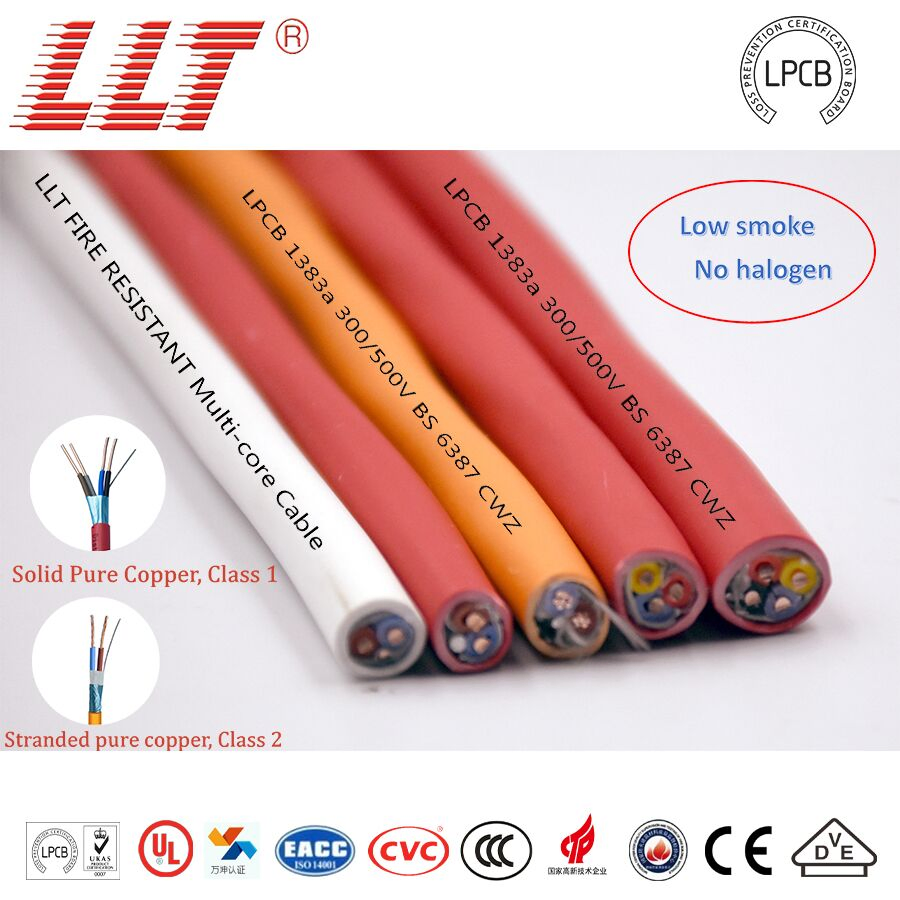

Our fire resistsant have passed the LPCB certification
BS7629-1,BS6387,EN50200,BS5839-1
BS7629-1 British Standard Specification for 300/500V fire resistant cable having low
emissions of smoke and corrosive gases when affected ty fire.
BS6387 Performance requirements for cables to maintain circuirt integrity under fire conditions.
C-Resistance to fire at 950oC for 180 Minutes
W-Resistance to fire at 950oC fore 30 Minutes
Z-Resistance to fire and mechanical shock at 950oC for 15 minutes
EN 50200:2015(Class PH120)
EN 50200:2015 Annex E(30 mins)
BS 5839-1:2013(Clause 26.2D Standard)
Related Product
Company information
Shenzhen LILUTONG Technology Co. Ltd was established in year 2001, with an area
over 50000m2 in Shenzhen. LLT has been very professional in the security field after
a period for launching, promoting, developing for security products, especially LPCB
fire resistant cable, UL fire alarm cable, elevator cable and flexible cables.
With more 19 years of develpment, the company has three subsidiaries, four business units and other powerful production bases and sales team. The total fixed assets have exceeded RMB 200 millions and the annual output value reaches RMB 400 millionS.
LLT skilled production team follows the standard of ISO9001:2000 quality system strictly
for making sure every production is out of mistakes. LLTproducts are approved by LPCB, CCC, CE, FCC, SGS, VDE, UL, and compliant with the ROHS standard.

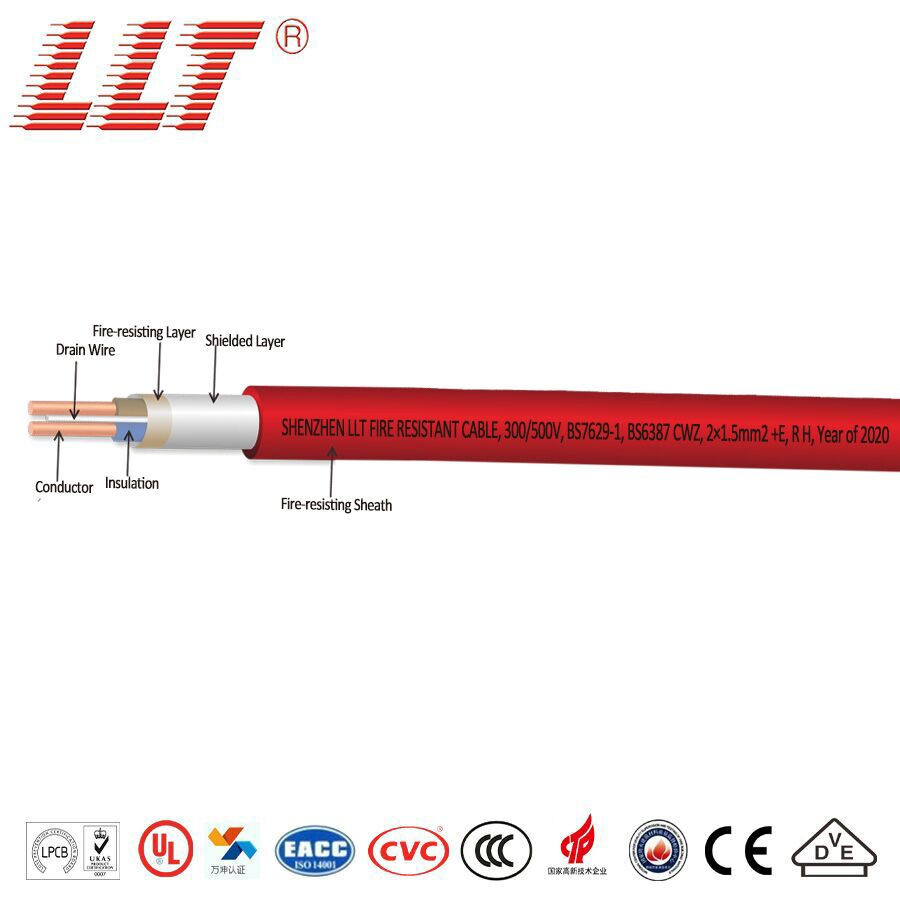

| Part No. | Item structure | Conductor | Insulation | Diameter | Sheath | Diameter | Restance of conductor at 20oC Ω/KM |
| LLT210 | 2c 1.0+E | 1/1.13 | Silicon | 2.2 | LSZH | 6.6 | 18.1 |
| LLT310 | 3c 1.0+E | 1/1.13 | Silicon | 2.2 | LSZH | 7 | 18.1 |
| LLT410 | 4c 1.0+E | 1/1.13 | Silicon | 2.2 | LSZH | 7.6 | 18.1 |
| LLT215 | 2c 1.5+E | 1/1.38 | Silicon | 2.55 | LSZH | 7.5 | 12.1 |
| LLT315 | 3c 1.5+E | 1/1.13 | Silicon | 2.55 | LSZH | 8 | 12.1 |
| LLT415 | 4c 1.5+E | 1/1.13 | Silicon | 2.55 | LSZH | 8.6 | 12.1 |
| LLT225 | 2c 2.5+E | 1/1.78 | Silicon | 3.2 | LSZH | 8 | 7.41 |
| LLT325 | 3c 2.5+E | 1/1.78 | Silicon | 3.2 | LSZH | 9.7 | 7.41 |
| LLT425 | 4c 2.5+E | 1/1.78 | Silicon | 3.2 | LSZH | 10.5 | 7.41 |
BS7629-1,BS6387,EN50200,BS5839-1
BS7629-1 British Standard Specification for 300/500V fire resistant cable having low
emissions of smoke and corrosive gases when affected ty fire.
BS6387 Performance requirements for cables to maintain circuirt integrity under fire conditions.
C-Resistance to fire at 950oC for 180 Minutes
W-Resistance to fire at 950oC fore 30 Minutes
Z-Resistance to fire and mechanical shock at 950oC for 15 minutes
EN 50200:2015(Class PH120)
EN 50200:2015 Annex E(30 mins)
BS 5839-1:2013(Clause 26.2D Standard)
