25kv, 28kv Copper/Aluminium Mv Concentric Neutral Cable

5KV, 15KV Copper/Aluminium MV Concentric Neutral Cable

1. The cable belongs to XLPE Insulated single core, concentric neutral cables rated 5 to 45KV which are used for the transmission and electrical energy, distribution of electrical energy.

2. Reference Standard: ICEA S-94-649, CSA C68.5, IEC60502.

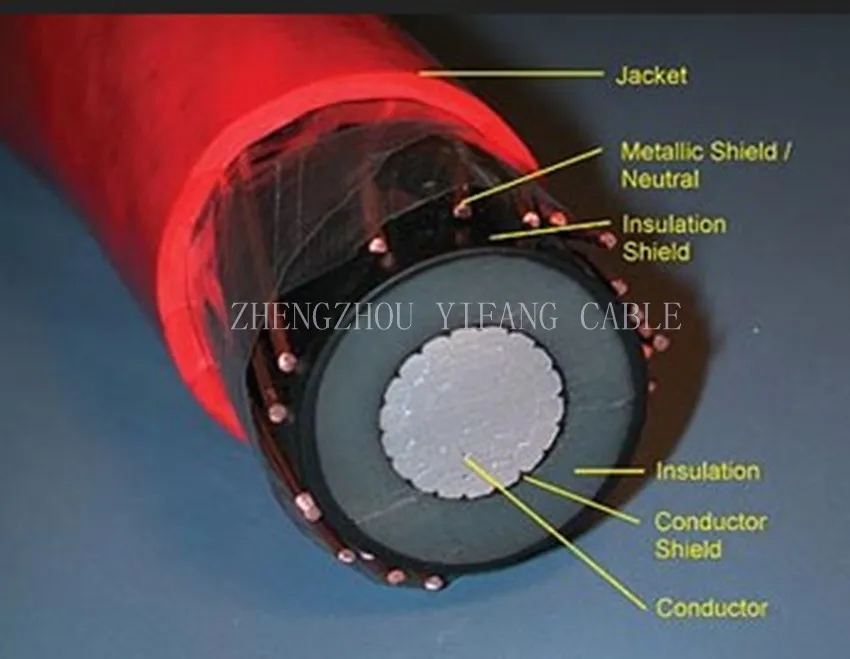

3. Cable construction

3.1 Conductor: Stranded Compacted Copper or Aluminium Wire, Class B
3.2 Conductor shield: Semi-conductor XLPE Compound
3.3 Insulation: XLPE or TRXLPE
3.4 Insulation shield: Semi-conductor XLPE Compound
3.5 Concentric neutral wire: Round Annealed Copper Wire, Full neutral or Reduced neutral
3.6 Wrapping tape(optional): Non-woven clothing tape
3.7 Outer sheath: PVC/LDPE/LLDPE/HDPE

4. Packing: Roll/Wooden drum/Iron-wooden drum/ Steel drum

For further information, pls contact us directly.
