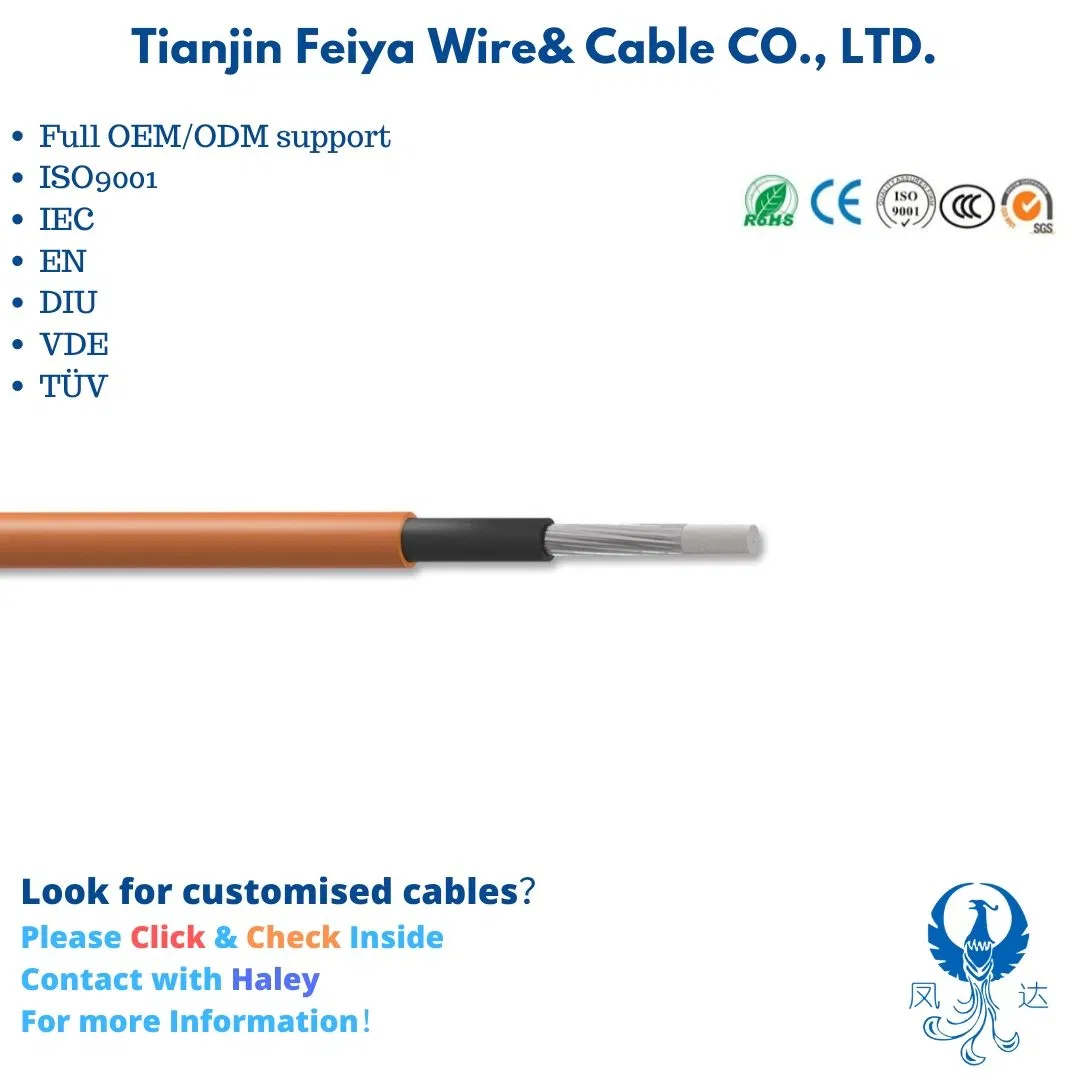

0361tq BS En 60332 -1-2 35 Sqmm, 50mm2, 70 mm2, 95mm, 120mmsq, 150 Mmsingle Core Epr Rubber Flexible Welding Power Aluminium Control Wire Cable
0361TQ BS 638 Black Welding Cable Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.APPLICATION These cables are used for the transmission of high currents from the electric weldi......
Send Inquiry
Product Description
| Introduction | |
| 1 | Can be customized according to requirements. |
| 2 | Independent brand recruitment agency. |
| 3 | High quality, ISO 9001, CCC, CE, RoHS certified. |
| 4 | ODM&OEM is available. |
APPLICATION
These cables are used for the transmission of high currents from the electric welding machine to the welding tool. They are suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.

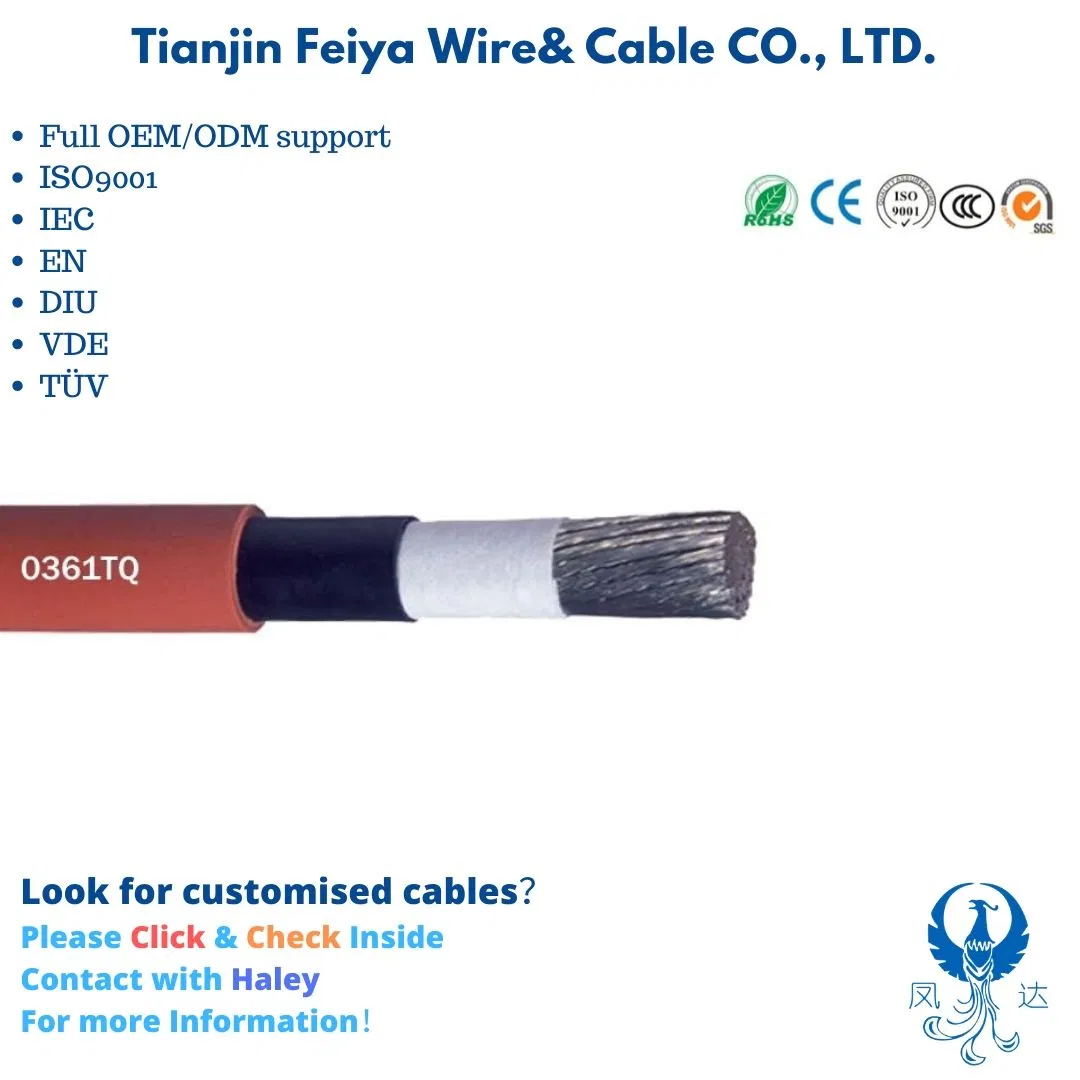

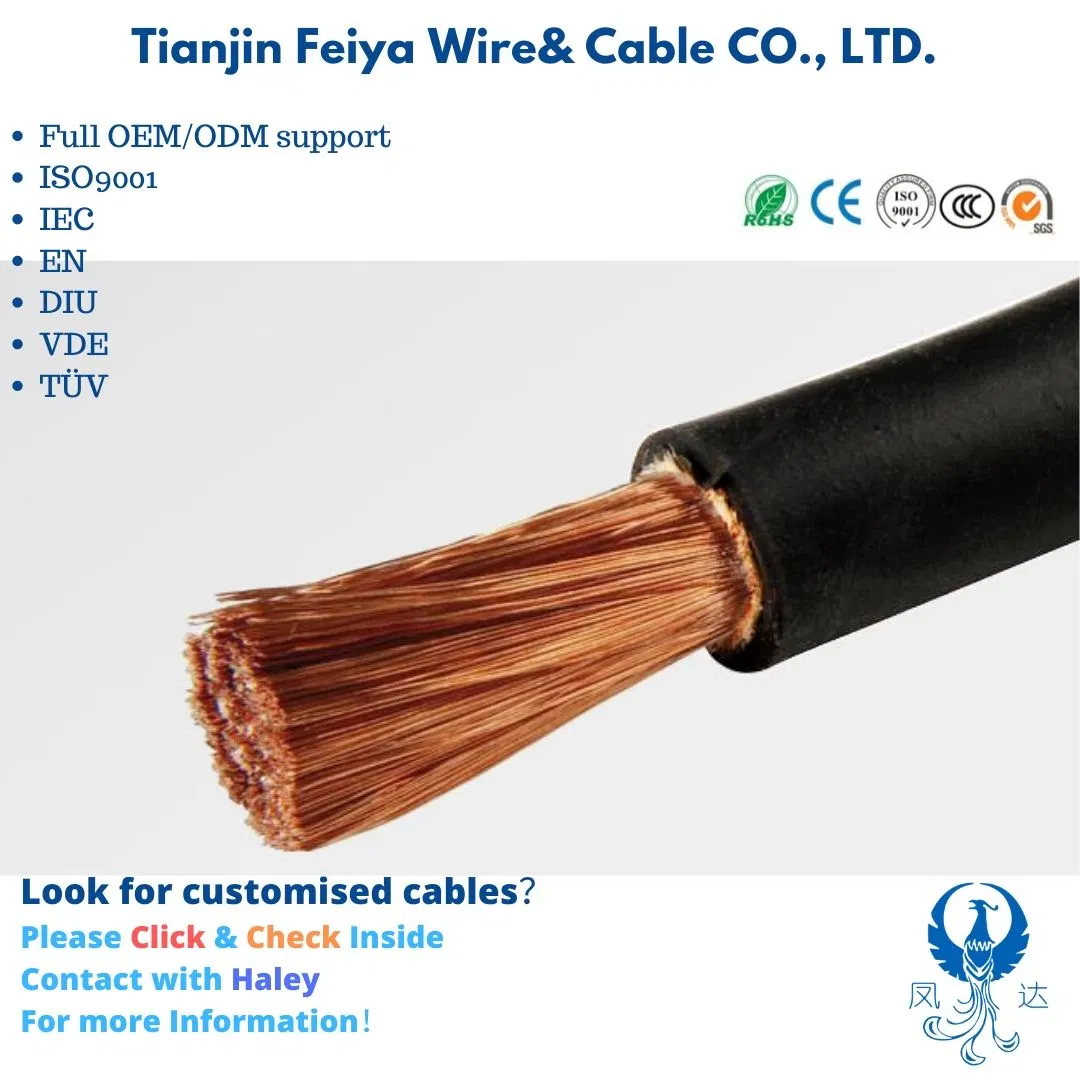

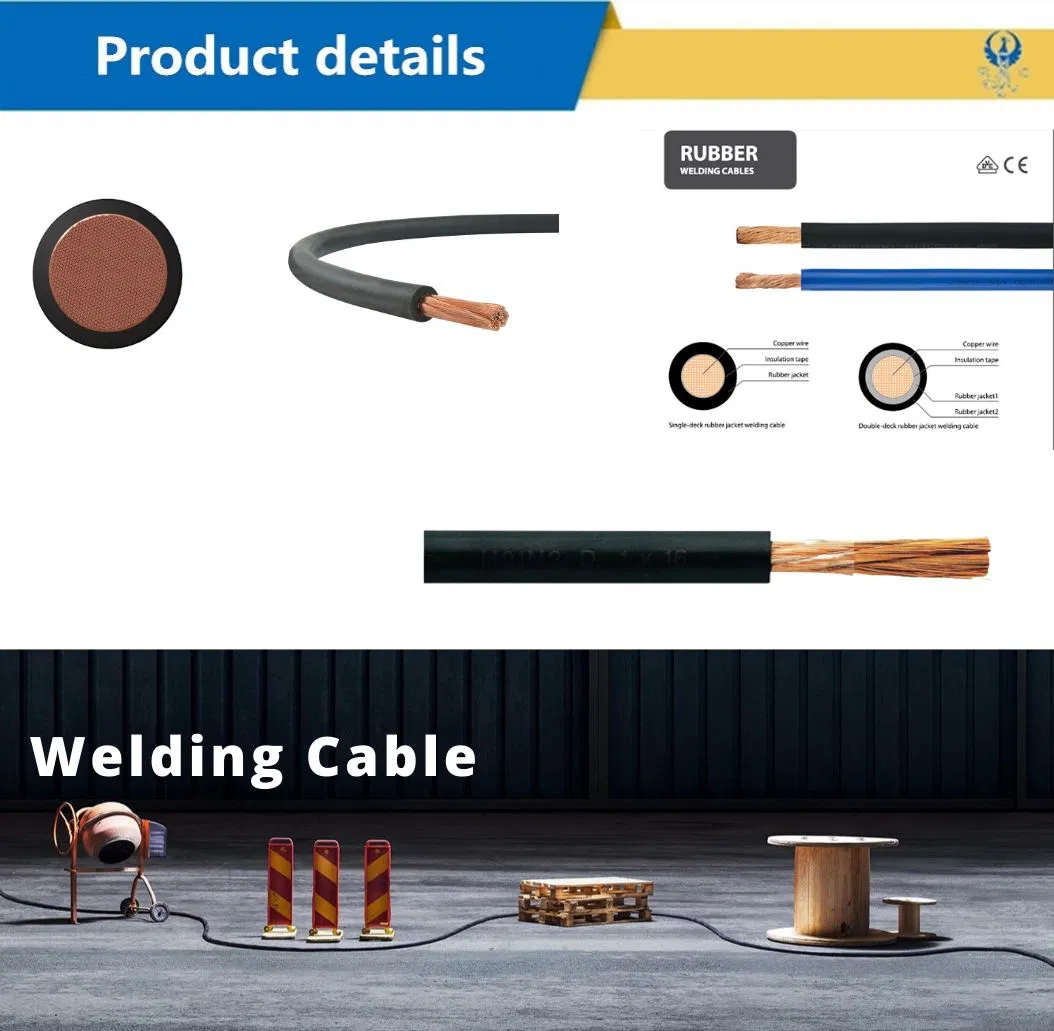

CONSTRUCTION
Extra fine bare/tinned copper strands
Stranding to BS 6360 CL-6,or CL-5 (120mm² and above)
Synthetic or paper separator over core
EPR GP4(Ethylene Propylene Rubber) to BS7655
Polychloroprene rubber (neoprene) sheath EM5, HOFR (Heat and Oil Resistant and Flame Retardant) to BS7655 , black/ orange
TECHNICAL DATA
Working voltage: 100/100 volts
(450V for non-welding applications if suitably protected from mechanical damage)
Test voltage: 1000 volts
Minimum bending radius: 6xOverall diameter
Operating temperature: -25º C to +85º C
Flame retardant: IEC 60332.1
CONSTRUCTION PARAMETER
AWG(No of Strands/Strand Diameter) | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Cable Weight |
No. x mm² | mm | mm | mm | kg/km | |
6(903/35) | 1×16 | 1.2 | 2 | 11.0±0.5 | 230 |
4(1407/35) | 1×25 | 1.4 | 2 | 12.5±0.5 | 325 |
2(1974/35) | 1×35 | 1.4 | 2 | 14±0.5 | 440 |
1(2830/35) | 1×50 | 1.6 | 2.2 | 16.5±0.5 | 600 |
2/0(3952/35) | 1×70 | 1.6 | 2.4 | 18.5±0.5 | 830 |
3/0(5370/35) | 1×95 | 1.8 | 2.6 | 21.0±0.5 | 1110 |
4/0(614/24) | 1×120 | 1.8 | 2.8 | 23.5±0.5 | 1375 |
300MCM(765/24) | 1×150 | 2 | 3 | 26±0.5 | 1680 |
350MCM(944/24) | 1×185 | 2.2 | 3.2 | 27.5±0.5 | 2050 |
500MCM(1225/24) | 1×240 | 2.4 | 3.2 | 30.5±0.5 | 2630 |
