Wired for Success: Unraveling the Differences Between Solid and Stranded Wire

Introduction:

In the world of electrical wiring, the choice between solid and stranded wire is a fundamental consideration that can significantly impact the performance, flexibility, and durability of an electrical system. These two types of wires have distinct characteristics, and understanding the differences is crucial for making informed decisions in various applications. In this blog post, we will delve into the intricacies of solid and stranded wires, exploring their unique features, applications, and considerations.

Solid Wire: The Stalwart Conductor:

1. Composition:

  - Single Conductor:

    - Solid wire consists of a single, unbroken conductor made of a solid metal core, usually copper or aluminum. The wire maintains a consistent diameter throughout its length.

2. Rigidity and Structure:

  - Rigid Structure:

    - Solid wire is inherently rigid due to its one-piece construction. It holds a fixed shape and is less flexible compared to its stranded counterpart.

3. Applications:

  - Ideal for Fixed Installations:

    - Solid wire is well-suited for fixed installations where the wire does not undergo frequent bending or flexing. It is commonly used in residential and commercial buildings for in-wall wiring and connections.

4. Advantages:

  - Low Cost:

    - Solid wire is often more cost-effective than stranded wire, making it a preferred choice for applications where flexibility is not a critical factor.

  - Low Signal Loss:

    - In certain applications, such as high-frequency signal transmission, solid wire can have lower signal loss compared to stranded wire due to its uniform structure.

Stranded Wire: The Flexible Navigator:

1. Composition:

  - Multiple Thin Wires:

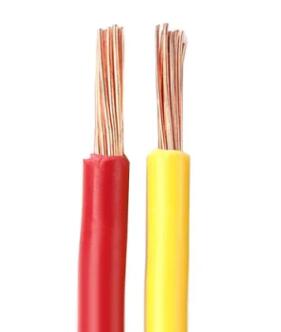

    - Stranded wire is composed of multiple thin strands of wire bundled together. Each individual strand contributes to the overall conductivity of the wire.

2. Flexibility and Bend Radius:

  - Flexible and Bendable:

    - Stranded wire is highly flexible and can bend easily, making it ideal for applications that involve movement or frequent flexing. The multiple strands allow for a more pliable and maneuverable wire.

3. Applications:

  - Dynamic Environments:

    - Stranded wire is the preferred choice for applications that require flexibility and resistance to fatigue. It is commonly used in automotive wiring, robotics, portable electronics, and other situations where movement or vibration is involved.

4. Advantages:

  - Flexibility:

    - The primary advantage of stranded wire lies in its flexibility. The multiple strands enable the wire to bend and flex without the risk of breaking, making it suitable for applications where movement is frequent.

  - Resistance to Fatigue:

    - Stranded wire is more resistant to metal fatigue, which occurs when a material undergoes repeated stress or bending. This makes it durable in applications where the wire is subjected to constant movement.

Conclusion:

In the dynamic landscape of electrical wiring, the choice between solid and stranded wire is akin to selecting the right tool for the job. Solid wire stands firm in fixed installations, providing stability and conductivity, while stranded wire flexes and adapts to the dynamic demands of moving applications. Understanding the differences between these two types of wires empowers electricians, engineers, and DIY enthusiasts to make informed decisions based on the specific requirements of each unique electrical project. Whether navigating the rigid pathways of a building or flexing with the movement of a robotic arm, the choice between solid and stranded wire ensures that every connection is wired for success.
