How is an electric wire different from a cable

Electric wires and cables are two distinct components used in electrical and electronic systems, and they differ in several ways:

1. Structure:

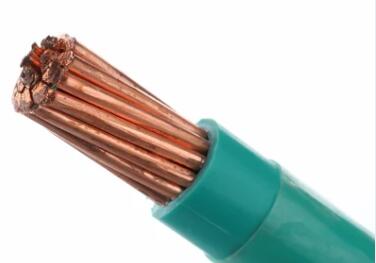

  - Electric Wire: An electric wire typically consists of a single, solid or stranded conductor made of a highly conductive material, such as copper or aluminum. It may have a protective insulation layer to prevent electrical contact with other conductors or objects.

  - Cable: A cable, on the other hand, is a more complex structure. It contains multiple electric wires, which can be individually insulated and color-coded, encased within an outer protective sheath. Cables are designed to carry multiple conductors, and each conductor may serve a different purpose within the cable.

2. Number of Conductors:

  - Electric Wire: A single wire usually contains a single conductor and may be used for simple electrical connections or low-current applications.

  - Cable: Cables can contain multiple conductors bundled together, often with various insulations and colors. This allows cables to transmit power, data, or signals for more complex applications.

3. Applications:

  - Electric Wire: Electric wires are often used for straightforward electrical connections, such as wiring outlets, switches, lighting fixtures, or small appliances.

  - Cable: Cables are commonly used in more complex applications where multiple conductors are required, such as in power distribution, data transmission (e.g., Ethernet cables), audio/video signals (e.g., HDMI cables), and control systems (e.g., control cables in industrial settings).

4. Flexibility:

  - Electric Wire: Electric wires may come in solid or stranded forms. Stranded wires are more flexible and suitable for applications that involve frequent bending and movement.

  - Cable: Cables are generally more flexible than rigid conduit but less flexible than stranded wires. The individual conductors within a cable can still be quite flexible.

5. Protection and Insulation:

  - Electric Wire: Electric wires may have insulation to protect against electrical shorts and shocks, but the insulation is primarily designed for single conductors.

  - Cable: Cables are designed to provide comprehensive protection for multiple conductors. They have an outer sheath that protects the bundled conductors from physical damage, environmental factors, and interference.

6. Examples:

  - Electric Wire: Examples of electric wires include the individual wires inside the walls of your home, the power cord of a small appliance, or the internal wiring of a light fixture.

  - Cable: Examples of cables include power cables, USB cables, Ethernet cables, and the wiring harness in an automobile.

In summary, electric wires are single conductors used for simpler electrical connections, while cables are multiple conductors bundled together and protected by an outer sheath, suitable for more complex and multifunctional applications. Understanding the differences between wires and cables is crucial when planning and implementing electrical and electronic systems.
