Yh Yhf 16mm2 35mm2 50mm2 70mm2 H01n2d Rubber Sheath Flexible Welding Cable
Flexible Rubber Welding Wire Cable 35mm2 50mm2 70mm2 Copper for Industrial Welding Cable YH YHF H01N2DWelding Cable Structure:1.Conductor: Stranded plain or tinned, annealed copper wires, or CCA Copper cladded aluminum2.Covering: Material: EPR, TPE or CPESingle Layer, or double layers Welding Cabl......
Send Inquiry
Product Description

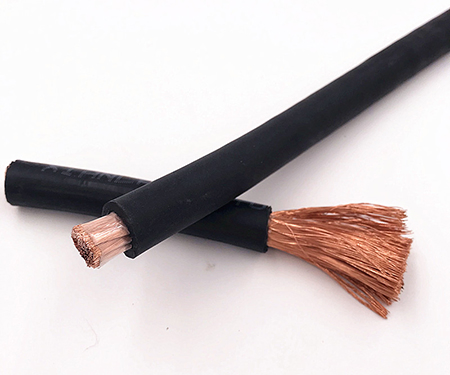

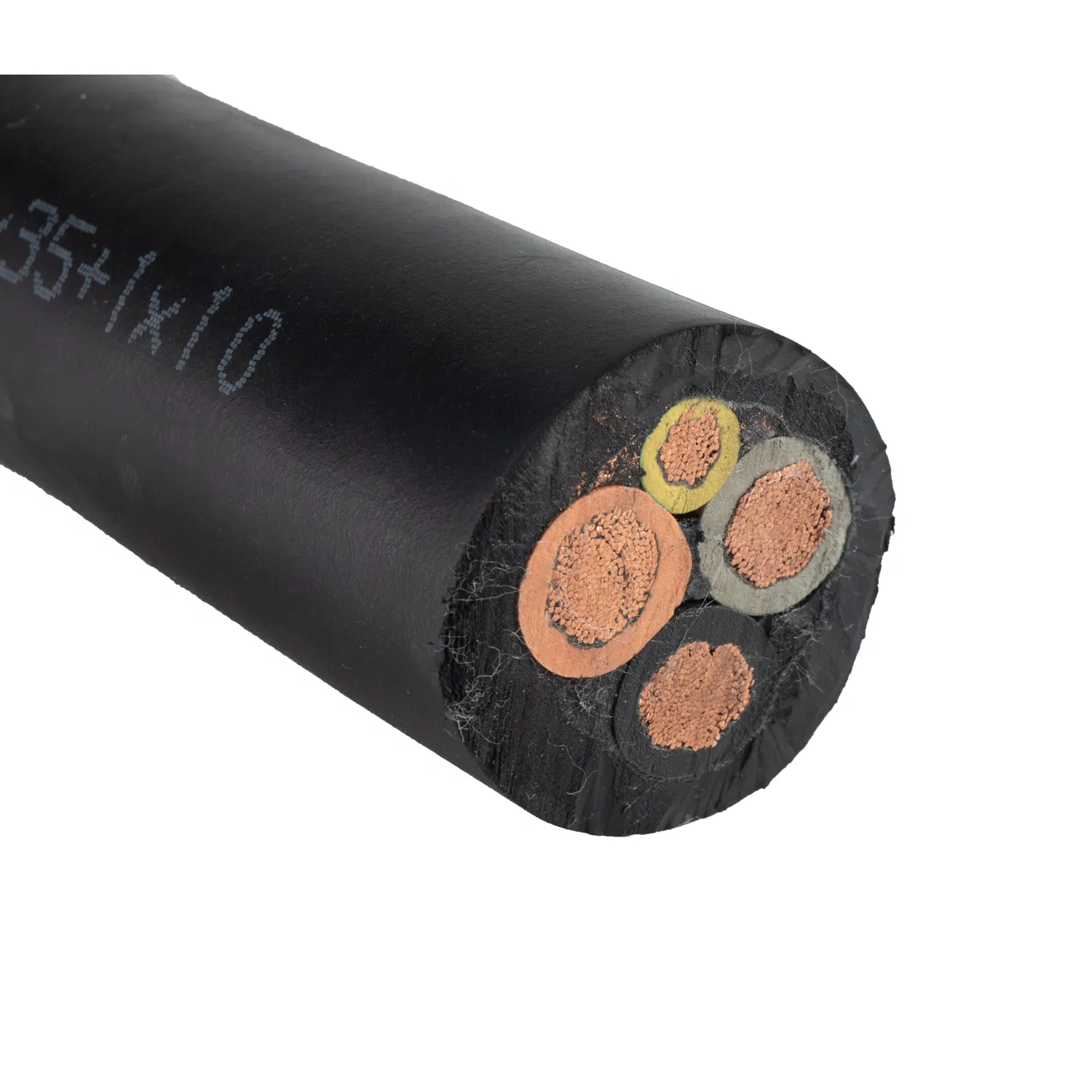

Welding Cable Structure:

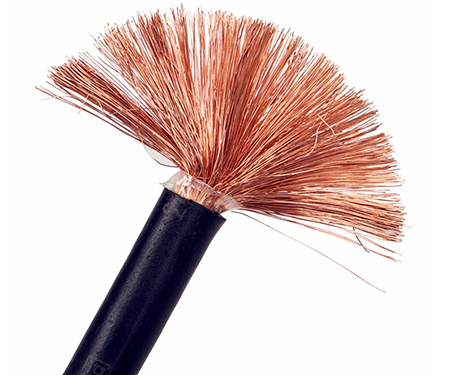

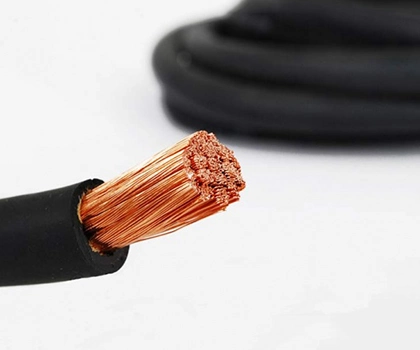

1.Conductor: Stranded plain or tinned, annealed copper wires, or CCA Copper cladded aluminum
2.Covering: Material: EPR, TPE or CPE
Single Layer, or double layers
Welding Cables Designations
1. HO1N2-D: for cables with normal flexibility
2.. HO1N2-E: for cables with extra high flexibility
Welding Cable Characteristics:
high elasticity, aging resistance & oil resistance
Welding Cable Application:
It's used in the automobile industry in shipbuilding, in transport and conveyor system, tool making machinery,
welding robots etc.
Technical data
Voltage Rating
100V
Working temperature:65ºC
Temperature Rating
Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius
Flexed: 6 x overall diameter
Model | Name | Main applications | Working temperature of core ≤0C |
YH | Natural Rubber Sheath for Welding Cable | Always used indoor | 65 |
YHF | Neoprene Rubber Sheath Welding Cable | Always used outdoor | 65 |
Synthetic elastomer Sheath Welding Cable |
3th. Standards: IEC60245
4th. Specifications, Size, Weight and Technical Data
Conductor Nominal Section (mm2) | Conductive Core | Thickness of Section Sheath (mm) | Average Outer Diameter (mm2) | 20oC Conductor Resistance≤(Ω/km) | Reference Weight(kg/km) | ||
Number/Diameter of Core(mm) | Min | Max | YH | YHF | |||
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218 | 230 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316 | 331 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592 | 610 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817 |
95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066 | 1102 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348 | 1392 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 1678 | 1698 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983 | 2020 |
