Product Description

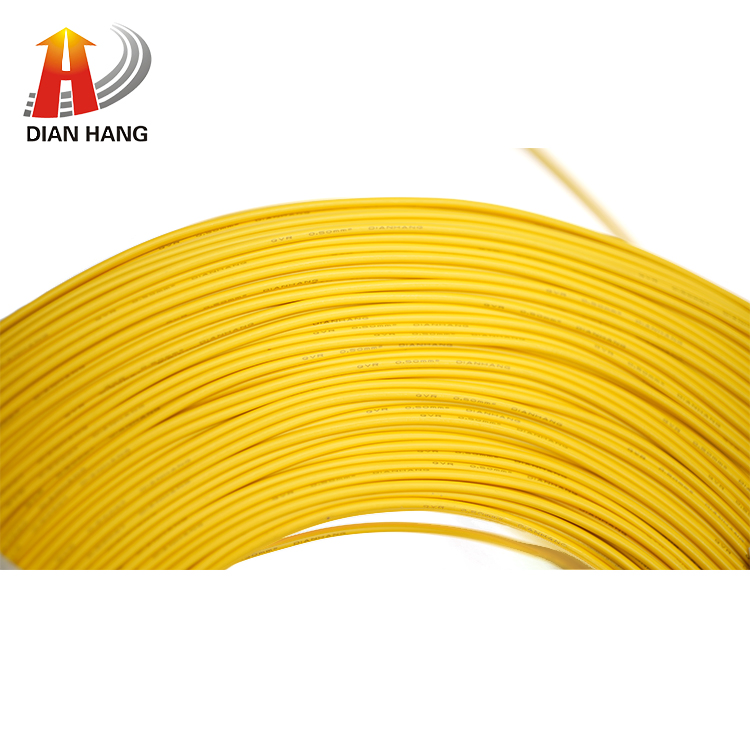

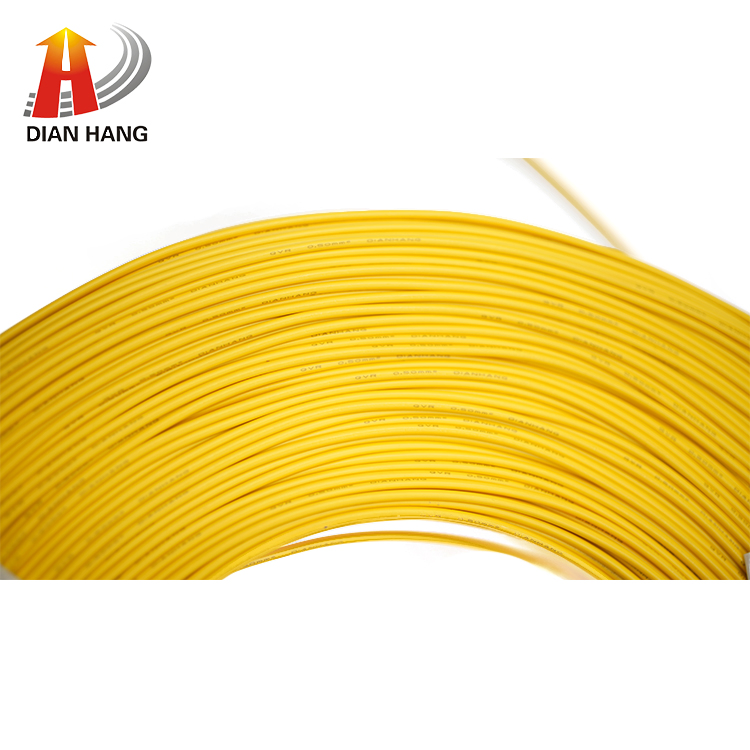

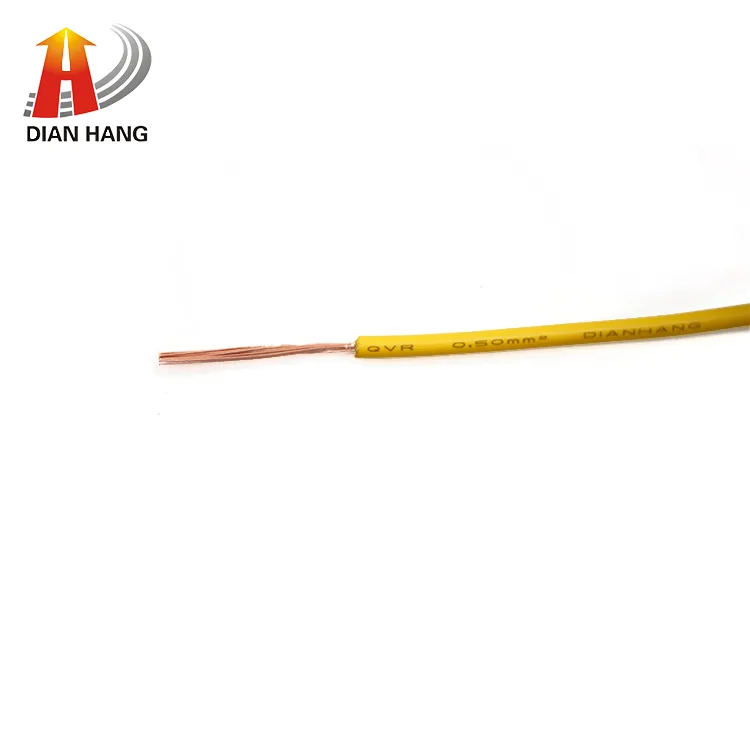

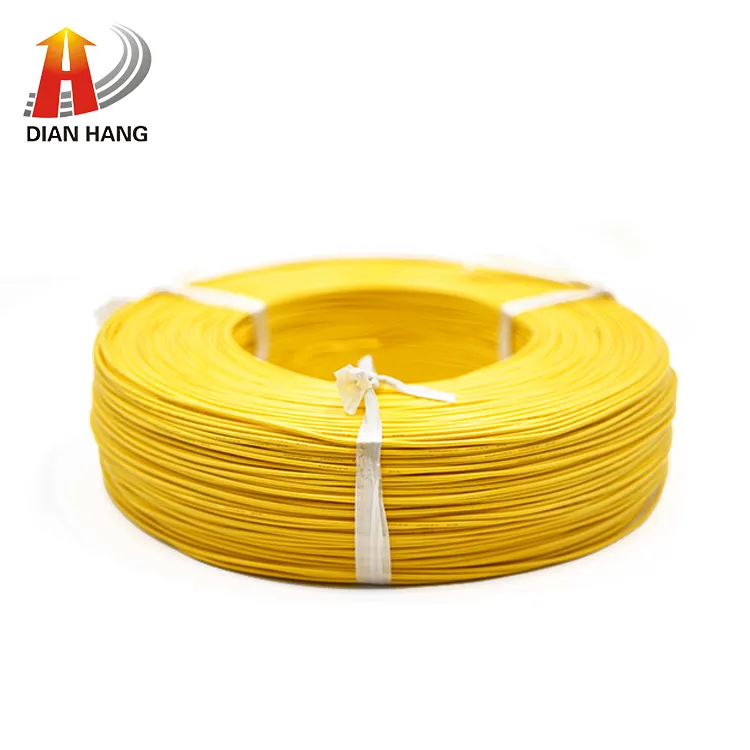

JB/T 8139-1999 flame test QVR PVC insulated road low-voltage wire for vehicles
Rated temperature:80ºC
Reference standard: JB/T 8139-1999

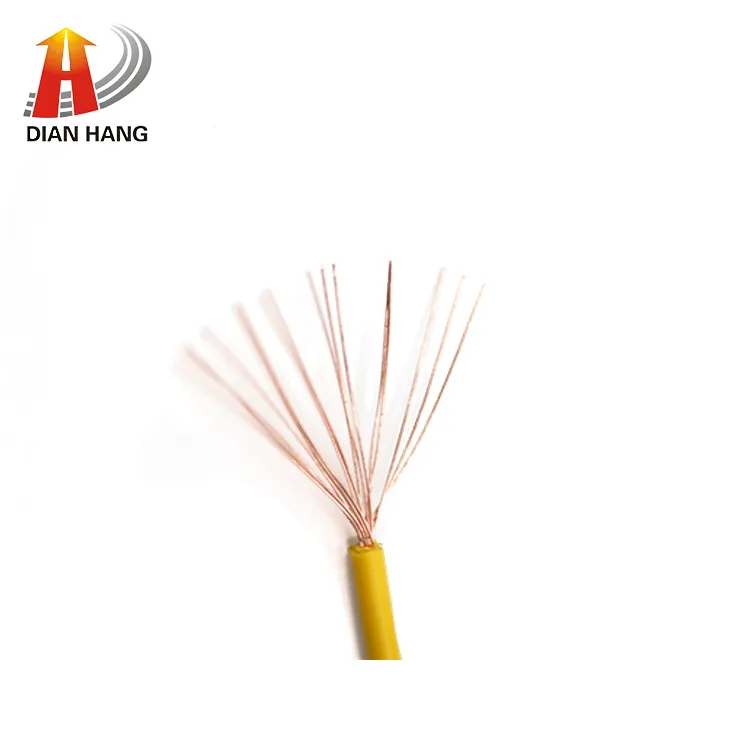

Solid or stranded, tinned or bare copper conductor 0.2-10
PVC insulation, comply with ROHS, REACH environmental standard
Passes JB/T 8139-1999 flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application:For vehicle internal wiring of appliance
Product Type | Conductor | Insulation | Max.cond. Resistance | (Dielectric Strength) | |||
QVR | AWG (mm2) | Construction (No./mm) | OD (mm) | Thickness (mm) | OD (mm) | (Ω/Km,20ºC,Dc)
| (Vac,1min)
|
0.2 | 12/0.150 | 0.60 | 0.33 | 1.25 | 95.0 | 1000 | |
0.3 | 16/0.150 | 0.69 | 0.33 | 1.35 | 71.2 | 1000 | |
0.4 | 23/0.15 | 0.83 | 0.34 | 1.50 | 49.6 | 1000 | |
0.5 | 16/0.20 | 0.92 | 0.64 | 2.20 | 40.1 | 1000 | |
0.75 | 24/0.20 | 1.13 | 0.69 | 2.50 | 26.7 | 1000 | |
| 1.0 | 32/0.20 | 1.31 | 0.65 | 2.60 | 20.0 | 1000 | |
| 1.5 | 30/0.254 | 1.58 | 0.64 | 2.85 | 13.7 | 1000 | |
2.5 | 49/0.254 | 2.02 | 0.74 | 3.50 | 8.21 | 1000 | |
4 | 56/0.30 | 2.59 | 0.91 | 4.40 | 5.09 | 1000 | |
6 | 84/0.30 | 3.17 | 0.87 | 4.90 | 3.39 | 1000 | |
| 10 | 84/0.40 | 4.23 | 1.04 | 6.30 | 1.95 | 1000 | |
