Unshield 2- 40 Cores Alarm Cable

Product Description

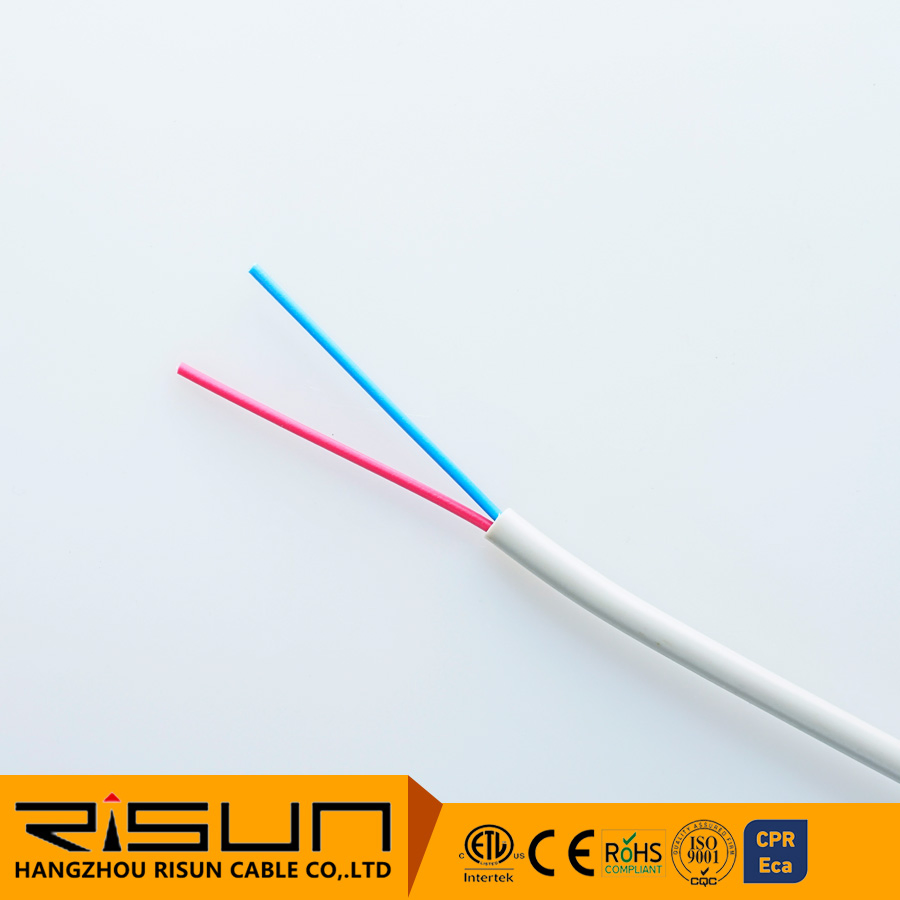

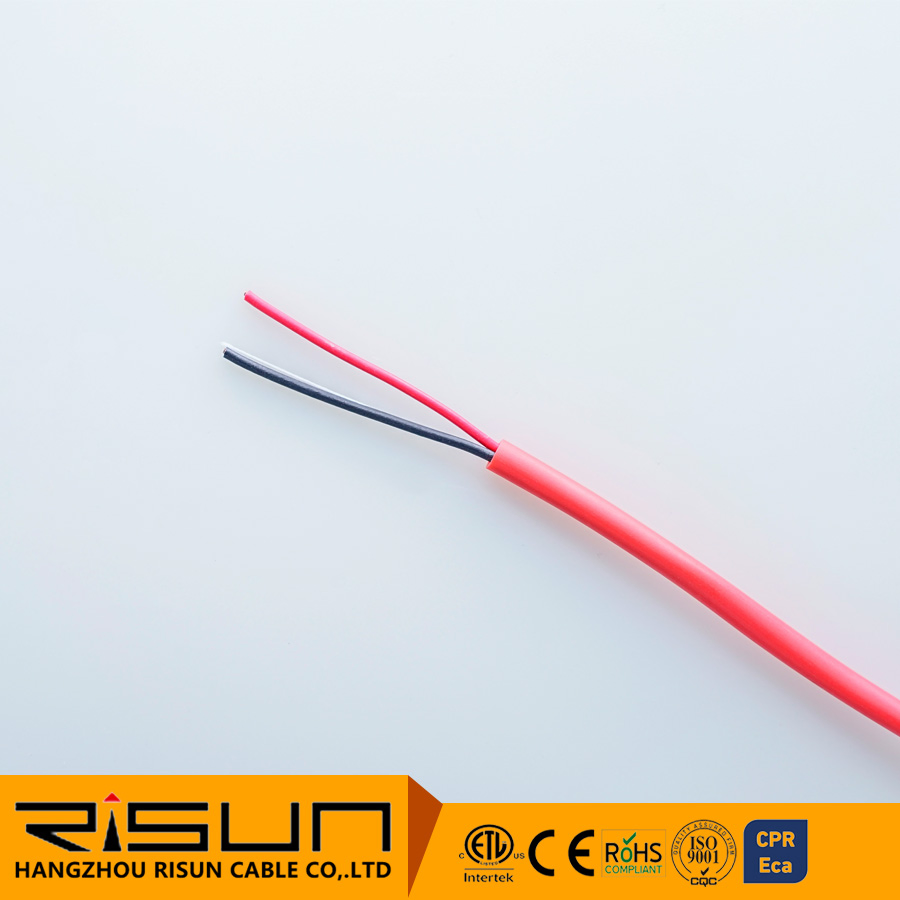

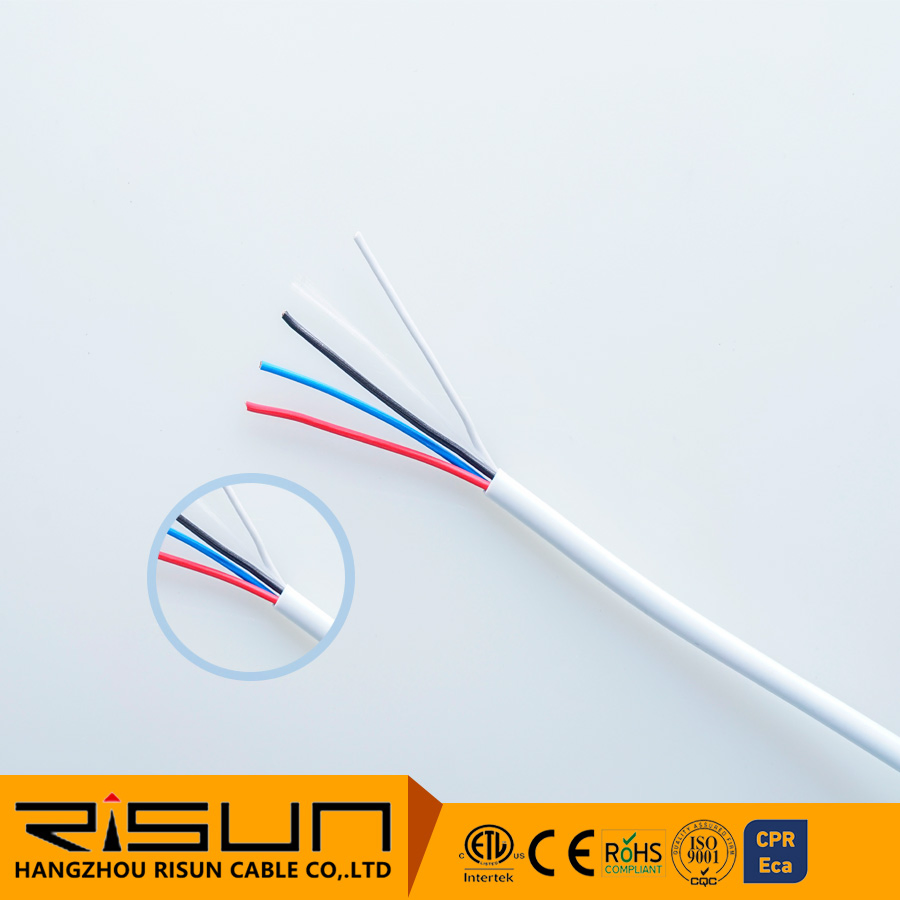

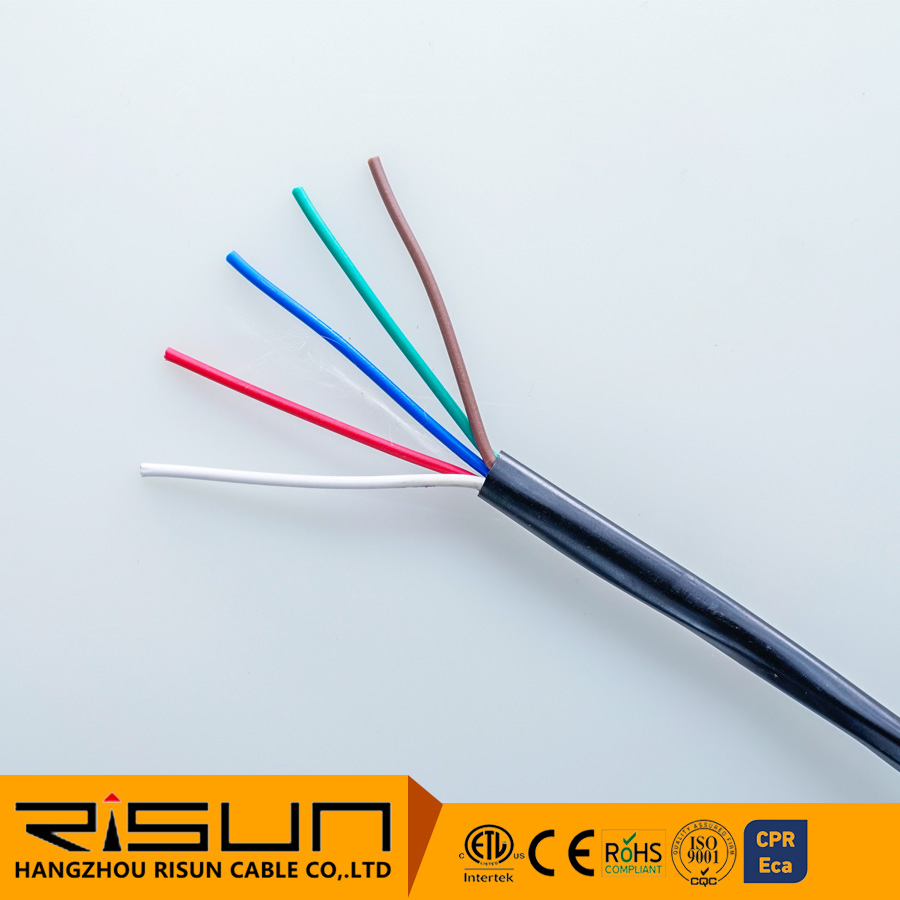

Unshield 2-40 Cores Alarm Cable

Flexible cable used for the wiring of burglar Alarm and other low voltage circuits. Suitable application Multi core Audio, Control, Fire Alarm and Instrumentation cable for Industrial, Data, Interconnect and Analogue Audio used.

Features:
Unshield 2-40 Cores Alarm Cable

Unshield alarm cable:
1. Conductor: 0.22mm² TC/BC/CCA, can 2-40 cores.
2. Frame Retardant PVC insulation
3. Ripcord
4. Frame Retardant PVC jacket.

Shielded alarm cable:
1. Conductor: 0.22mm² TC/BC/CCA, can 2-40 cores.
2. Frame Retardant PVC insulation
3. Pet Foil/Aluminum foil
4. Drain wire
5. Ripcord
6. Frame Retardant PVC jacket.

Packing:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;

Usage: Securitity alarm
Certificate: CE, RoHS, ETL.

SERIAL No.	SECTION	SPEICIFICATION	OVERALL DIAM. mm	WEIGHT (KG/KM)
RS-AL01	2*0.22mm2	2*7/0.20	3	11
RS-AL02	4*0.22mm2	4*7/0.20	3.5	18
RS-AL03	6*0.22mm2	6*7/0.20	4.1	25
RS-AL04	8*0.22mm2	8*7/0.20	4.5	32
RS-AL05	10*0.22mm2	10*7/0.20	5.2	39
RS-AL06	12*0.22mm2	12*7/0.20	5.4	46
RS-AL07	14*0.22mm2	14*7/0.20	5.8	54
RS-AL08	20*0.22mm2	20*7/0.20	6.8	76
RS-AL09	30*0.22mm2	30*7/0.20	8.4	114
RS-AL10	40*0.22mm2	40*7/0.20	10	148

The specification, packing, pringting brand all according to customer.
