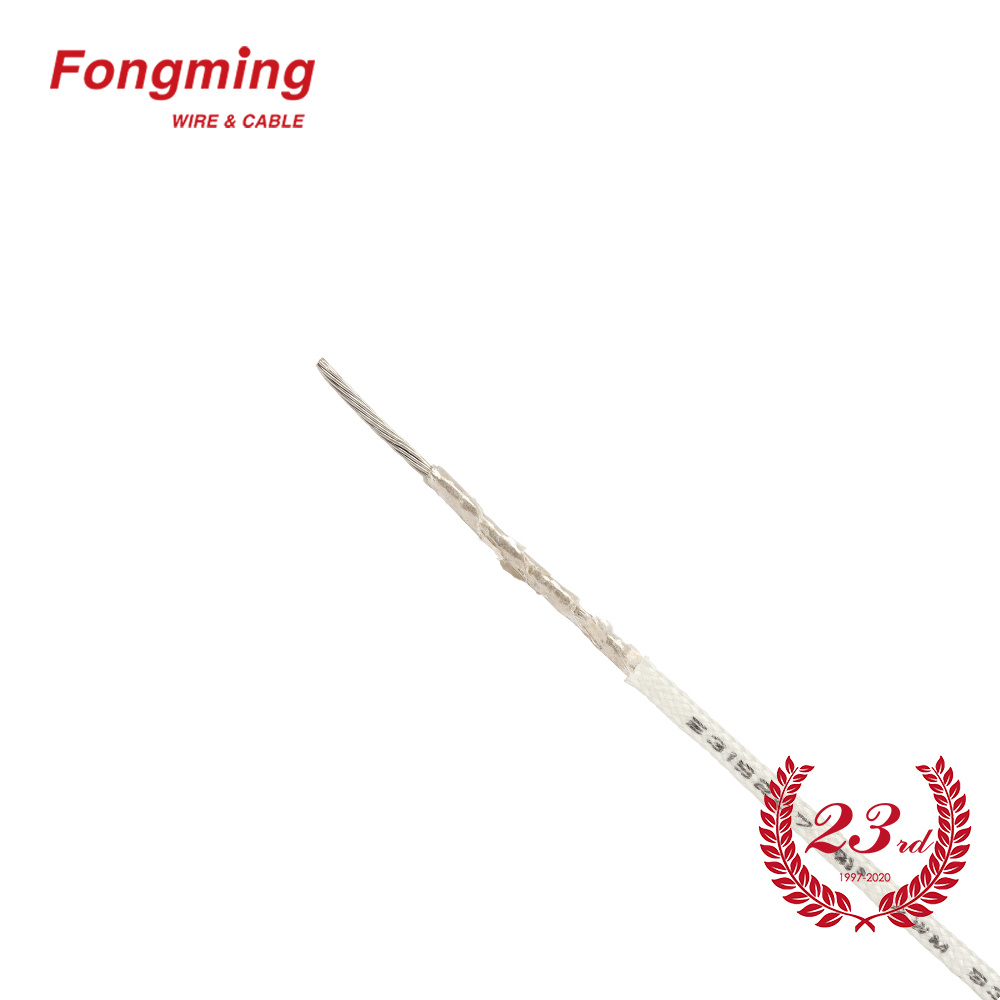

UL5360 Mica Tape Insulated Pure Nickel High Temperature Wire
Product DescriptionUL5360 Mica Fiberglass Insulated Electrical WireDescriptionName: Mica Fiberglass Insulated Electrical WireModel: UL5360Size: 30~4/0AWGFeatureRatings Voltage: 300VRated Temperature: 450CStructureConductor: Nickel / Nickel Plated CopperInsulation: Mica TapeJacket: Fiberglass Braid w......
Send Inquiry
Product Description
UL5360 Mica Fiberglass Insulated Electrical Wire
Description
Name: Mica Fiberglass Insulated Electrical Wire
Model: UL5360
Size: 30~4/0AWG
Feature
Ratings Voltage: 300V
Rated Temperature: 450C

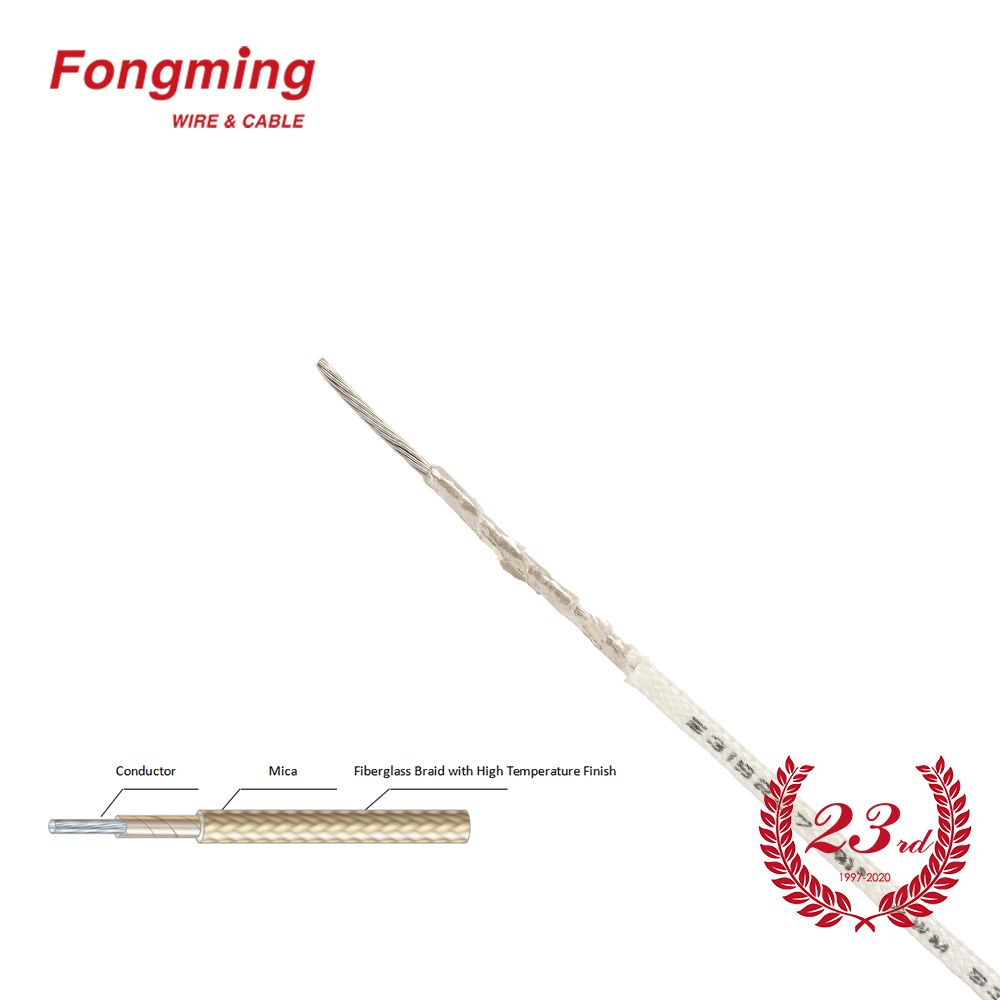

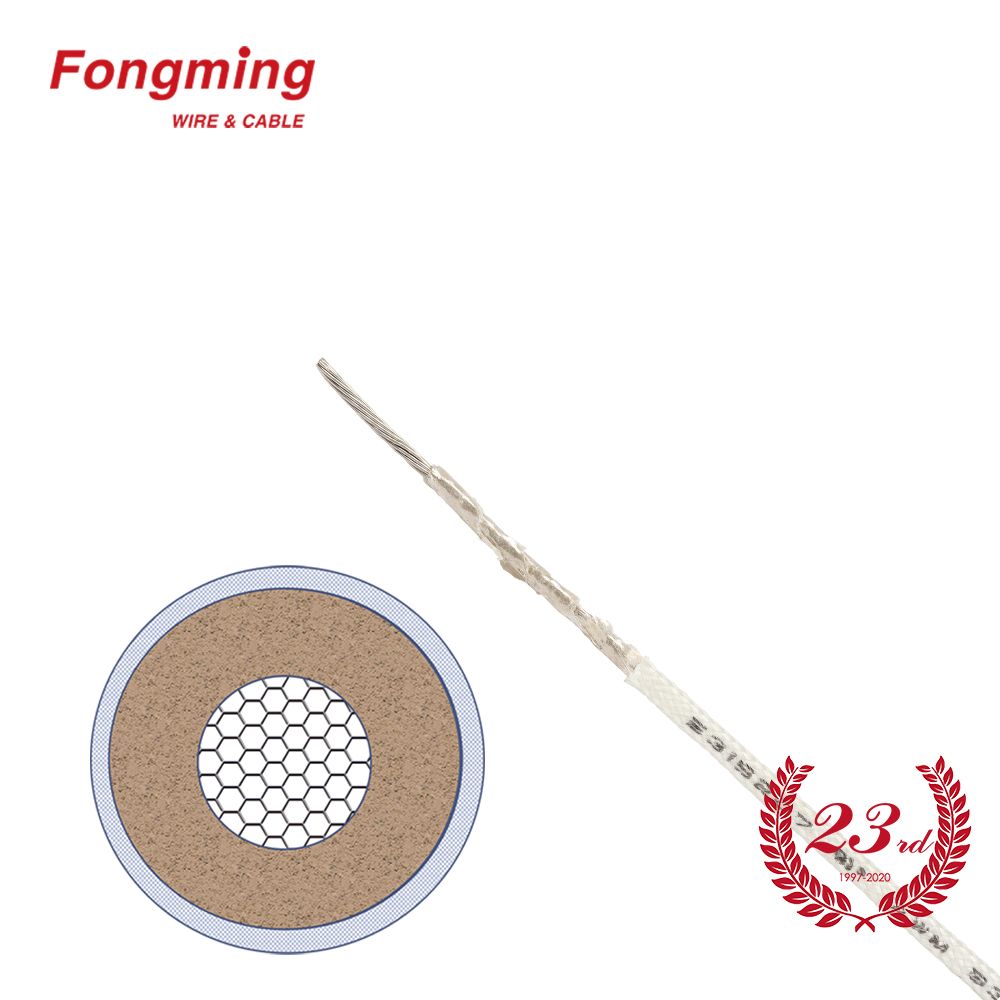

Structure
Conductor: Nickel / Nickel Plated Copper
Insulation: Mica Tape
Jacket: Fiberglass Braid with High Temperature Resistant Finish
| Size AWG | Conductor Structure | Insulation Thickness (mm) | Braid Thickness (mm) | Diameter (mm) |
| 30 | 7/0.1 | 0.31 | 0.18 | 1.4±0.1 |
| 28 | 7/0.127 | 1.5±0.1 | ||
| 26 | 7/0.16 | 1.6±0.1 | ||
| 24 | 7/0.2 | 1.7±0.1 | ||
| 22 | 7/0.254 | 1.9±0.1 | ||
| 20 | 10/0.254 | 2.0±0.1 | ||
| 18 | 16/0.254 | 2.3±0.1 | ||
| 16 | 26/0.254 | 2.6±0.1 | ||
| 14 | 41/0.254 | 3.0±0.1 | ||
| 12 | 65/0.254 | 3.4±0.1 | ||
| 10 | 103/0.254 | 0.41 | 4.5±0.2 | |
| 8 | 163/0.254 | 5.4±0.2 | ||
| 6 | 260/0.254 | 0.51 | 0.38 | 7.1±0.2 |
| 4 | 413/0.254 | 8.4±0.3 | ||
| 2 | 168/0.5 | 0.64 | 0.51 | 10.6±0.3 |
| 1 | 212/0.5 | 11.6±0.5 | ||
| 1/0 | 268/0.5 | 12.8±0.5 | ||
| 2/0 | 342/0.5 | 14.1±0.5 | ||
| 3/0 | 430/0.5 | 15.5±0.5 | ||
| 4/0 | 538/0.5 | 17.1±0.5 |
Certifications

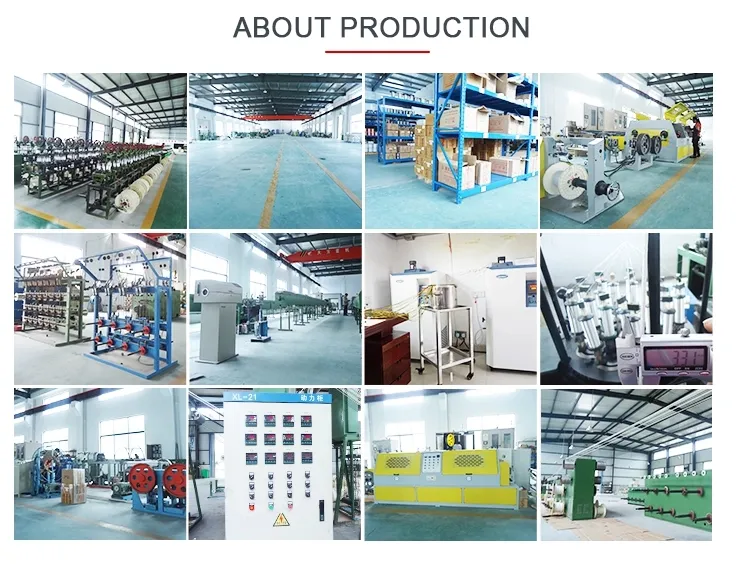

Company Information
