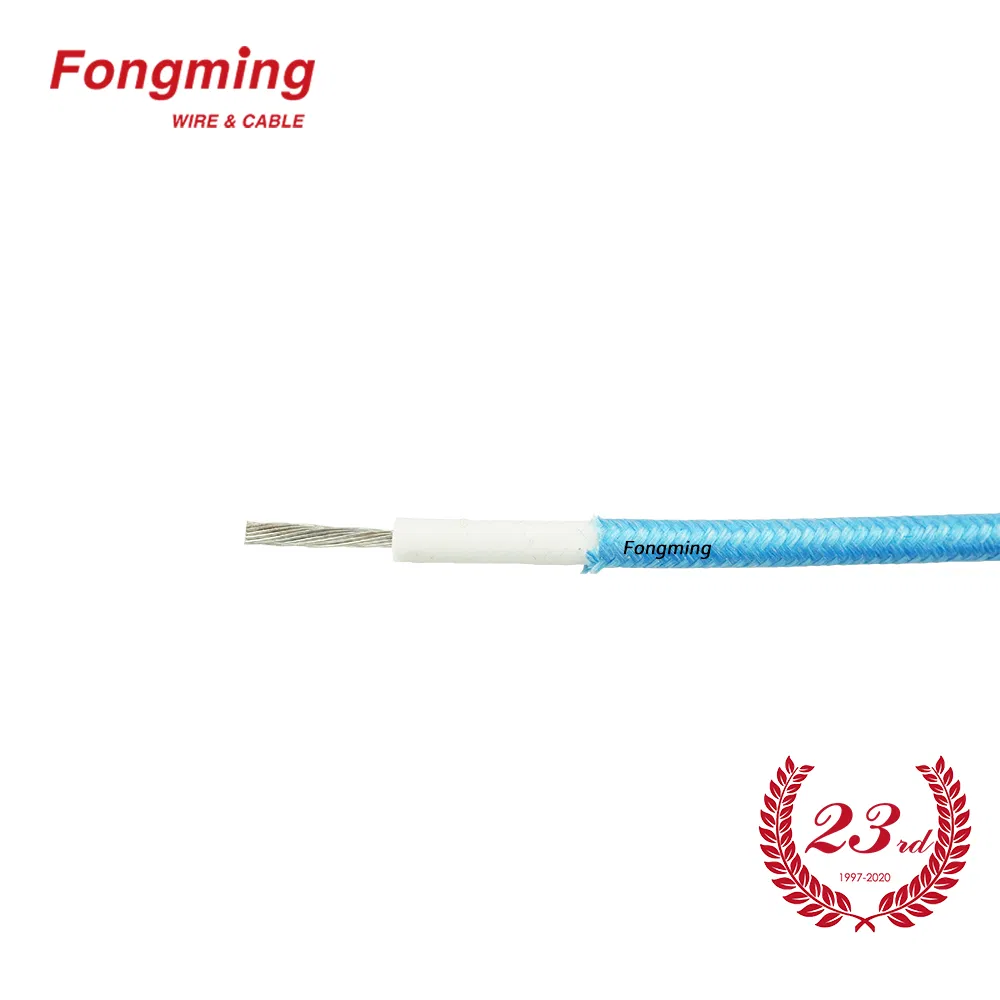

UL3071/ 3074 /3075 600V 200c Silicone Insulation Fiberglass Braided High Temperature Wire
UL3071/3074/3075 600V 200C Silicone Insulation Fiberglass Braided High Temperature WireProduct DescriptionModel No.: AWM3071Size: 18AWG~10AWGFeatureRatings: -60°C~+200°C, 600VConductors: Tinned CopperInsulation: Silicone Rubber ExtrudedSheath: Fiberglass Braided with high temper fi......
Send Inquiry
Product Description
Product Description
Model No.: AWM3071
Size: 18AWG~10AWG
Feature
Ratings: -60°C~+200°C, 600V

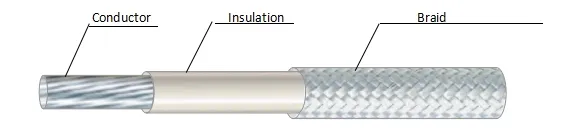

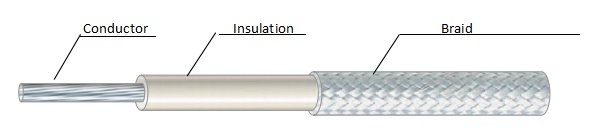

Conductors: Tinned Copper
Insulation: Silicone Rubber Extruded
Sheath: Fiberglass Braided with high temper finish
Application
Used for internal wiring of household ovens, appliances, lighting fixtures and electronic equipment as high-temperature lead wire.
Specification
| Conductor | Insulation | Max. Conductor Resistance (20ºC) (Ω/km) | Reference Weight (kg/km) | |||||
| Style | Size (AWG) | Conductor Structure (No./mm) | Nominal Thickness (mm ) | Braid Thickness (mm) | Nominal Diameter (mm) | Max. Diameter (mm) | ||
| 3071 | 18 | 16/0.26 | 0.76 | 0.20 | 3.2 | 3.5 | 23 | 17 |
| 16 | 26/0.26 | 0.20 | 3.6 | 3.9 | 14.6 | 23.9 | ||
| 14 | 41/0.26 | 0.20 | 4.0 | 4.4 | 9.9 | 34.2 | ||
| 3074 | 12 | 43/0.32 | 0.8 | 0.20 | 4.6 | 5.0 | 5.38 | 45.9 |
| 3075 | 10 | 35/0.45 | 1.2 | 0.25 | 6.2 | 6.6 | 3.5 | 76 |
Certificates
Transport & Payment
Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.
Company Information
Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
Factory Size (Sq.meters): | 45,000-50,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: | 20 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
