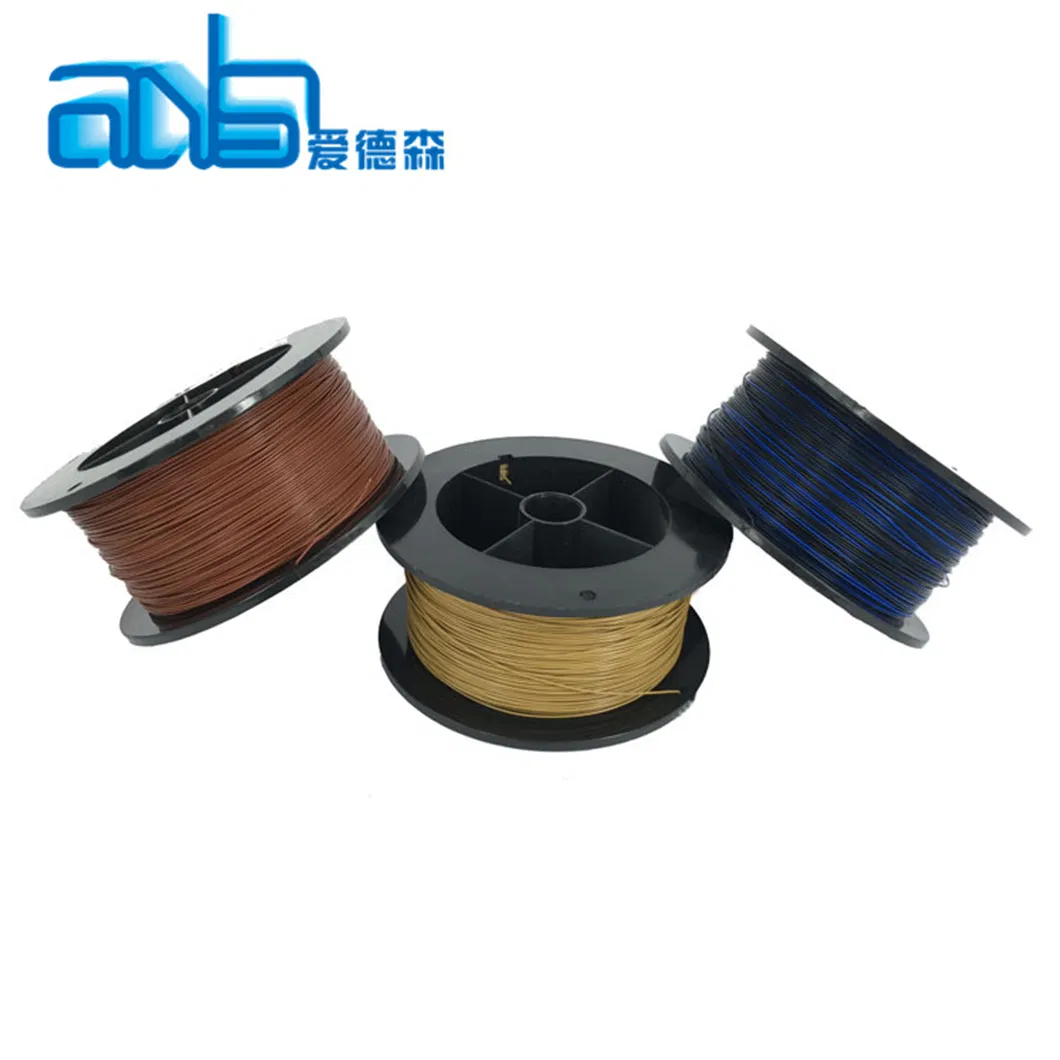

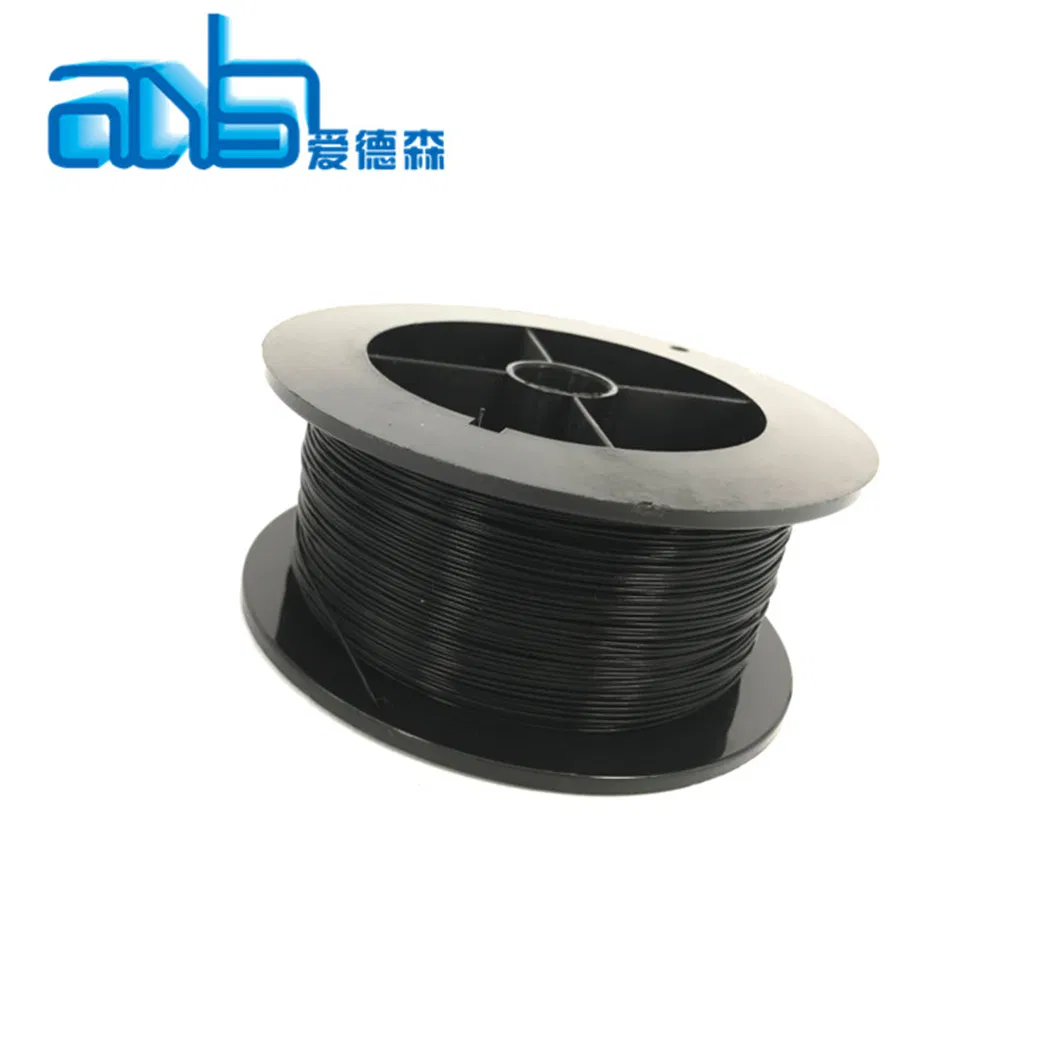

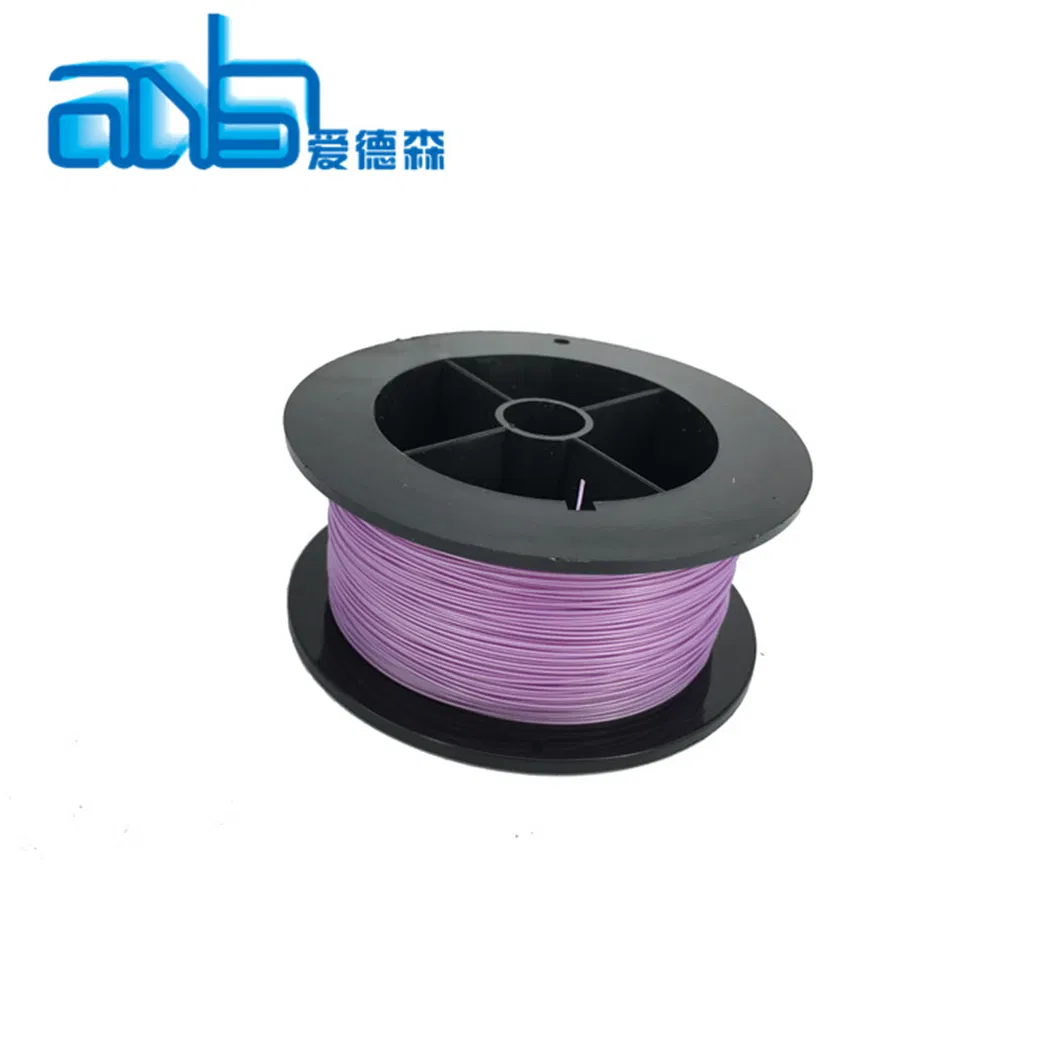

UL1591 Fluoroplastic Insulation Tinned Copper Conductor Heat Resistance Wire
Product SpecificationStyle 1591 Single conductor with extruded insulationRating: 150 deg C, 300 Vac, Horizontal flame.Conductor: 32 AWG - 16 AWG, solid or stranded.Insulation: Extruded FEP, Standard Appliance Wiring Material UL 758.Marking: General.Usage: Internal wiring of appliances.CABLE CONSTRUC......
Send Inquiry
Product Description
Product Specification
Style 1591 Single conductor with extruded insulation
Rating: 150 deg C, 300 Vac, Horizontal flame.
Conductor: 32 AWG - 16 AWG, solid or stranded.
Insulation: Extruded FEP,
Standard Appliance Wiring Material UL 758.
Marking: General.
Usage: Internal wiring of appliances.

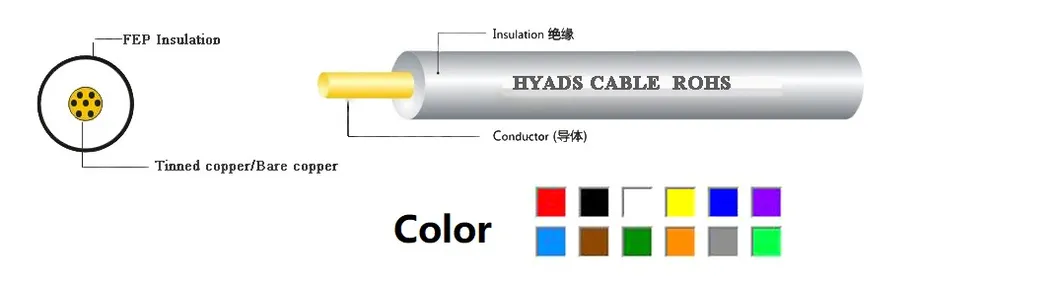

CABLE CONSTRUCTION
OEM Specification Are Also Welcome!

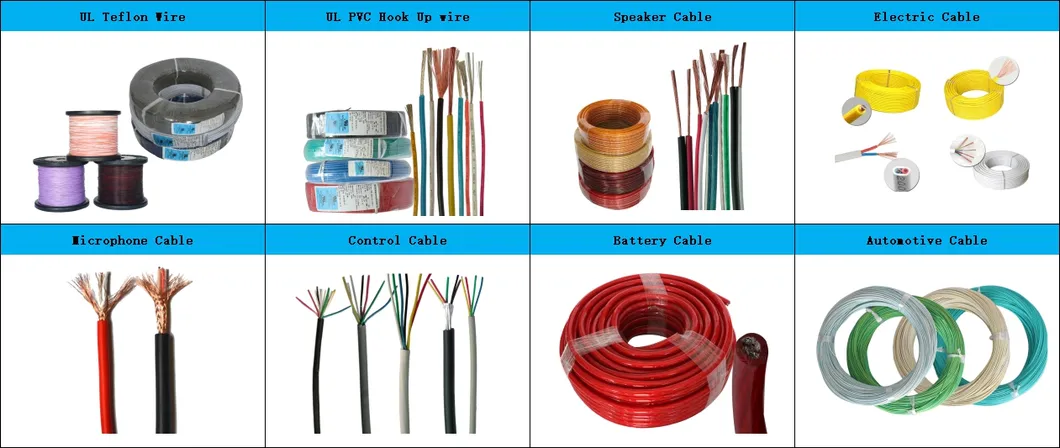

Main Product

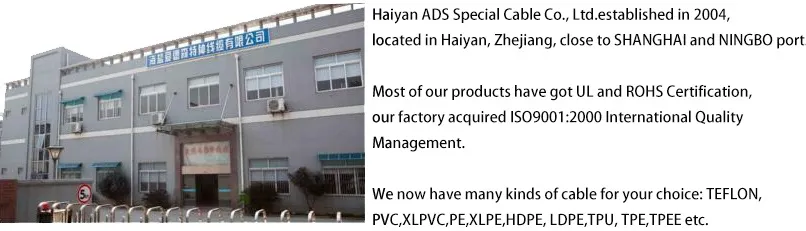

Company Intruction
Certification
UL Certification
More Test report (Rohs,Reach,Flame Retardant),Pls contact us

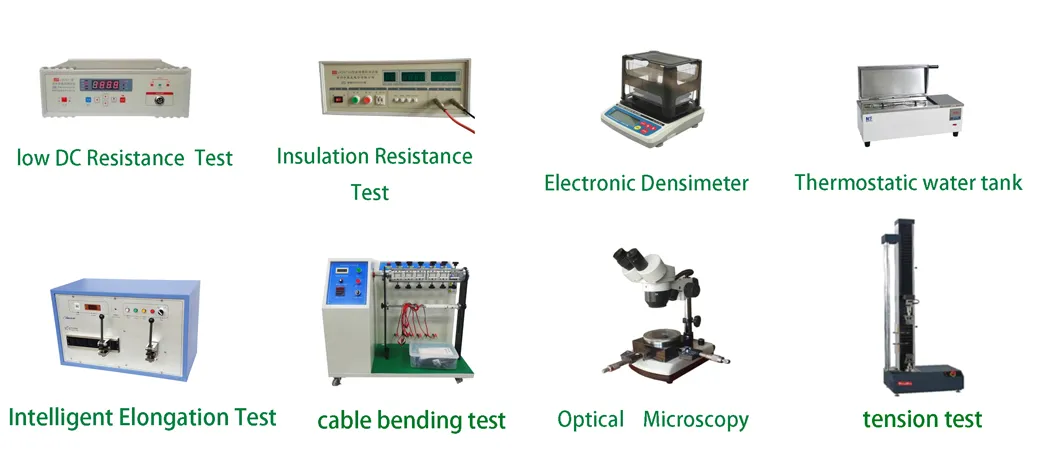

Test Equipment

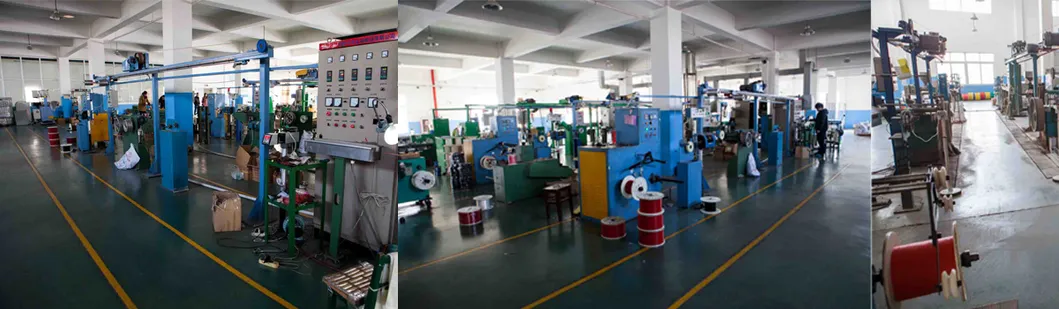

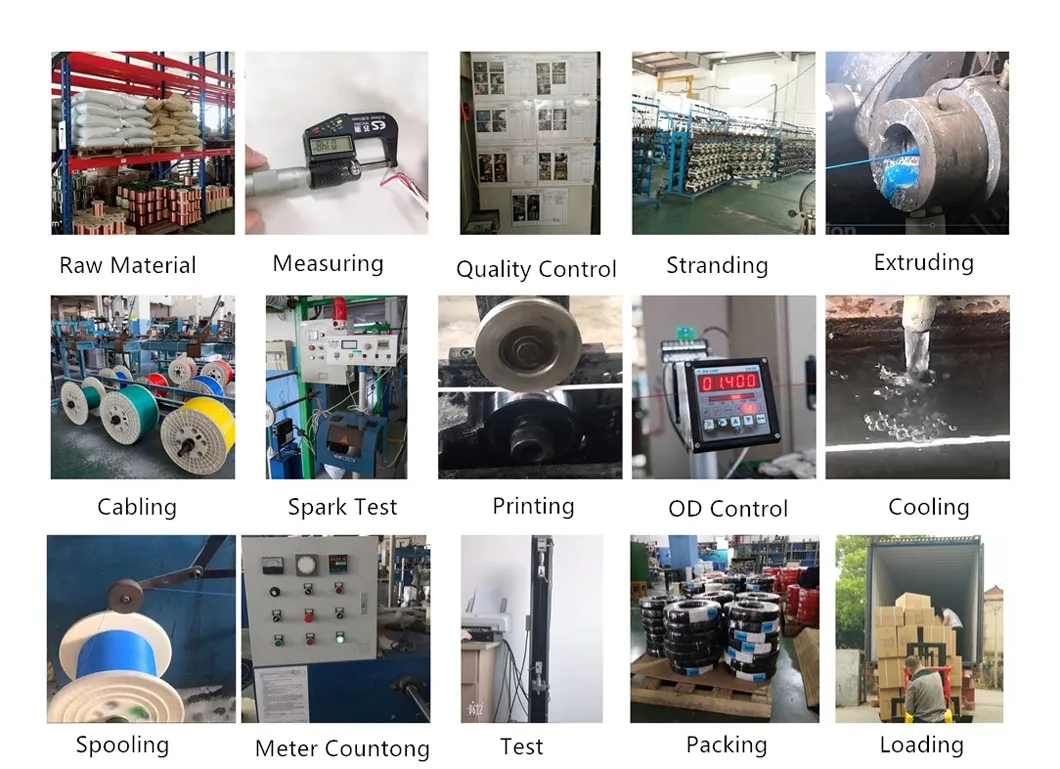

Production Process
Overseas Exibition

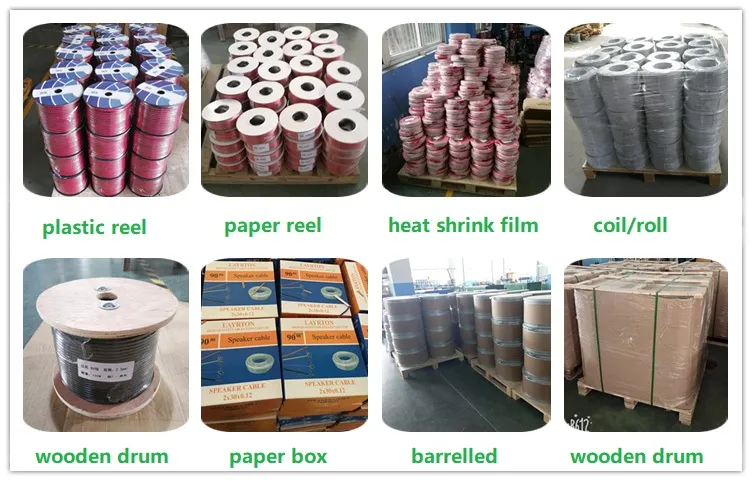

Packing
FAQ
Q:Are you a factory or a trading company
A:ADS company is a professional cable manufacturer with 15 years production experience.
Q:What's your company MOQ
A:Our company has MOQ requirements, but we also accept small quantity.
Q:Whether these products quality assured?
A:Most of cables are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
Q:Can you send a sample for us to test?
A:1.If we have it in stock and the amount is small, it is free.
2.If we do not have it in stock, sample and freight cost have have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
Q:If I want to purchase, how to pay?
A: Generally we do T/T in 30% deposit before production, 70% balance before loading. Also payment terms are negotiable depending on customer's request.
Contact Us
Style 1591 Single conductor with extruded insulation
Rating: 150 deg C, 300 Vac, Horizontal flame.
Conductor: 32 AWG - 16 AWG, solid or stranded.
Insulation: Extruded FEP,
Standard Appliance Wiring Material UL 758.
Marking: General.
Usage: Internal wiring of appliances.
CABLE CONSTRUCTION
| Conductor | Insulation | Max.Conductor Resistance DC 20ºC Ω/km | Packing | |||
| AWG | Conductor Construction No./dia.(mm) | Diameter (mm) | Insulation Thickness (mm) | Out Diameter (mm) | m/coil | |
| 30 | 1/0.254 | 0.25 | 0.41 | 1.07 | 361.00 | 305 |
| 7/0.1 | 0.30 | 0.41 | 1.12 | 381.00 | ||
| 19/0.06 | 0.30 | 0.41 | 1.12 | 381.00 | ||
| 28 | 1/0.32 | 0.32 | 0.41 | 1.14 | 227.00 | 305 |
| 7/0.127 | 0.38 | 0.41 | 1.20 | 239.00 | ||
| 19/0.08 | 0.40 | 0.41 | 1.22 | 239.00 | ||
| 26 | 1/0.404 | 0.40 | 0.41 | 1.22 | 143.00 | 305 |
| 7/0.16 | 0.48 | 0.41 | 1.30 | 150.00 | ||
| 19/0.1 | 0.50 | 0.41 | 1.32 | 150.00 | ||
| 24 | 7/0.02 | 0.60 | 0.41 | 1.42 | 94.20 | 305 |
| 19/0.12 | 0.60 | 0.41 | 1.42 | 94.20 | ||
| 22 | 7/0.254 | 0.76 | 0.41 | 1.58 | 59.40 | 610 |
| 19/0.15 | 0.75 | 0.41 | 1.57 | 59.40 | ||
| 20 | 7/0.32 | 0.96 | 0.41 | 1.78 | 36.70 | 610 |
| 19/0.19 | 0.95 | 0.41 | 1.77 | 36.70 | ||
| 18 | 7/0.404 | 1.21 | 0.41 | 2.03 | 23.20 | 610 |
| 19/0.235 | 1.18 | 0.41 | 2.00 | 23.20 | ||
| 16 | 19/0.3 | 1.50 | 0.41 | 2.32 | 14.60 | 610 |
| 14 | 19/0.37 | 1.85 | 0.41 | 2.67 | 8.96 | 610 |
| 12 | 19/0.475 | 2.38 | 0.41 | 3.20 | 5.64 | 610 |
| 10 | 37/0.43 | 3.01 | 0.41 | 3.83 | 3.55 | 610 |
OEM Specification Are Also Welcome!
