UL1185 Shielded 3 Conductor Guitar Circuit Wire Hookup Wire

Product Description

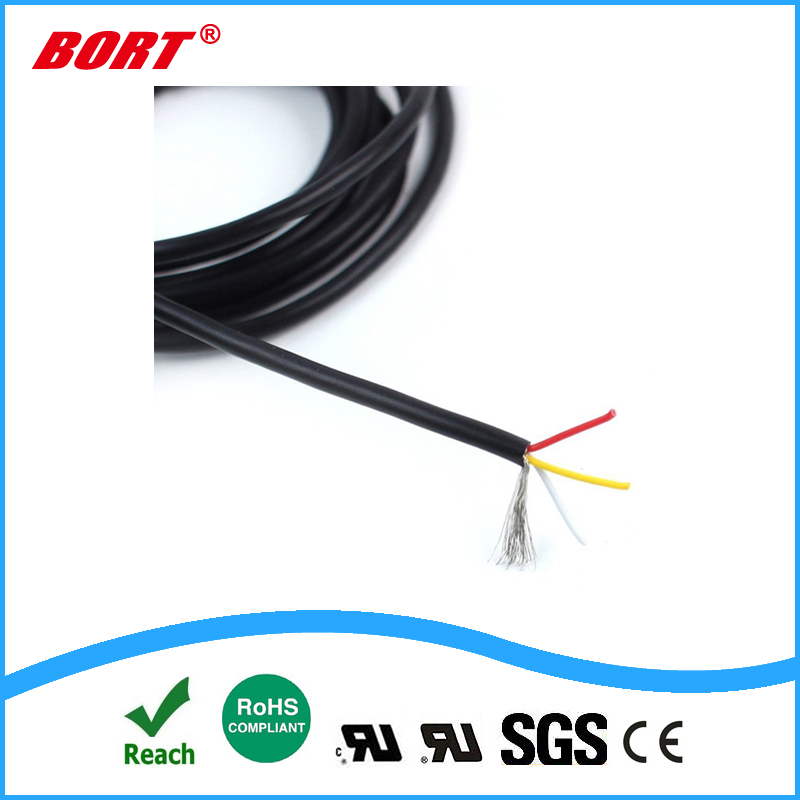

UL1185 Shielded 3 Conductor Guitar Circuit Wire hookup wire

★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper spiral shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer

Product standard

Conductor		Finished product
AWG	NO.of Cond/mm	Insulated Thick.	Braid Shield	Jacket Thick.	Outside Thick.
AWG	NO.of Cond/mm	mm	No./d	mm	mm
30	7/0.1	0.41	32/0.10	0.40	2.10
28	7/0.127	0.41	34/0.10	0.40	2.20
26	7/0.16	0.41	37/0.10	0.40	2.30
24	11/0.16	0.41	40/0.10	0.40	2.40
22	17/0.16	0.41	45/0.10	0.40	2.60
20	21/0.178	0.41	50/0.10	0.40	2.80
18	34/0.178	0.41	58/0.10	0.40	3.10
16	26/0.254	0.41	66/0.10	0.40	3.40
28	1/0.320	0.41	33/0.10	0.40	2.15
26	1/0.404	0.41	36/0.10	0.40	2.25
24	1/0.511	0.41	38/0.10	0.40	2.35
22	1/0.643	0.41	42/0.10	0.40	2.50
20	1/0.813	0.41	46/0.10	0.40	2.65
18	1/1.024	0.41	51/0.10	0.40	2.85
