UL1185 Cable 18AWG Awm 1185 Shielded Wire PVC Insulation Hook up Electrical Wire

Product Description

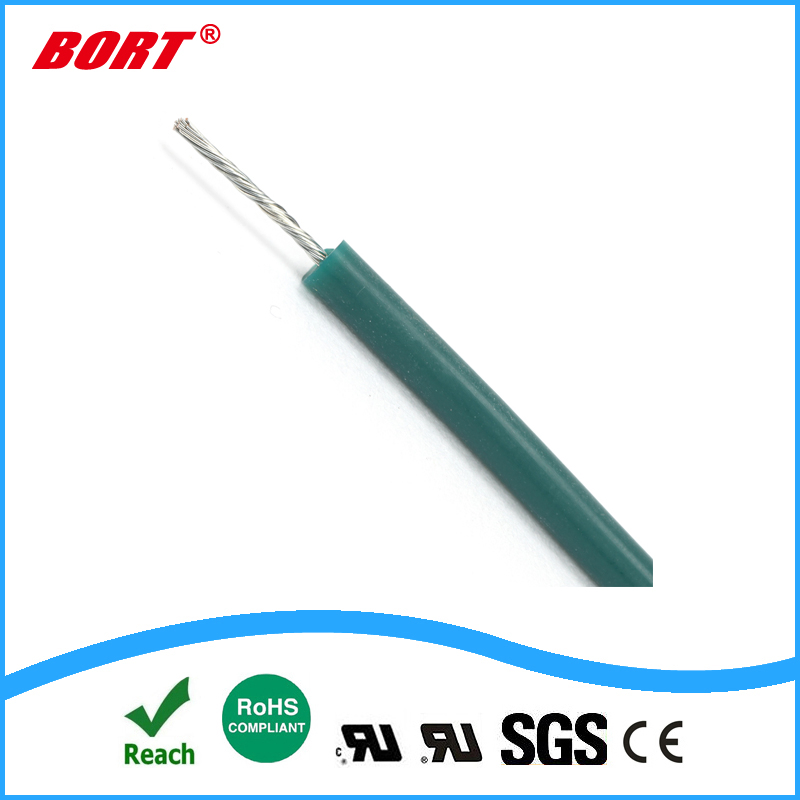

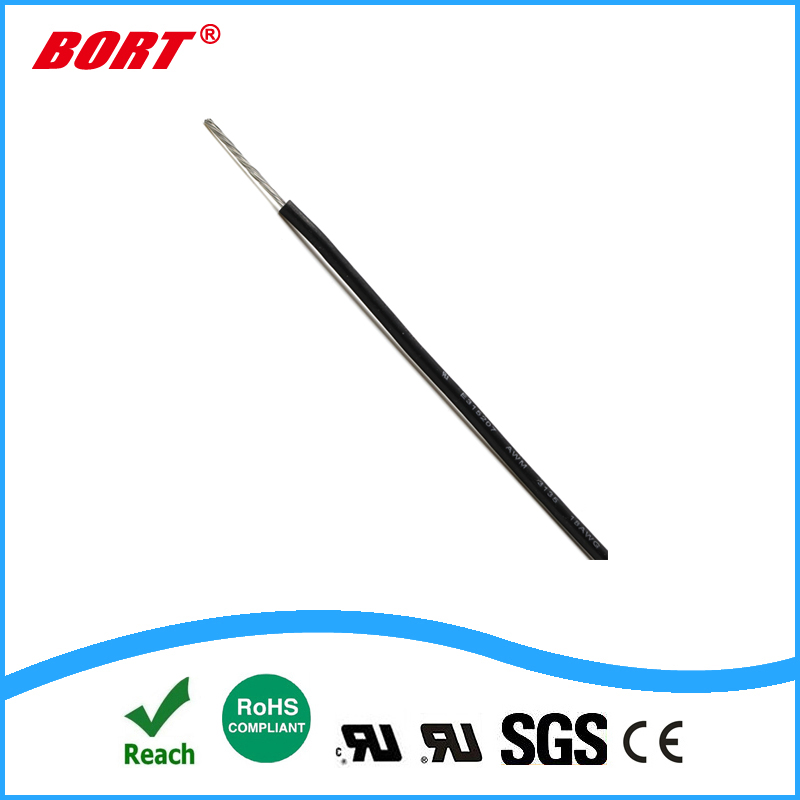

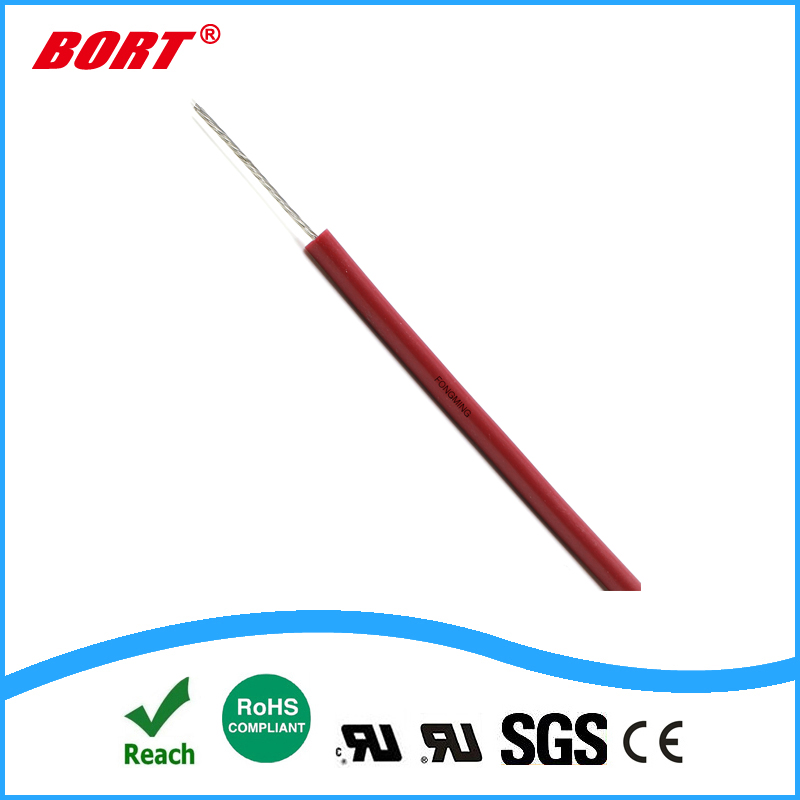

UL1185 Cable 18AWG Awm 1185 Shielded Wire PVC Insulation Hook up Electrical Wires

APPLIANCE WIRING MATERIAL
Subj.758			Issued:1959-05-01
			Revised:2011-10-24
Style 1185	Single conductor using extruded non-integral jacket.
Rating	80 deg C, 300 Vac, Horizontal flame.
Conductor	30 AWG - 4/0 AWG, solid or stranded.
Insulation	PVC
	Conductor	Minimum average	Minimum thickness at any
	size	thickness	point
	30-16 AWG	15 mils	13 mils
	15-10 AWG	30 mils	27 mils
	9-8 AWG	45 mils	40 mils
	7-2 AWG	60 mils	54 mils
	1-4/0 AWG	80 mils	72 mils
Assembly	Insulated conductor, optional shield, required
Assembly	jacket, optional shield, optional jacket.
Shield	Optional.
Jacket	Extruded PVC.
	Conductor	Minimum average	Minimum thickness at any
	size	thickness	point
	30-16 AWG	15 mils	12 mils
	15-2 AWG	30 mils	24 mils
	1-4/0 AWG	45 mils	36 mils
	30-16 AWG	or lacquered braid
Outer Shield	Optional.
Outer Shield	Optional. Extruded PVC, 15 mils minimum average
Outer Jacket	thickness, 12 mils minimum thickness at any point.
Standard	Appliance Wiring Material UL 758.
