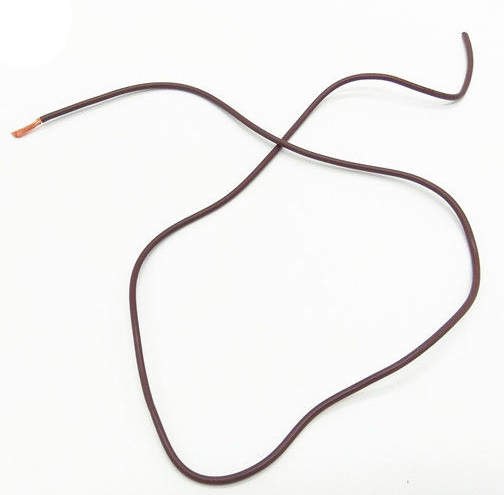

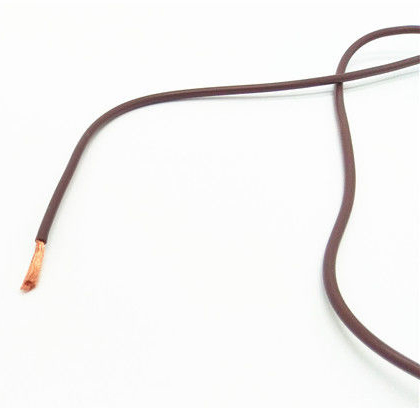

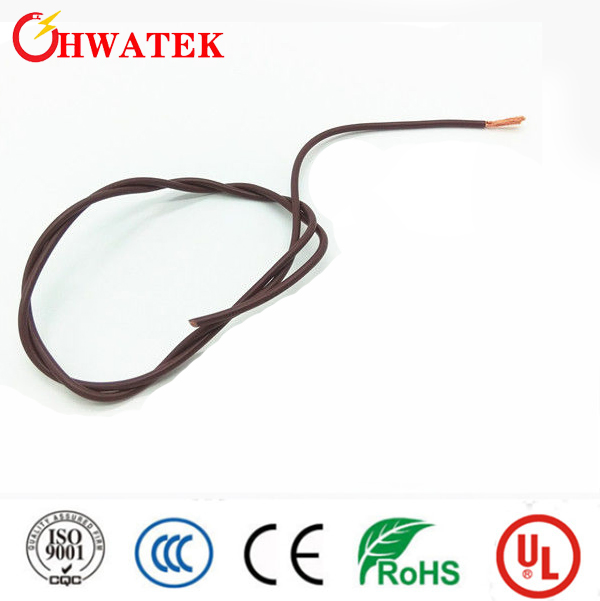

UL1015 600V 105º C Oil Resistant Elevator Power and Control Cable Wire
IntroductionThe wiring of the elevator control cabinet with a rated voltage of 600V-the wires are made of copper conductors and insulation. The cable has the characteristics of high flexibility, high temperature resistance, oil resistance, flame retardancy, etc. At the same time, all materials of th......
Send Inquiry
Product Description
Introduction
The wiring of the elevator control cabinet with a rated voltage of 600V-the wires are made of copper conductors and insulation. The cable has the characteristics of high flexibility, high temperature resistance, oil resistance, flame retardancy, etc. At the same time, all materials of the cable comply with the latest environmental protection standards of RoHS&Reach.
Application
Mainly used for elevator control cabinet wiring harness.
Structure diagram
1- conductor,2- insulation,3- filling,4- Strap,5- shield(Optional),6- Outer sheath
Printing:E258652 AWM STYLE 1015 ***AWG 105ºC 600V VW-1- c AWM I/II A/B 105ºC 600V FT1 -LF- HWATEK
Basic Information
Conductor : Solid or Stranded
Insulation: Special mixed PVC
Implementing standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:-40ºC-105ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.0kV/1min
Specifications
| specification | Conductor structure | Conductor outer diameter | Average insulation thickness | Insulation outer diameter | Cable net weight | Maximum conductor DC resistance (20ºC) |
| (mm) | (mm) | (mm) | kg/km | Ω/km | ||
| 26AWG | 7/0.16 | 0.48 | 0.76 | 2.1±0.10 | 5.8 | 150 |
| 24AWG | 7/0.20 | 0.60 | 0.76 | 2.2±0.10 | 6.9 | 94.2 |
| 22AWG | 7/0.254 | 0.76 | 0.76 | 2.4±0.10 | 8.7 | 59.4 |
| 20AWG | 7/0.32 | 0.96 | 0.76 | 2.6±0.10 | 11.4 | 36.7 |
| 18AWG | 16/0.254 | 1.15 | 0.76 | 2.9±0.15 | 14.3 | 23.0 |
| 16AWG | 26/0.254 | 1.49 | 0.76 | 3.2±0.15 | 20.2 | 14.6 |
| 14AWG | 41/0.254 | 1.87 | 0.76 | 3.6±0.15 | 28.5 | 8.96 |
| 12AWG | 65/0.254 | 2.36 | 0.76 | 4.1±0.20 | 41.2 | 5.64 |
| 10AWG | 7/15/0.254 | 3.20 | 0.76 | 4.9±0.20 | 63.7 | 3.546 |
| 8AWG | 7/24/0.254 | 4.10 | 1.14 | 6.7±0.30 | 107.4 | 2.23 |
| 6AWG | 7/38/0.254 | 5.00 | 1.14 | 7.6±0.30 | 158.3 | 1.403 |
| 4AWG | 7/60/0.254 | 6.30 | 1.52 | 9.7±0.40 | 254.0 | 0.882 |
| 2AWG | 19/35/0.254 | 8.10 | 1.52 | 11.5±0.40 | 381.9 | 0.5548 |
Remark 1: The detailed dimensions and technical parameters are subject to our product specifications.
The above products are all standard models, and can also be customized according to customer requirements or actual usage
Company Profiles

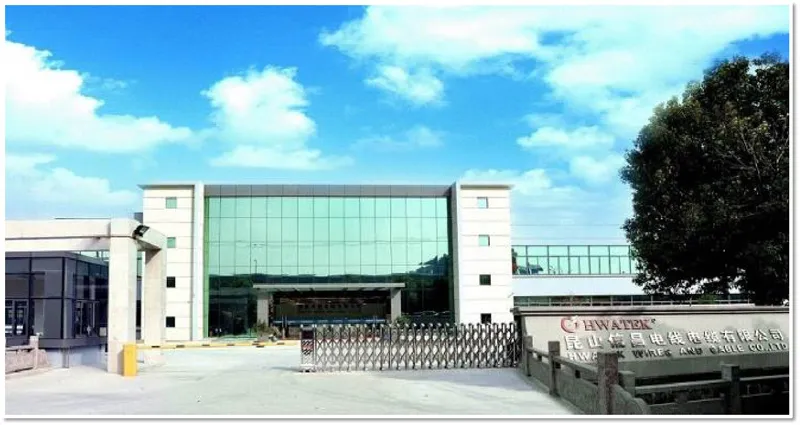

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.

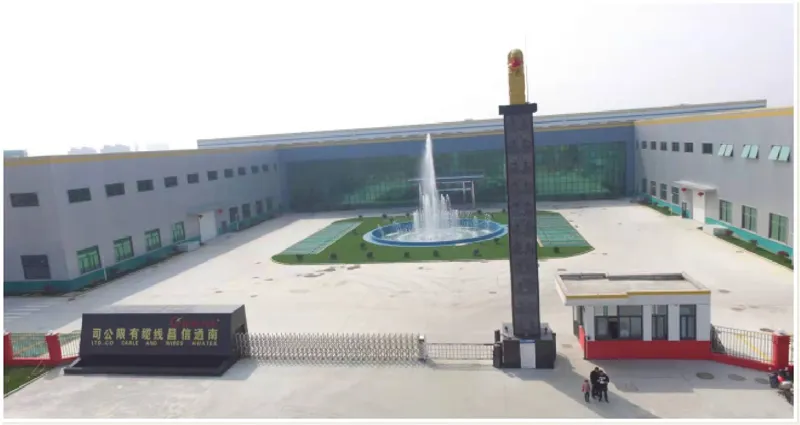

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates

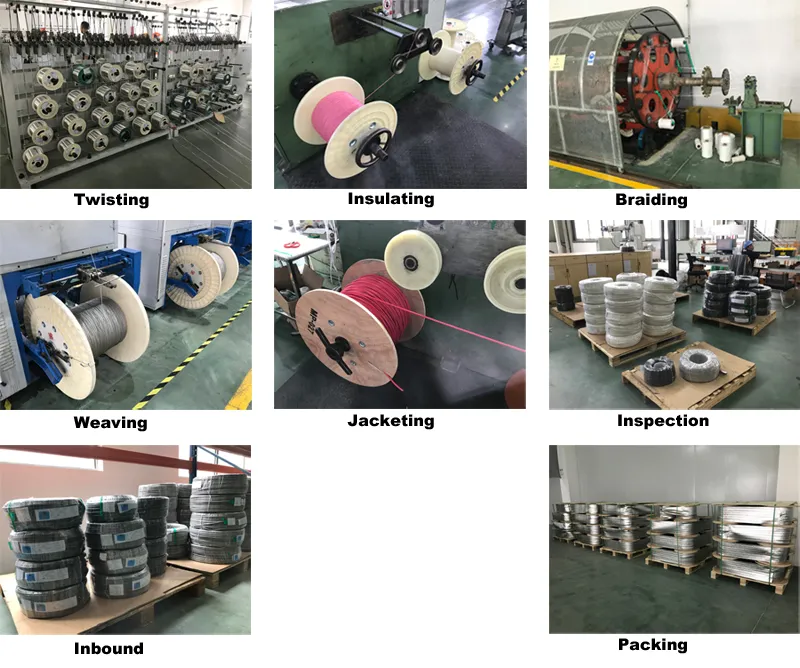

Production Progress
Shipping
FAQ1.Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers
