Product Description

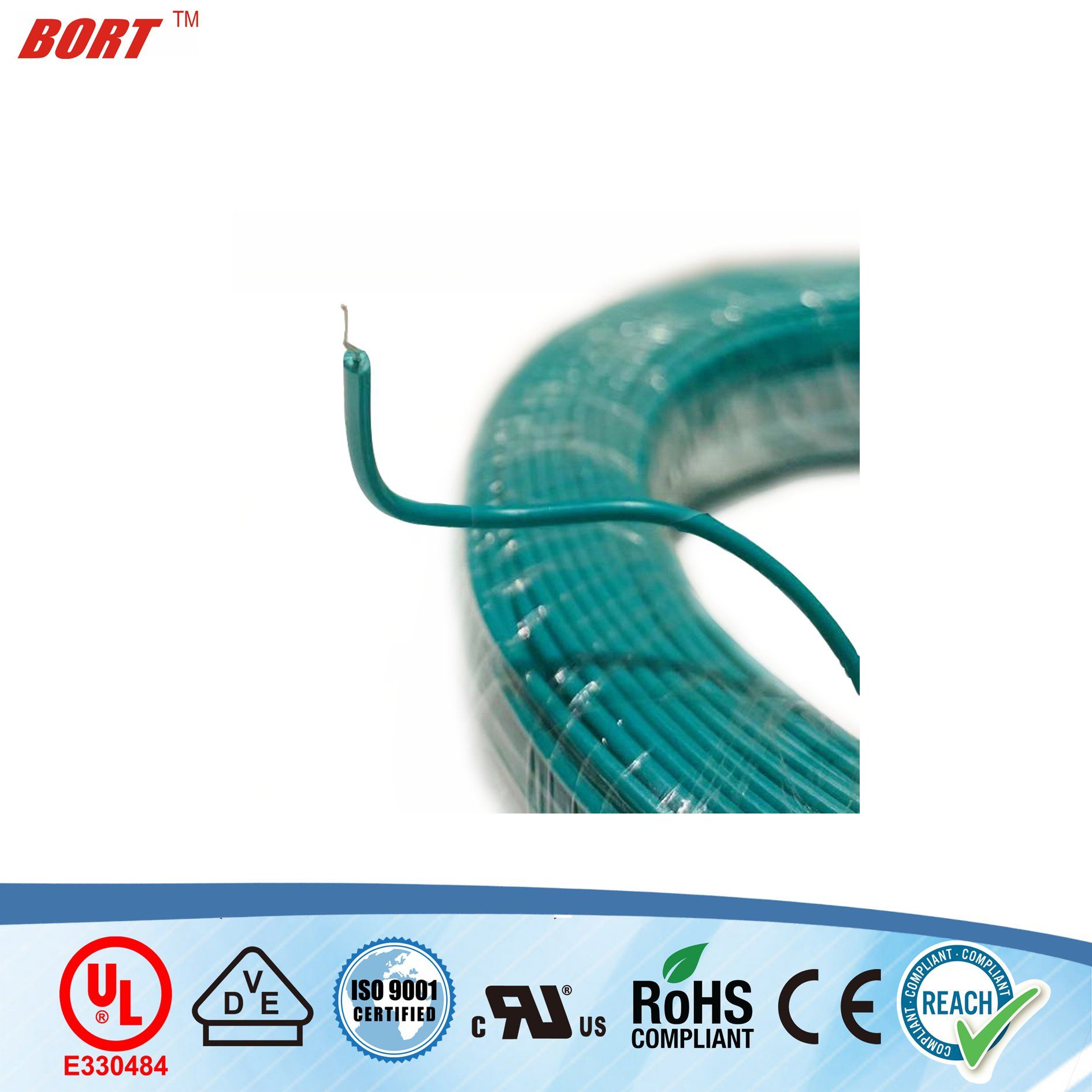

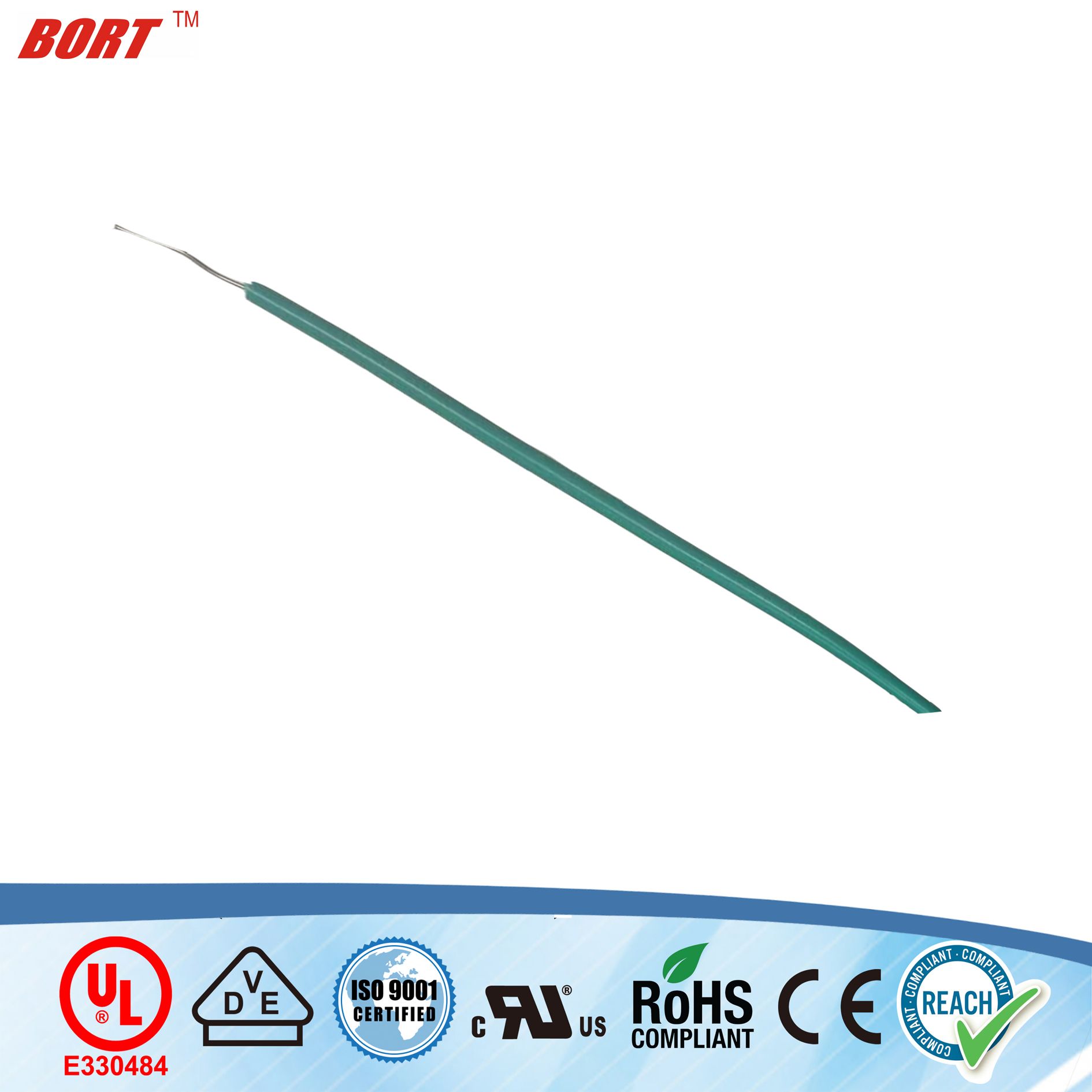

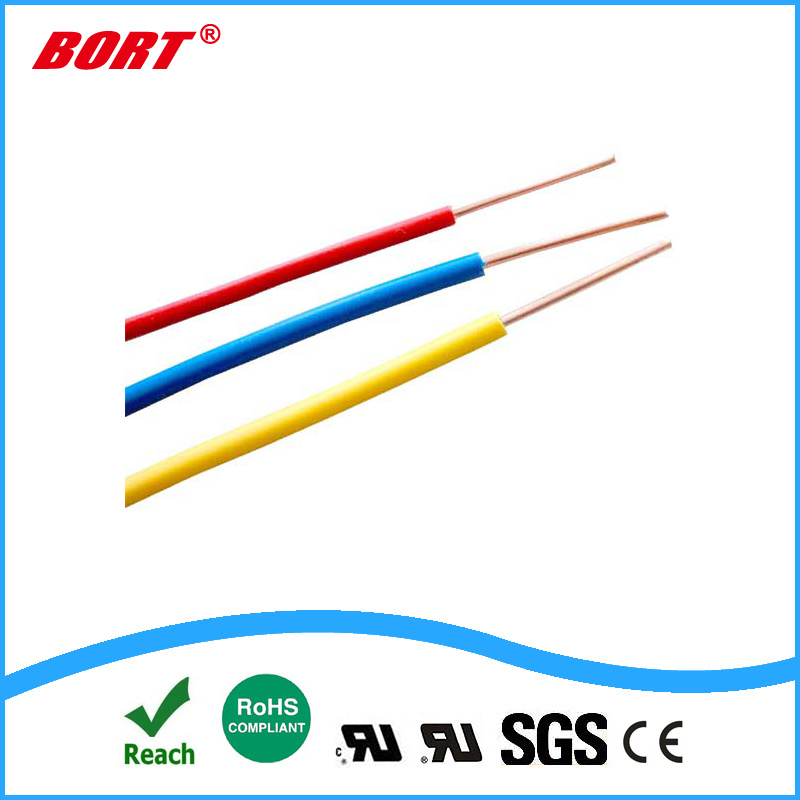

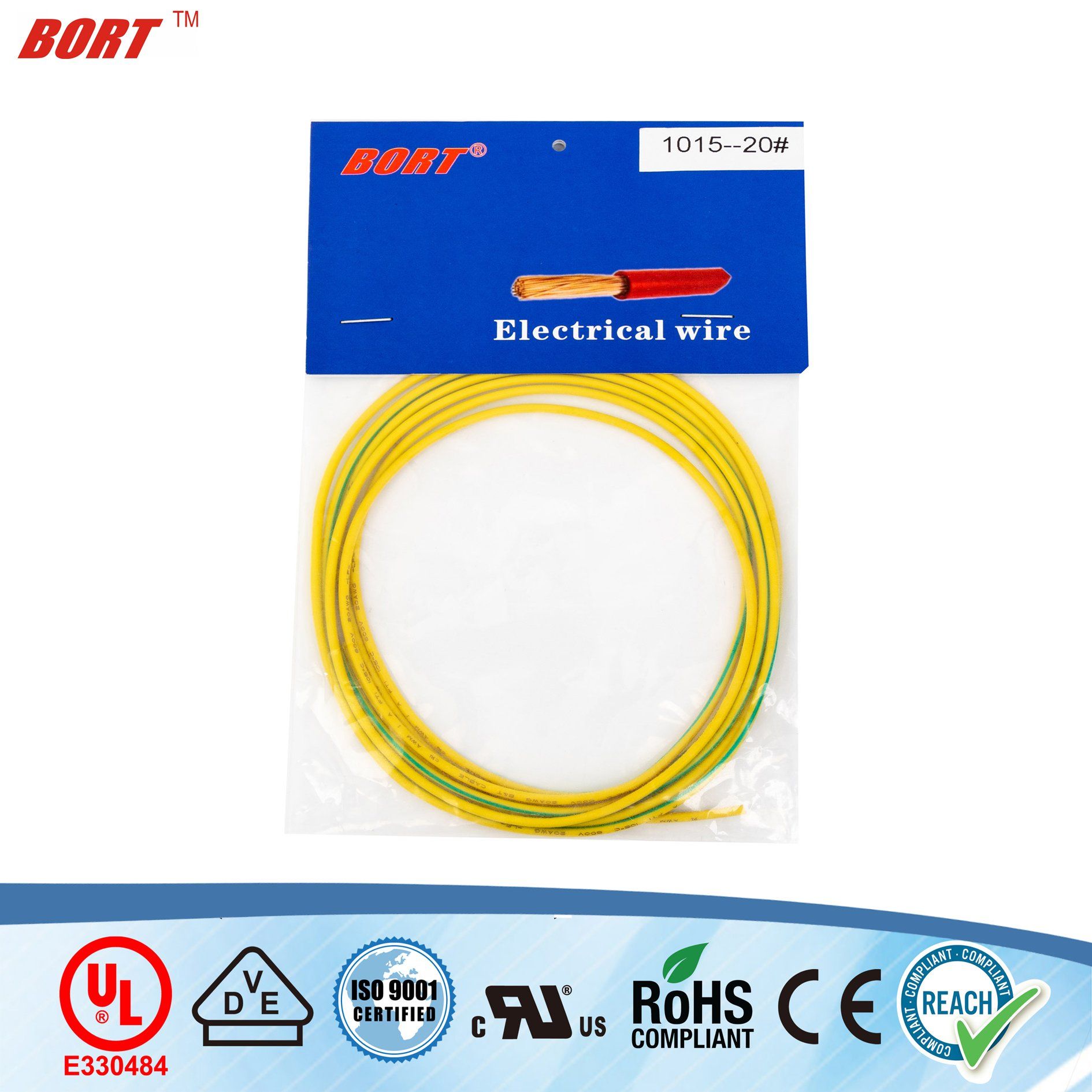

UL1015 20 AWG 0.032" Diameter 100' LengthCommercial Copper Wire

★Rated temperature:105ºC
★Rated voltage:600V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor 30--2/0AWG

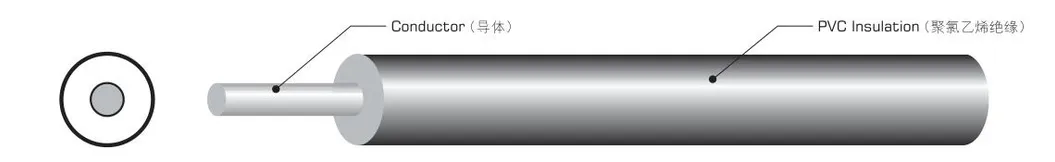

★PVC insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For general purpose internal wiring of appliance

Product standard

Conductor		Finished product			Maximum Resistance at 20ºC
AWG	NO.of Cond	Insulation Thick.	Outside Thick.	Packing	Maximum Resistance at 20ºC
AWG	mm	mm	mm	m/r	Ω/mm
30	7/0.1	0.79	1.90	610	354.33
28	7/0.127	0.79	2.00	610	223.75
26	7/0.16	0.79	2.05	610	139.76
24	11/0.16	0.79	2.20	610	88.36
22	17/0.16	0.79	2.40	610	60.16
20	21/0.178	0.79	2.55	610	38.58
18	34/0.178	0.79	2.75	610	22.98
16	26/0.254	0.79	3.10	305	15.06
14	41/0.254	0.79	3.50	305	9.65
12	65/0.254	0.79	3.95	305	6.07
10	65/0.320	0.79	5.00	305	3.73
8	55/0.45	1.20	6.50	305	2.23
26	1/0.404	0.79	2.00	610	142.79
24	1/0.511	0.79	2.10	610	89.39
22	1/0.643	0.79	2.25	610	54.30
20	1/0.813	0.79	2.40	610	33.90
18	1/1.024	0.79	2.65	610	21.40
