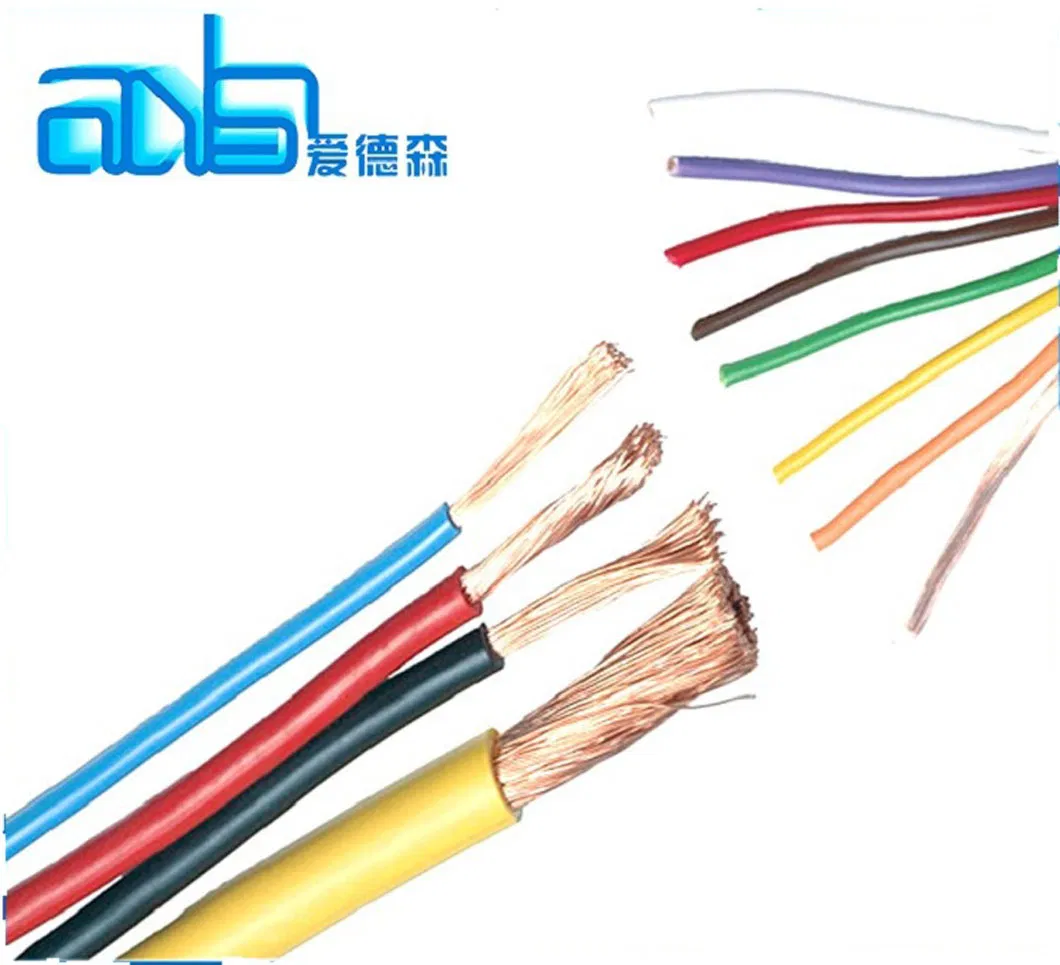

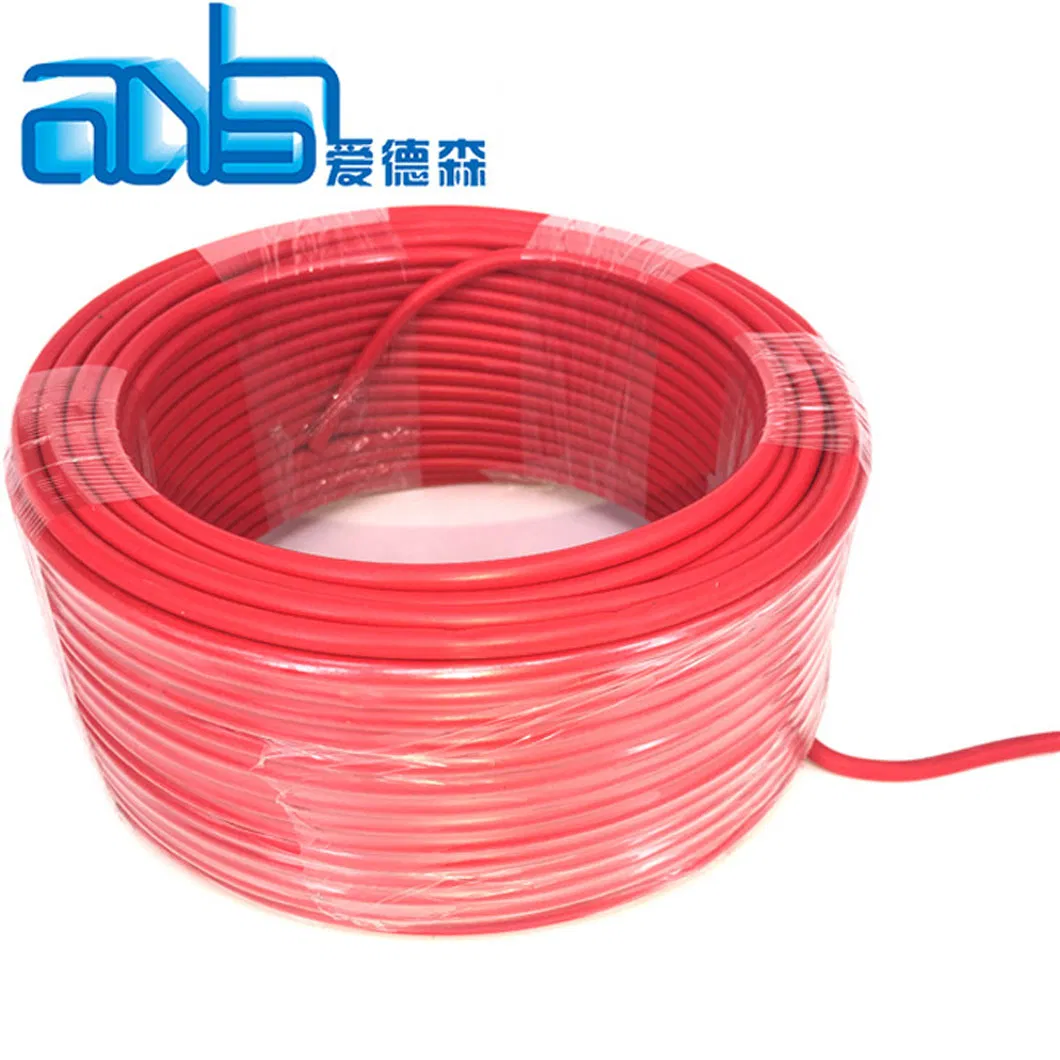

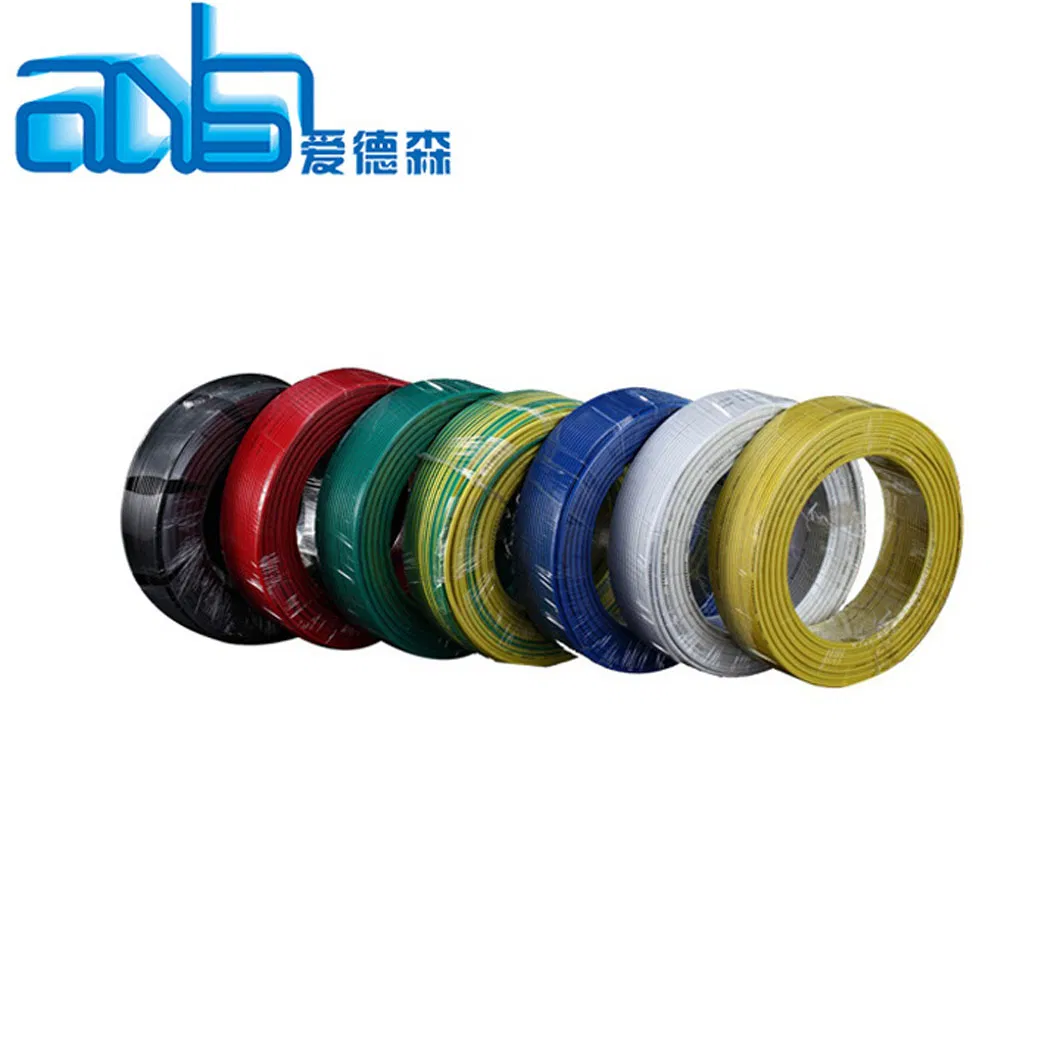

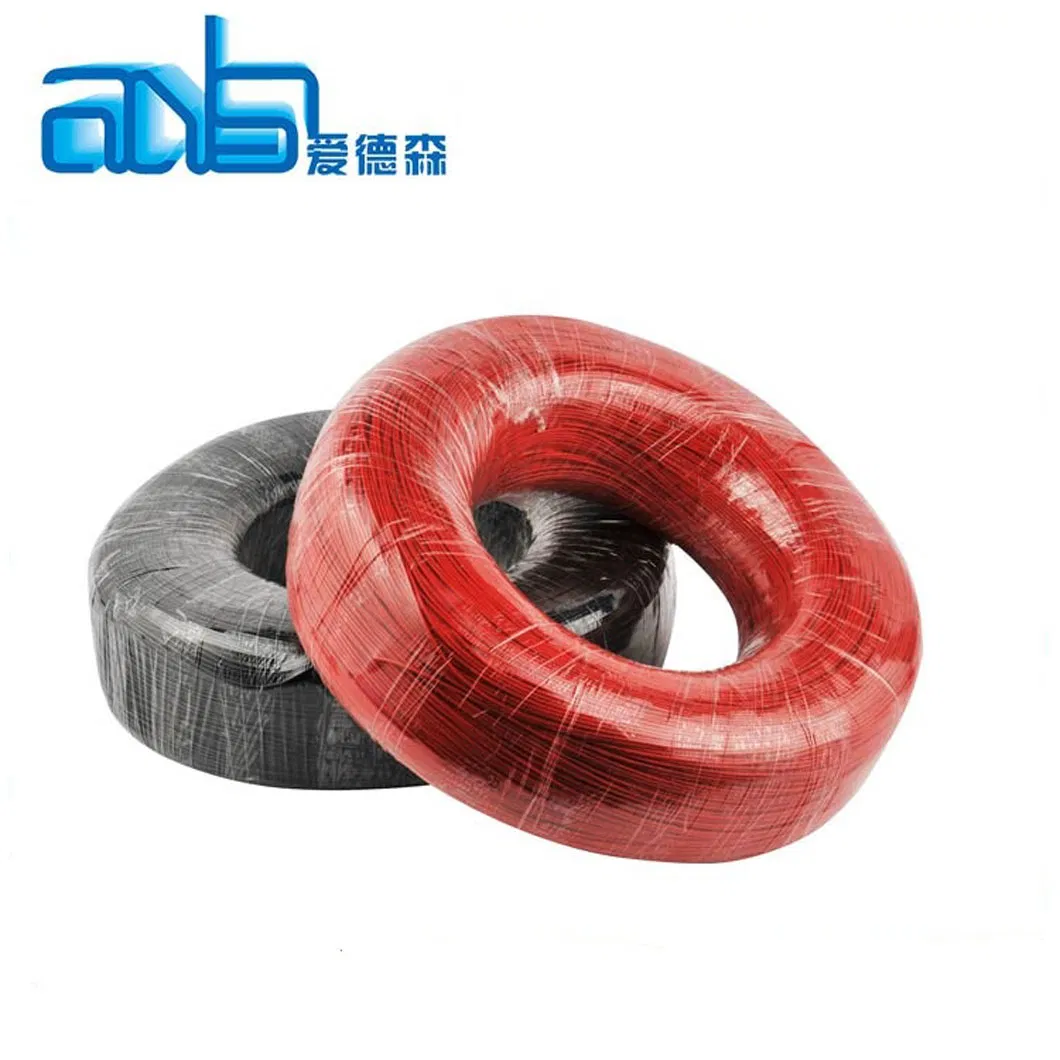

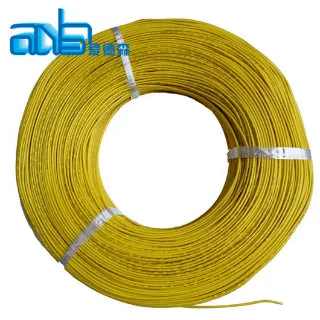

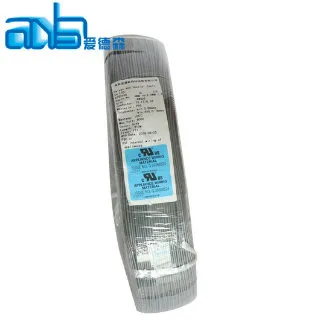

UL1015 16AWG PVC Stranded Copper Hook up Wire
Product SpecificationStyle 1015 Single conductor with extruded insulation1.Rated temperature:80ºC,90ºC,105ºC 2.Rated voltage:600v 3. according to:UL subject 758,UL1581,CSA C22.2 4. Solid or Stranded,tinned or bare copper conductor 30AWG-2AWG5. PVC......
Send Inquiry
Product Description
Product Specification
Style 1015 Single conductor with extruded insulation
1.Rated temperature:80ºC,90ºC,105ºC
2.Rated voltage:600v
3. according to:UL subject 758,UL1581,CSA C22.2
4. Solid or Stranded,tinned or bare copper conductor 30AWG-2AWG
5. PVC insulation
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7. uniform insulation thickness of wire to ensure easy stripping and cutting
8. Environmental testing pass ROHS
9. The wire can use for the Internal wiring of appliances where exposed to oil at a temperature not exceeding (60°C or 80°C, whichever is applicable).

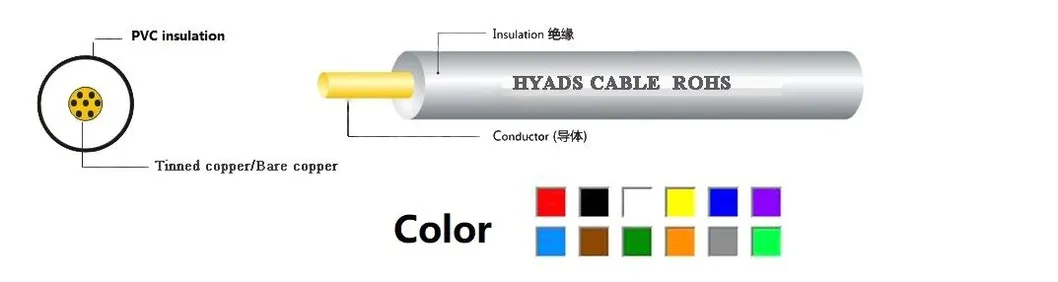

CABLE CONSTRUCTION
OEM Specification Are Also Welcome!

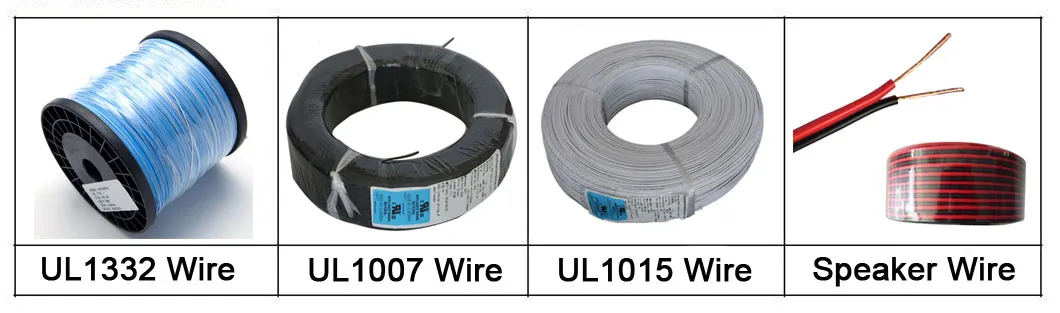

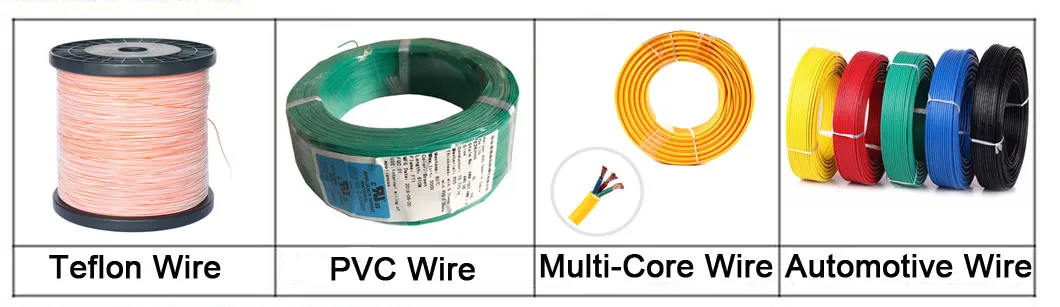

Main Product
More Product Please See Below:
1.Speaker Cable
2.Control Cable
3.Shielded Cable
4.Microphone Cable
5.Battery Cable
Hot Product

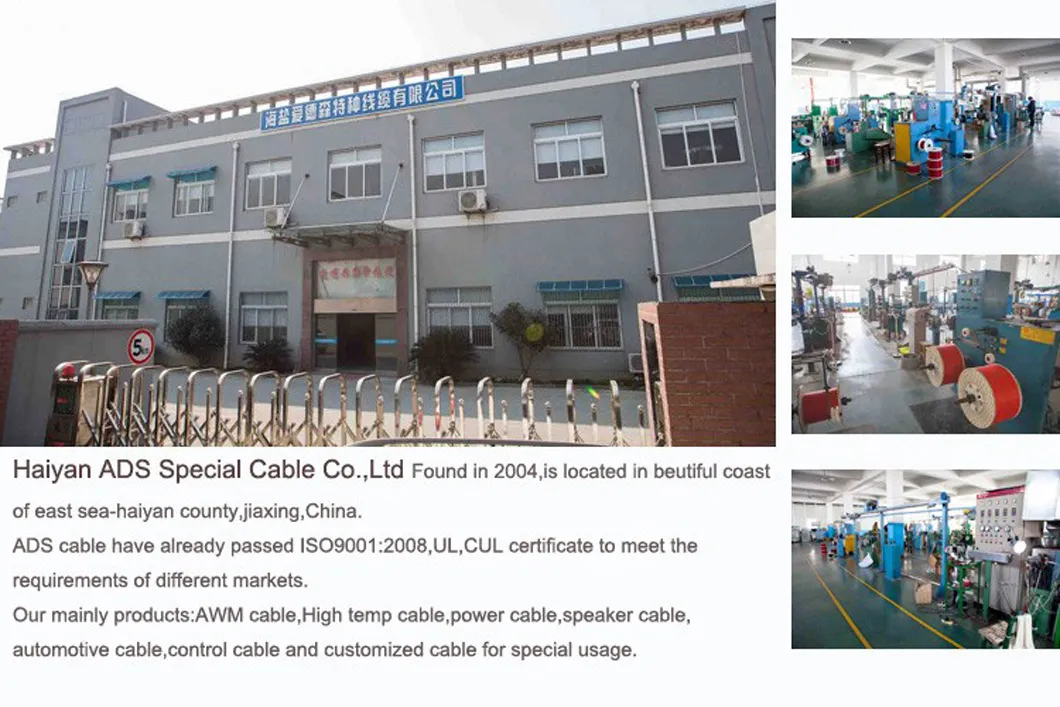

Company Intruction
Certification
UL Certification
More Test report (Rohs,Reach,Flame Retardant),Pls contact us

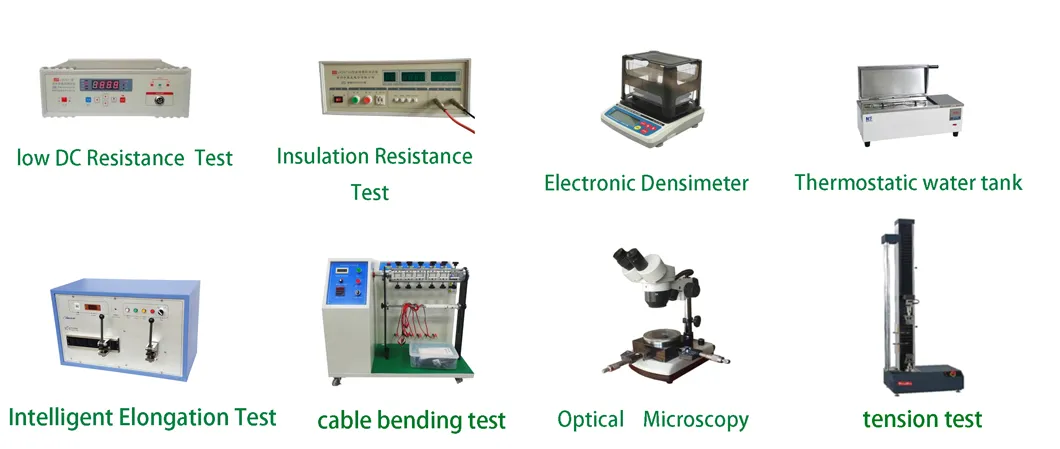

Test Equipment

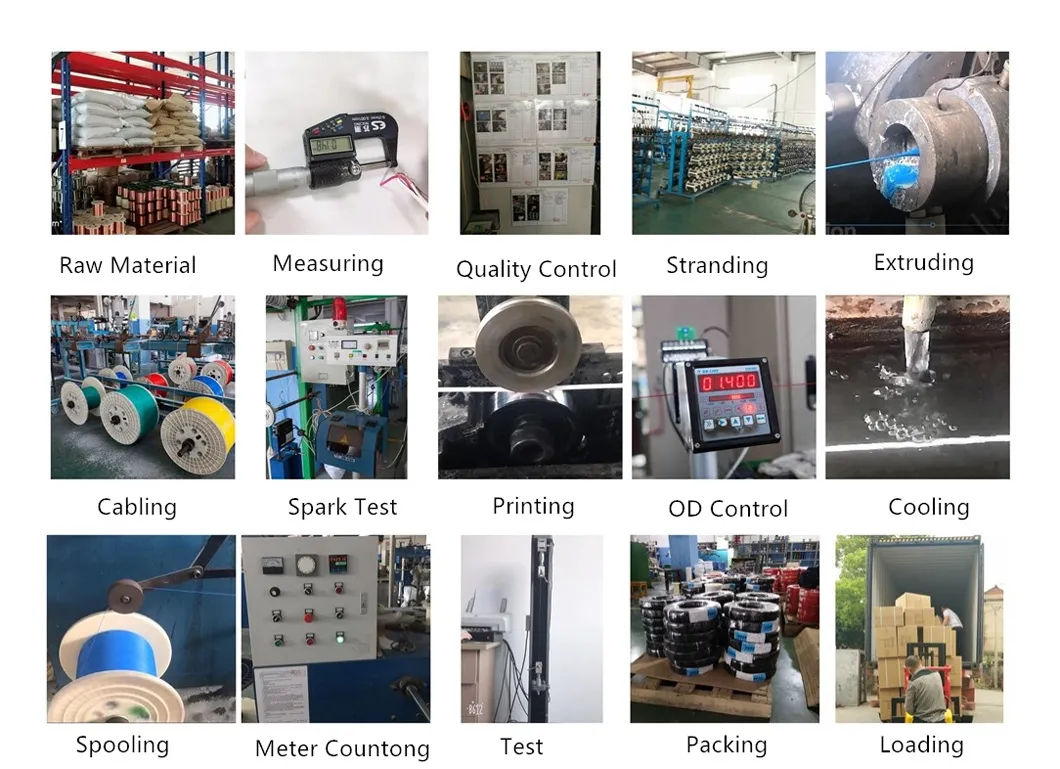

Production Process
Overseas Exibition
FAQ
Q:Are you a factory or a trading company
A:ADS company is a professional cable manufacturer with 15 years production experience.
Q:What's your company MOQ
A:Our company has MOQ requirements, but we also accept small quantity.
Q:Whether these products quality assured?
A:Most of cables are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
Q:Can you send a sample for us to test?
A:1.If we have it in stock and the amount is small, it is free.
2.If we do not have it in stock, sample and freight cost have have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
Q:If I want to purchase, how to pay?
A: Generally we do T/T in 30% deposit before production, 70% balance before loading. Also payment terms are negotiable depending on customer's request.
Contact Us
Style 1015 Single conductor with extruded insulation
1.Rated temperature:80ºC,90ºC,105ºC
2.Rated voltage:600v
3. according to:UL subject 758,UL1581,CSA C22.2
4. Solid or Stranded,tinned or bare copper conductor 30AWG-2AWG
5. PVC insulation
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7. uniform insulation thickness of wire to ensure easy stripping and cutting
8. Environmental testing pass ROHS
9. The wire can use for the Internal wiring of appliances where exposed to oil at a temperature not exceeding (60°C or 80°C, whichever is applicable).
CABLE CONSTRUCTION
UL TYPE | Gauge (AWG) | Construction (no/mm) | conductor outer diameter (mm) | insulation thickness (mm) | wire O.D (mm) | Max Cond. resistance (Ω/km ,20ºC | packing | |
| FT/ ROLL | METER /ROLL | |||||||
| 1015 | 30 | 7/0.1 | 0.3 | 0.8 | 1.9 | 381 | 2000 | 610 |
| 28 | 1/0.32 | 0.32 | 0.79 | 1.9 | 227 | |||
| 7/0.127 | 0.38 | 0.81 | 2 | 239 | ||||
| 7/0.127 OS-1 | 0.38 | 0.81 | 2 | 239 | ||||
| 26 | 1/0.404 | 0.4 | 0.8 | 2 | 143 | |||
| 7/0.16 | 0.48 | 0.81 | 2.1 | 150 | ||||
| 7/0.16 OS-1 | 0.48 | 0.81 | 2.1 | 150 | ||||
| 24 | 1/0.511 | 0.51 | 0.8 | 2.1 | 89.3 | |||
| 11/0.16 | 0.61 | 0.82 | 2.25 | 94.2 | ||||
| 7/0.2 OS-1 | 0.6 | 0.83 | 2.25 | 94.2 | ||||
| 22 | 1/0.643 | 0.64 | 0.8 | 2.25 | 56.4 | |||
| 17/0.16 | 0.76 | 0.82 | 2.4 | 59.4 | ||||
| 7/0.254 OS-1 | 0.76 | 0.82 | 2.4 | 59.4 | ||||
| 20 | 1/0.813 | 0.81 | 0.8 | 2.4 | 35.2 | |||
| 26/0.16 | 0.94 | 0.81 | 2.55 | 36.7 | ||||
| 7/0.32 OS-1 | 0.96 | 0.8 | 2.55 | 36.7 | ||||
| 18 | 1/1.024 | 1.02 | 0.82 | 2.65 | 22.2 | 1000 | 305 | |
| 41/0.16 | 1.18 | 0.81 | 2.8 | 23.2 | ||||
| 7/0.404 OS-1 | 1.2 | 0.8 | 2.8 | 23.2 | ||||
| 16 | 1/1.129 | 1.29 | 0.81 | 2.9 | 14 | |||
| 26/0.254 | 1.49 | 0.81 | 3.1 | 14.6 | ||||
| 14 | 1/1.6 | 1.6 | 0.8 | 3.2 | 8.78 | |||
| 41/0.254 | 1.88 | 0.81 | 3.5 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 0.82 | 4 | 5.64 | |||
| 10 | 7/15/0.254 | 3.42 | 0.82 | 5.05 | 3.54 | |||
| 8 | 7/24/0.254 | 3.99 | 1.21 | 6.4 | 2.23 | 328 | 100 | |
| 6 | 4/31/0.37 | 4.75 | 1.86 | 8.5 | 1.4 | |||
| 4 | 7/28/0.37 | 5.98 | 2 | 10 | 0.9 | |||
| 2 | 7/44/0.37 | 8.49 | 1.76 | 12 | 0.56 | |||
| 1 | 333/0.4 | 9.6 | 2.03 | 13.5 | 0.1289 | |||
| 1/0 | 418/0.4 | 10.77 | 15 | 0.1022 | ||||
| 2/0 | 534/0.4 | 12.19 | 16.5 | 0.08108 | 164 | 50 | ||
| 3/0 | 664/0.4 | 13.8 | 17.8 | 0.06431 | ||||
| 4/0 | 536/0.5 | 15.26 | 20 | 0.05099 | ||||
