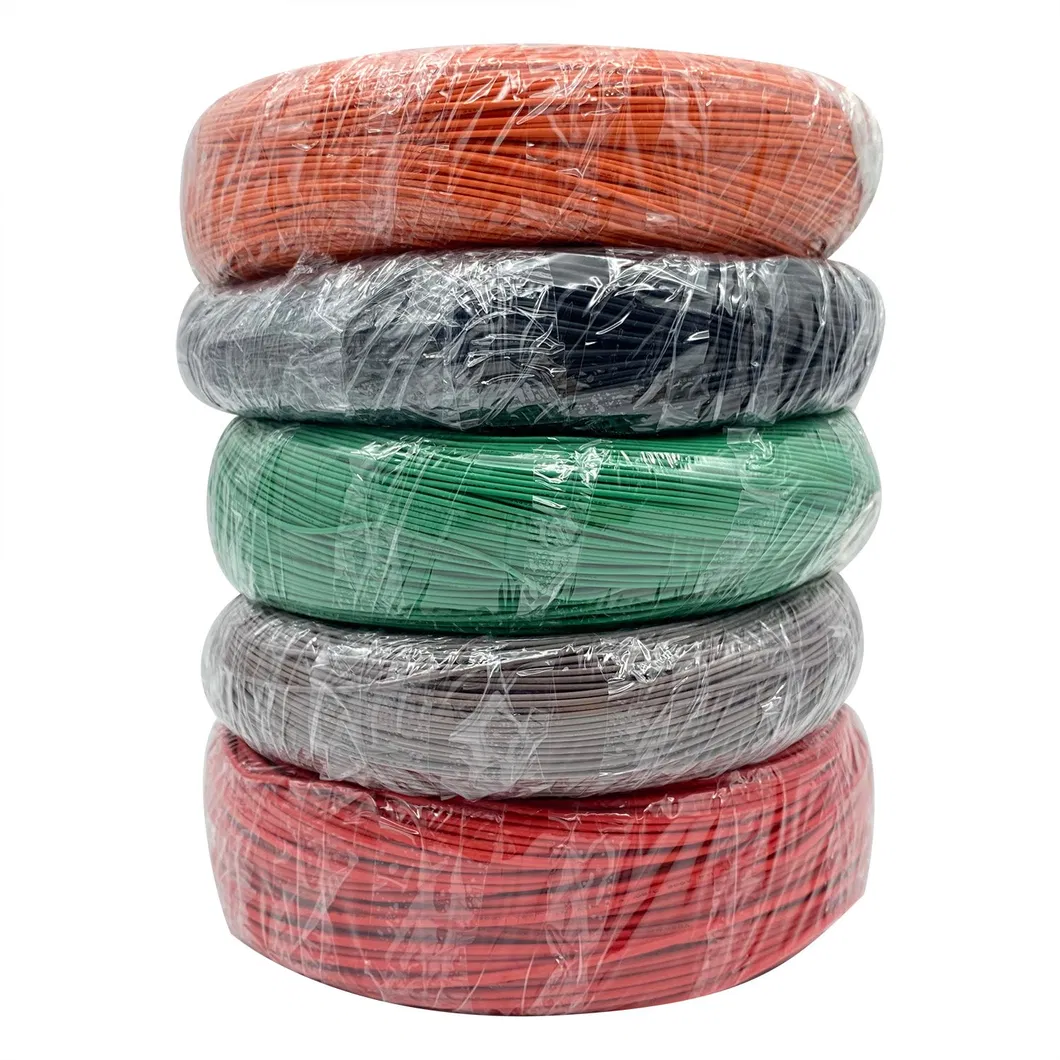

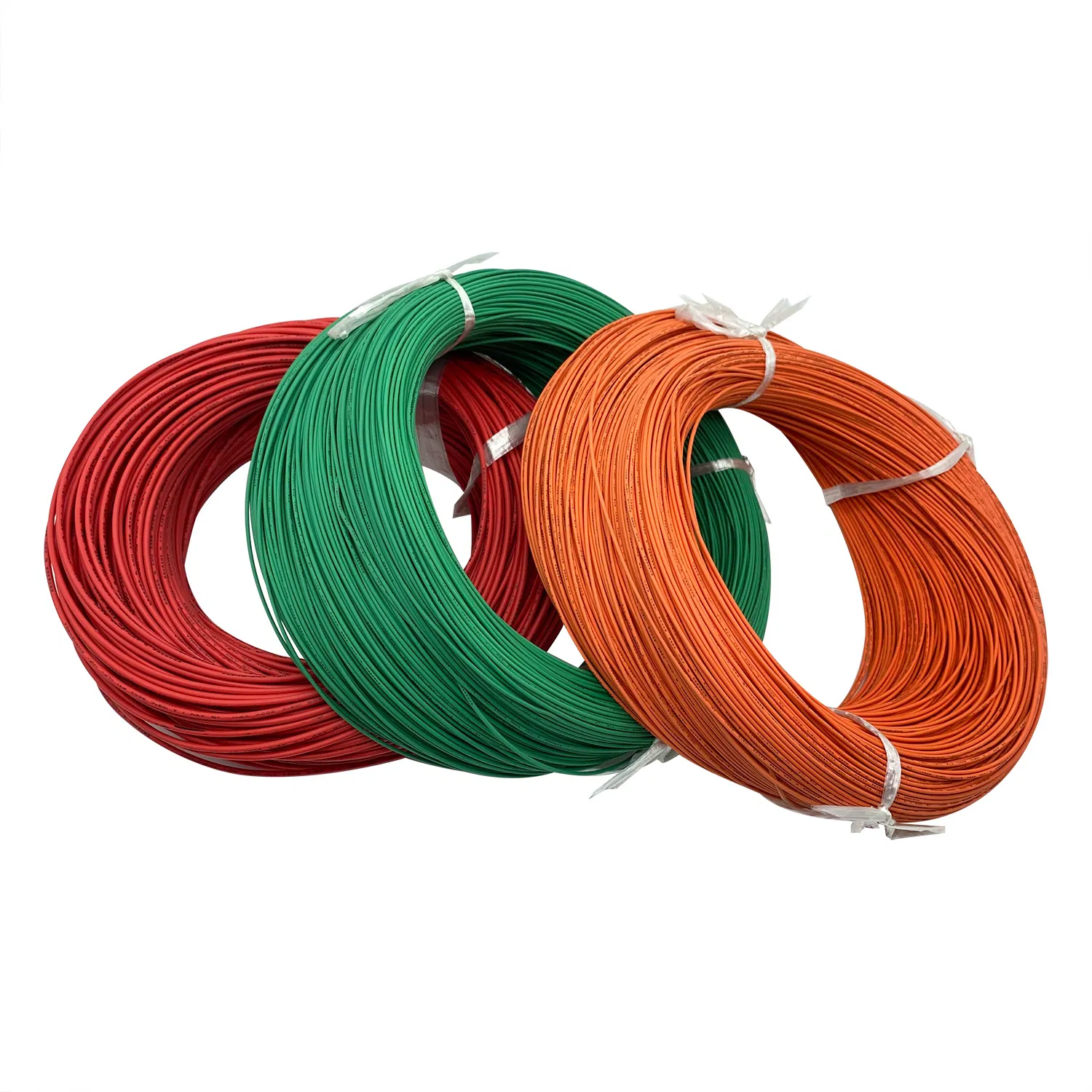

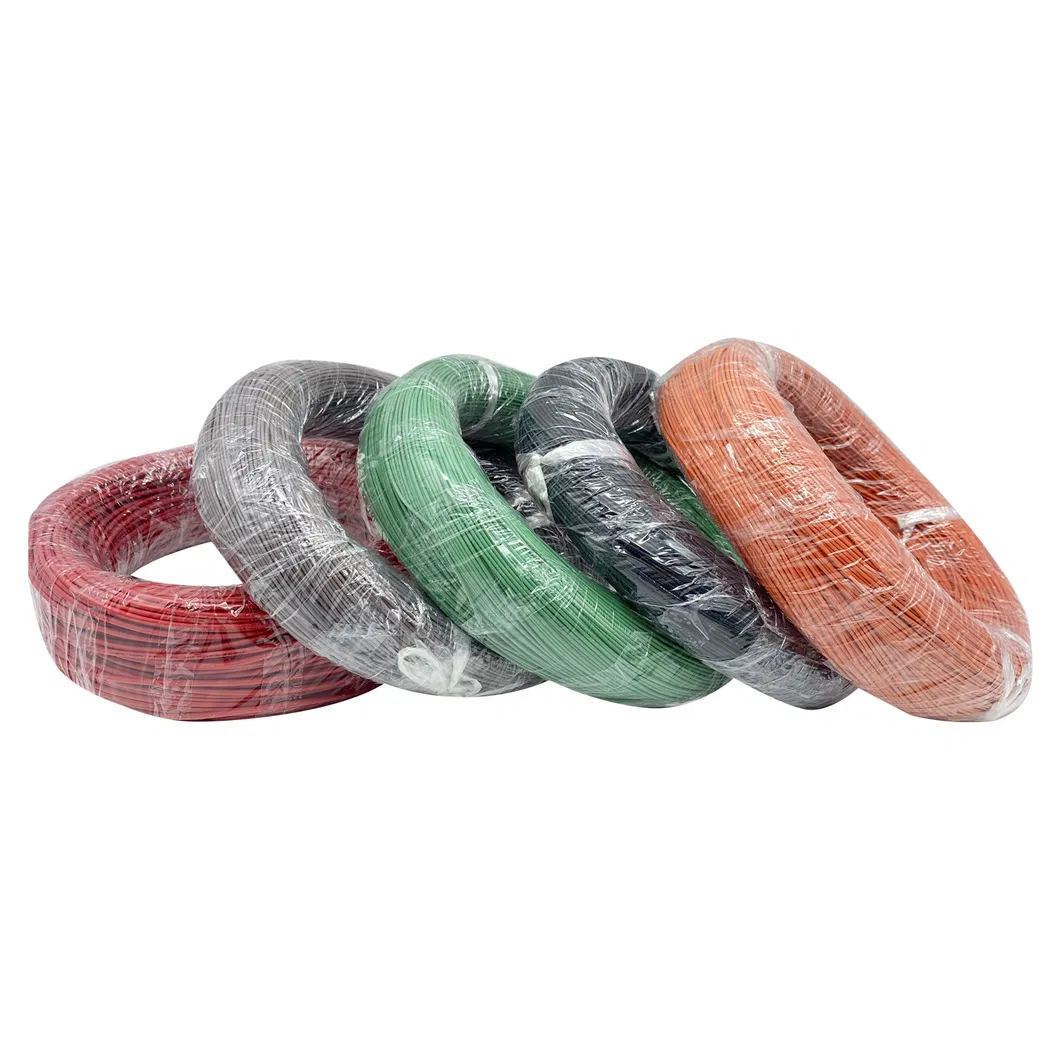

China UL Style 1185 80o C 300V Single Core Copper Electric Wire with RoHS Approval PVC Insulation for General Electronics Internal Component Wiring

Product Description

View more about products :

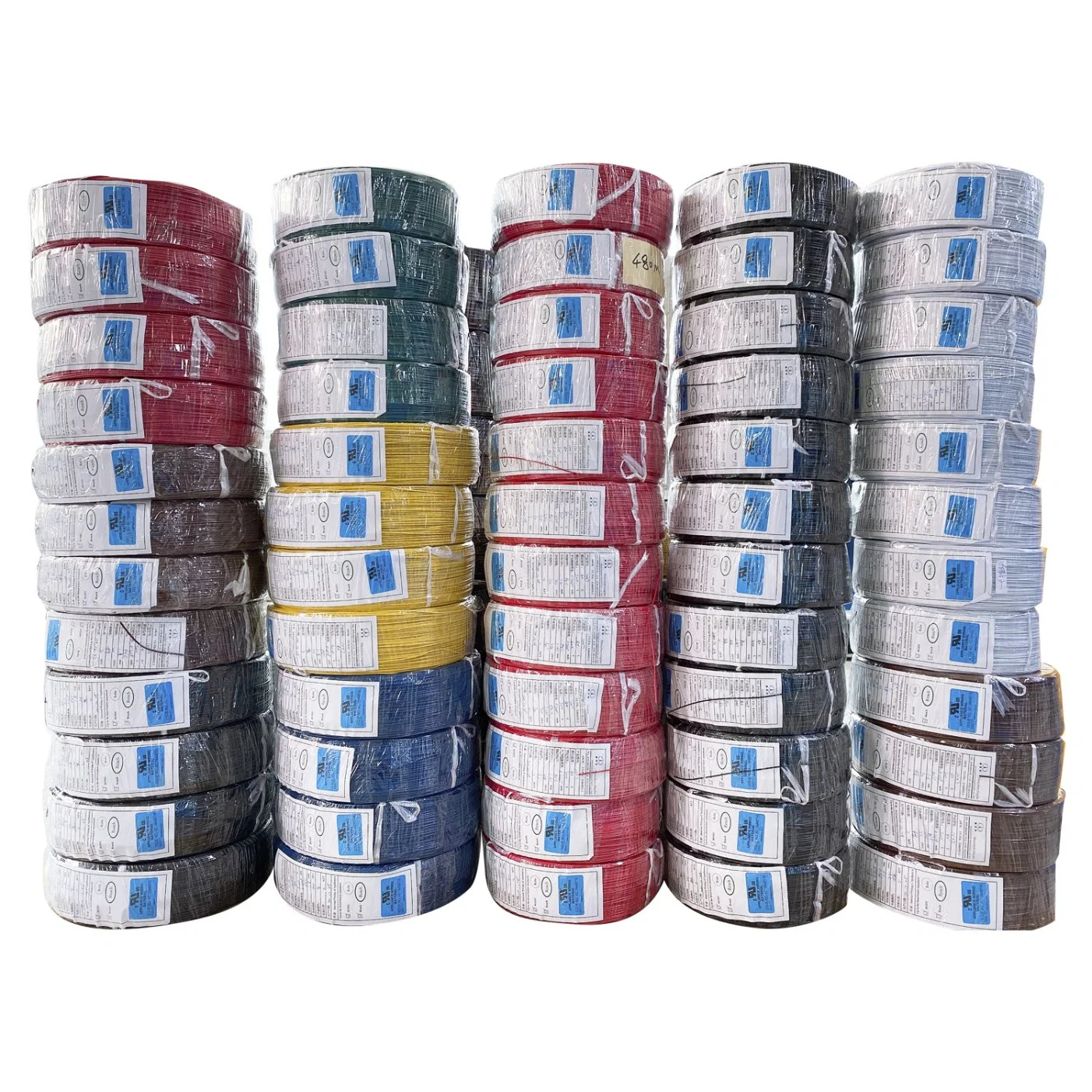

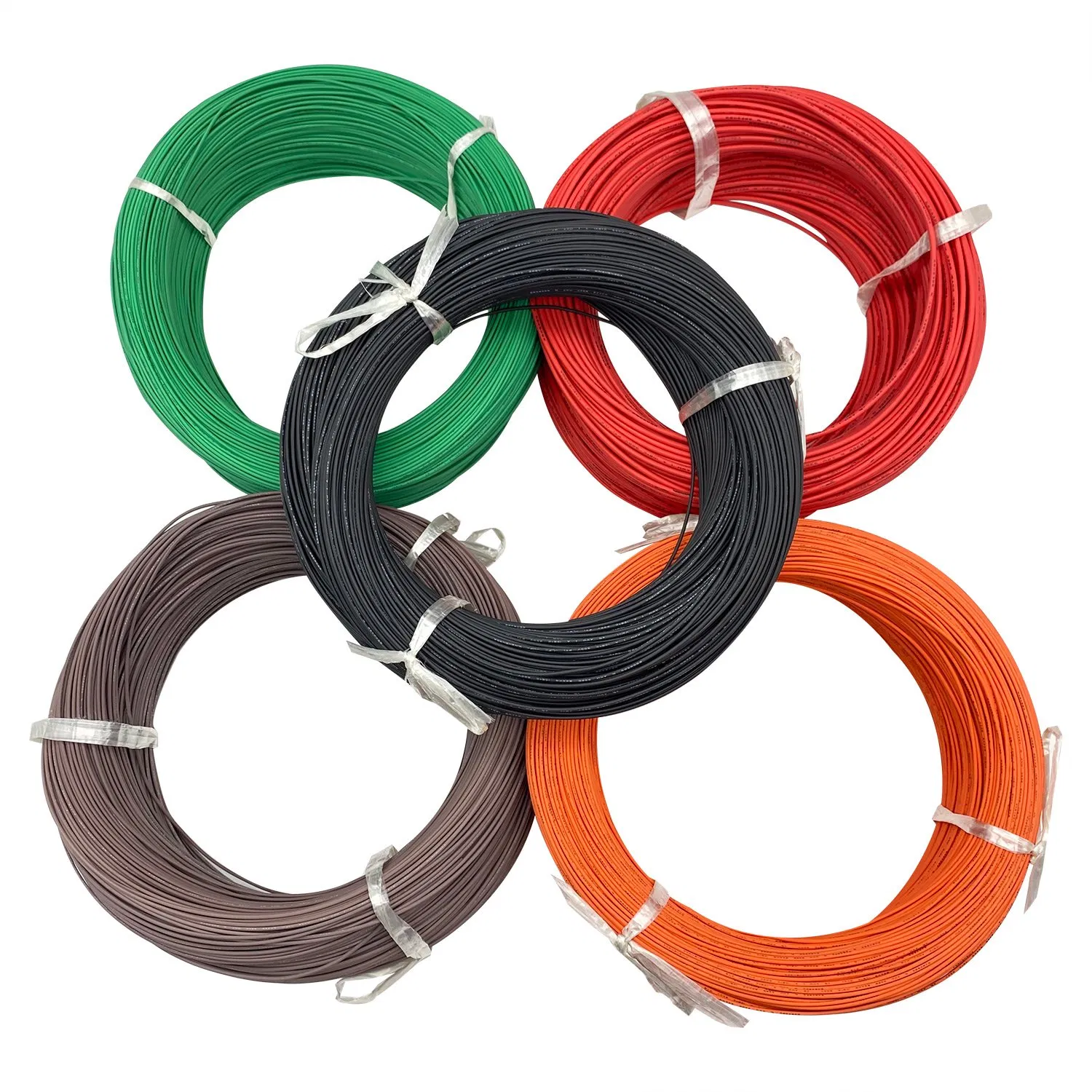

UL Style 1185 80ºC 300V Single Core Copper Electric Wire with RoHS approval PVC Insulation for General Electronics Internal Component Wiring
-Rated temperature: 80ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.

UL Style 1185 80º C 300V Single Core Copper Electric Wire with RoHS Approval PVC Insulation for General Electronics Internal Component Wiring

Conductor			Insulation		Spiral Shield		Jacket		Max. Cond Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond Resistance at 20°C (Ω/km)
28	7/0.127	0.38	0.43	1.24	38/0.1	1.44	0.45	2.34	239
26	7/0.16	0.48	0.43	1.34	45/0.1	1.54	0.45	2.44	150
24	11/0.16	0.61	0.43	1.47	46/0.1	1.67	0.46	2.58	94.2
22	17/0.16	0.76	0.43	1.62	54/0.1	1.82	0.46	2.74	59.4
20	26/0.16	0.94	0.43	1.80	56/0.1	2.00	0.46	2.92	36.7
18	41/0.16	1.18	0.43	2.04	64/0.1	2.24	0.46	3.16	23.2
16	26/0.254	1.49	0.43	2.36	74/0.1	2.56	0.46	3.48	14.6

Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.

★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.

★Insulation Materials: PVC/PE/XLPE/LSZH/TEFLON/FEP/SILICONE RUBBER/TPU and so on.

SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953)
Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1061	1330	1332	1430	1571	10269	10702
1015	1185	1331	1333	1569	1589	10368
Multiple-conductor, thermoplastic insulation.
2464	2648	2678	20080	21016	21513
2468	2651	2725	20276	21370
Single-conductor, thermoset insulation.
3173	3271	3321	3386	3656
3266	3302	3385	3619
Multiple-conductor, thermoset insulation.
4478

DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386)
Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007	1015	1061	1569	10070	10368
1013	1032	1185	1571	10269	11627
Multiple-conductor, thermoplastic insulation.
2464	2468	2517	2547	2651	2725	2835	20276
Single-conductor, thermoset insulation.
3173	3266	3289	3321	3386
3196	3271	3302	3385	3656
