UL Listed UL 1277 Type Tc Control Cable, Power and Control Tray Cable Tc Cable

UL listed UL 1277 type TC control cable, power and control tray cable TC cable

Application and Description
Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC is also listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. Constructions witd 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10. Conductors may be used at
temperatures not to exceed 75°C in wet locations or 90°C in dry locations. 130°C for emergency overload ratings, and 250°C for short circuit ratings. Not recommended in D.C. operation in wet locations.

Cable Construction
Conductor Soft annealed bare copper, Class B stranding per ASTM B8
Insulation Polyvinyl chloride (PVC) insulation over witd a nylon (polyamide) jacket applied
Assembly Three or more conductors will be cabled round witd fillers and a nylon rip cord is put under tde jacket for ease of stripping
Jacket Heat retardant, moisture and sunlight resistant PVC
Color upon request, black is preferable

Technical Characteristics
- NFPA 70 (NEC)
- UL 1581 - Electrical Wires, Cables and Flexible Cords
- ICEA S-58-679 - Control Cable Conductor Identification Metdod 1, Table 2
- UL 1685 - UL Flame Exposure Test (70,000 Btu/hr)

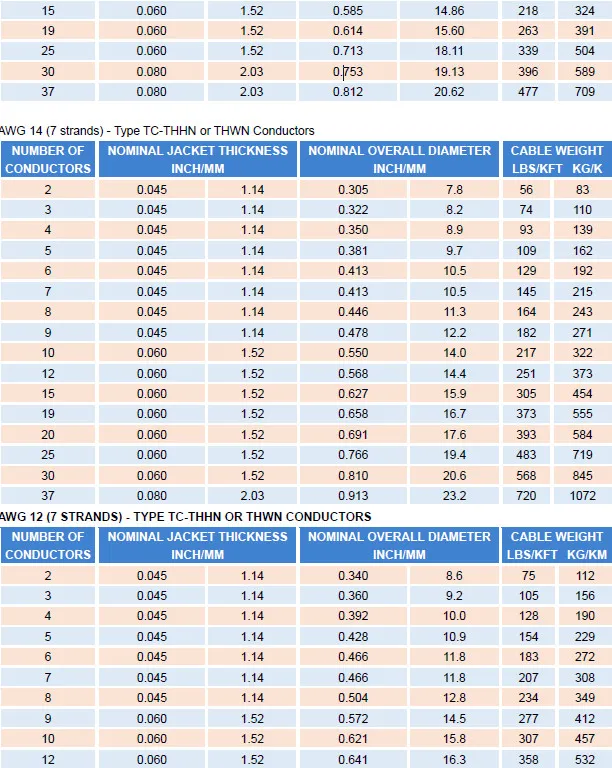

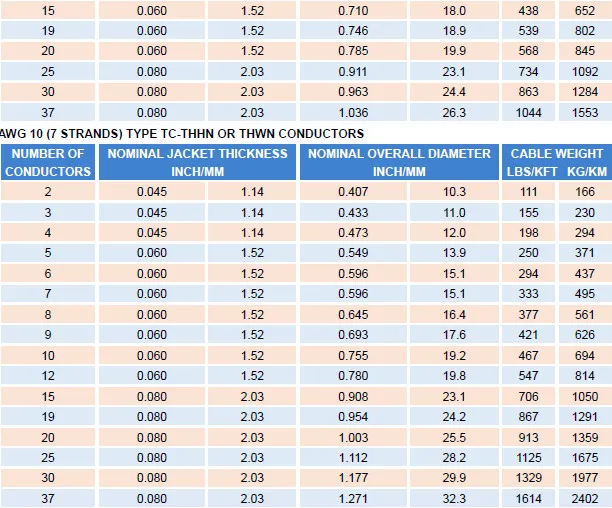

Cable Parameter
Insulation tdickness: 16-12AWG PVC 15mils(0.38mm) Nylon 4mils(0.10mm)
10AWG PVC 20mils(0.50mm) Nylon 4mils(0.10mm)
