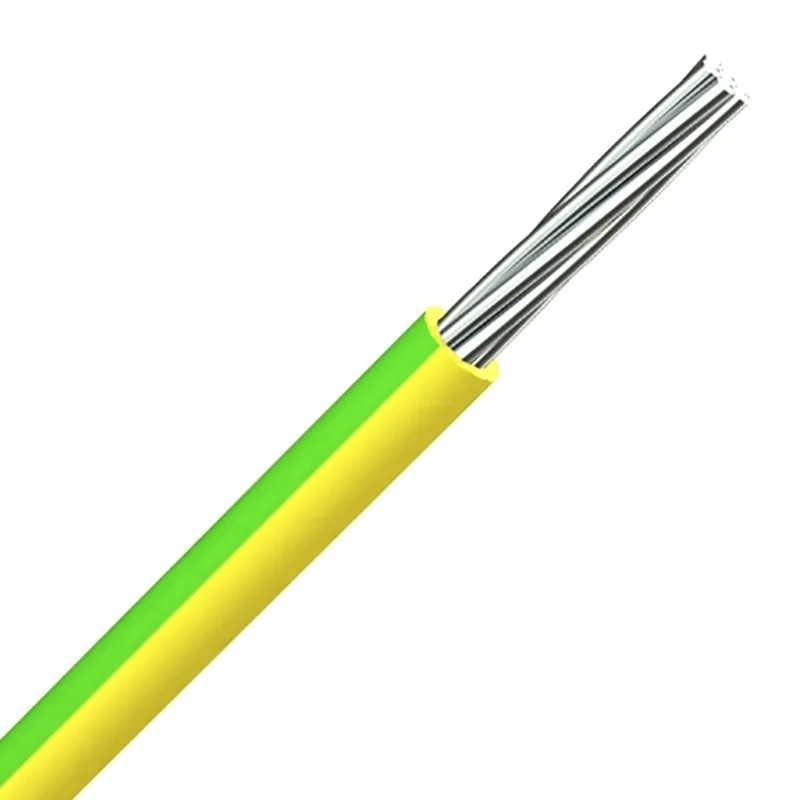

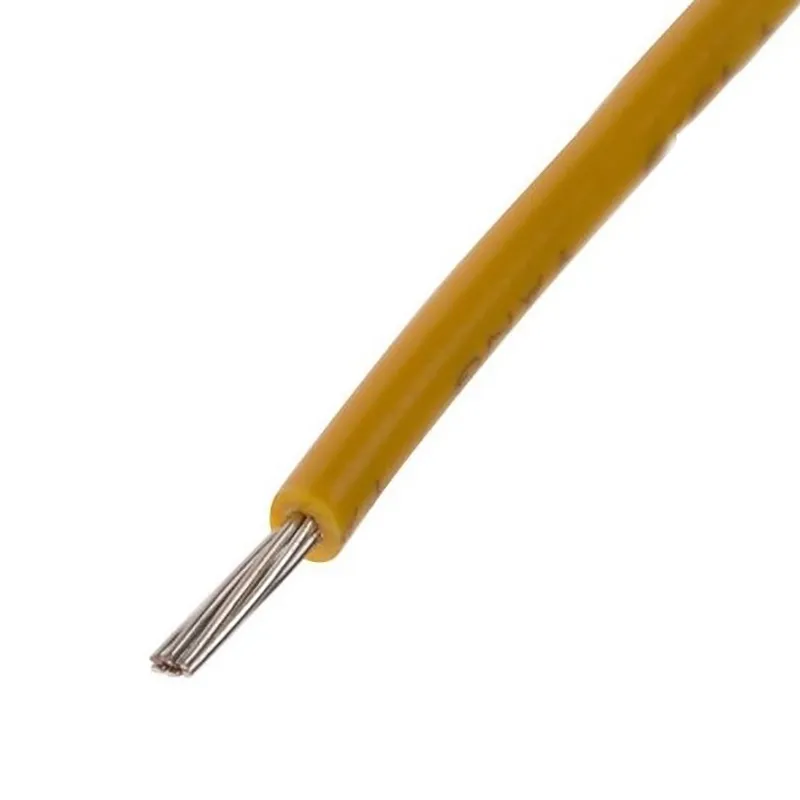

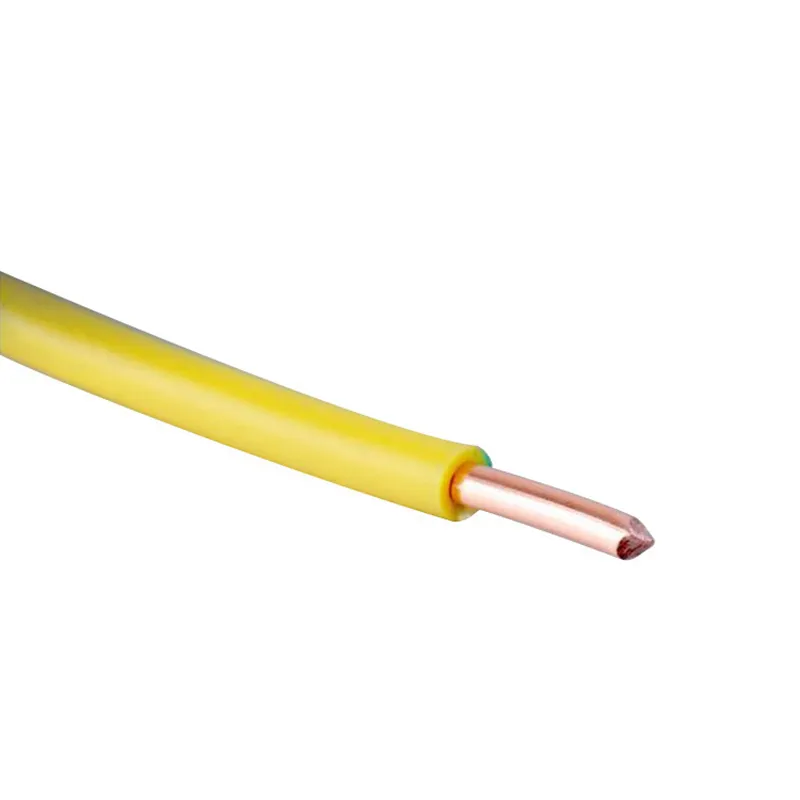

China UL Approved 1571 PVC Insulation Wire RoHS Complaint Hook up Electric Wire

Product Description

ul approved 1571 pvc insulation wire Rohs complaint hook up electric wire

Product Description:
★ Rated temperature: 80ºC
Rated voltage: 30V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded, Top coated, Over coated copper wire or solid copper conductor
copper wire, 50 AWG minimum
★ Colour-coded lead free PVC or SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Ultra fine version are available
★ Application: For internal wiring of electronic and electrical equipment, and power
adaptor for portable PC

Conductor			Insulation		Spiral Shield		Jacket		Maximum Resistance at 20 ºC Ω/km
AWG	No./mm	Dia. mm	Nom. Thick. mm	Nom.Dia. mm	No./mm	Nom.Dia	Nom. Thick. mm	Nom.Dia. mm	Maximum Resistance at 20 ºC Ω/km
36	7/0.050	0.15	0.15	0.45	-	-	-	-	1490
34	7/0.065	0.195	0.15	0.5	-	-	-	-	908
32	7/0.08	0.24	0.23	0.70	-	-	-	-	597
30	7/0.1	0.30	0.30	0.90	28/0.1	1.10	0.35	1.80	354
30	7/0.1	0.30	0.20	0.70	-	-	-	-	354
28	7/0.127	0.38	0.26	0.90	28/0.1	1.10	0.35	1.80	223
28	7/0.127	0.38	0.26	0.90	-	-	-	-	223
26	7/0.16	0.48	0.26	1.00	-	-	-	-	139
24	7/0.2	0.6	0.25	1.10	-	-	-	-	88.9
22	7/0.16	0.76	0.32	1.40	37/0.12	1.64	0.58	2.80	57.5
22	17/0.16	0.76	0.25	1.25	-	-	-	-	57.5
20	26/0.16	0.94	0.43	1080	57/0.1	2.00	0.56	3.10	34.6
18	65/0.127	1.18	0.30	1.78	47/0.12	2.02	0.59	3.20	23.3
16	54/0.18	1.52	0.32	2.15	54/0.12	2.39	0.61	3.60	15.1

Our products Application Areas: UL Approved 1571 PVC Insulation Wire RoHS Complaint Hook up Electric Wire

UL Style	Conductor		Insulation	Overall	Standard Put-up		Conductor
UL3314			Thickness	Diameter			Resistance at 20ºC

	AWG	No/mm	mm	mm	Ft/coil	M/Coil	Ω/KM
	24	11/0.16	0.38	1.4	2000	610	94.2
	22	17/0.16		1.6			59.4
	20	21/0.178		1.8			36.7
	18	34/0.178		2.1			23.2
	16	26/0.250		2.3			14.6
	14	41/0.250		2.7			8.96
	12	65/0.250		3.2	1000	305	5.64
	10	105/0.250		3.8	1000	305	3.55

Product standard
Our products can meet UL, VDE, CCC, PSE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.

Our factory could meet ISO9001:2008 management systems standard. There are 6 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.
UL Approved 1571 PVC Insulation Wire RoHS Complaint Hook up Electric Wire

Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.

Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.

Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.

Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.

Q6: Where is your main market
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.

Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service

Why choose us
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
